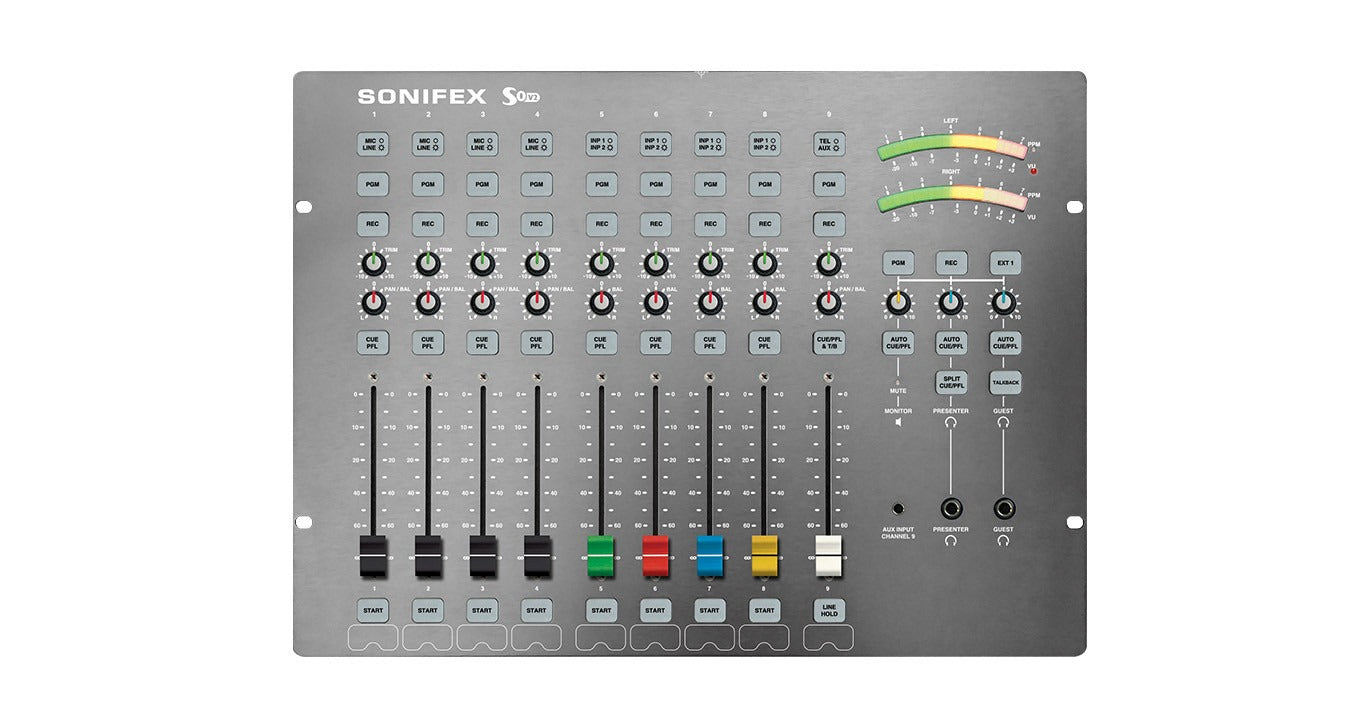

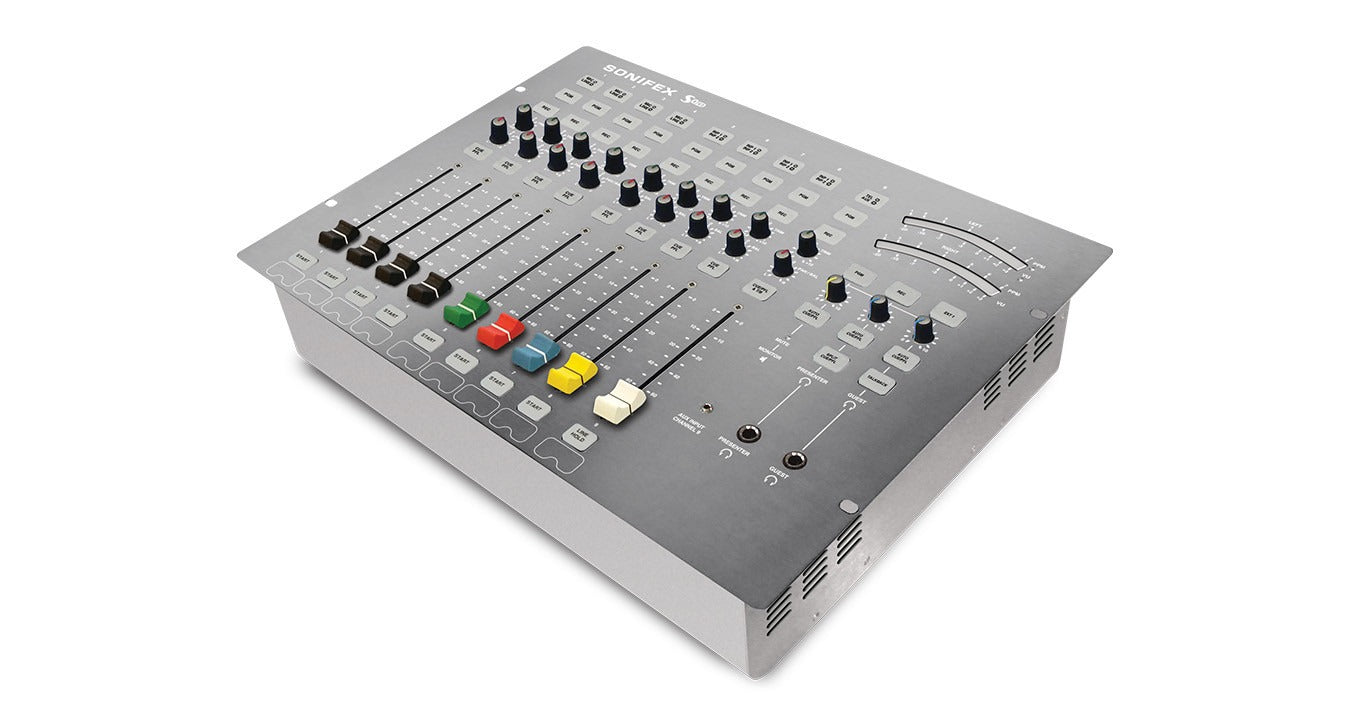

The S0v2 is a high quality yet simple to operate radio broadcast mixer ideally suited to community radio stations, for educational purposes and for internet radio. With a front panel machined from solid aluminium, the S0v2 looks stylish. It is easy to understand, the S0v2 includes a telephone hybrid for making and recording telephone calls and a 3.5mm stereo jack for plugging in an mp3 player. Skype calls can be cued via USB and the S0v2 can be controlled by an automation system. The addition of a USB port allows for recording to a PC and for playing a PC automation system directly through the mixer. The headphone outputs have a built in limiter to offer hearing protection and the studio speakers mute when a microphone fader is open, with automatic mic live sign switching. The S0v2 allows presenters and DJs to be up and running quickly with a fully featured radio studio mixer. The S0v2 has a machined luxury face plate in brushed aluminium finish and a Skype PC interface on 3.5mm jack and USB.
Product Features
User friendly broadcast mixer.
Clear, simple layout with no jargon.
Designed for school & community radio.
Nine multi-function channel mixer.
Built in telephone interface.
Skype PC interface on 3.5mm jack and USB.
Built in headphone volume limiter.
Large, simple LED volume display.
Remote output for fader starts.
Speaker muting when ‘Mics’ are on.
External mic-light switching output.
‘Programme’ and ‘record’ outputs.
‘Aux’ input for iPod or MP3 players.
Four microphone/line channels.
Four stereo line channels.
Machined luxury face plate in brushed aluminium finish.
Switchable telephone/AUX channel.
Stereo USB audio to and from a PC.
Guest headphone ‘talkback’.
Reliable, low cost mixing solution.
Rack or flush mountable.
Integrated AC power supply.
Typical Applications
Community, student, hospital and small scale radio broadcast mixer, secondary or backup on-air mixer.
Product Category
Mix Consoles
Technical Specifications
Mic Inputs Audio Specification
Input Impedance: > 1k5Ω electronically balanced
Input Gain Range: Preset pot +24dB to +67dB ref -50dBu, TRIM pot ± 15dB
Frequency Response: 40Hz to 20kHz –1dB, +0dB
Mic input E.I.N.: -130dB with 150Ω source
Phantom Power: +48V to each mic input (SCi selectable)
Common Mode Rejection Ratio: > 60dB typically
Pan Range: Off/-3dB Centre/Off
Stereo Line Inputs Audio Specification
Input Impedance: > 20kΩ electronically unbalanced
Input Gain Range: +10dB ref 0dBu at PGM output, TRIM pot ± 15dB
Frequency Response: 20Hz to 20kHz –0.5dB, +0dB
Noise (20Hz-20kHz): -92dBu ref 0dB (fader down, no routing)
Total Harmonic Distortion: 0.015% at 1kHz, 0.015% at 10kHz ref +8dBu
