Sonifex RB-DAC1 | Digital to Analogue Converter

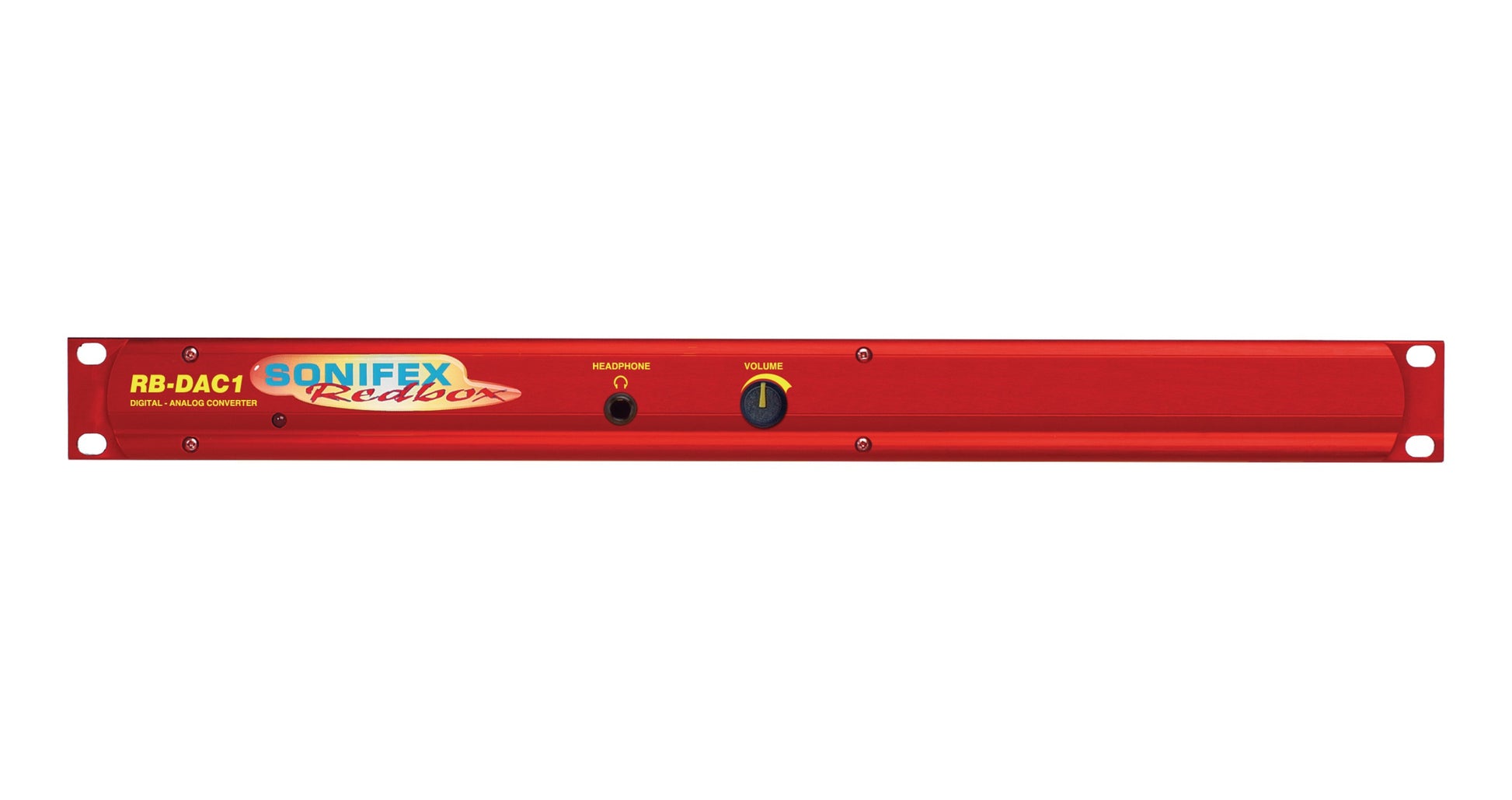

Using 24 bit, 192kHz capable devices, the RB-DAC1 D/A Converter is a 1U rack-mount which produces a stereo balanced XLR or unbalanced phono output from an incoming AES/EBU or S/PDIF digital input signal. There is also a headphone output with volume control for monitoring purposes. The analogue outputs have an output level control, allowing full-scale settings selectable from +12dBu, +18dBu or +24dBu. The RCA phono outputs have a further 8.5dBu attenuation incorporated.

Product Features

• AES/EBU & S/PDIF digital inputs.
• Balanced XLR and phono analogue outputs.
• Headphones output with level control.
• Switchable de-emphasis decode.

Typical Applications

To connect the output of a CD player to an analogue amplifier, or the program output of a digital mixer to a pair of powered speakers.

Product Category

Signal Converters

Technical Specifications

Audio Specification

• Maximum Output Level: Balanced Output: +24dBu
• Maximum Output Level: Unbalanced Output: +15.5dBu
• Maximum Output Level: Headphone Output: +20dBu (ref. <0.01% THD)
• Output Impedance: Balanced Output: <50Ω
• Output Impedance: Unbalanced Output: <75Ω
• Output Impedance: Headphone Output: Drives 150mW into 32Ω to 600Ω professional headphones
• Dynamic Range: Balanced Output: 115dB
• Dynamic Range: Unbalanced Output: 115dB
• Dynamic Range: Headphone Output: 100dB
• Gain Range: Balanced Output: Selectable 12dBu, 18dBu or 24dBu output level, ref FSD
• Gain Range: Unbalanced Output: Selectable 3.5dBu, 9.5dBu or 15.5dBu output level, ref FSD
• Gain Range: Headphone Output: -80dBu (volume 0%) to +20dBu (volume 100%) ref FSD
• Distortion & Noise: Balanced Output: <0.005% THD+N @1kHz, ref +8dBu
• Distortion & Noise: Unbalanced Output: <0.005% THD+N @1kHz, ref -6dBV
• Distortion & Noise: Headphone Output: <0.005% THD+N @1kHz, ref +8dBu
• Sample Freq. Range: Balanced Output: 32kHz - 192kHz

Operational Controls

• Digital Input Select: AES/EBU or S/PDIF, via push-button
• Gain Select: DIP switch
• De-emphasis On/Off: DIP switch

Connections

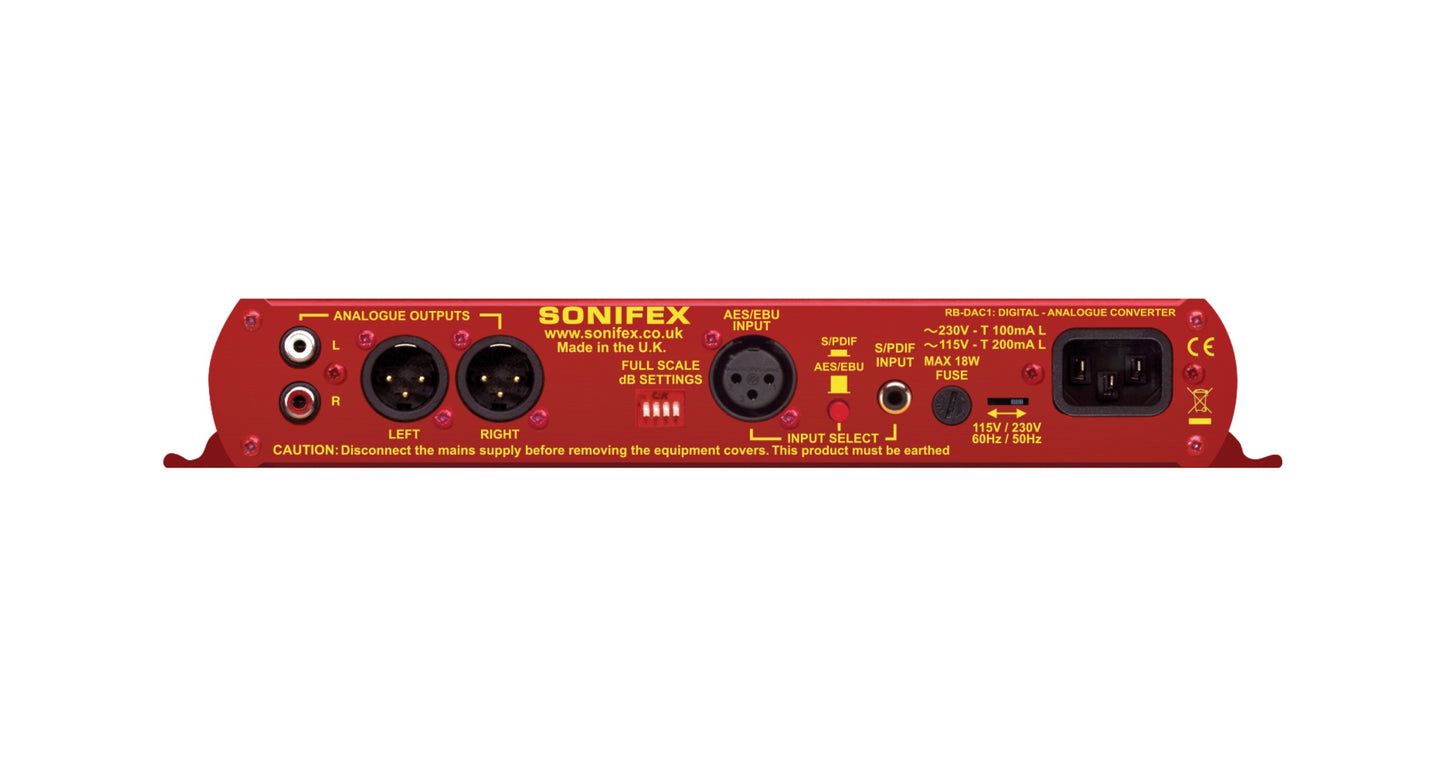

• Digital Inputs: 1 x AES/EBU XLR 3 pin female
• Digital Inputs: 1 x S/PDIF RCA phono
• Analogue Outputs: 2 x XLR 3 pin male (balanced)
• Analogue Outputs: 2 x RCA phono (unbalanced)
• Headphone Output: 1 x ¼” (6.35mm) A/B-gauge 3-pole stereo jack sockets
• Mains Input: Filtered IEC, 110V-120V, or 220-240V, fused, 18W max
• Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC), Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

• RB-DAC1: Digital to analogue converter

Physical Specification

• Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
• Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
• Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
• Dimensions (Boxed): 23” (W) x 8.9” (D) x 2.8” (H)
• Weight: Nett: 1.4kg Gross: 2.0kg
• Weight: Nett: 3.1lbs Gross: 4.4lbs
