Sonifex AVN-DIO20 | Dante MADI AES3 64 Channel I/O Converter

Name: Sonifex AVN-DIO20 | Dante MADI AES3 64 Channel I/O Converter
Brand: Sonifex
SKU: AVN-DIO20
Price: 1907.68 EUR
Availability: InStock

€1.907,68 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

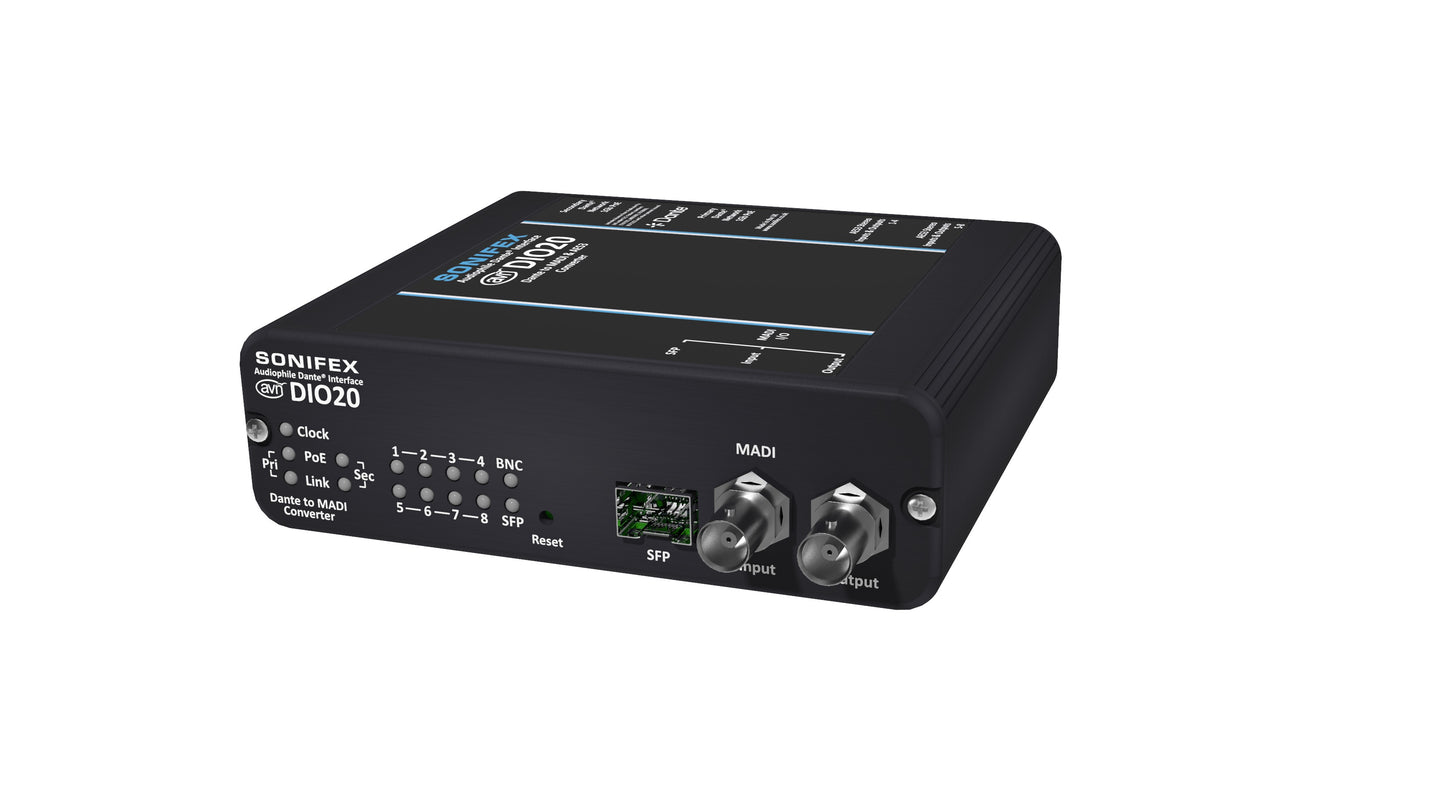

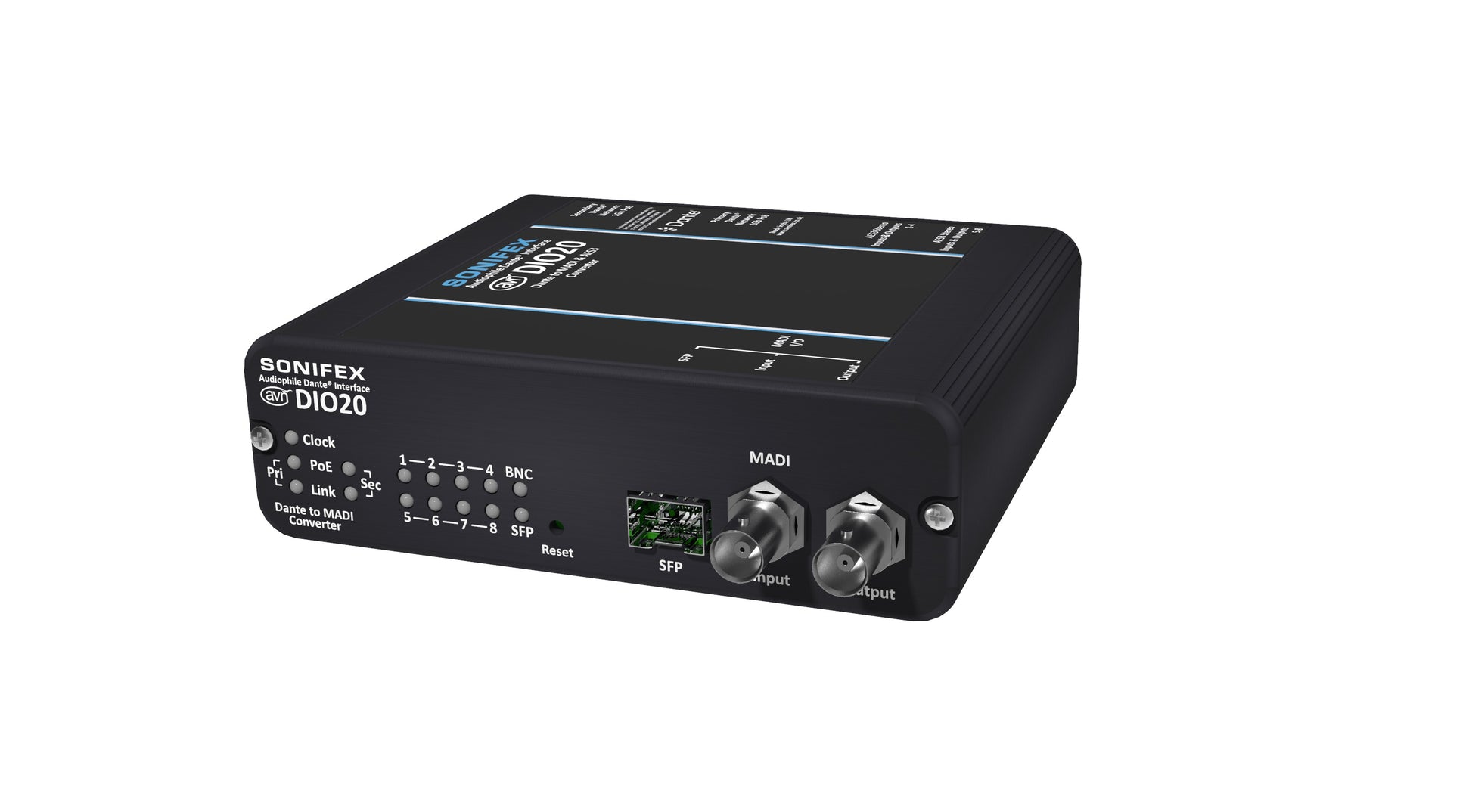

The AVN-DIO20 is a MADI and AES3 to Dante bridging device that enables bidirectional connection between MADI and AoIP, alongside 8 stereo AES3 channels. This plug-and-play interface provides a quick and convenient method for integrating legacy MADI equipment into a Dante audio network. The unit accepts a MADI input, sample rate converts all 64 channels, and places them onto the network, where routing is managed via Dante Controller. At the same time, it receives 64 channels from the network, optionally applies sample rate conversion, and outputs them as MADI.

Product Features

Dante AoIP.
1 x AES10 MADI input and output, on either SFP or coaxial BNC (up to 64 channels of MADI I/O).

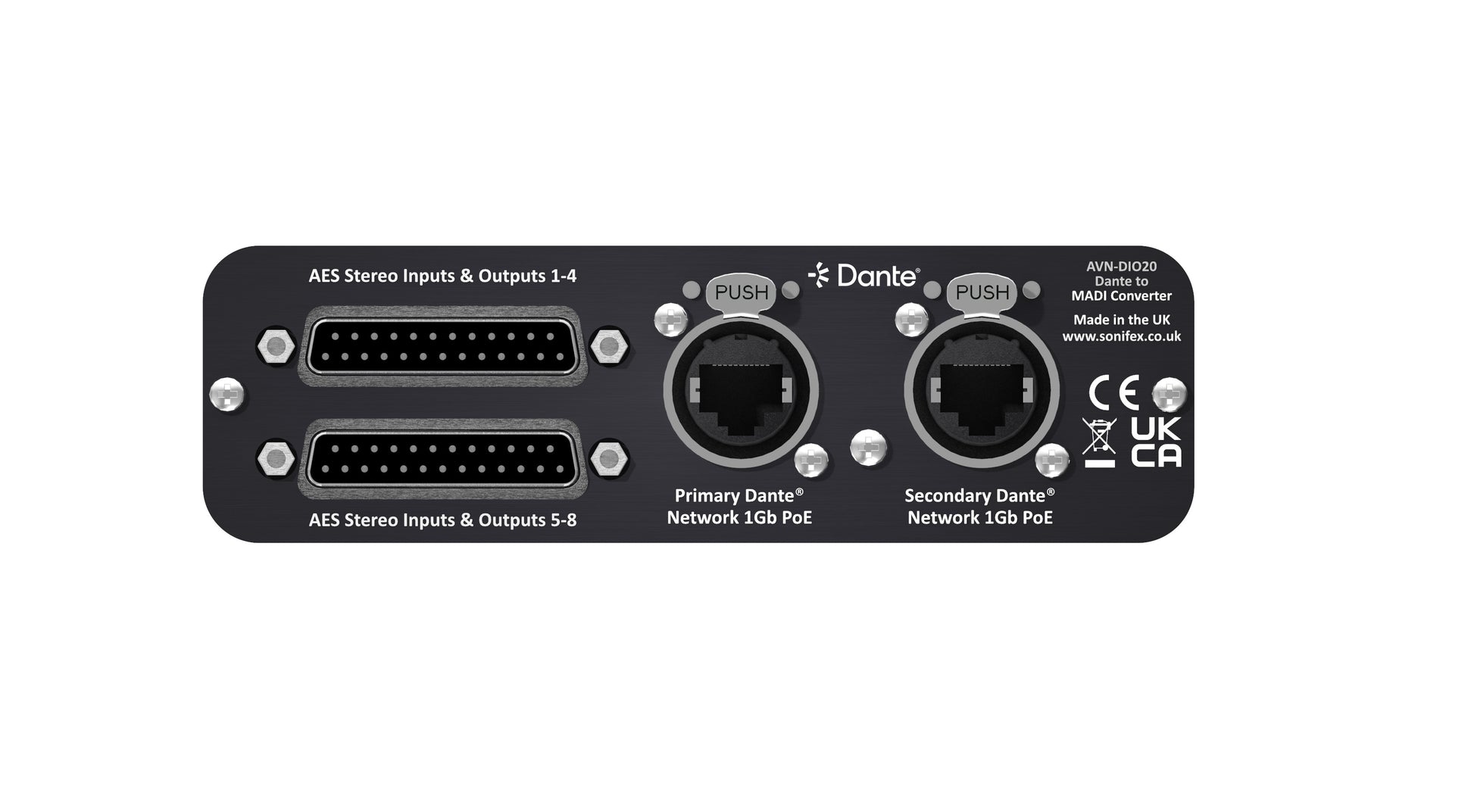

8 x stereo AES3 inputs and outputs on 2 x 25-way D-types, using AES59 digital pinout.

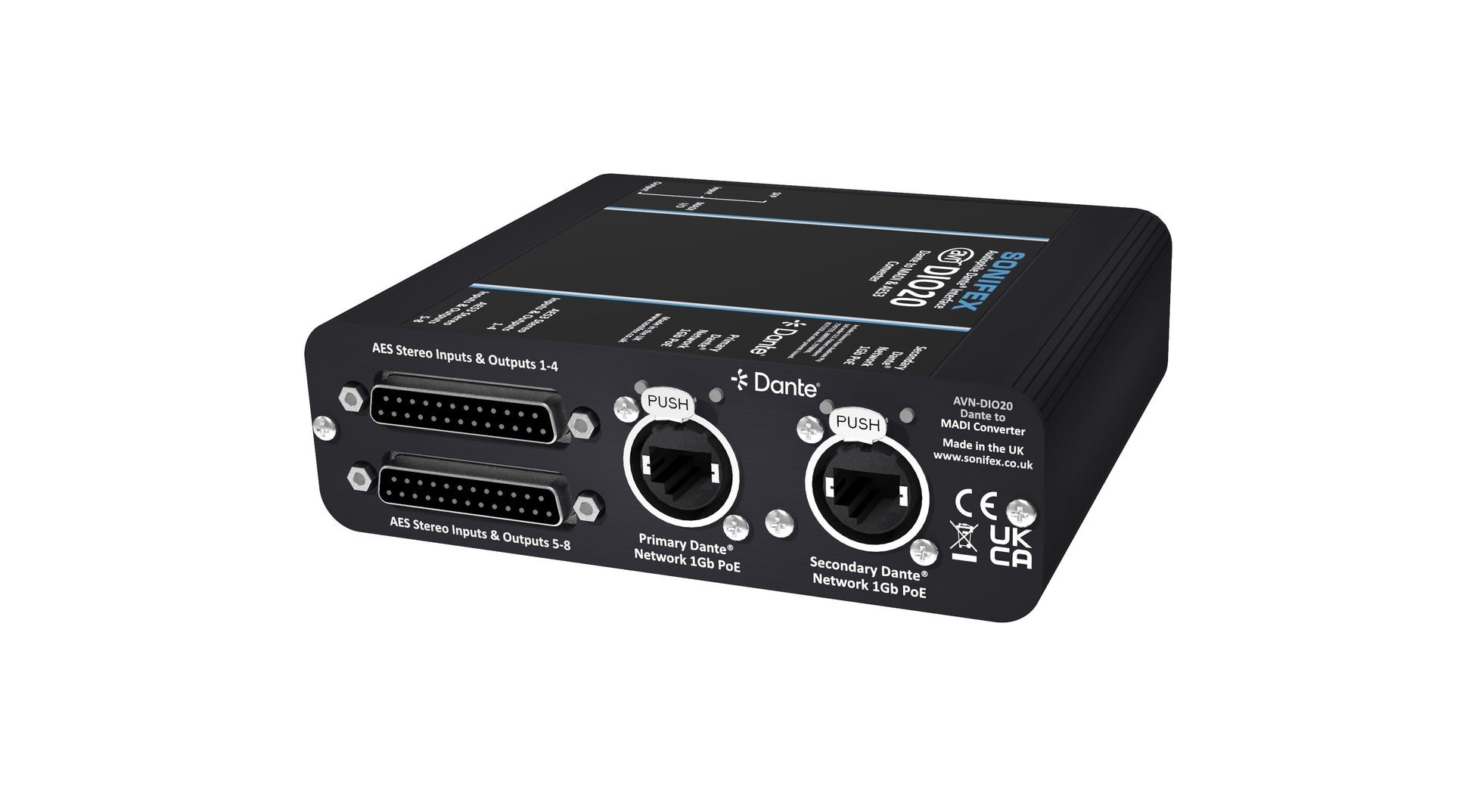

Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCON® Ethernet connectors.
Powered via PoE (Power over Ethernet) with PoE dual redundancy.

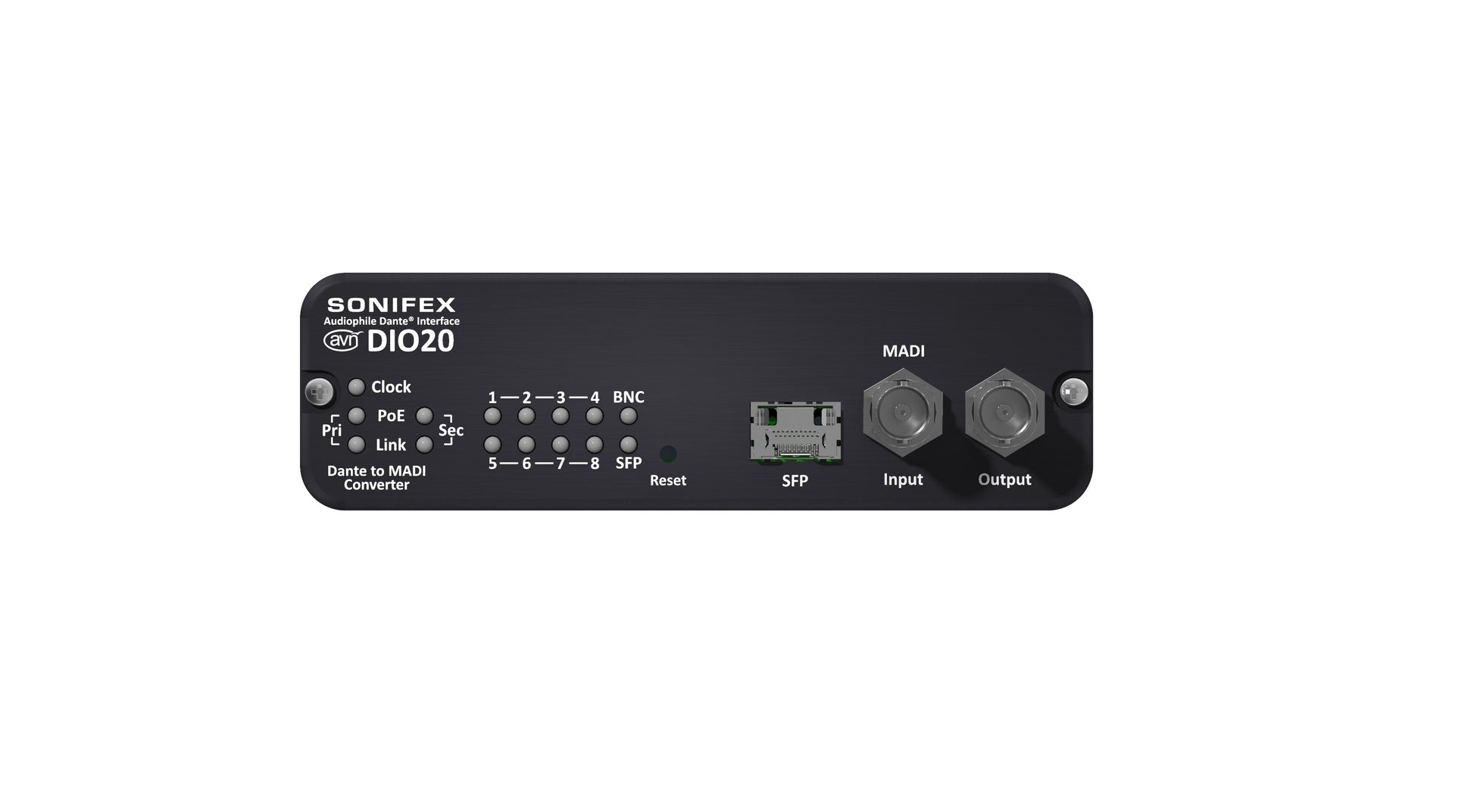

Clock, PoE, Network link, AES3 input lock and MADI active LEDs.
MADI 64, 56, 28 and 16 channel support and audio sample rate support up to 192kHz.
MADI SFP to BNC automatic failover.
Optional SRC bypass to AES inputs.
Fully Dante compliant device.
Dante Domain Manager compliant.
Dante clock domain can be optionally synchronised from the MADI source.
Sample rate conversion of audio between Dante and MADI/AES3.
All available Dante sample rates supported (44.1kHz to 192kHz).
AES67 compatible.
Web interface for configuration.
1U rack-mount option with the AVN-DIORK.
Aluminium construction.

Typical Applications

Converting legacy MADI connections to the Dante network, perfect for mixing consoles with MADI connectivity. Converting MADI to Dante in OB trucks, together with AES3 conversion for AV installations.

Product Category

MADI Dante Converters

Technical Specifications

MADI I/O

BNC Input & Output Impedance: 75Ω Unbalanced
MADI Input Sample Rate/Channels: 48kHz – 56/64 channels
MADI Input Sample Rate/Channels: 96kHz – 28/32 channels
MADI Input Sample Rate/Channels: 192kHz – 16 channels
MADI Output Sample Rate/Channels: Follow input,
MADI Output Sample Rate/Channels: Dante sample rate
MADI Output Sample Rate/Channels: Coaxial BNC input and output
Connections: SFP - LVDS SFP 100MB/s

AES3 I/O

Input& Output Impedance: 110Ω Balanced
Sample Rates: 32 – 192kHz
Connections: 8 x stereo AES3 inputs and outputs on 2 x 25-way D-types using AES59 pinout

Network and AoIP

AoIP Standard: Dante
Channels: 64 receive, 64 transmit
Flows: 32 receive, 32 transmit
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Encoding: PCM 16, PCM 24, PCM 32
Connectivity: 2 x etherCON (RJ45 compatible)
Speed: 1Gbps or 100Mbps
Network Modes: Switched or redundant
AES67 Support: Yes
Dante Domain Manager Ready: Yes
Clock Source: Internal (PTP Leader), Network PTP Leader or from MADI input

PoE Power

Standard: 802.3af
Redundancy: Yes
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 6.1W
Max PSE Usage: 15.4 W

Equipment Type

AVN-DIO20: Dante to MADI/AES3 64 channel I/O converter

Physical Specification

Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
Dimensions (Raw): 5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
Dimensions (Boxed): 7.0” (W) x 6.7” (D) x 2.2” (H)
Weight: Nett: 0.4kg Gross: 0.6kg
Weight: Nett: 0.9lbs Gross: 1.3lbs

Accessories

AVN-DIORK: AVN-DIO 1U 19” rack kit (5 x small DIO or 3 x large DIO)
CBL-D25-4XI4XO: AES3 balanced cable, DB25 to 4 x XLR3M and 4 x XLR3F, 3m
CBL-D25-D25: AES3 balanced cable, DB25 to DB25, 3m
