Sonifex AVN-DIO19 | Dante AES3 16 Channel I/O Converter
Sonifex AVN-DIO19 | Dante AES3 16 Channel I/O Converter
Nepavyko įkelti atsiėmimo galimybių
The AVN-DIO19 is an AES3 to Dante audio converter, supporting up to eight stereo AES3 inputs and eight stereo AES3 outputs for seamless integration with Dante Audio-over-IP networks. Each input accepts sample rates from 32kHz to 192kHz and is automatically sample rate converted to match the Dante system rate. All outputs operate at the system sample rate, ensuring consistent performance across the network. Optional SRC bypass to AES inputs is also available.
Product Features

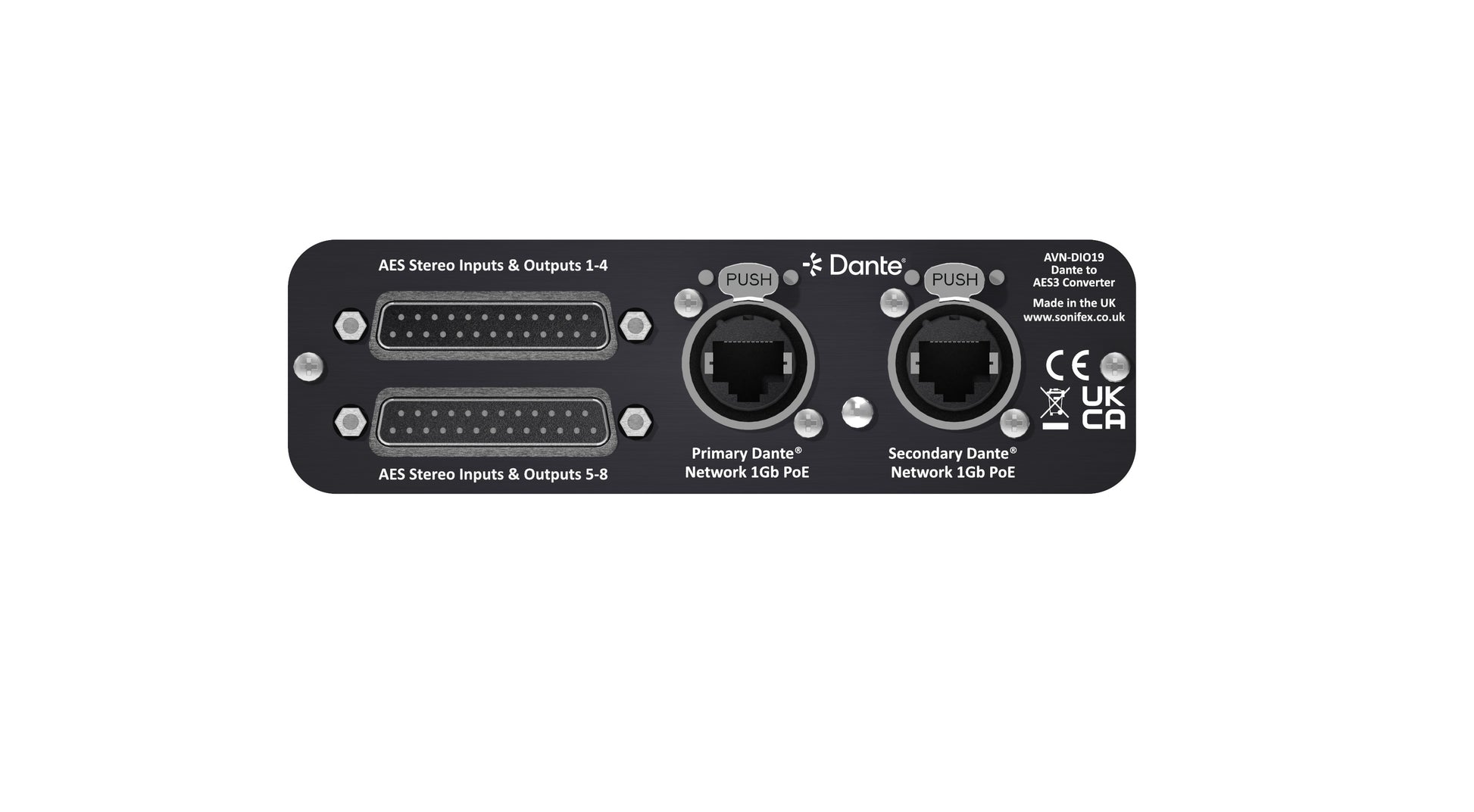

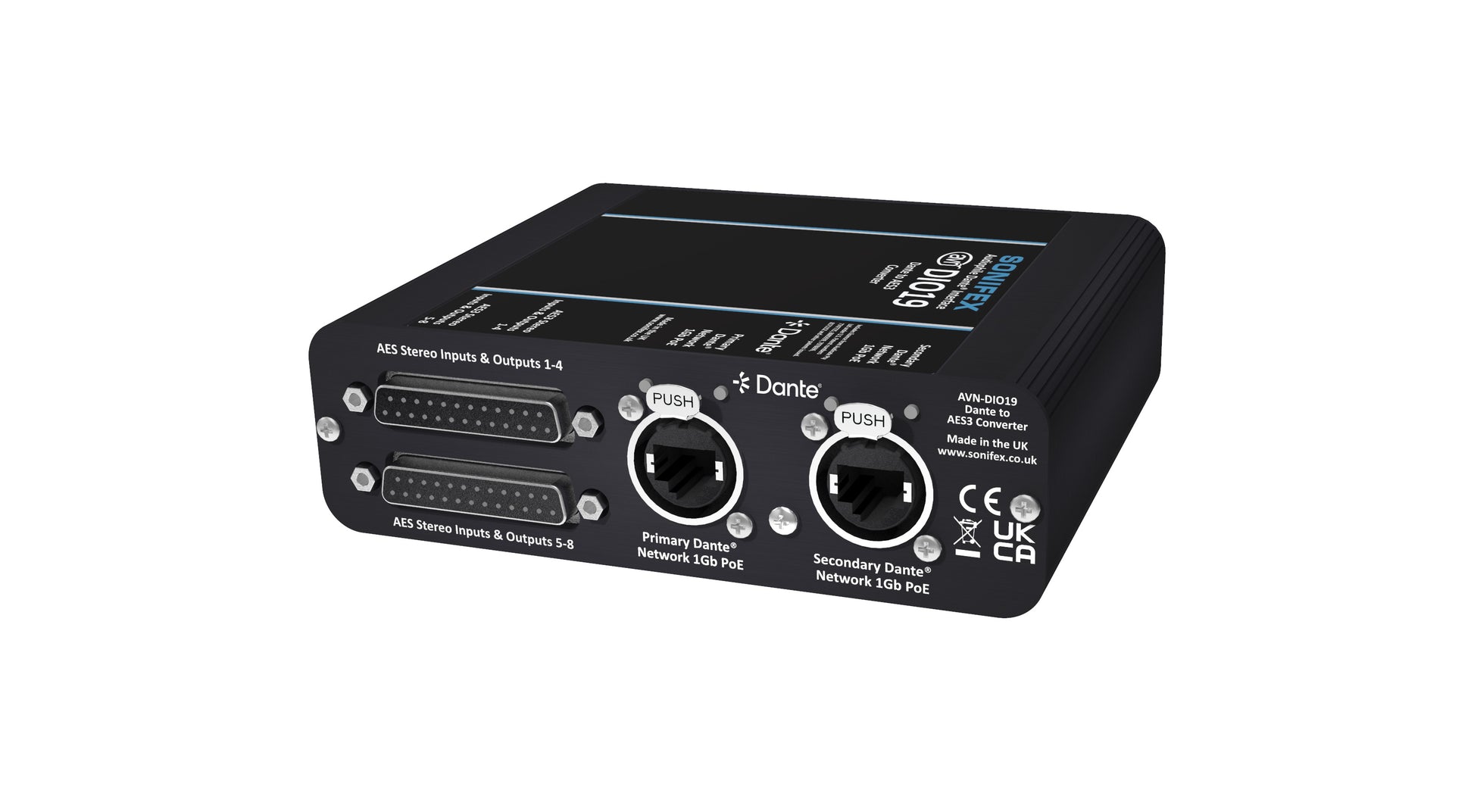

- 8 x balanced digital stereo AES3 inputs and outputs on 2 x 25-way D-types.
- Sample rate conversion of physical inputs to Dante system sample rate.
- Physical output sample rate matches Dante system sample rate.
- Optional SRC bypass to AES inputs.
- All available Dante sample rates supported.
- Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCON® Ethernet connectors.
- Powered via PoE (Power over Ethernet) with PoE dual redundancy.
- Fully Dante compliant device.
- Dante Domain Manager compliant.
- AES67 compatible.
- Web interface for configuration.

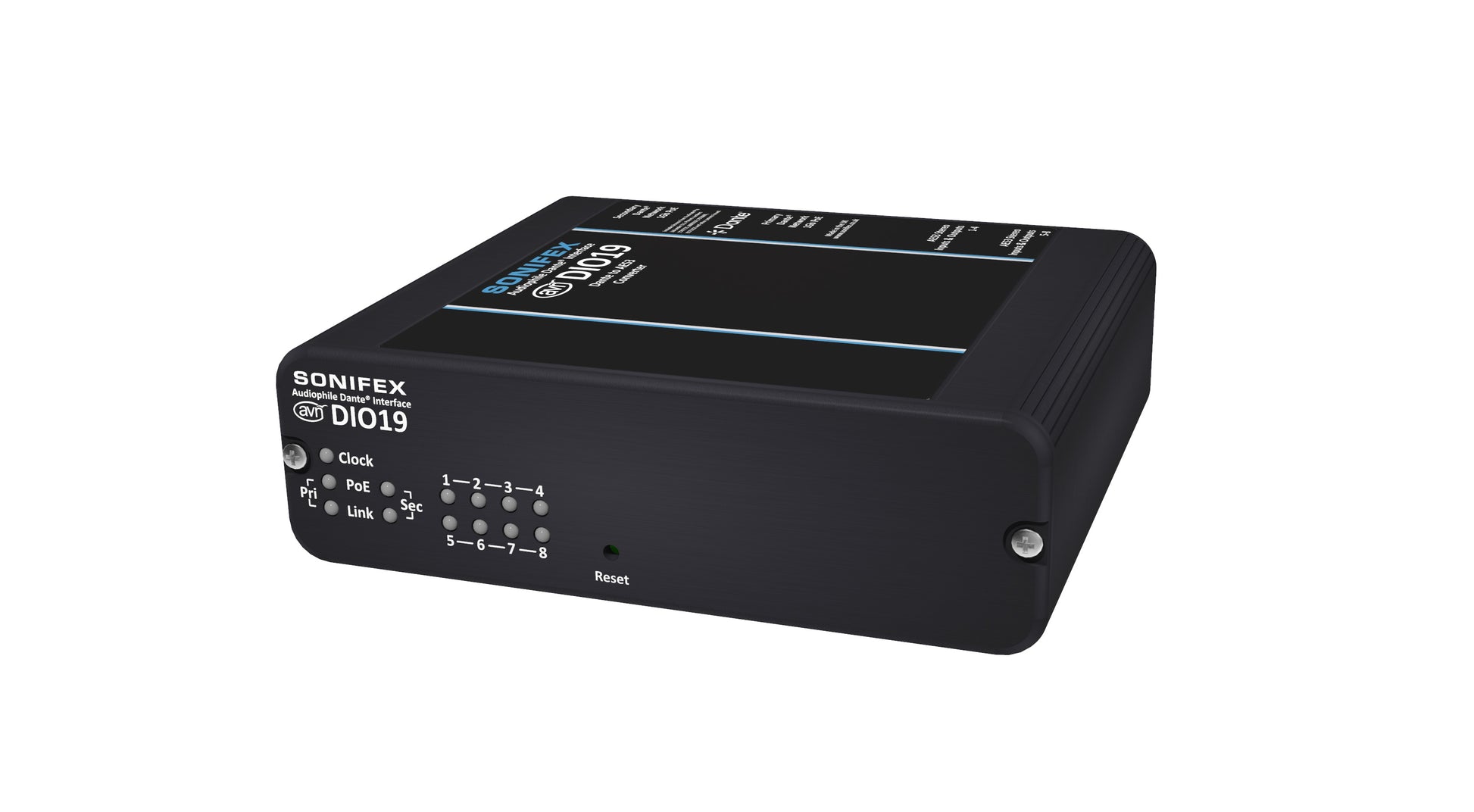

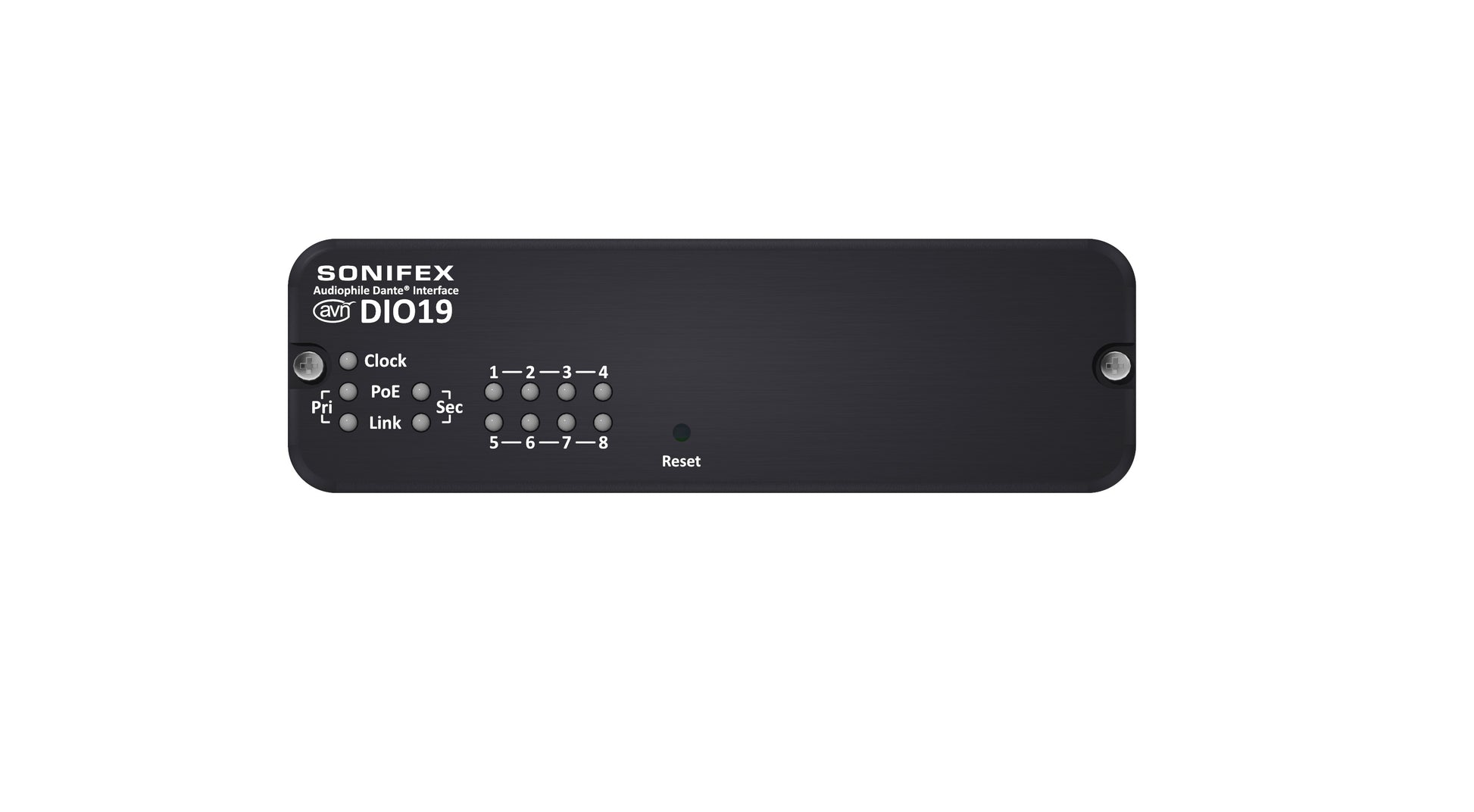

- Clock, PoE, Network link and AES3 input lock LEDs.
- 1U rack-mount option with the AVN-DIORK.
- Aluminium construction.
Typical Applications
The AVN-DIO19 is suited to a wide range of professional audio environments where reliable, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.
Product Category
Digital Dante Converters
Technical Specifications
AES3 I/O
- Input & Output Impedance: 110Ω Balanced
- Sample Rates: 32 – 192kHz
Network and AoIP
- AoIP Standard: Dante
- Channels: 16 receive, 16 transmit
- Flows: 16 receive, 16 transmit
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Encoding: PCM 16, PCM 24, PCM 32
- Connectivity: 2 x etherCON (RJ45 compatible)
- Speed: 1Gbps or 100Mbps
- Network Modes: Switched or redundant
- AES67 Support: Yes
- Dante Domain Manager Ready: Yes
- Clock Source: Internal (PTP Leader) or from Network PTP Leader
PoE Power
- Standard: 802.3af
- Redundancy: Yes
- Class: 0
- PD Power Range: 0.44 W to 12.94 W
- Typical PSE Power Usage: 4.6W
- Max PSE Usage: 15.4 W
Equipment Type
- AVN-DIO19: Dante to AES3 16 channel I/O converter
Physical Specification
- Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
- Dimensions (Raw): 5.5” (W) x 5.4” (D) x 1.7” (H)
- Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
- Dimensions (Boxed): 7.0” (W) x 6.7” (D) x 2.2” (H)
- Weight: Net: 0.5kg Gross: 0.9kg
- Weight: Net: 1.1lbs Gross: 2.0lbs
Accessories
- AVN-DIORK: AVN-DIO 1U 19” rack kit (5 x small DIO or 3 x large DIO)
- CBL-D25-4XI4XO: AES3 balanced cable, DB25 to 4 x XLR3M and 4 x XLR3F, 3m
- CBL-D25-D25: AES3 balanced cable, DB25 to DB25, 3m
