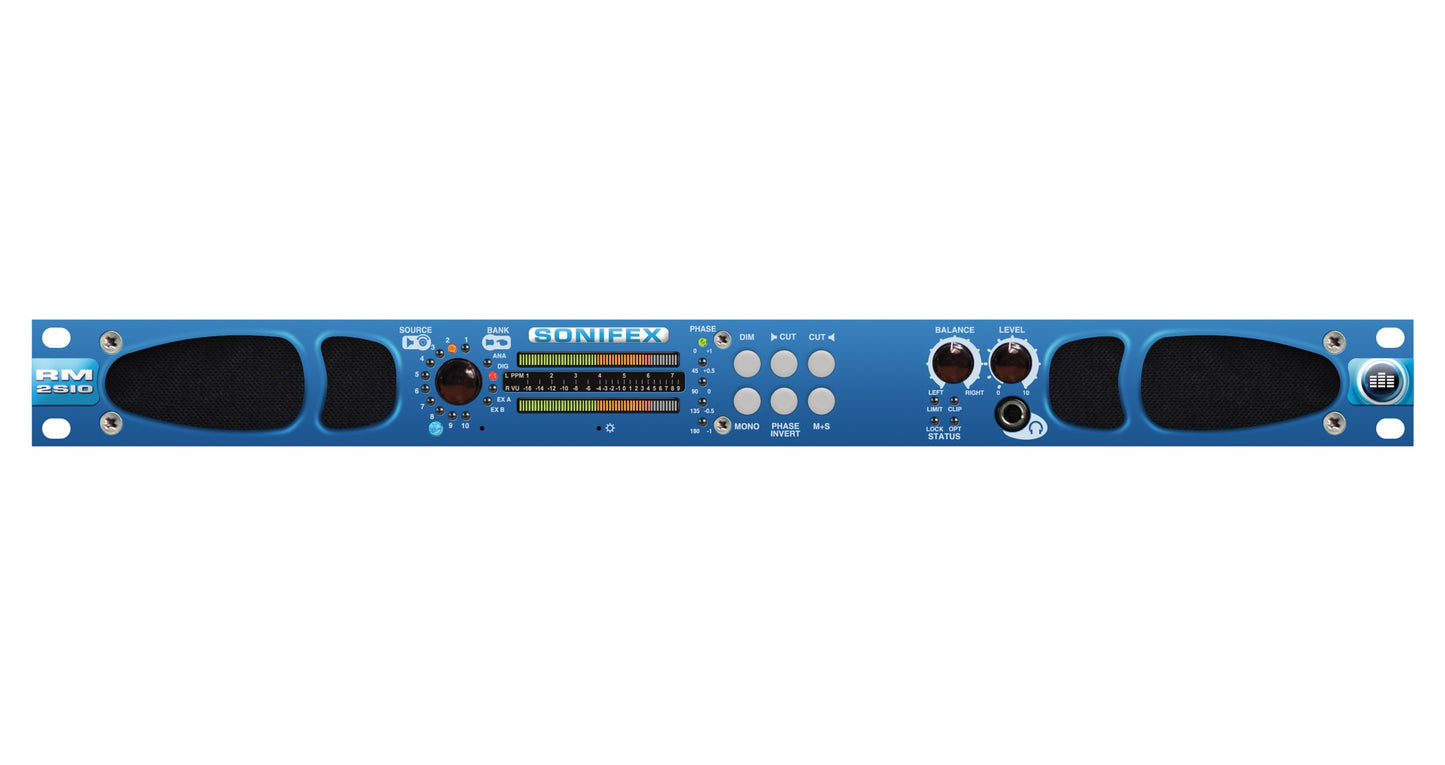

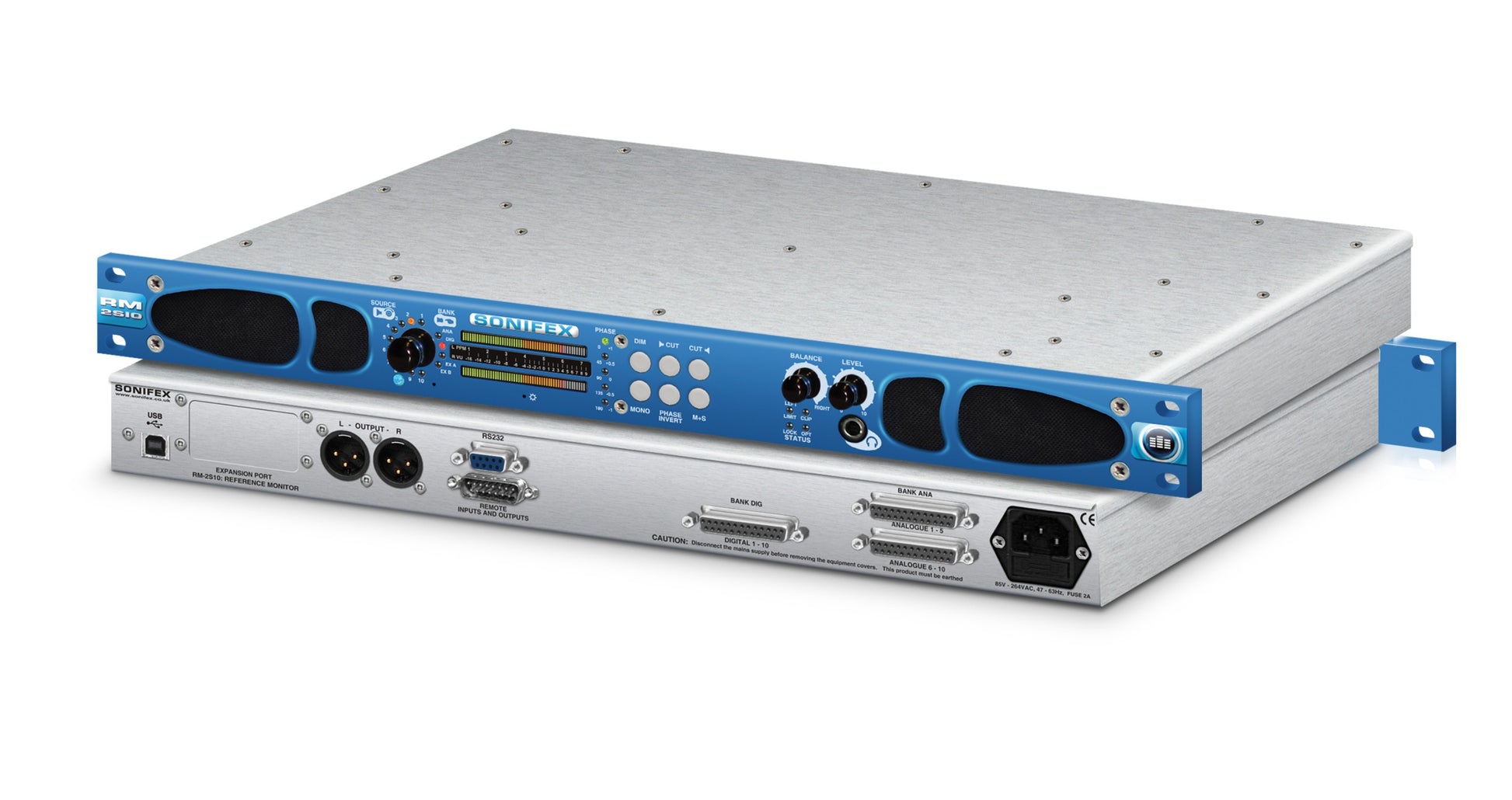

The RM-2S10 is a 1U rack-mount unit offering quality loudspeaker monitoring and accurate, high-resolution metering of up to twenty both analogue and digital stereo audio sources and more with the addition of optional expansion cards. Sources may be in any mixture of analogue and AES/EBU digital formats, with sample rates up to 192kHz accepted. The RM-2S10 has 10 separate analogue and digital inputs. Analogue inputs can be balanced or unbalanced in any combination. The digital inputs have switchable AES/EBU termination for (close-range) bridging operation and there is extra global input gain available for both analogue and digital low-level sources. Sources (and additional banks of sources, if fitted) are selected via a front panel rotary encoder, with clear LED indication of the current selection. On the RM-2S10, the Source LEDs also act as signal present indicators. A pair of line-level audio outputs, configurable as analogue or AES/EBU digital, follow the selected source at either a fixed level or one mirroring the loudspeaker volume. The level of the chosen source is displayed on a pair of bright, multi-coloured 53-segment bargraph meters, with a choice of seven accurately modelled scales/responses to suit different applications and local preferences. Clear scale labels are provided for you to chose the scale displayed and the meter brightness can be adjusted from the front panel. A separate phase meter indicates channel correlation or phase error conditions.
Product Features
10 stereo analogue + 10 stereo digital inputs as standard.
Optional input expansion cards available.
Stereo analogue / digital output follows source selection.
Selected source metering with selectable scales / responses.
Phase meter for correlation / phase error indication.
Audio status alarm outputs.
Bank of push-button audio modifiers.
5 band parametric EQ
3-way speakers with Class D amplification and DSP crossover.
Headphones output.
Option for HD/SD-SDI de-embedding.
RS232 / USB control and configuration - Sonifex SCi software.
Typical Applications
Monitoring of multiple audio sources in an OB truck or engineering racks room.
Product Category
Analogue & Digital Reference Monitors
Technical Specifications

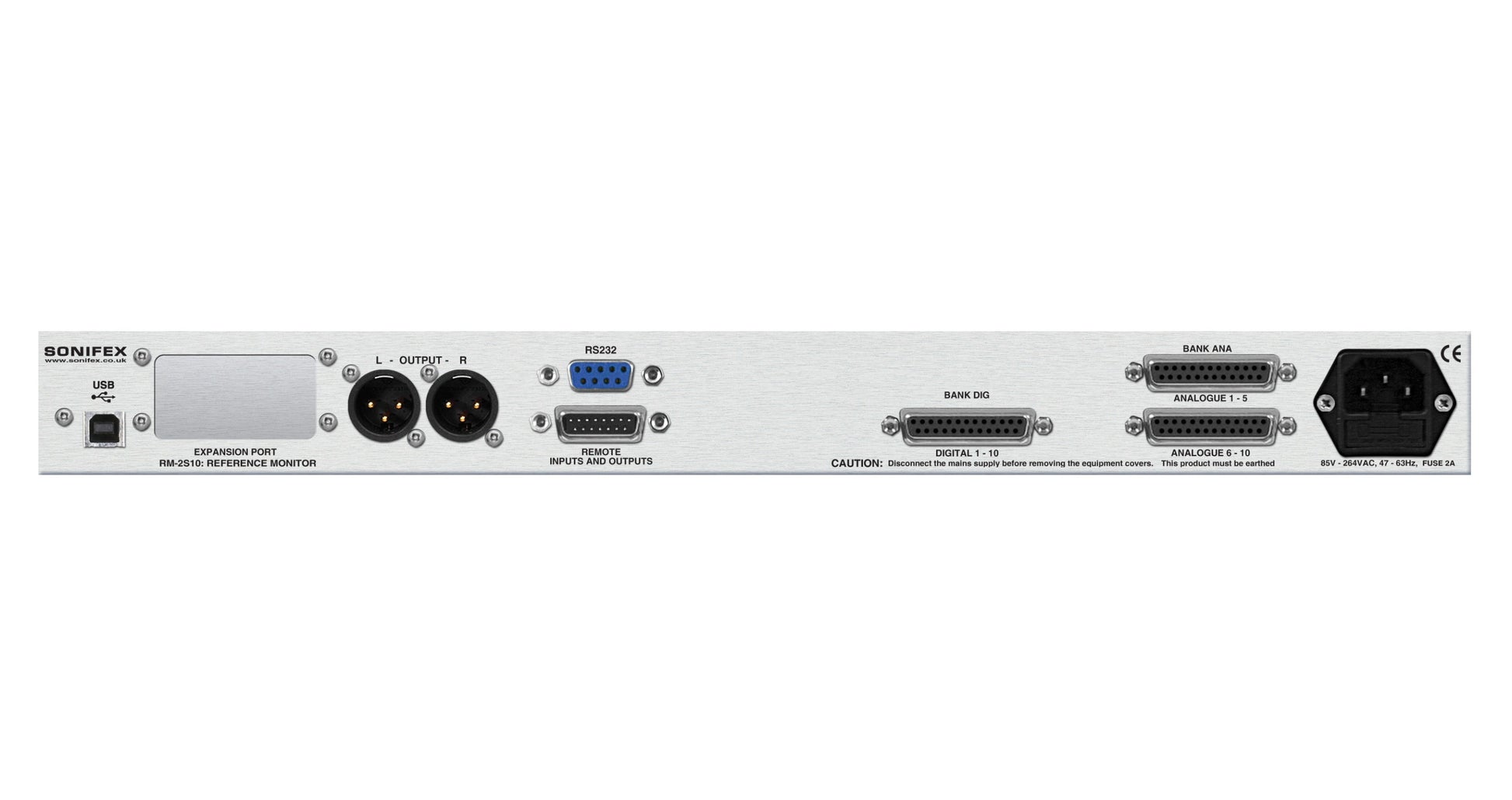

Inputs
Audio Inputs: 10 x stereo analogue plus 10 x stereo AES/ EBU digital
Max level (0dB input gain): +18dBu (analogue)/0dBFS (digital)
CMRR: >60dB typical
Input Impedance: 20kΩ (analogue) 110Ω (digital with termination switchable)
AES/EBU Sample Rate: 32 to 192kHz, converted internally to 48kHz
Input Gain: 0, +6, +12 or +18dB digital gain (switchable)
Selection: Front panel rotary control with indicator LEDs
Line Level Outputs
Audio Outputs: 1 x stereo analogue or AES/EBU digital (switchable)
Gain re Selected Input: Unity or variable, following volume control (switchable)
Maximum Output Level: +18dBu (analogue)/0dBFS (digital)
Output Impedance: <50Ω (analogue)/110Ω (digital)
AES/EBU Sample Rate: 48kHz
Distortion: <0.02% (1kHz, +8dBu output)
Noise: -84dB RMS, unity gain ref +8dBu output
Frequency Response: 20Hz-20kHz +0/-0.5dB
Crosstalk: Analogue I/O, ref 0dBu
1kHz input: <-90dB
10kHz input: <-85dB
Audio Modifiers
Modifier Selection: Illuminated front panel pushbuttons
DIM: Reduces speaker audio level by 10dB
CUT L & CUT R: Mutes left/right speaker audio
MONO: Combines left and right audio inputs
PHASE INVERT: Inverts phase of right audio input
M+S: Converts stereo input to Middle (sum) and Side (difference) signals
