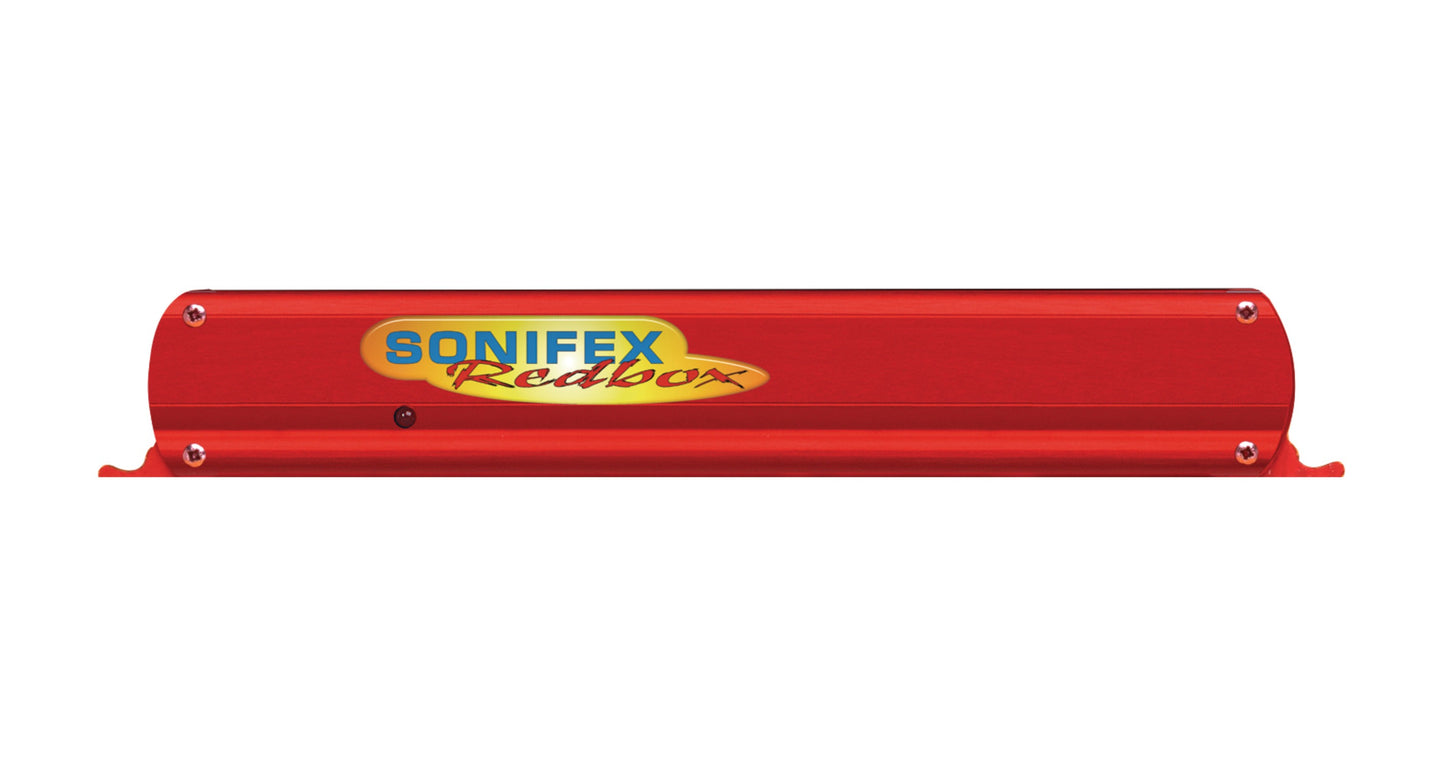

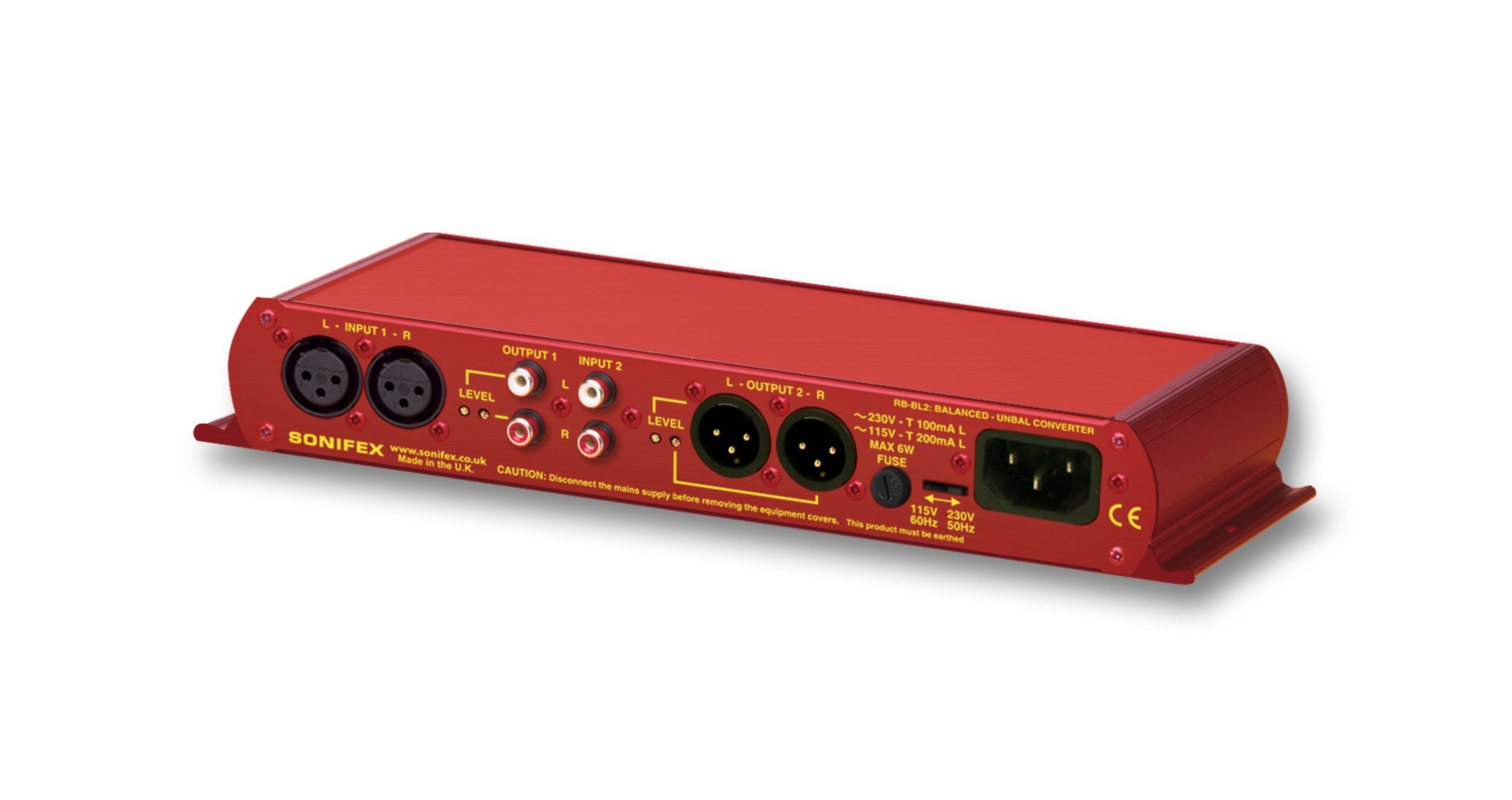

Sonifex RB-BL2 | Single Stereo Bi-Directional Matching Converter

The RB-BL2 is a bi-directional stereo unit for interfacing domestic or semi-pro unbalanced equipment to professional balanced line levels, and vice-versa. The two XLR-3 electronically balanced inputs have an impedance of 20kΩ bridging and are routed to two unbalanced RCA (phono) outputs with an output impedance of <50Ω.

Product Features

• Pre-set left and right gain controls
• Stereo phono (10kΩ) inputs.
• Stereo phono <50Ω outputs.
• Stereo balanced Neutrik XLR 20kΩ inputs.
• Stereo balanced Neutrik XLR <50Ω outputs.

Typical Applications

Providing bi-directional matching conversion between an unbalanced and balanced piece of equipment, typically between an unbalanced portable recorder & balanced USB or flashcard playback device.

Product Category

Signal Converters

Technical Specifications

Audio Specification

• Maximum Input Level: +28dBu
• Maximum Output Level: +28dBu
• Input Impedance (RCA): >10kΩ unbalanced
• Input Impedance (XLR): >20kΩ balanced bridging
• Output Impedance (RCA): <50Ω
• Output Impedance (XLR): <50Ω
• Distortion: 0.01% THD @ 1kHz, ref +8dBu output
• Noise: -100dB, unity gain, ref +8dBu output
• Common Mode Rejection: >66dB typically
• Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
• Gain Range: Unbalanced Output : -28dBu to 0dBu, ref 0dBu into balanced XLR input
• Gain Range: Balanced Output : -15dBu to +15dBu, ref -15dBu into unbalanced RCA input

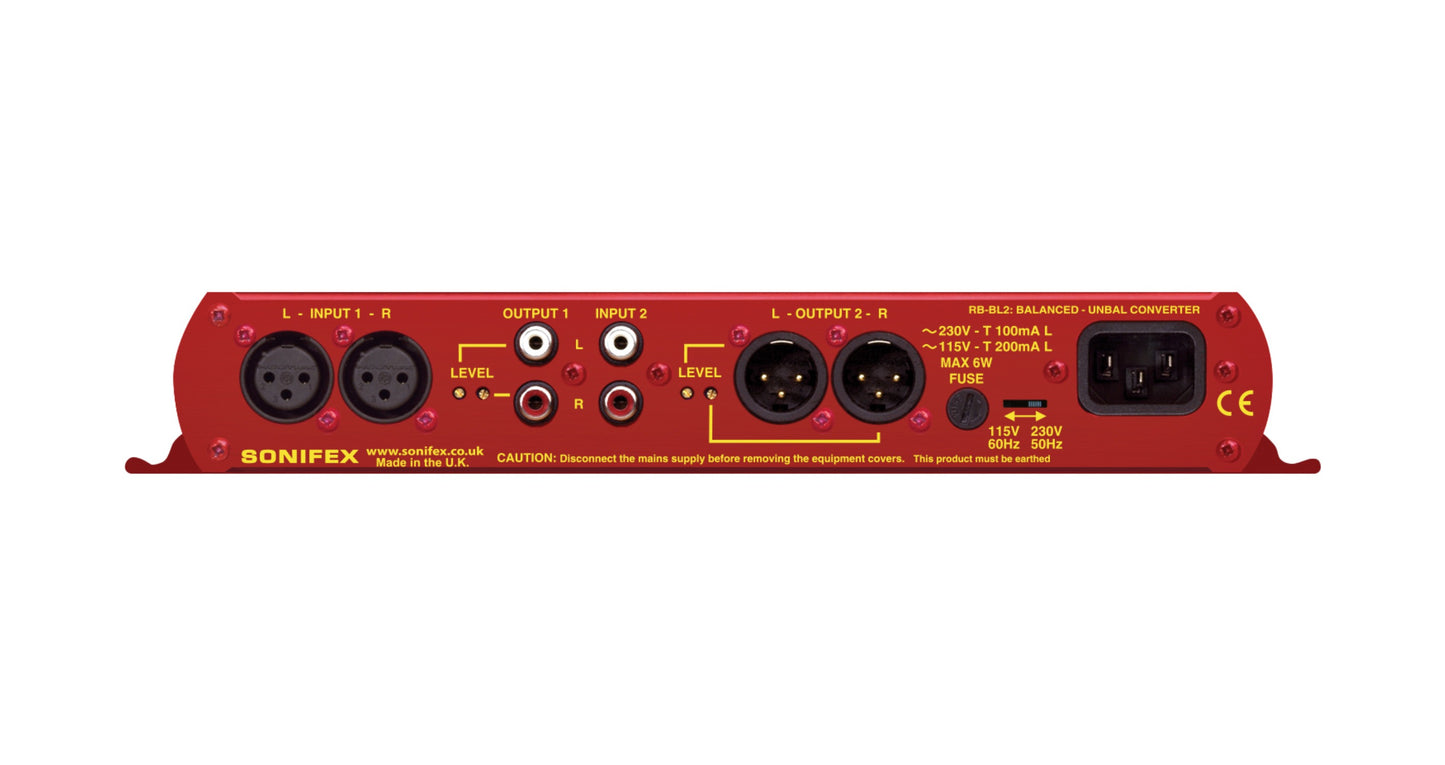

Connections

• Inputs: 2 x RCA phono (Unbal), 2 x XLR 3 pin female (Bal)
• Outputs: 2 x XLR 3 pin male (Bal), 2 x RCA phono (Unbal)
• Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
• Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
• Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

• RB-BL2: Single stereo bi-directional matching converter

Physical Specification

• Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
• Dimensions (Raw): 11” (W) x 4.3” (D) x 1.7” (H) (1U)
• Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H)
• Dimensions (Boxed): 14.2” (W) x 8” (D) x 2.4” (H)
• Weight: Nett: 1.0kg Gross: 1.4kg
• Weight: Nett: 2.2lbs Gross: 3.1lbs
