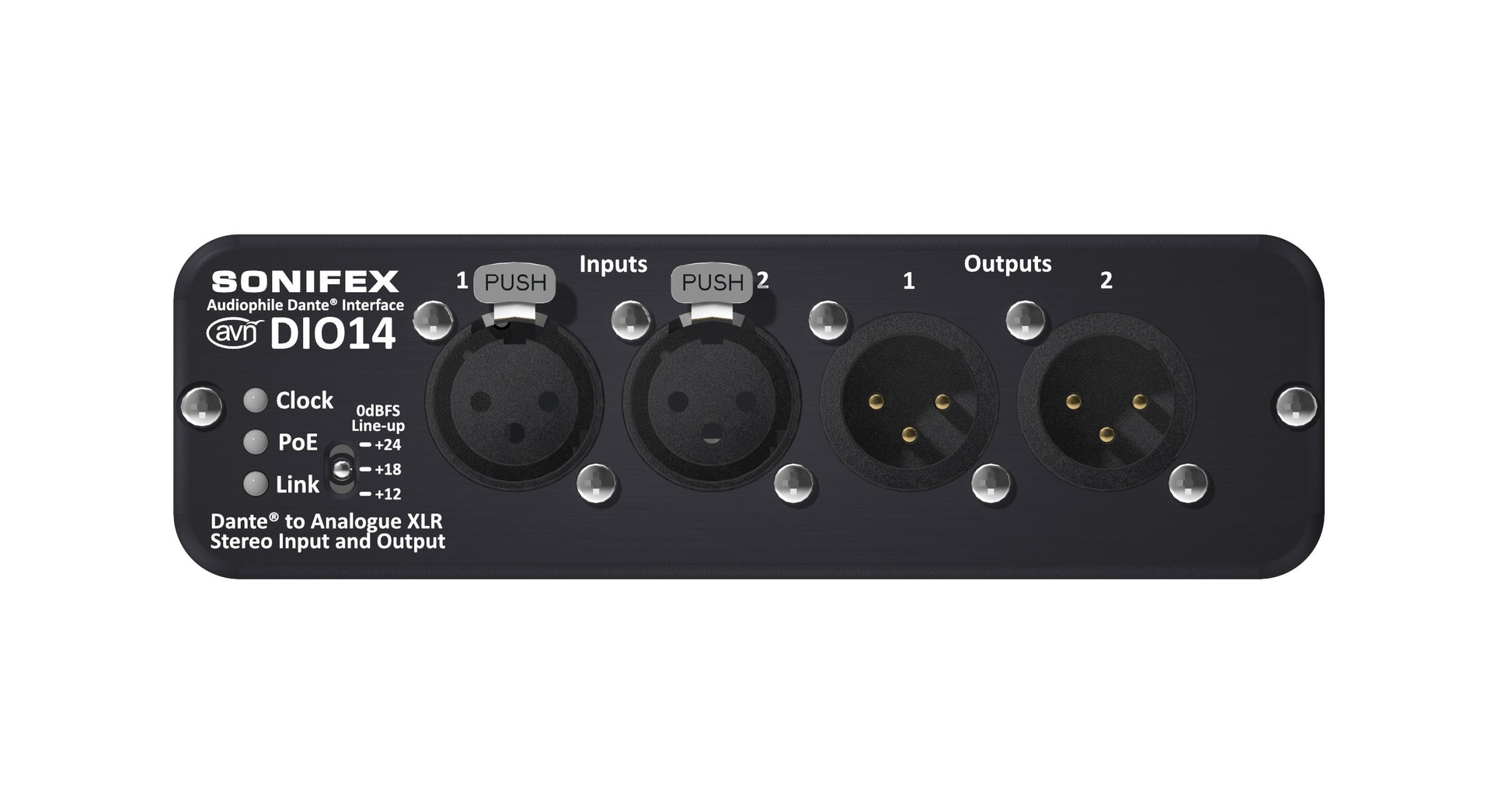

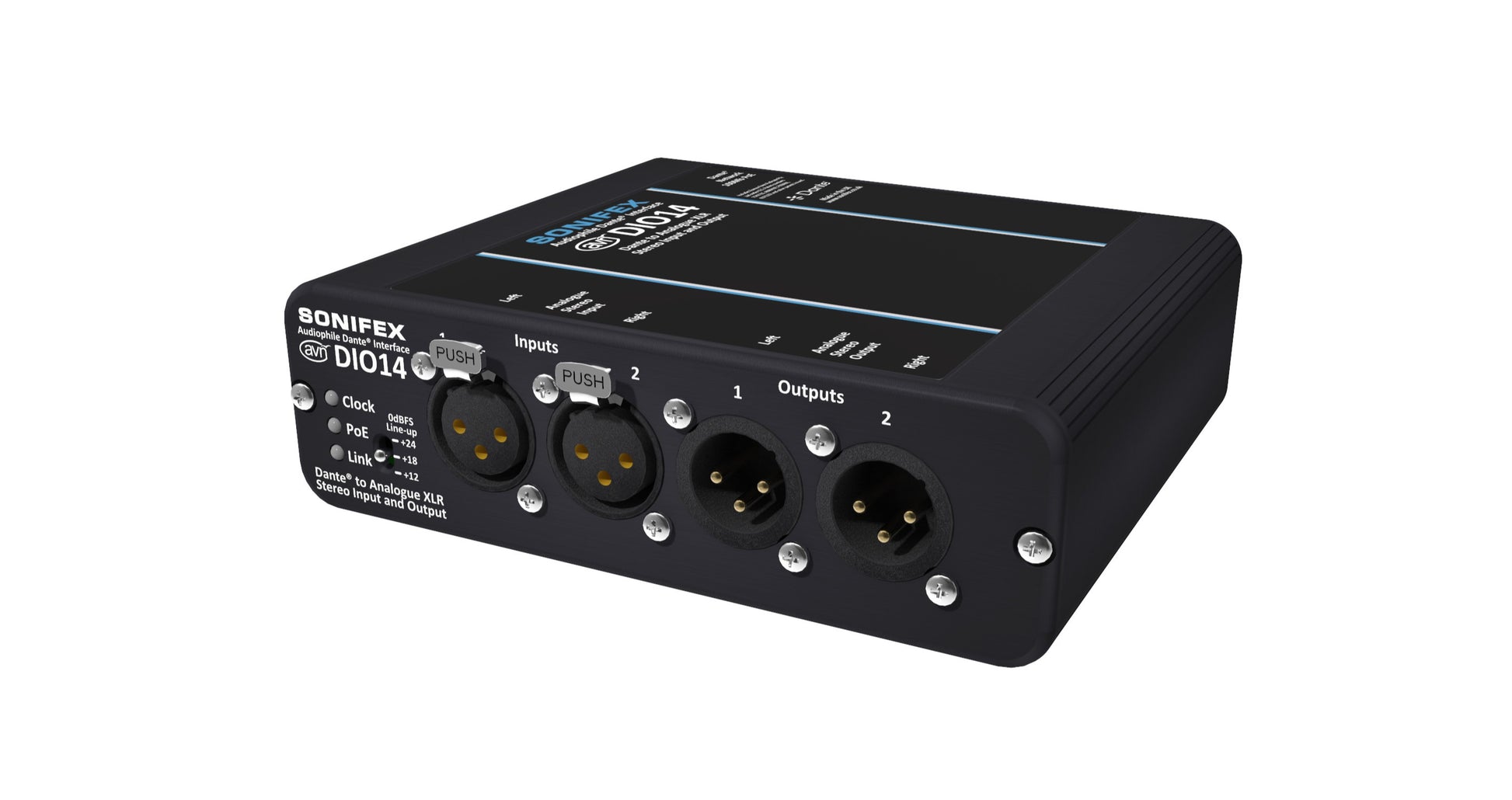

The AVN-DIO14 is an ultra-high quality analogue-to-Dante and Dante-to-analogue converter from the Sonifex DIO range. It features two balanced analogue XLR inputs and two balanced analogue XLR outputs for seamless integration with Dante Audio-over-IP networks. A front panel line-up control allows the global 0dBFS reference level to be set to +12dBu, +18dBu, or +24dBu using a recessed toggle switch, enabling flexible system matching. The superior A/D and D/A circuitry used is designed for optimal audio performance, offering >120dB of dynamic range. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. Front panel LEDs indicate network clock status, AoIP link activity, and PoE power presence for clear operational monitoring. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager. Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Product Features
2 x balanced analogue inputs on XLR.
2 x balanced analogue outputs on XLR.
Ultra-high quality, wide dynamic range A/D and D/A conversion, >120dB.
Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
1 x Neutrik EtherCon® connector (1Gb/s Ethernet Port).
PoE, Link, and Clock LED status indicators.
Configuration using Dante Controller.
AES67 compatible.
Dante Domain Manager compliant.
Powered via PoE (Power over Ethernet).
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
The AVN-DIO14 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.
Product Category
Analogue Dante Converters
Technical Specifications
Analogue XLR Inout / Output Pin-out
Pin: Function
1: Chassis Ground
2: Phase
3: Non Phase
Line Inputs - XLR
Input Impedance: 5kΩ Unbalanced
0dBFS Line-Up: Selectable +12/+18/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB (ref 1kHz)
THD+N: <-118dBFS, -12dBu (+18dBu=0dBFS mode), 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW, Rs=200Ω
Cross Talk: <-110dB
Common Mode Rejection: >60dB @ 1kHz
Line Outputs - XLR
Output Impedance: <200Ω balanced
0dBFS Line-Up: Selectable +12/+18/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW
Cross Talk: <-110dB
Network and AoIP
AoIP Standard: Dante
Channels: 2 transmit, 2 receive
Flows: 2 transmit, 2 receive
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
AES67 Support: Yes
Connectivity: etherCON (RJ45 compatible)
Speed: 100Mbps
Dante Domain Manager Ready: Yes
Clock Source: Internal (PTP Leader) or Network PTP Leader
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 6 W
Max PSE Usage: 15.4 W
Equipment Type
Physical Specification
Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
Dimensions (Raw): 5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Raw): 17.8cm (W) x 17cm (D) x 5.6cm (H)
