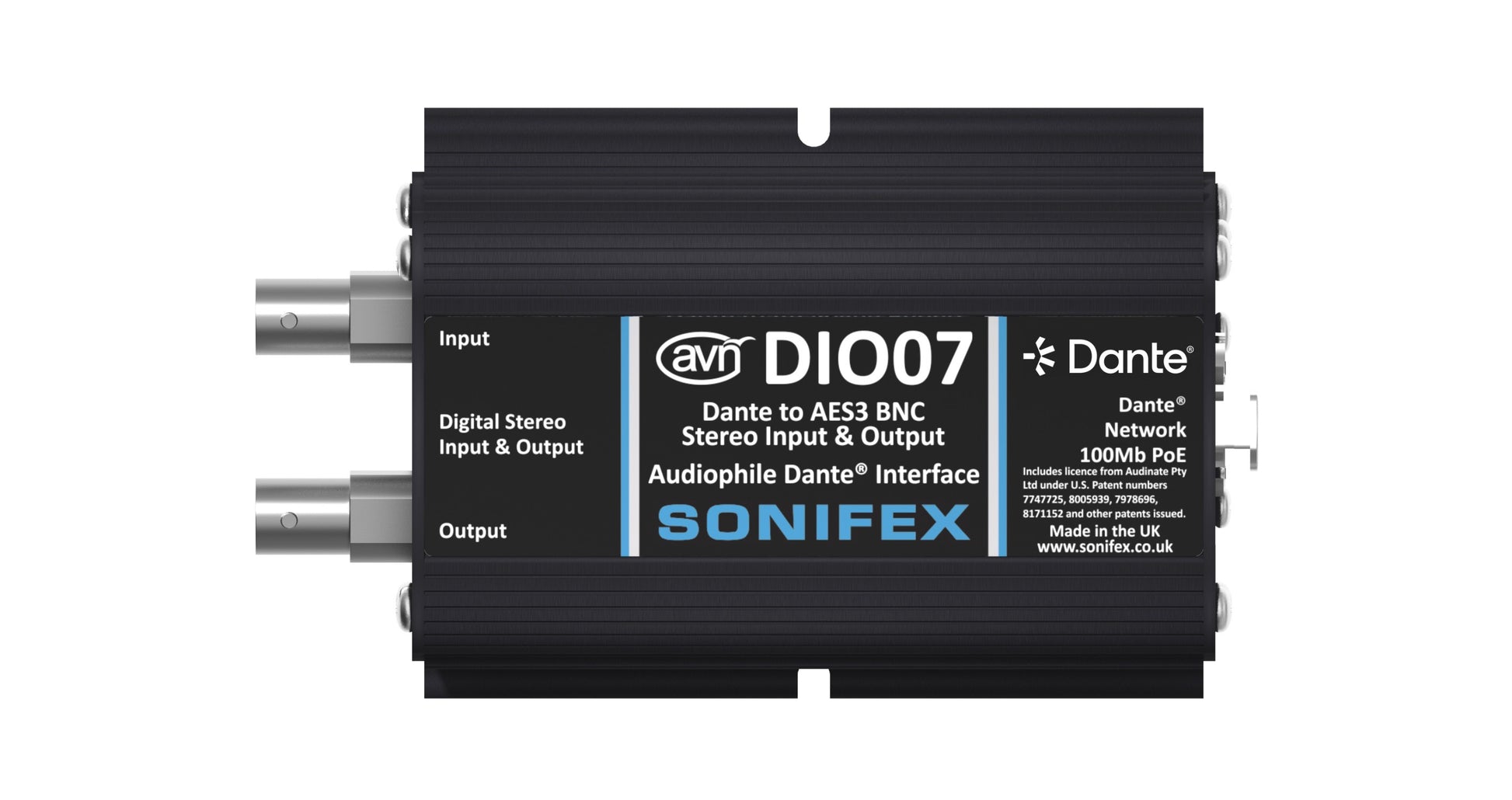

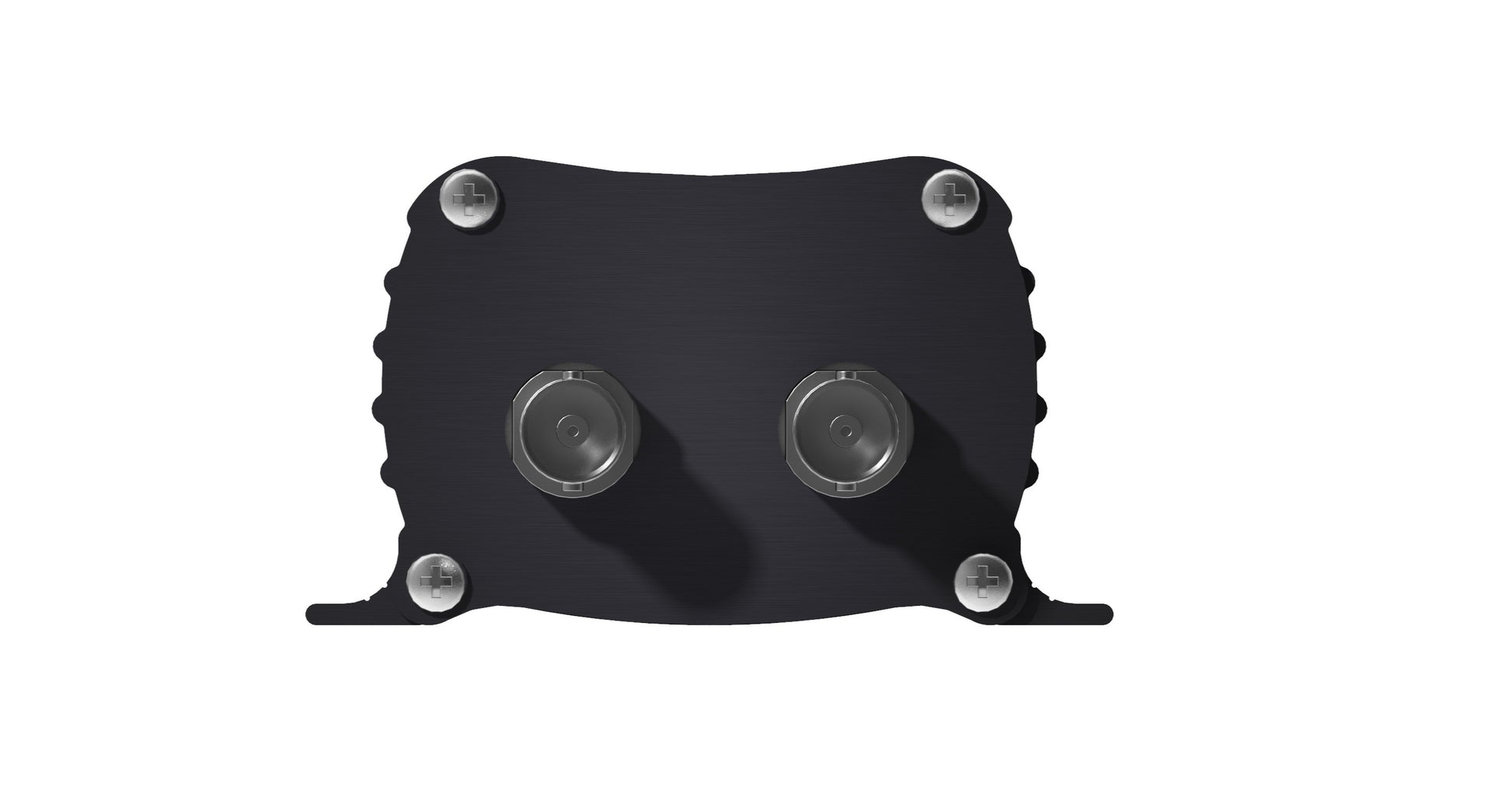

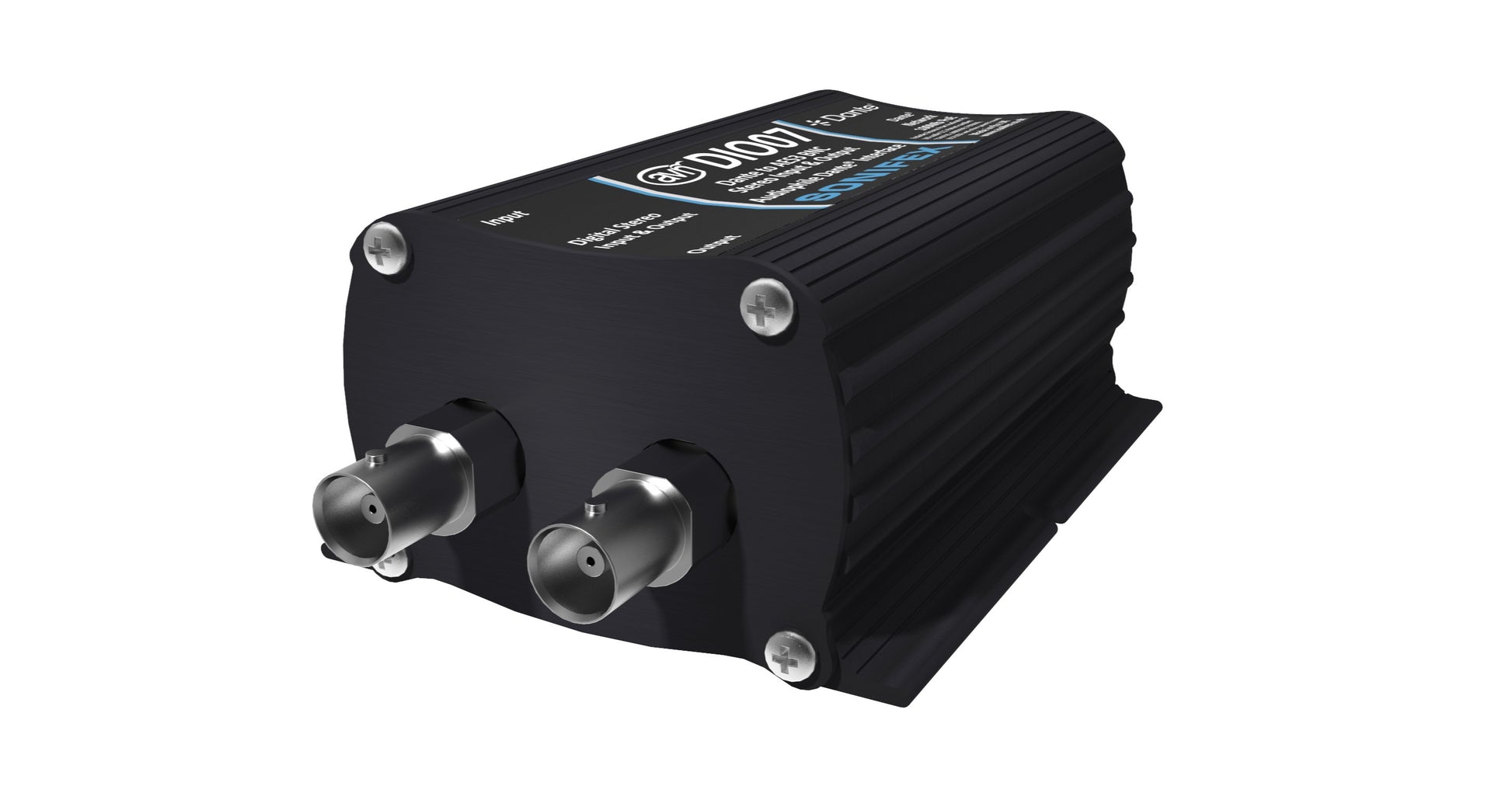

The AVN-DIO07 is a Dante to AES-3id digital input and output audio convertor from the Sonifex DIO range. It features stereo AES-3id digital audio inputs and outputs on BNC connectors, and one Neutrik EtherCon® connector for direct connection to a Dante AoIP network. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager. Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Product Features
1 x stereo AES-3id BNC input.
1 x stereo AES-3id BNC output.

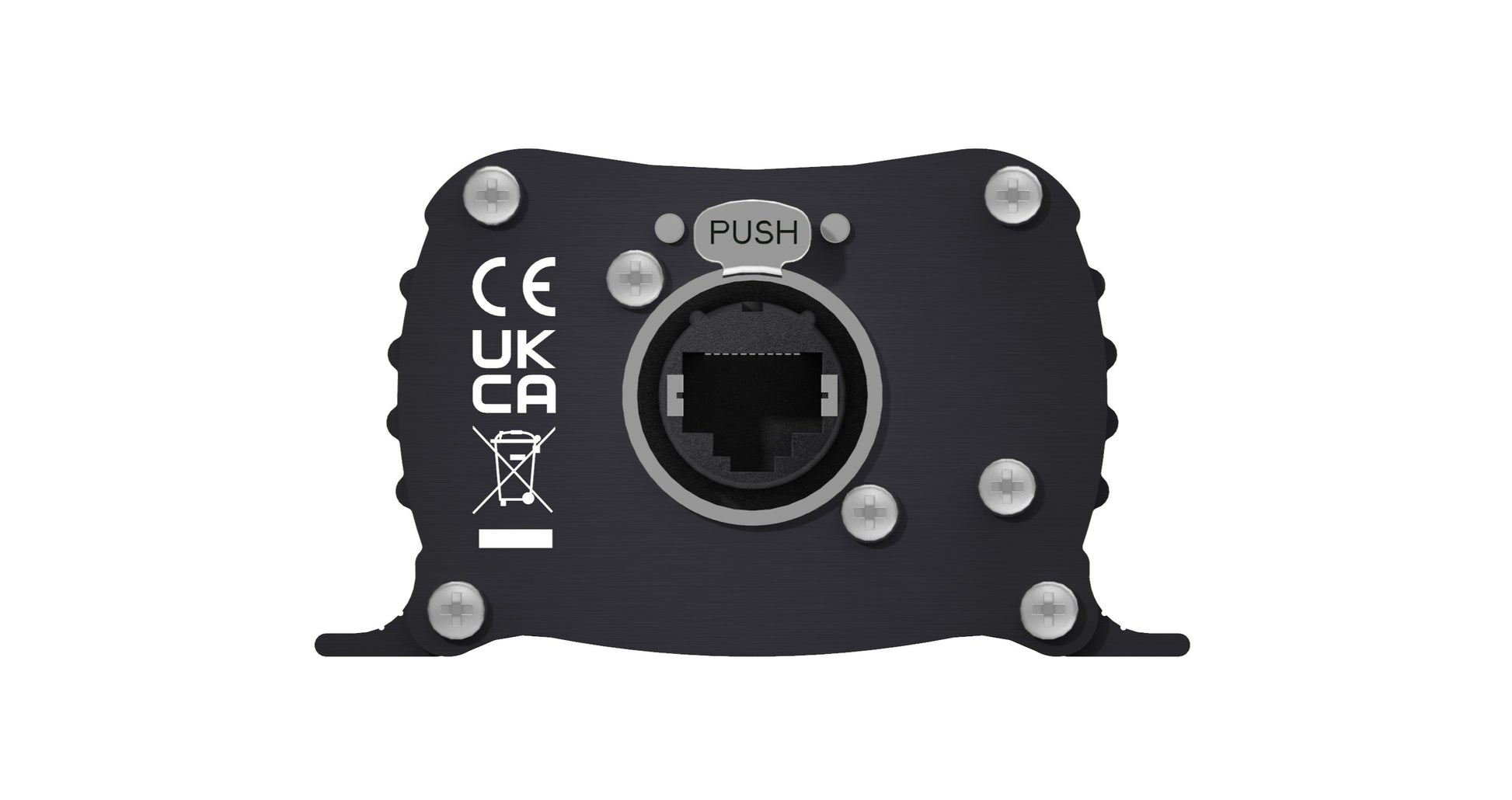

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Powered via PoE (Power over Ethernet).
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
The AVN-DIO07 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.
