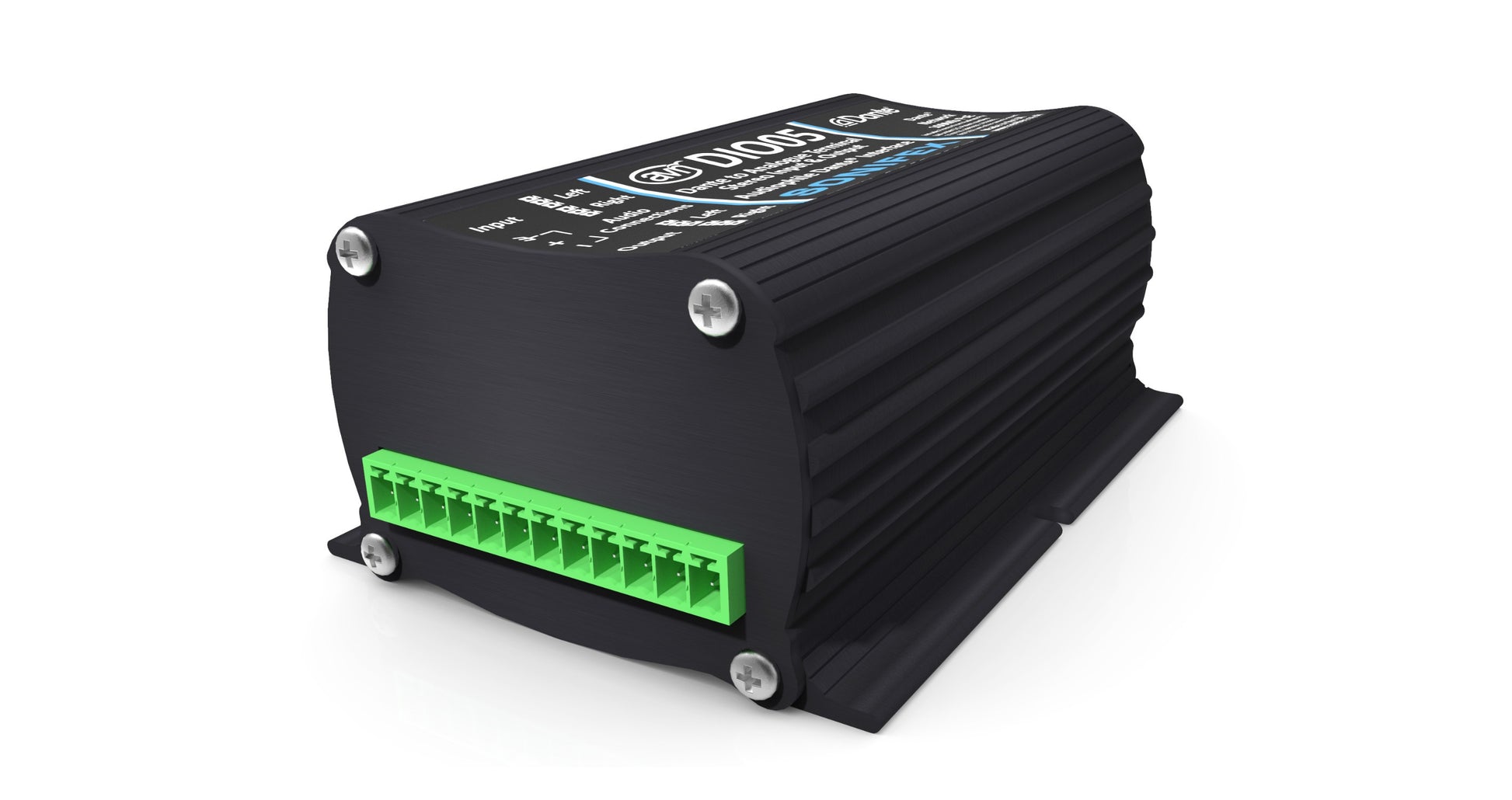

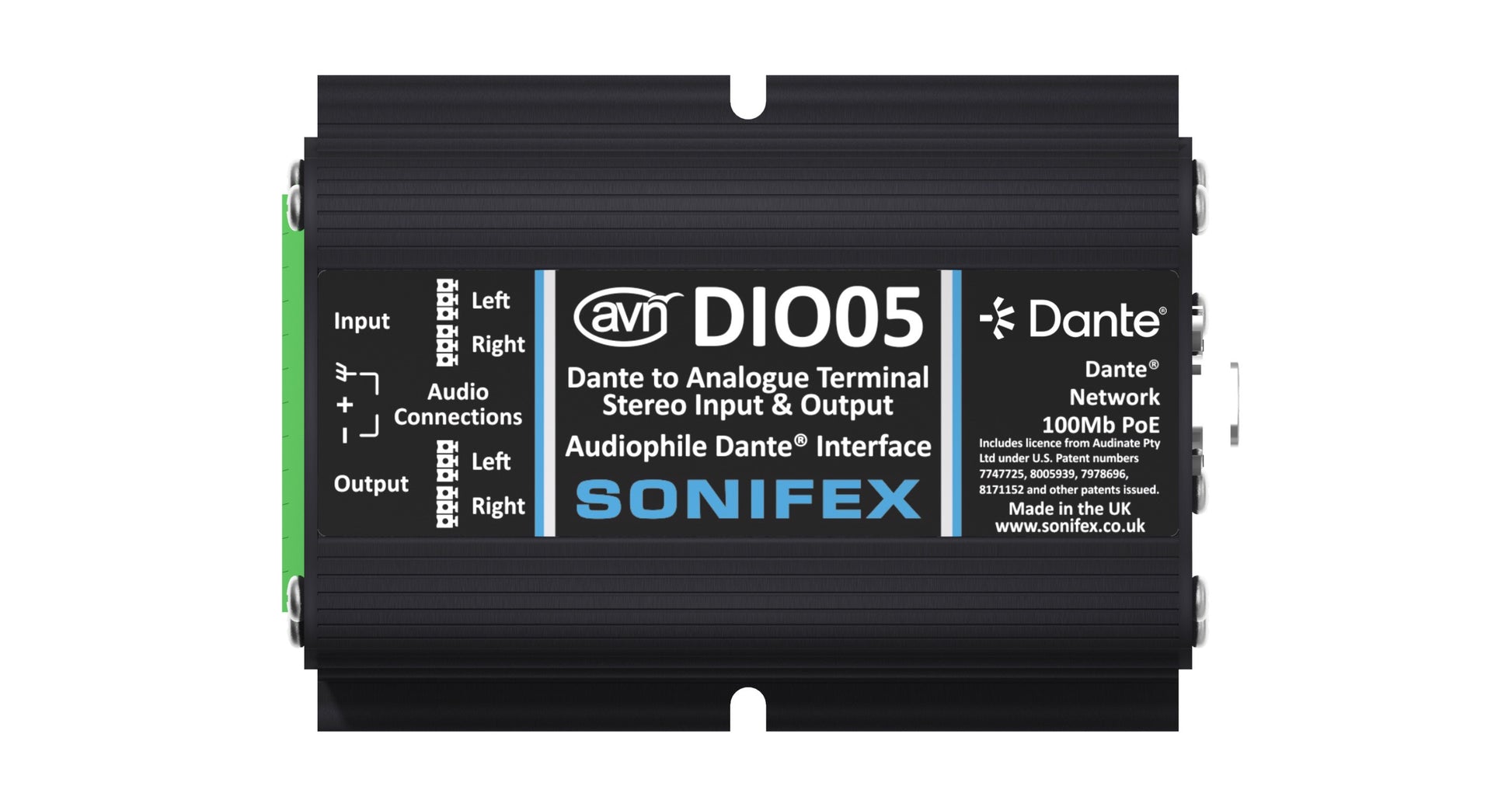

The AVN-DIO05 is a Dante to analogue terminal block input & output convertor from the Sonifex DIO range. It features stereo analogue input and output on terminal block connectors and a Neutrik EtherCon® connector for direct connection to a Dante network. The superior A/D and D/A circuitry used is designed for optimal audio performance, offering >120dB of dynamic range – ten times better than comparable products. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager. Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Product Features

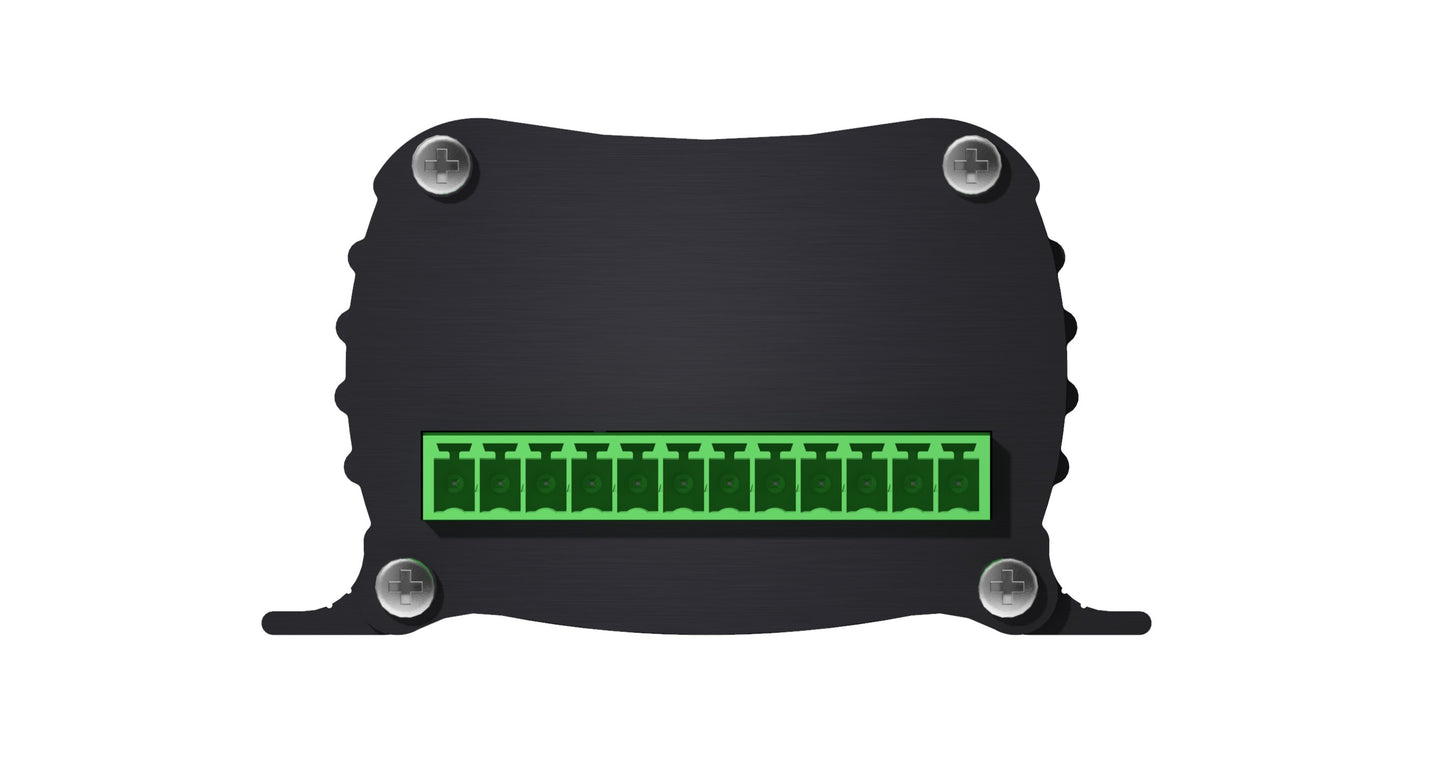

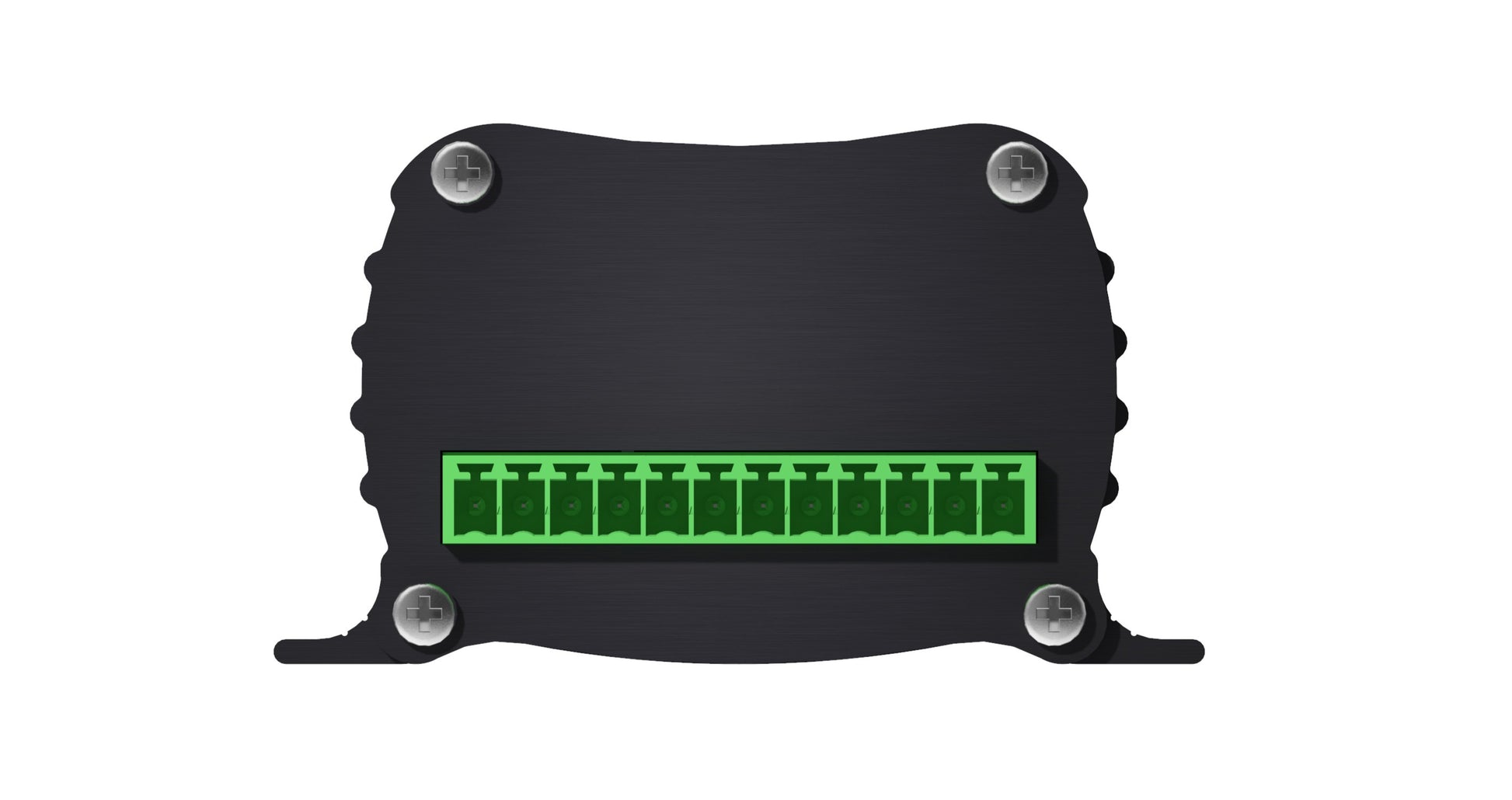

12 x terminal block connections (balanced stereo inputs and outputs).

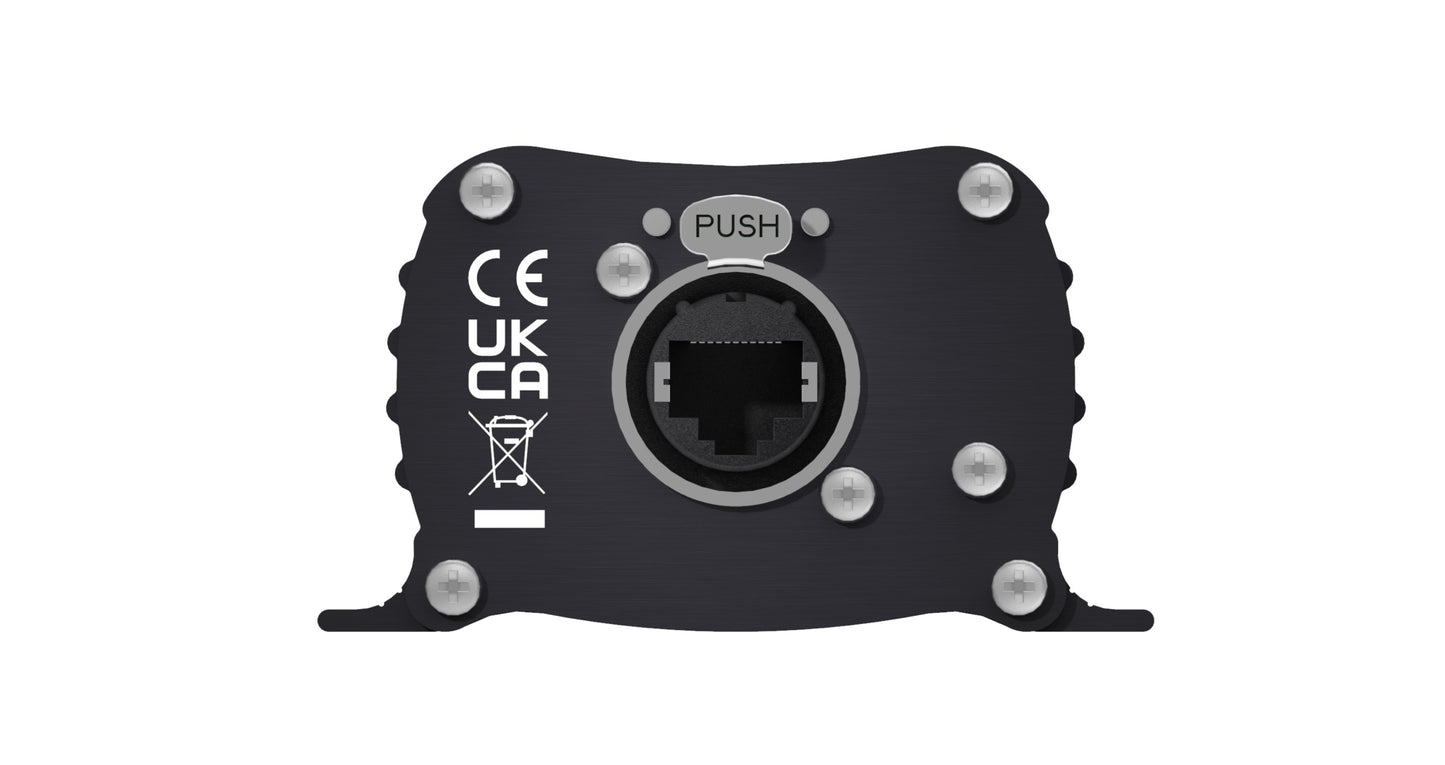

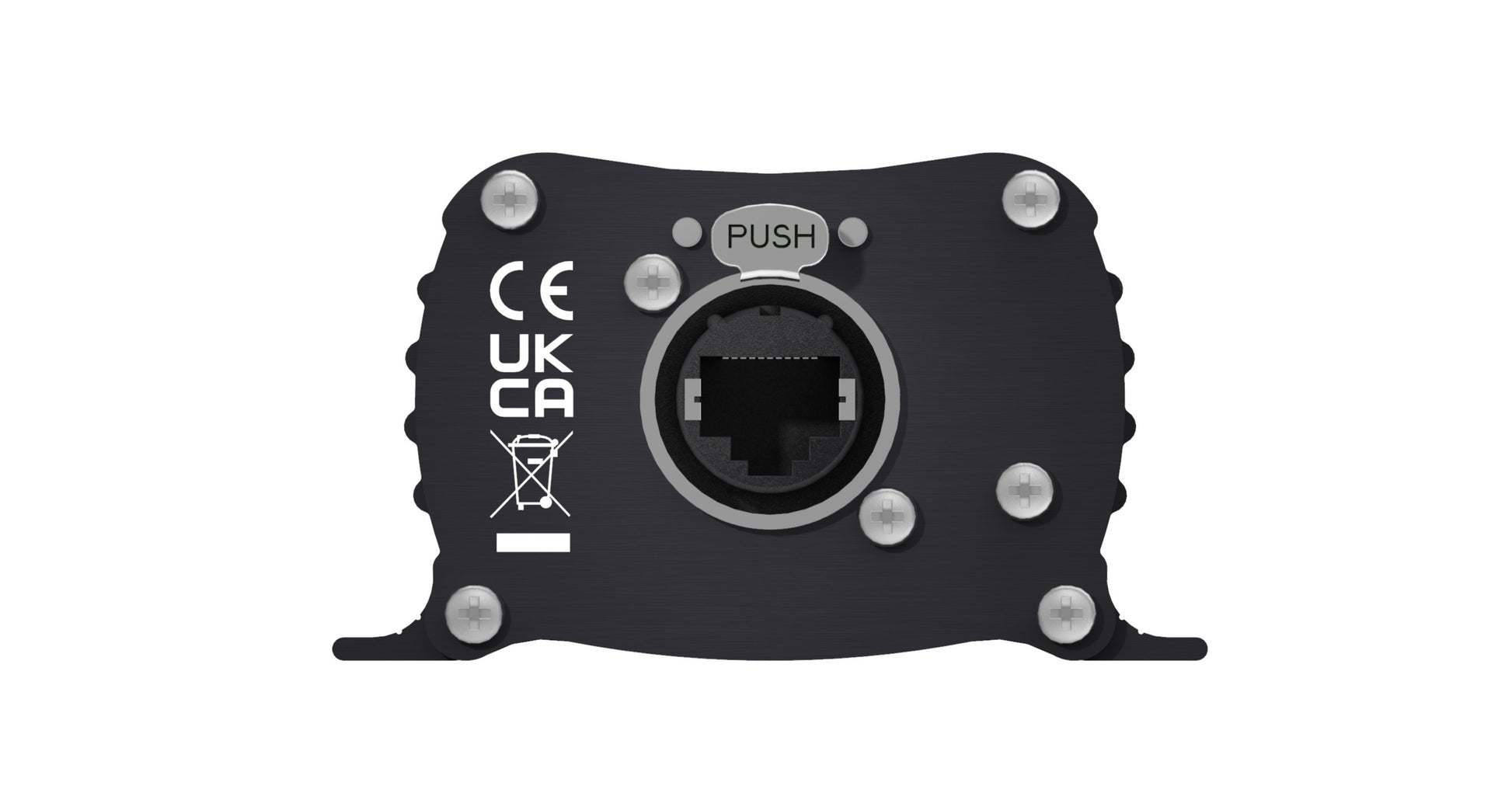

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range D/A conversion, >120dB.
Powered via PoE (Power over Ethernet).
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
The AVN-DIO05 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.
Product Category
Analogue Dante Converters
Technical Specifications
Analogue Terminal Stereo Input & Output Pin-out
Pin: Function
1: Chassis Ground
2: Left Input Phase
3: Left Input Non Phase
4: Chassis Ground
5: Right Input Phase
6: Right Input Non Phase
7: Chassis Ground
8: Left Output Phase
9: Left Output Non Phase
10: Chassis Ground
11: Right Output Phase
12: Right Output Non Phase
Line Input – Terminal Block
Parameter: Description
Input Impedance: >10kΩ balanced
0dBFS Line-Up: +18dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB (600Ω load, ref 1kHz)
THD+N: <-118dBFS, -12dBu, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW, Rs=200Ω
Crosstalk: <-110dB
Common Mode Rejection: >60dB @ 1kHz
Line Output – Terminal Block
Output Impedance: <200Ω balanced
0dBFS Line-Up: +18dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (600Ω load, ref 1kHz)
THD+N: <-100dBu, -30dBFS, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 120dB, 20kHz BW
Crosstalk: <-110dB
Dante
Parameter: Description
Sample Rates: 4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 5 W
Max PSE Power Usage: 15.4 W
Equipment Type
AVN-DIO05: Dante® to Analogue Terminal Block Stereo Input & Output
Physical Specification
Dimensions: (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw): 4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed): 6.9” (W) x 3.7” (D) x 2.2” (H)
