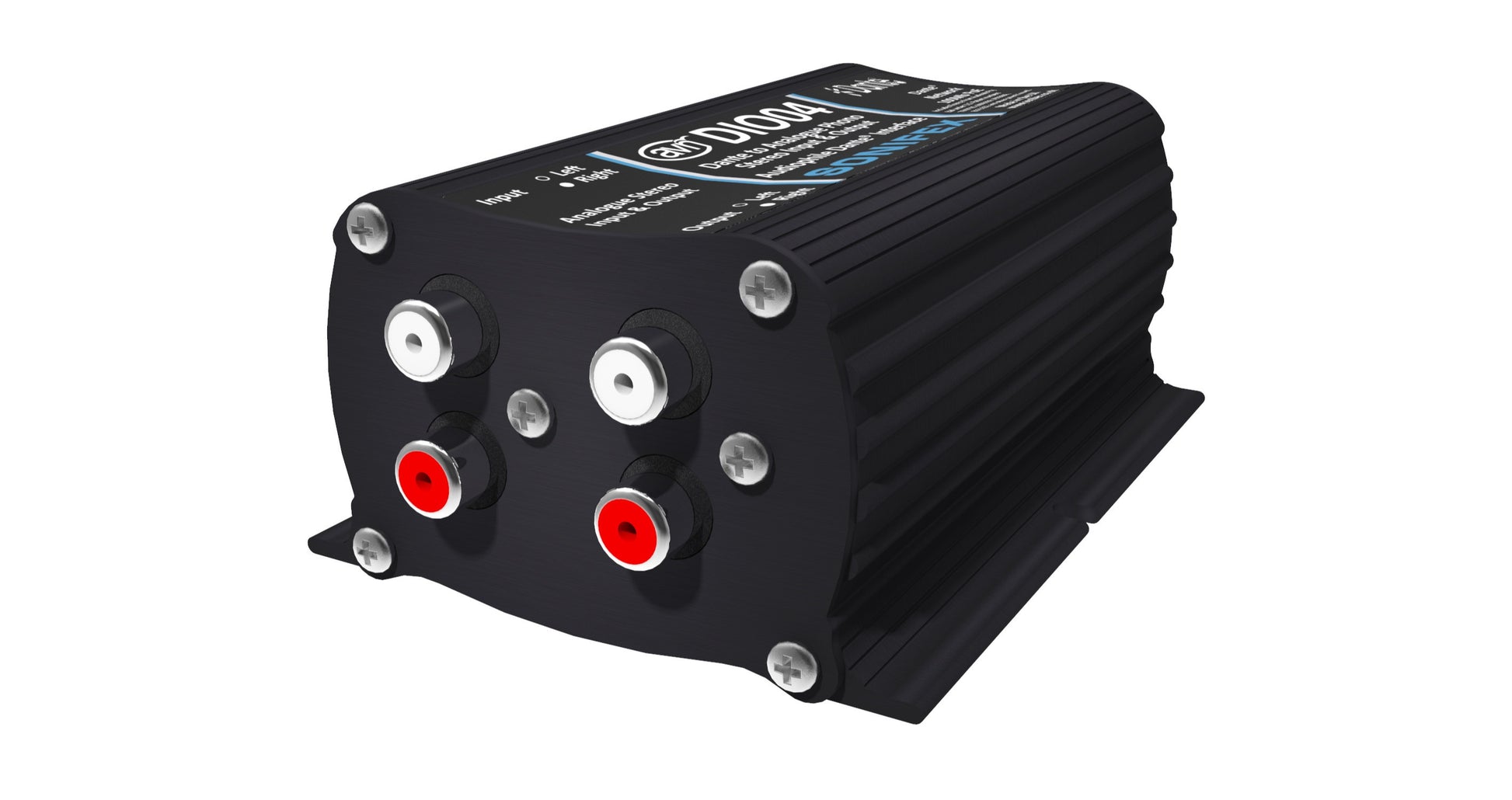

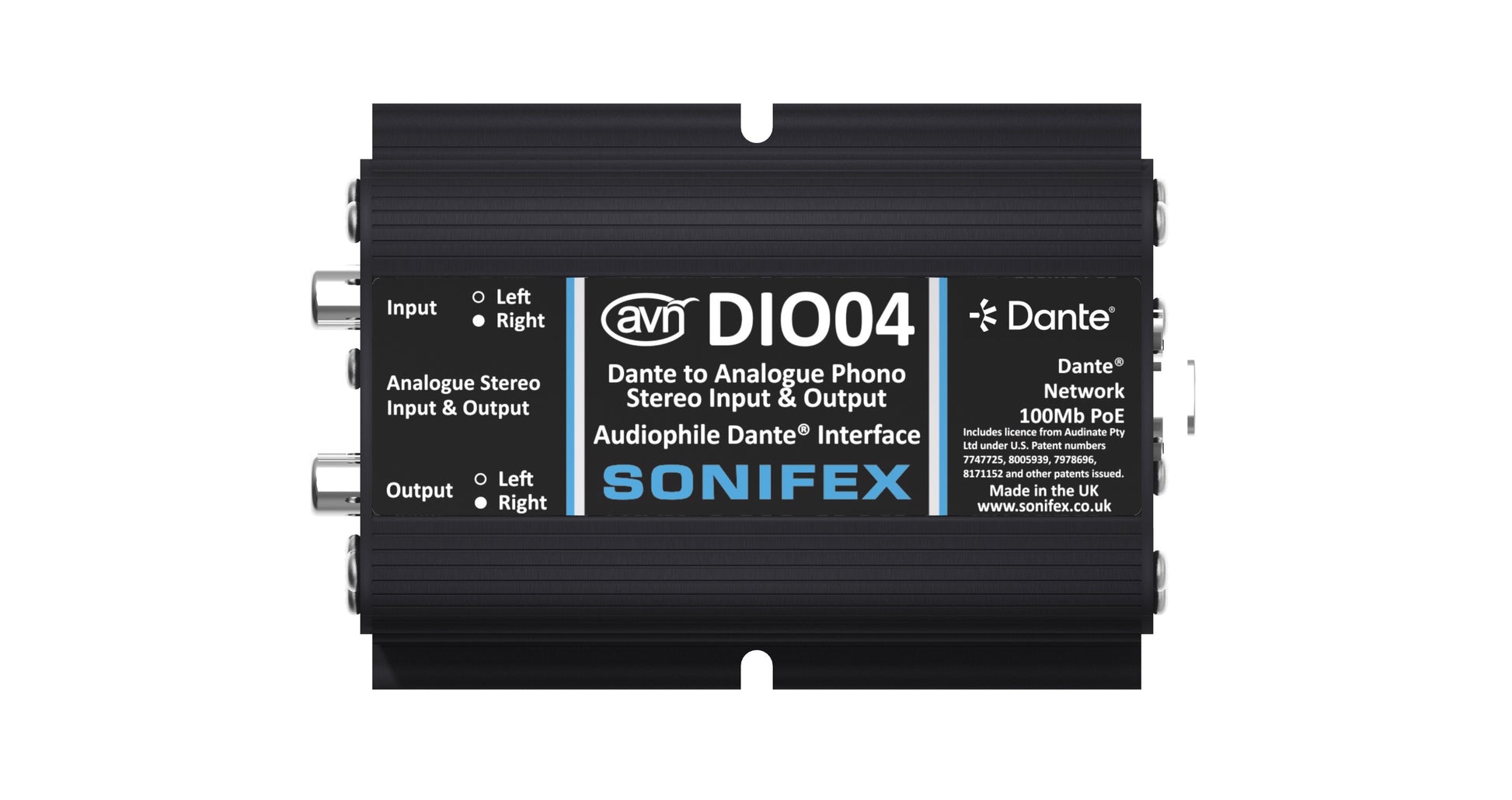

The AVN-DIO04 is a Dante to analogue phono stereo input & output convertor from the Sonifex DIO range. It features stereo analogue input and output phono connections and one Neutrik EtherCon® connector for direct connection to a Dante network. The superior A/D and D/A circuitry used is designed for optimal audio performance, offering >114dB* of dynamic range – ten times better than comparable products. Audio and power are delivered via the EtherCON® connection, supporting PoE for simplified installation. The unit incorporates Audinate Dante chipsets and is compliant with AES67 and Dante Domain Manager. Like all Sonifex DIO interfaces, it provides a simple plug-and-play solution for connecting analogue and digital audio equipment to Dante networks, with configuration handled via Dante Controller. It is housed in a rugged aluminium enclosure with provisions for desk mounting, and an optional accessory, AVN-DIORK, allows multiple units to be installed on a 19″ rack-mount shelf.
Product Features
2 x analogue phono-type inputs.
2 x analogue phono-type outputs.
Neutrik EtherCon® Ethernet connection.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality, wide dynamic range D/A conversion, >114dB.
Powered via PoE (Power over Ethernet).
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
The AVN-DIO04 is suited to a wide range of professional audio environments where reliable, low channel count, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production, events, and small fixed AV installations such as corporate, education, residential and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.
Product Category
Analogue Dante Converters
Technical Specifications

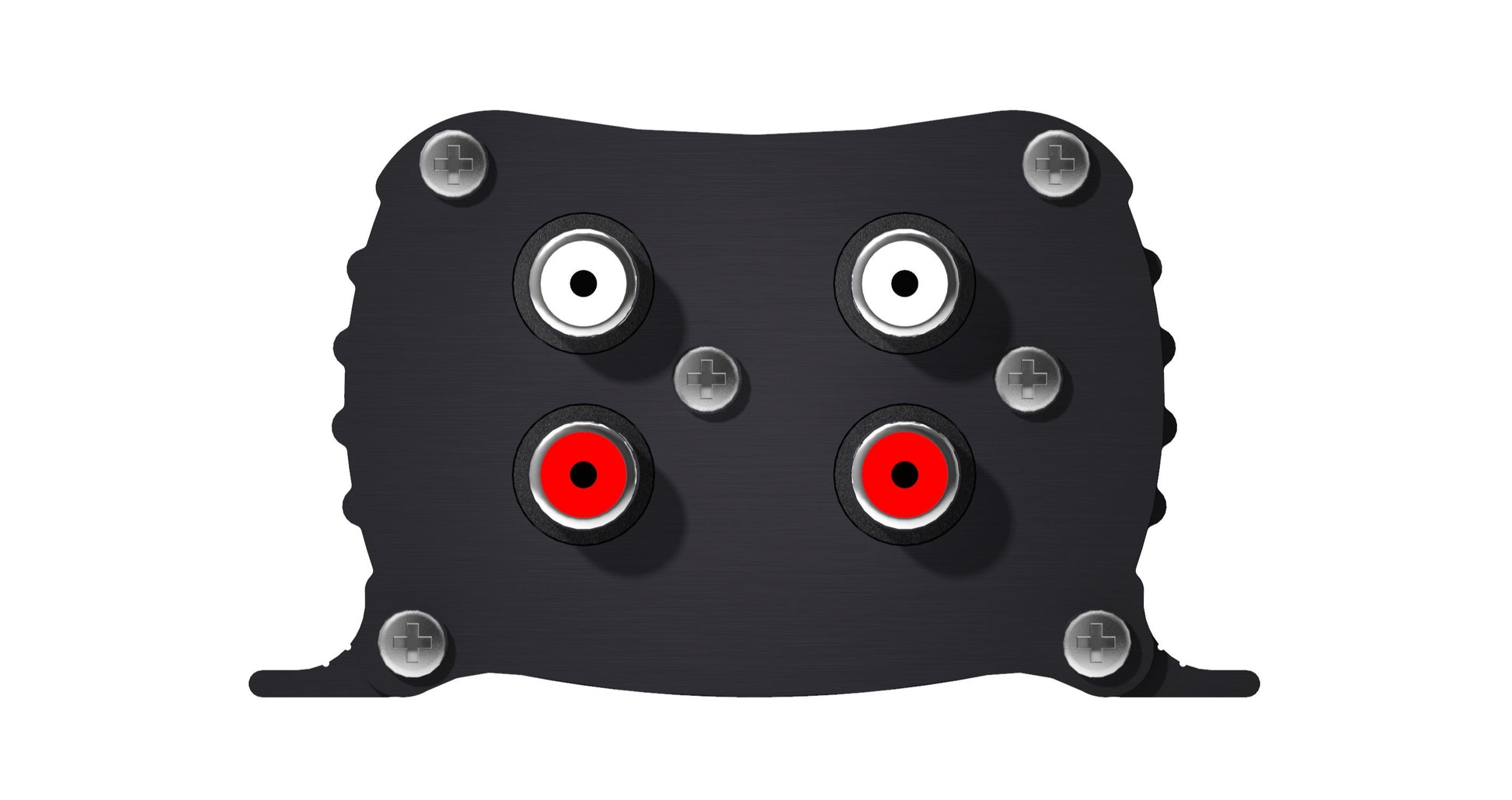

Analogue Phono Input & Output Pin-out
Pin: Function
Inner: Signal (White - Left, Red - Right)
Outer: Chassis Ground
Line Input - RCA Phono
Parameter: Description
Input Impedance: >5kΩ unbalanced
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
