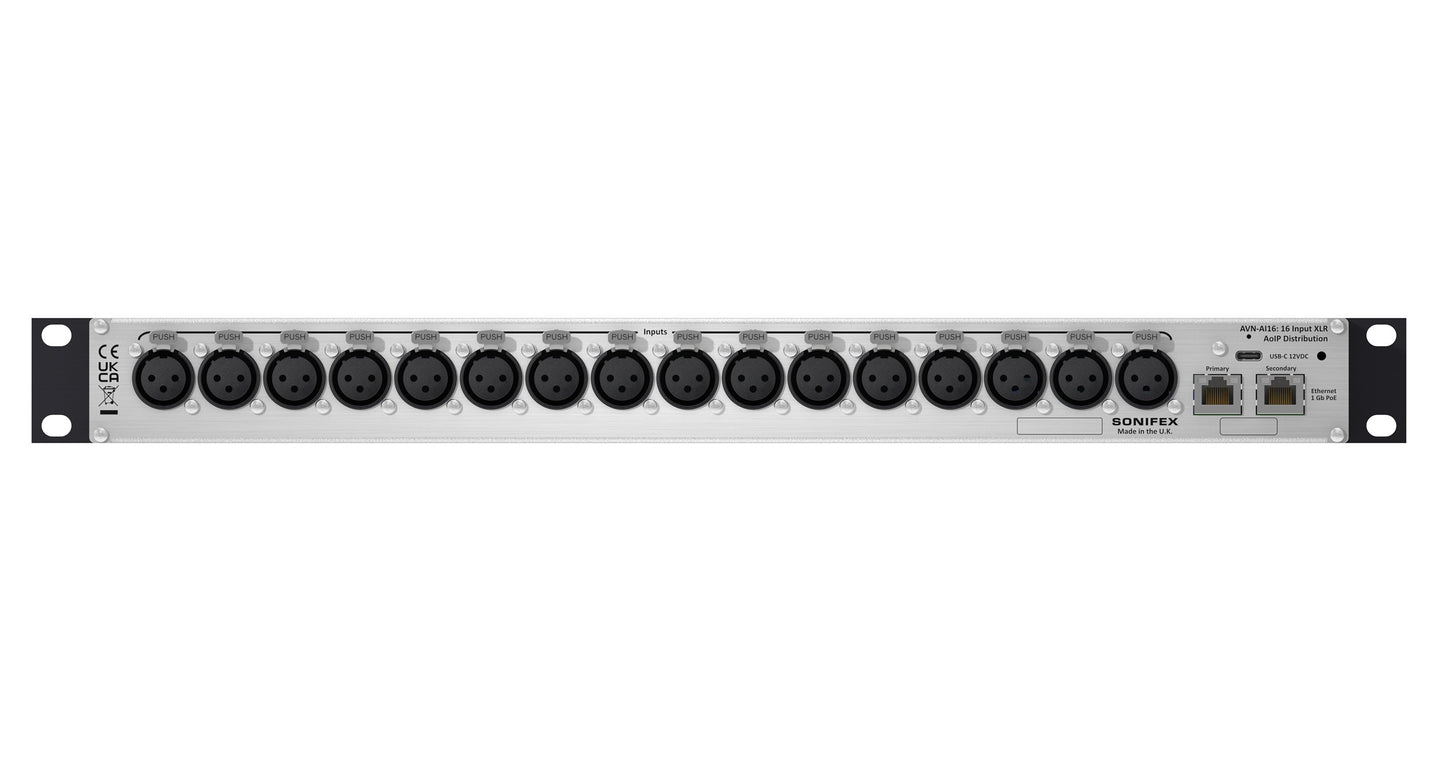

Designed for broadcast, live production, and professional AV environments, the AVN-AI16-RAV provides a cost-effective and dependable solution for transporting low-latency audio between analogue and RAVENNA/AES67 network domains. The unit incorporates dual RJ45 1Gb/s Ethernet ports that accepts both power and data to the RAVENNA/AES67 network. These ports, designated primary and secondary, can be configured in redundant mode to provide full network redundancy where infrastructure allows. In this configuration, the unit seamlessly switches from primary to secondary, ensuring continuous audio and power in the event of a link loss or switch failure.
Product Features
RAVENNA/AES67 AoIP.
16 x analogue inputs on Neutrik XLR.
Accepts balanced and un-balanced analogue line signal.
Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
Powered by PoE on either (or both) Ethernet ports, offering power supply redundancy.
Alternative USB-C DC power input, when PoE is unavailable.
2 x RJ45 connector, (1Gb/s Ethernet Port), allowing the unit to operate in redundant or switched modes.
PoE and Link LED status indicators for each Ethernet port.
Rear-panel mount for single/top locking USB-C cables.
Rear-panel cable tie mount to provide strain relief.
Clock LED status indicator.
Configuration using ANEMAN (Merging Technologies).
1U 19″ rack-mount aluminium chassis.
Typical Applications
The AVN-AI16-RAV is suited to a wide range of professional audio environments where reliable, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and RAVENNA/AES67-based audio networks.
Product Category
Analogue RAVENNA Converters
Technical Specifications
Network and AoIP
AoIP Standard: RAVENNA
Number of Channels: 16 transmit
Number of Streams: 16 transmit
Sample Rate: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format: Linear PCM, 16, 24 or 32 bit
AES67 Support: Yes
Connectivity: 1 x RJ45
Speed: 1Gbps or 100Mbps
Aneman Ready: Yes
Audio Input Performance Specifications
Parameter: Line Input
Input Impedance: >20kΩ balanced
0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-100 dB
Common Mode Rejection: >60dB @ 1kHz
Balanced Line Input XLR Pinout
Pin: Function
1: Chassis Ground/Screen
2: Input Phase/Positive
3: Input Non-Phase/Negative
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 6 W
Max PSE Power Usage: 15.4 W
Equipment Type
AVN-AI16-RAV: 16 Input RAVENNA Interface, PoE
Physical Specification
Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
