RT MDR.X Full Size Three Axis Lens Control Receiver w/ Bluetooth is our high-tech, 3-axis receiver for lens focus, iris, and zoom control with Teradek RT. This robust receiver weighs only 140g making it ideal for both smaller and mid-sized cameras, drones, or gimbals.
MDR.X features 3 dedicated lens-motor ports – with the ability to daisy-chain up to 3 motors for a cleaner build – and 2 serial ports for wired control, Cinetape, and more. The camera control port allows users to start and stop recording from your RT hand unit.

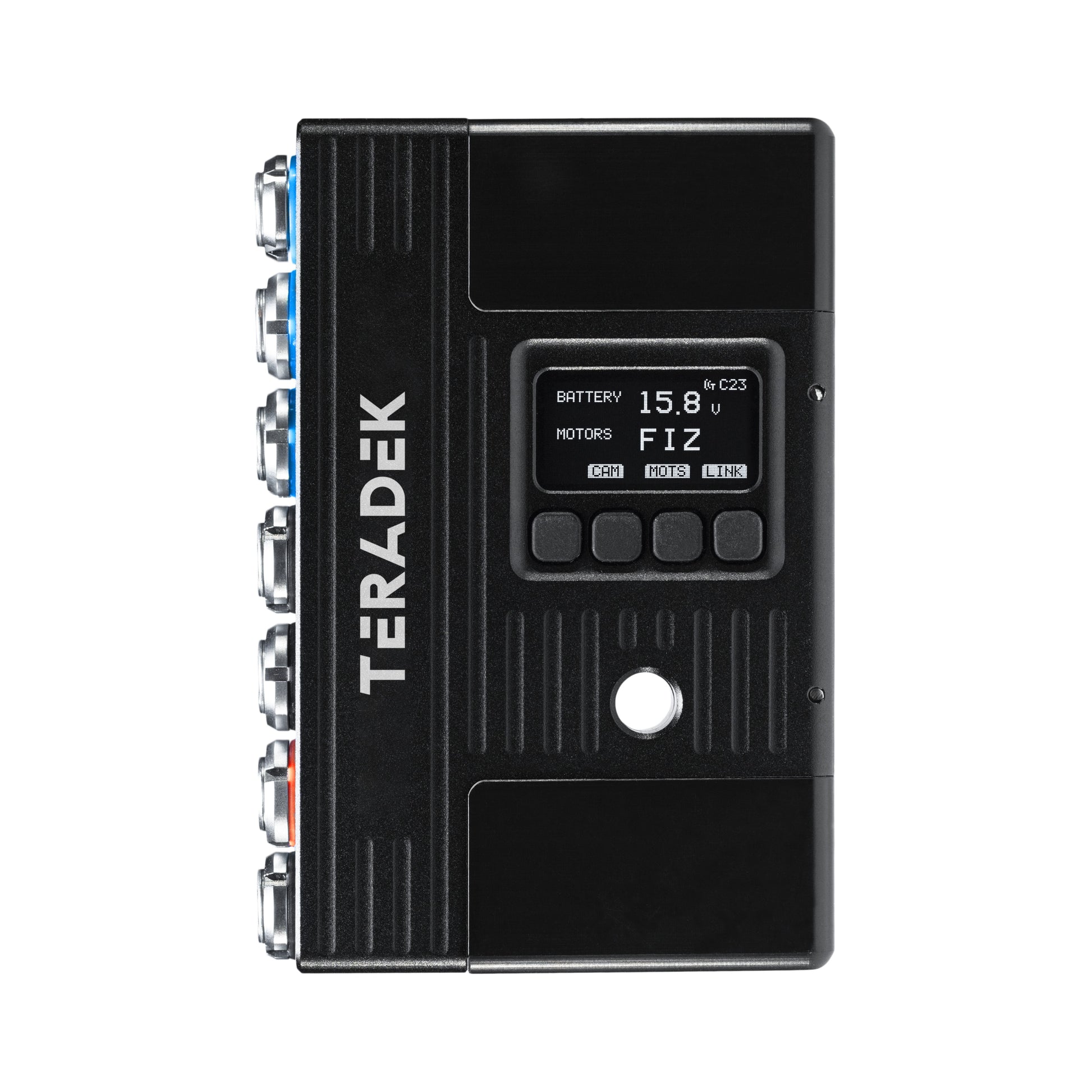

The MDR.X receiver features FHSS wireless technology – which prevents interference – an OLED screen with a simple menu system, a replaceable and customizable external antenna, and maximum line-of-sight range of 5,000 ft. Using the MDR.X’s integrated Bluetooth, you can remotely control your lens with the Teradek RT app for iOS.
Dimensions: 2.3”W x 0.7”D x 3.7”H [58mm x 18mm x 94mm]
Weight: 4.8 oz (136g)
Power
Power Input: Power via 2-pin LEMO 7-17V input
Interfaces

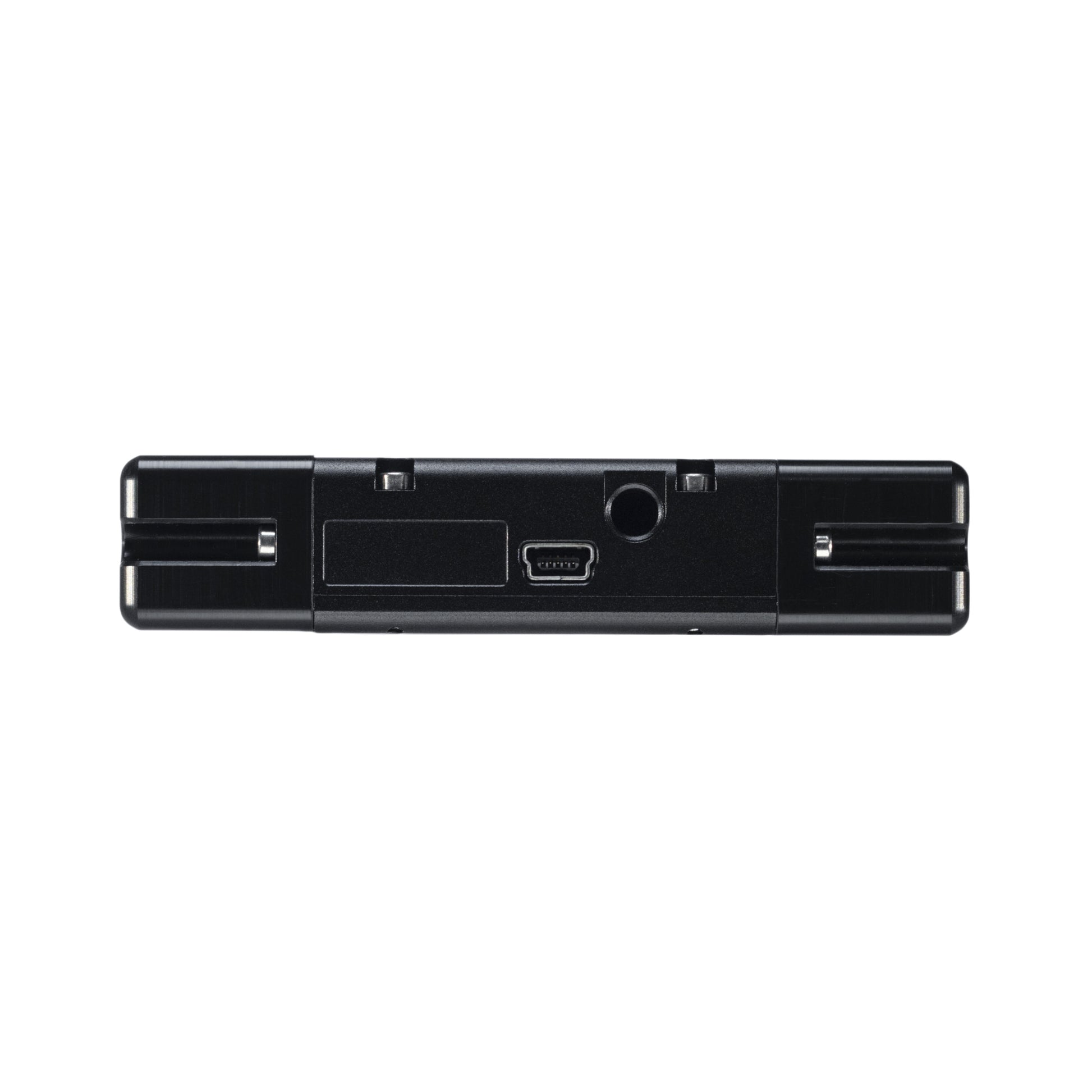

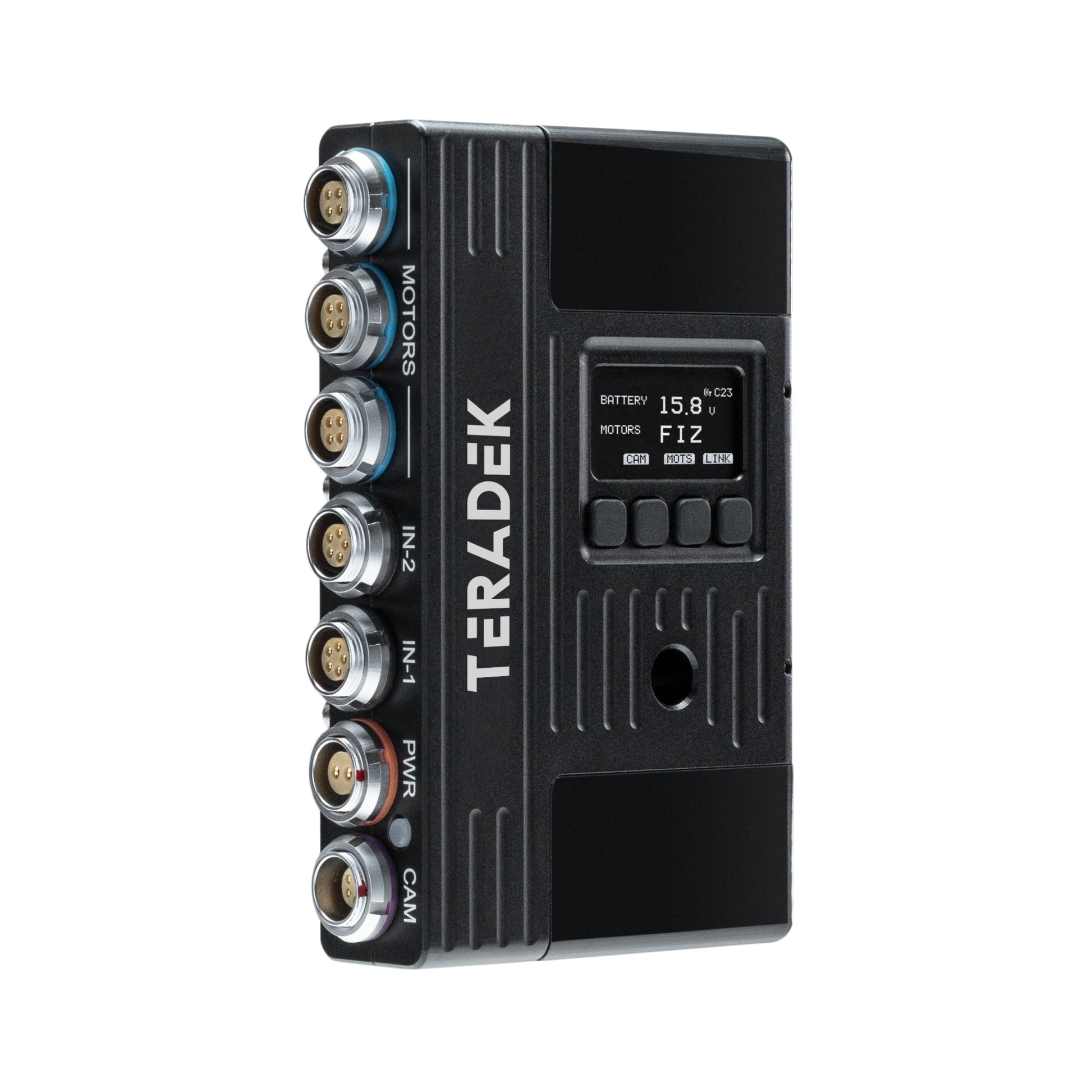

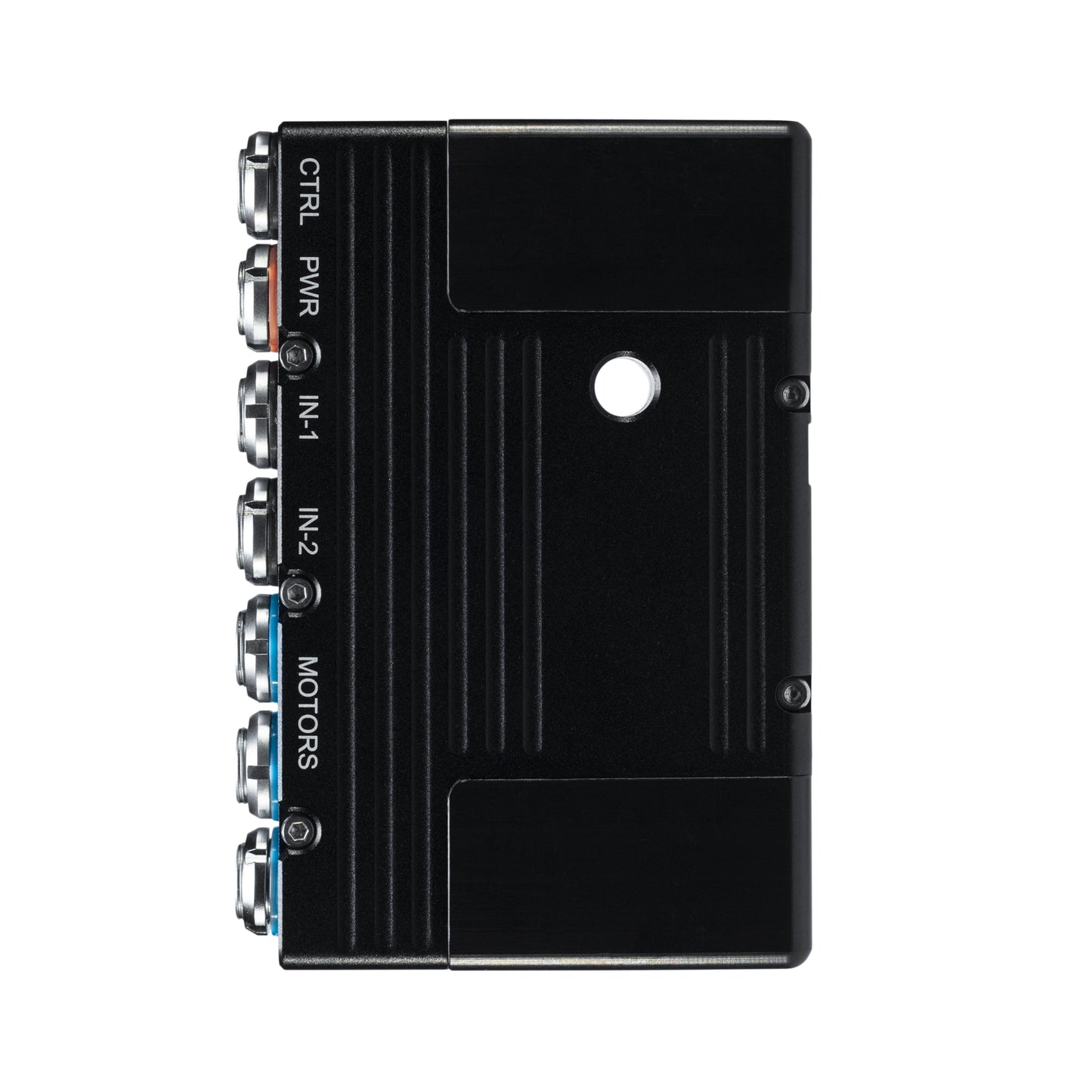

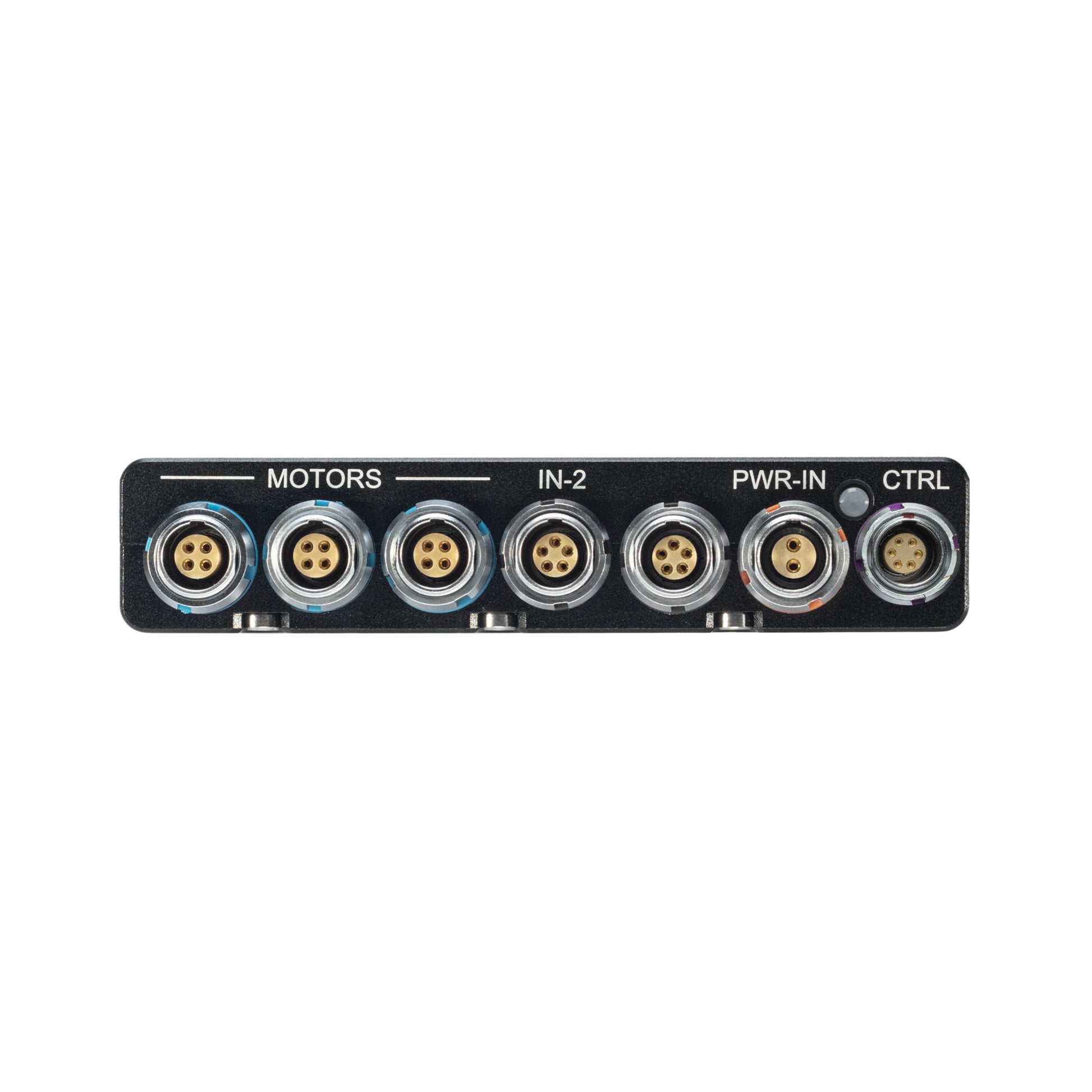

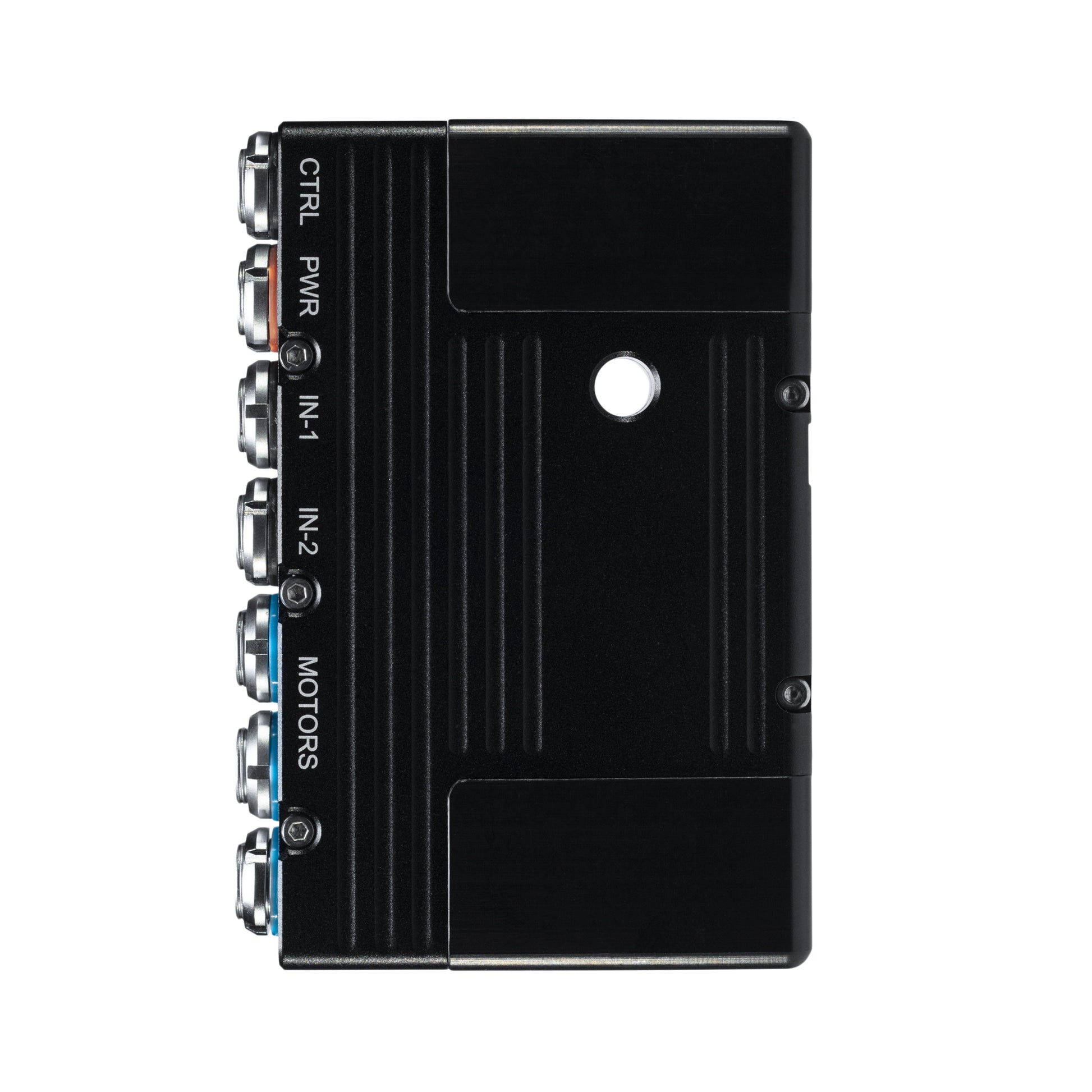

Connectors: 1 x Power input 3 x Motor ports 2 x Slave controller inputs 1 x CAM (Camera control port): 6-pin LEMO 0B 1 x USB: Mini-USB (firmware updates)
Run/Stop Control: Including but not limited to: ARRI ALEXA, ALEXA Mini, AMIRA, etc. Blackmagic Canon C100, C300 (MkII+), C500 Panasonic Varicam Phantom RED DSMC2, DSMC, ONE Sony F5, F55, FS7 (MkII+)
Camera Control Support: RED DSMC2, RED DSMC control: EF/AF Focus/Iris Shutter ISO Button features: 2x Magnification, Edge, Focus Assist
Network
Wireless: 1 x 2.4 GHz BLE module 1 x 2.4 GHz RT FHSS wireless module
Wireless Range: RT FHSS: Line-of-sight: Up to 5000' (1500 m) (in USA/FCC mode) Indoors: Up to 492' (150 m) BLE 5: Theoretical maximum range of 800ft, actual range will vary.
Environmental
Operating Temperature: -4 to 122°F (-20 to 50°C)
Storage Temperature Range: -40 to 185°F (-40 to 85°C)
