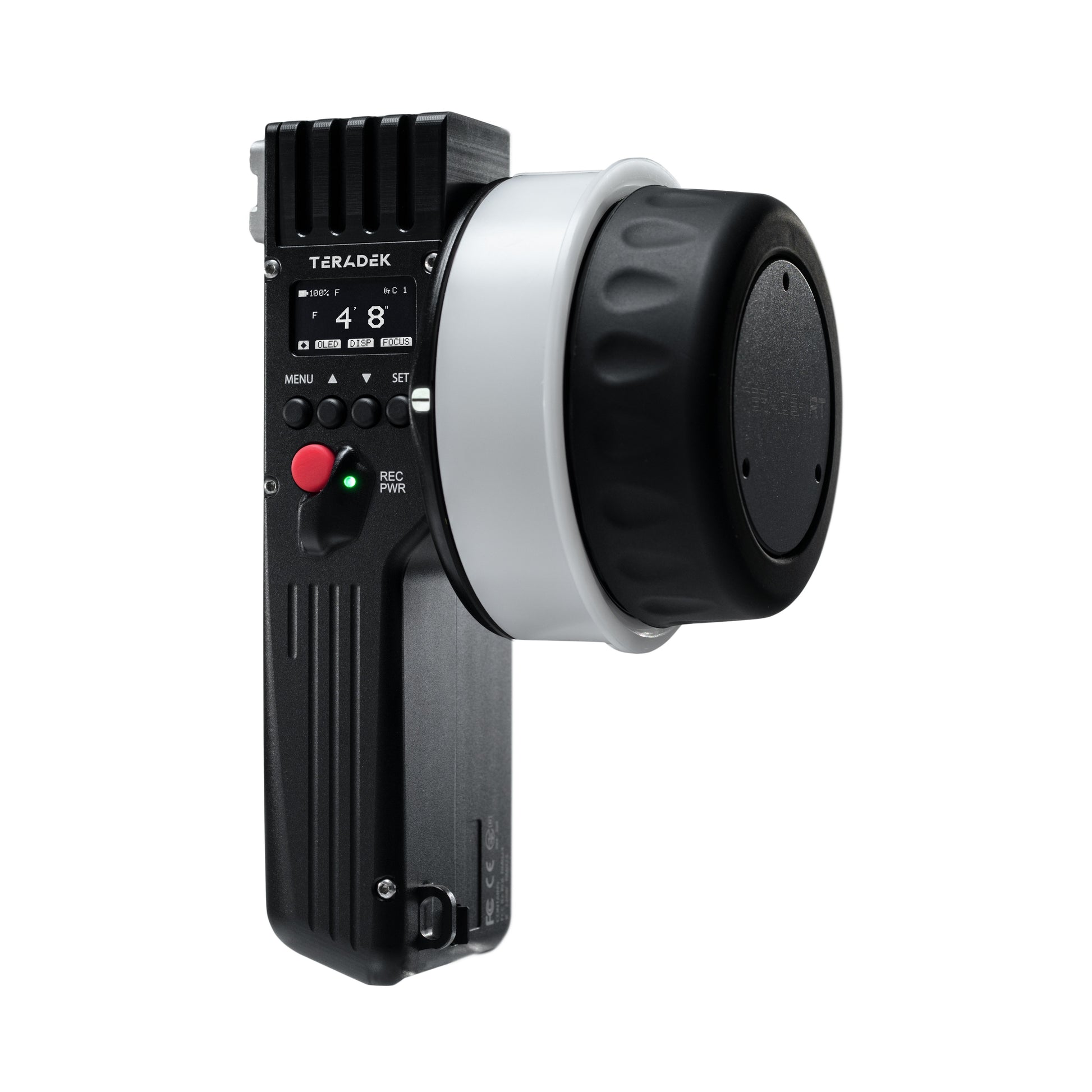

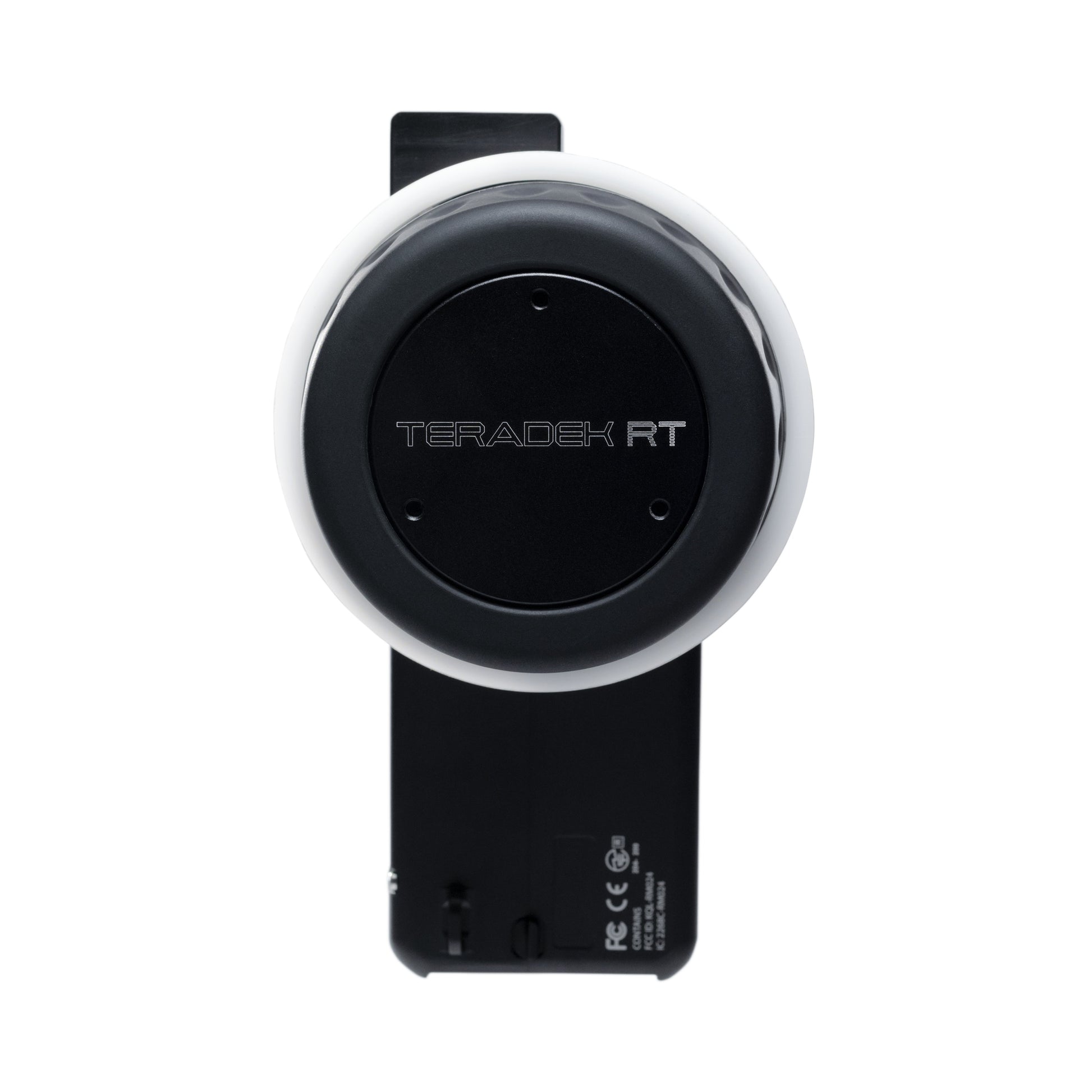

The CTRL.1 is a single-axis handheld controller for precision wireless lens control. Part of the Teradek RT ecosystem, CTRL.1 allows for either focus, iris or zoom control, is compatible with all Teradek RT motors & receiver and will work simultaneously with other RT Units controlling the other axes on the same lens.
CTRL.1 introduces low-latency information overlays showing lens data on SmallHD monitors. Lens mapping and overlaying is now included with CTRL.1 via firmware update. Lens rings available inMetric and Imperial units.

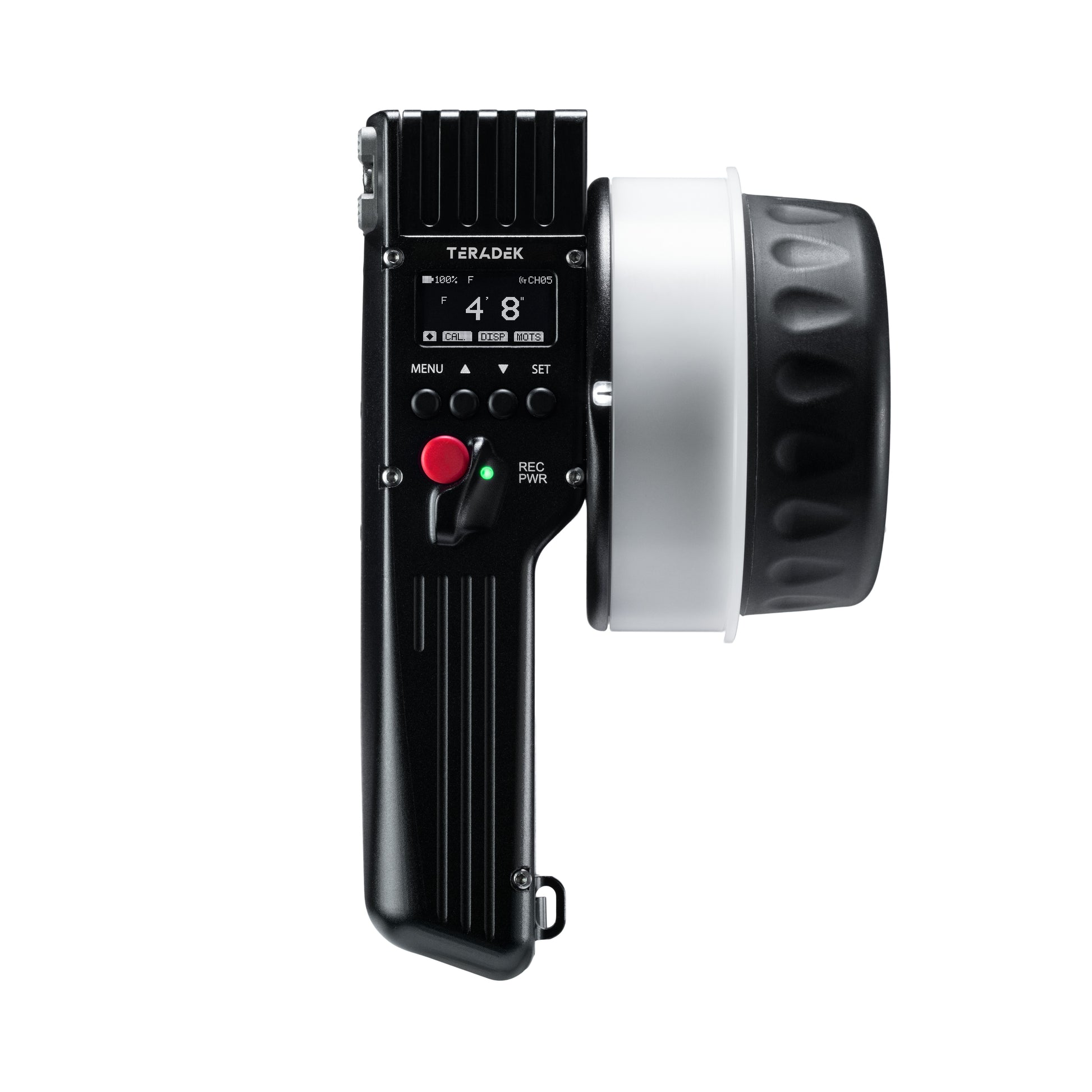

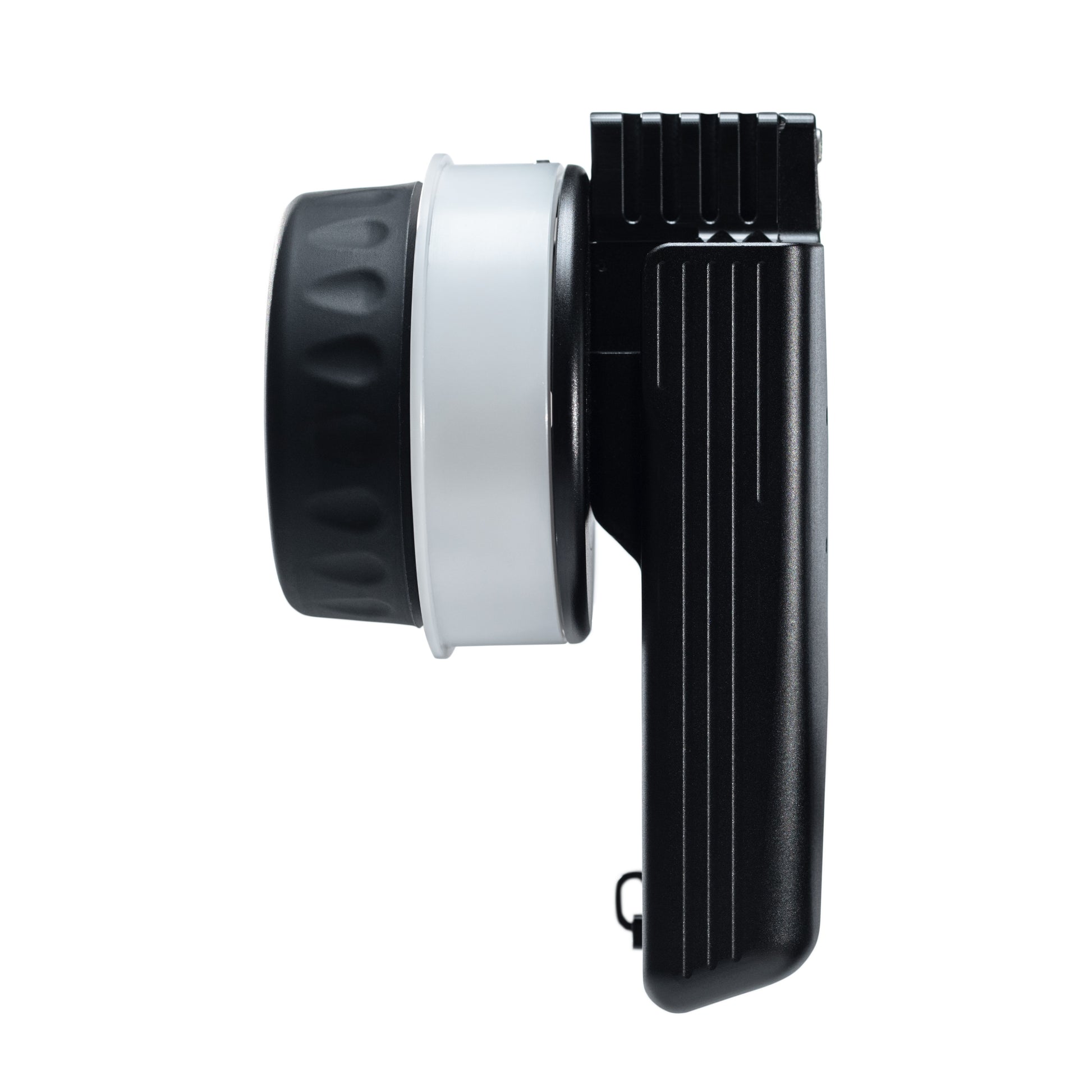

Ergonomic Lightweight Design The controller features a large focus knob, flexible mounting options and an OLED display for critical lens data. Its lightweight ergonomic design makes it extremely easy to take anywhere, and a removable Canon LP-E6 battery offers up to 36 hours of continuous use.
Lens Mapping CTRL.1 introduces built-in lens mapping, which allows for auto-calibrating lenses to pre-marked focus rings and accessing configurations at any time with the touch of a button. Pre-marked rings cover multiple lenses, saving time on set from manually calibrating after every lens swap.*
SmallHD Overlays CTRL.3 and CTRL.1 feature the world’s first lens data overlays on SmallHD monitors. Get critical follow focus information directly on your monitor including lens focal distance, focal length, iris, zoom and more.*
*Overlays require a monitor cable (cable type depends on your SmallHD monitor) - sold separately.
Technical Specifications
Physical
Construction: Aerospace-grade aluminum billet

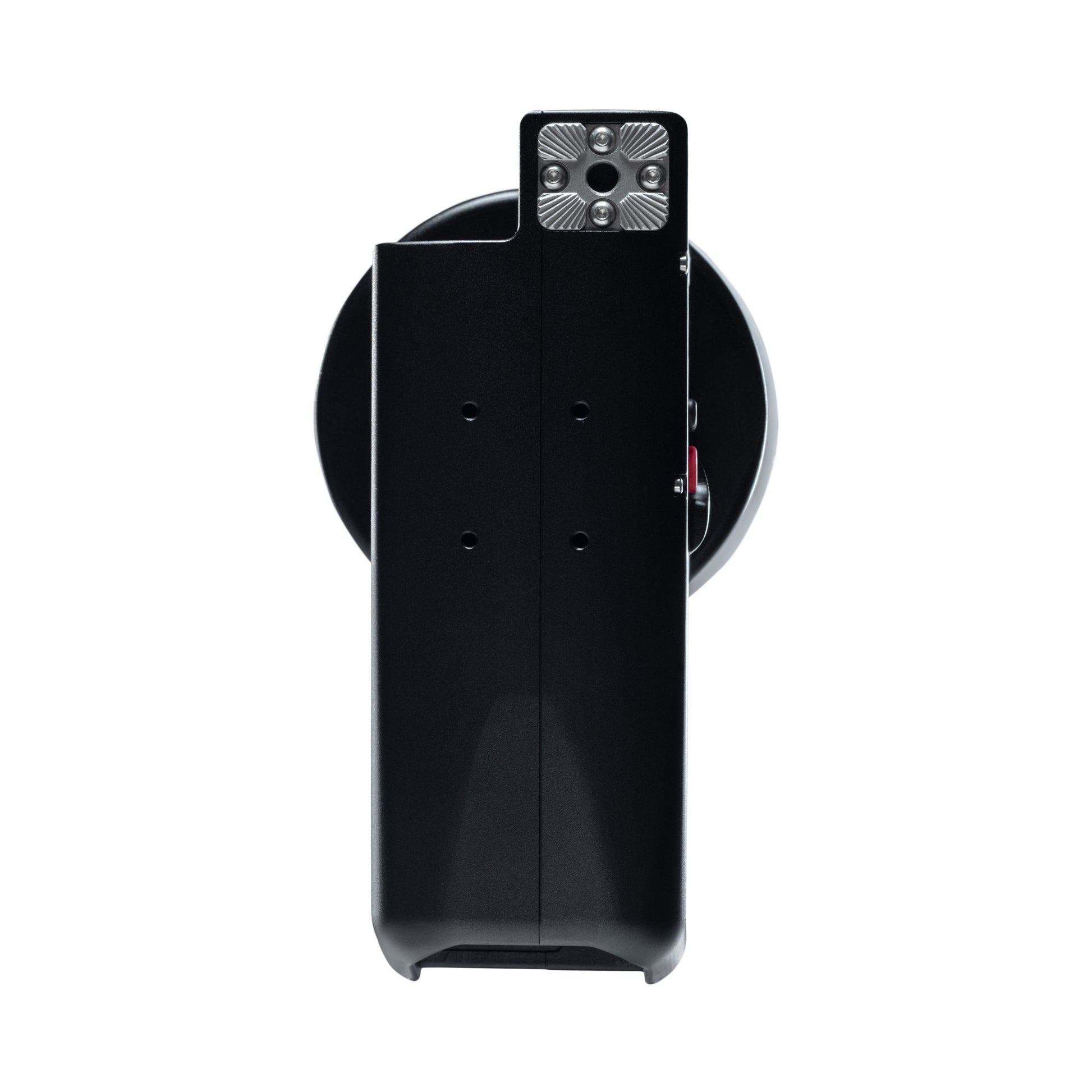

Mountability: M6 Rosette block mount, 4 x M3 mounting holes
Dimensions: 3.6”W x 3.1”D x 5.9”H [91mm x 81mm x 150mm]
Weight: 17 oz (482g)
Power
Power Input: Controller includes slot for a Canon LP-E6 Battery: 6.2 to 8.4 V USB Port: 4.75 to 9 V (maximum)
Interfaces

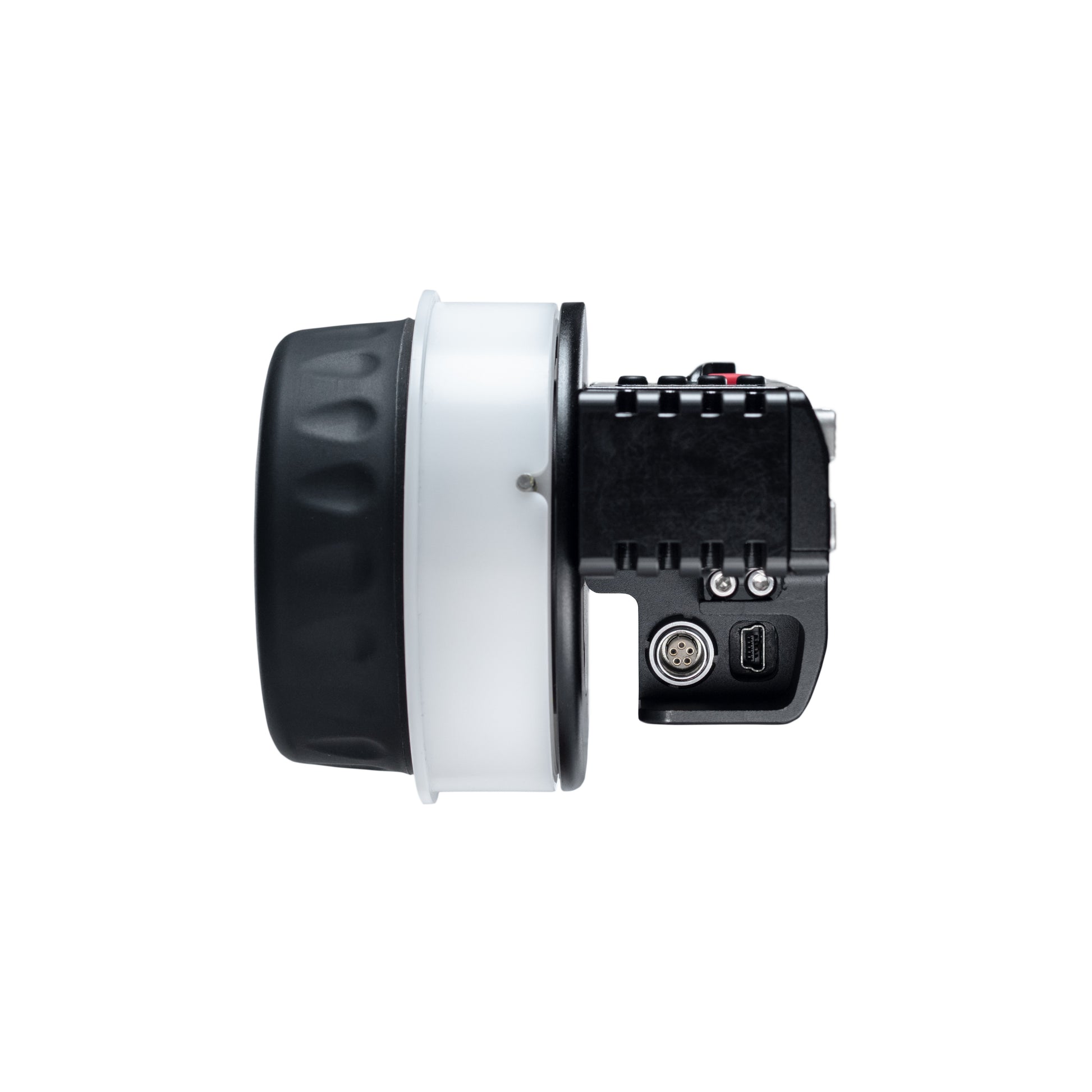

Connectors: 1 x 5-pin locking connector for Wired Mode
Run/Stop Control: RED (Epic, Scarlet, Weapon, Raven, etc.) ARRI (Alexa, Amira, etc.) Phantom Sony F55 LANC (Blackmagic, Canon C100/300/500 Sony FS7)
Axes: 1 axis: knob
Network
Wireless: Teradek RT FHSS 2.4GHz WiFi 2.4GHz
Wireless Range: Up to 5000 ft (1500 m) line-of-sight (in USA/FCC mode) Up to 500 ft (150 m) indoors
Environmental
Operating Temperature: -4 to 122ºF (-10 to 50ºC)
Storage Temperature Range: -40 to 185°F (-40 to 85ºC)
