CTRL.3 is a feature-rich, powerful 3-axis wireless controller with built-in lens mapping and data storage. Paired with any SmallHD monitor, CTRL.3 displays critical lens data as overlays directly on the monitor, allowing camera assistants to pull focus and keep eyes on the image.
Ergonomic Lightweight Design

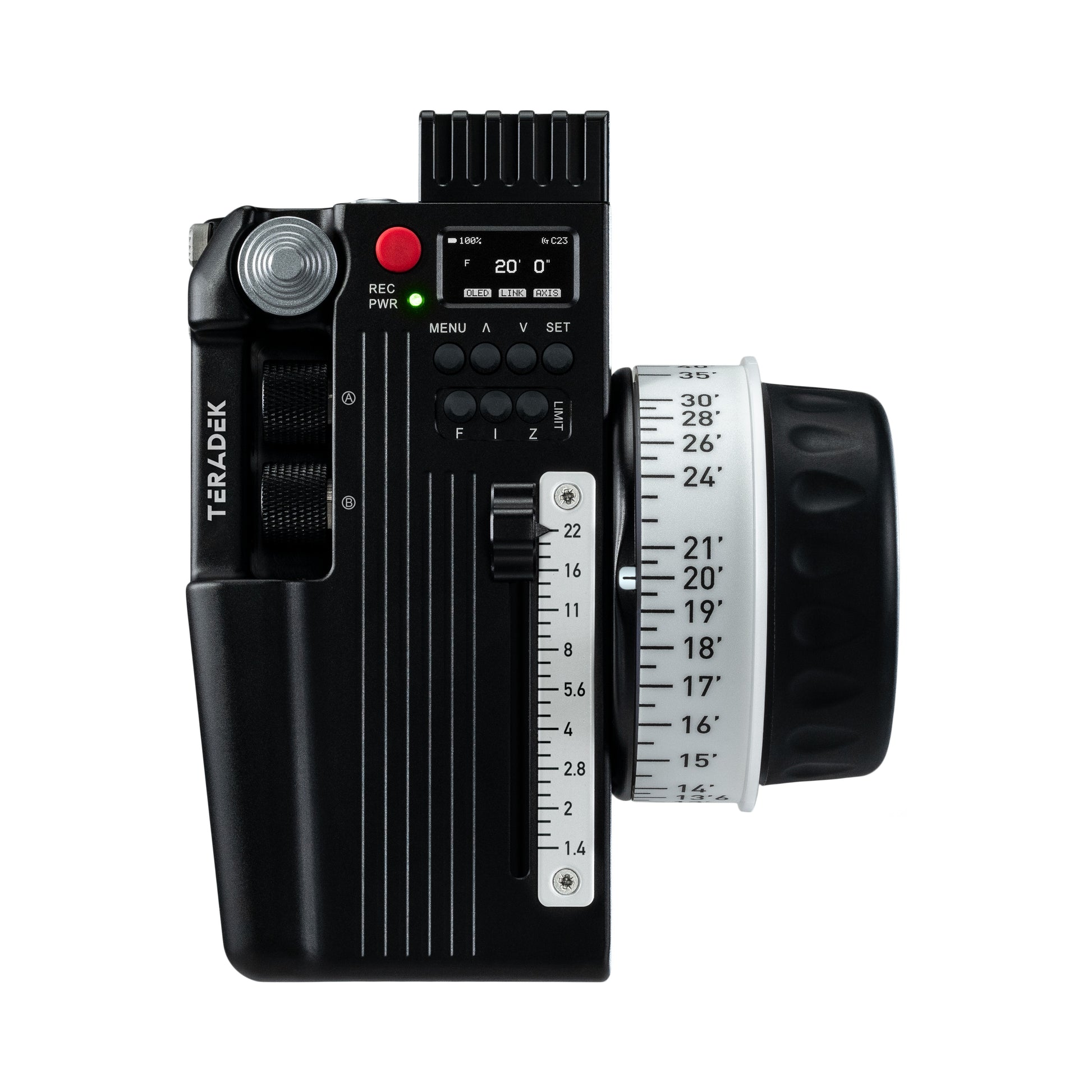

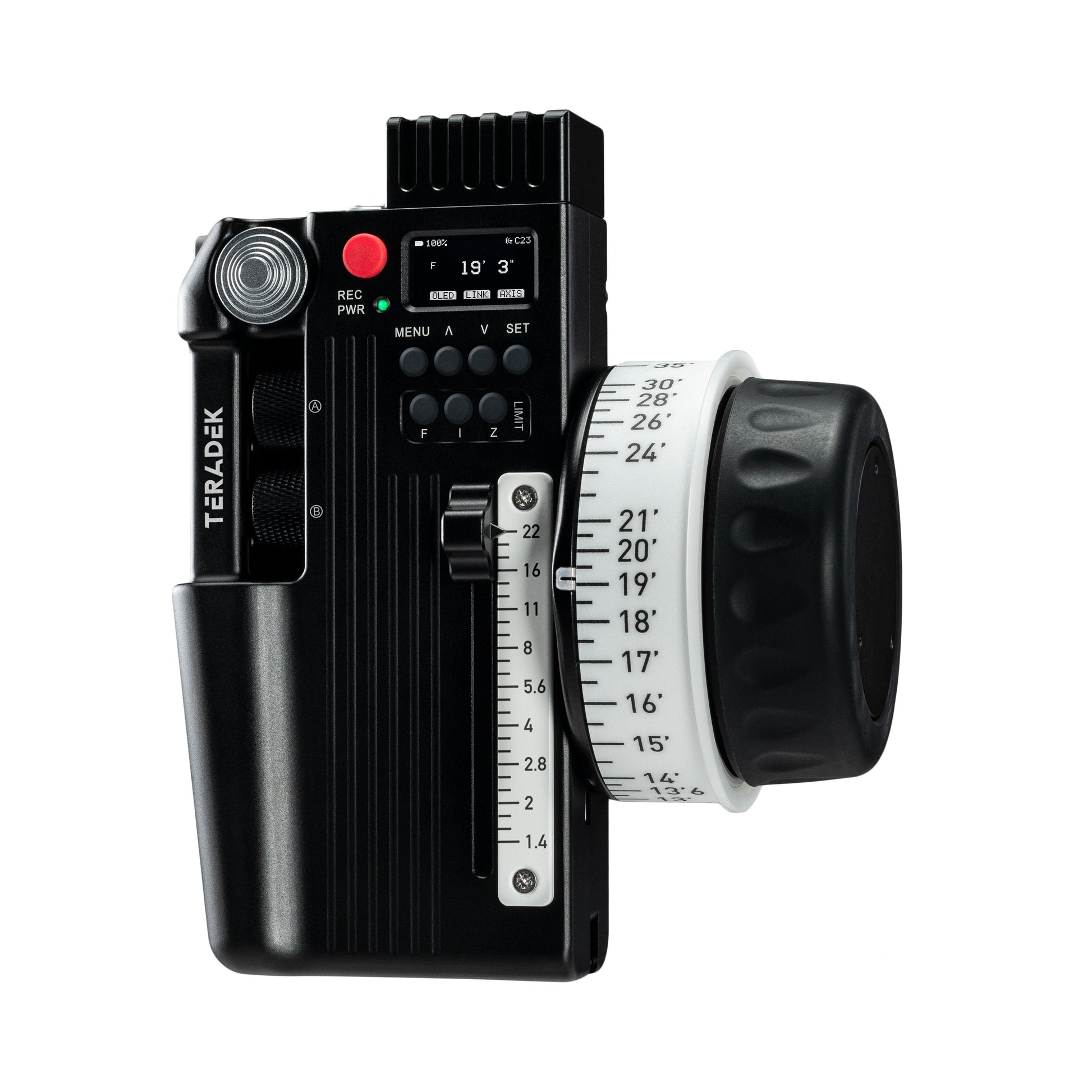

The controller features a large focus knob, flexible mounting options and an OLED display for critical lens data. Its lightweight ergonomic design makes it extremely easy to take anywhere, and a removable Canon LP-E6 battery offers up to 36 hours of continuous use.
Lens Mapping
CTRL.3 includes built-in lens mapping, which allows for auto-calibrating lenses to pre-marked focus rings and accessing configurations at any time with the touch of a button. Pre-marked rings cover multiple lenses, saving time on set from manually calibrating after every lens swap.
Pre-marked rings come in Imperial or Metric units.
SmallHD Overlays
CTRL.3 includes the lens data overlays on SmallHD monitors. Get critical follow focus information directly on your monitor including lens focal distance, focal length, iris, zoom and more.
Teradek RT App
Manage, update and configure every piece of your Teradek RT system with the Teradek RT App for iOS. Create lens maps, configure FIZ settings, perform basic camera controls, update firmware and much more all from the convenience of your smartphone or tablet.
Technical Specifications
Power
-
Power Input: Controller includes slot for a Canon LP-E6 Battery: 6.2 to 8.4 V USB Port: 4.75 to 9 V (maximum)
Interfaces
-

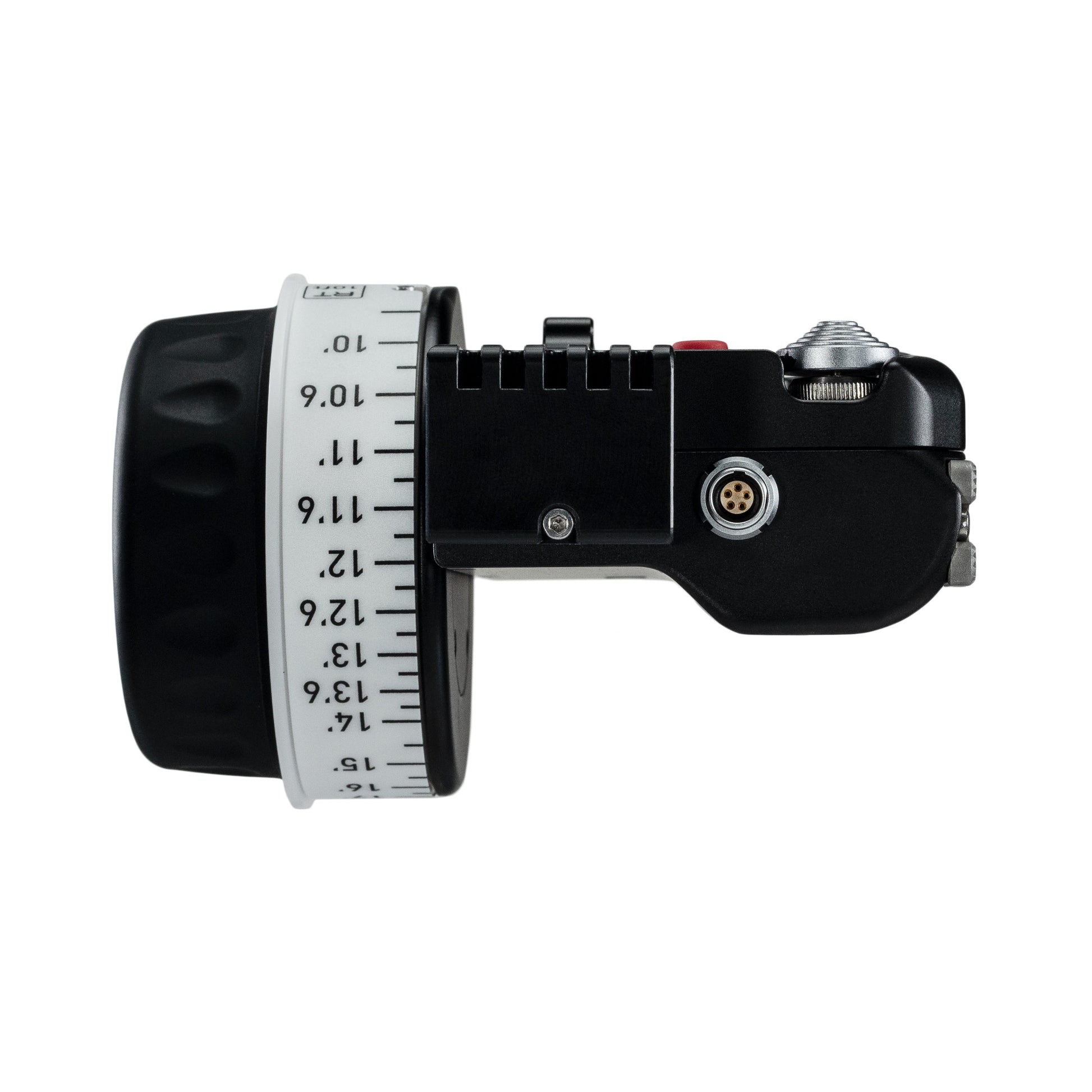

Connectors: 1 x 5-pin locking connector for Wired Mode 5pin serial + usb for monitor interface, wired control, USB Mini
-
Run/Stop Control: RED (Epic, Scarlet, Weapon, Raven, etc.) ARRI (Alexa, Amira, etc.) Phantom Sony F55 LANC (Blackmagic, Canon C100/300/500 Sony FS7)
-
Axes: 6 total: knob slider zoom x/y rollers: a + b
-
Bluetooth: MDR.X, MDR.ACI, RT iOS App
Network
-
Wireless: Teradek RT FHSS 2.4GHz Bluetooth 2.4GHz
-
Wireless Range: Up to 5000 ft (1500 m) line-of-sight (in USA/FCC mode) Up to 500 ft (150 m) indoors
-
Latency: 2ms
Environmental
-
Operating Temperature: -4 to 122ºF (-10 to 50ºC)
-
Storage Temperature Range: -40 to 185°F (-40 to 85ºC)
Certifications
-
Certifications: FCC/IC/CE
Physical
-
Dimensions: Excluding Knob & Antenna: 3 x 1.5 x 5.5" (76 x 38 x 127 mm) Including Knob & Antenna: 5.1 x 3.3 x 6.2" (130 x 84 x 157mm)
-
Weight: 1lb 11oz (754g)
-
Construction: Aerospace-grade aluminum billet
-

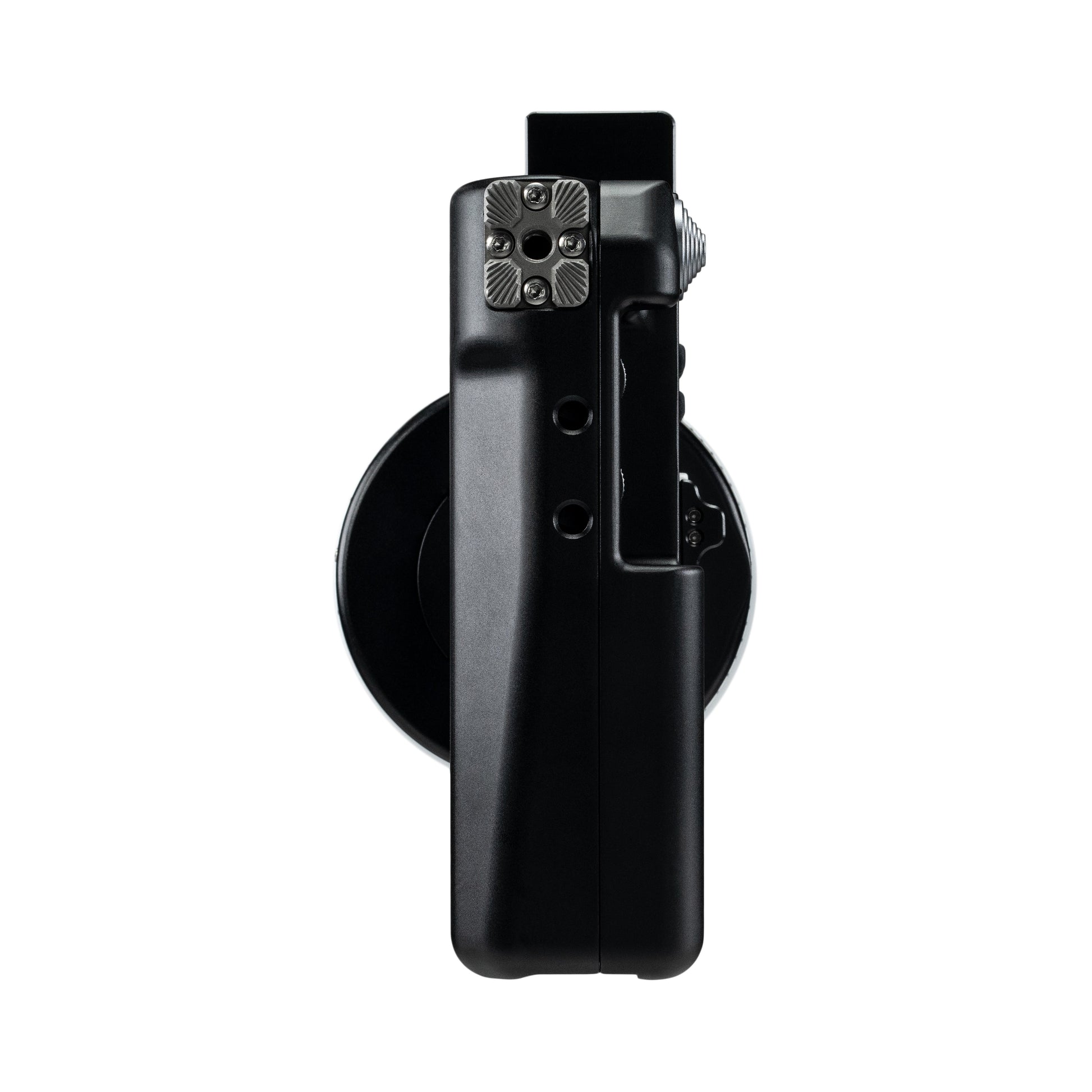

Mountability: 4x 1/4-20 threads, 1x Arri rossette w/ M6 thread, lanyard mount
Product Details
-
SKU: TERT-15-0047-I
-
EAN: 818264024881
-
Warranty: 12 months
-
Country of origin: United States
