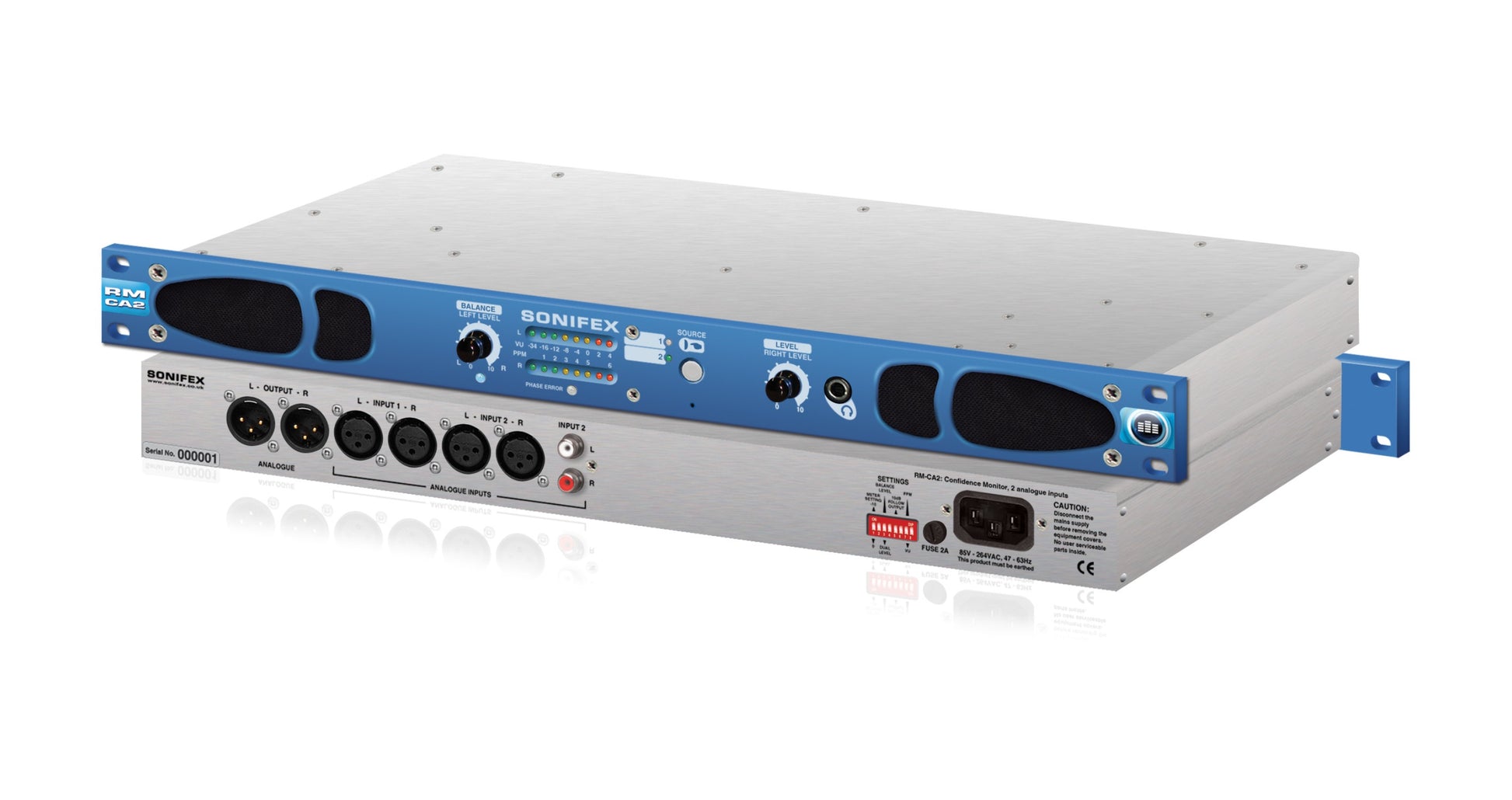

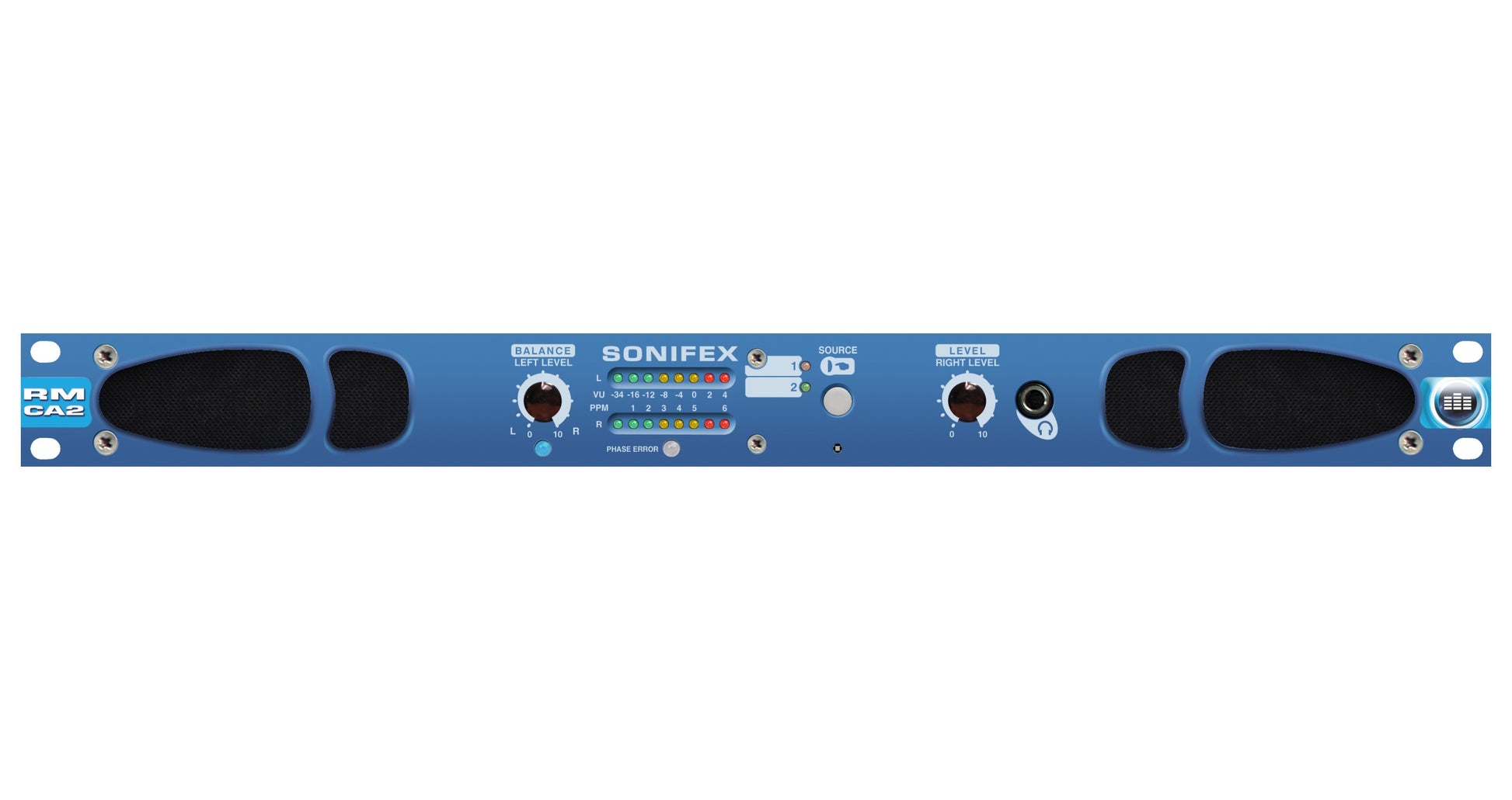

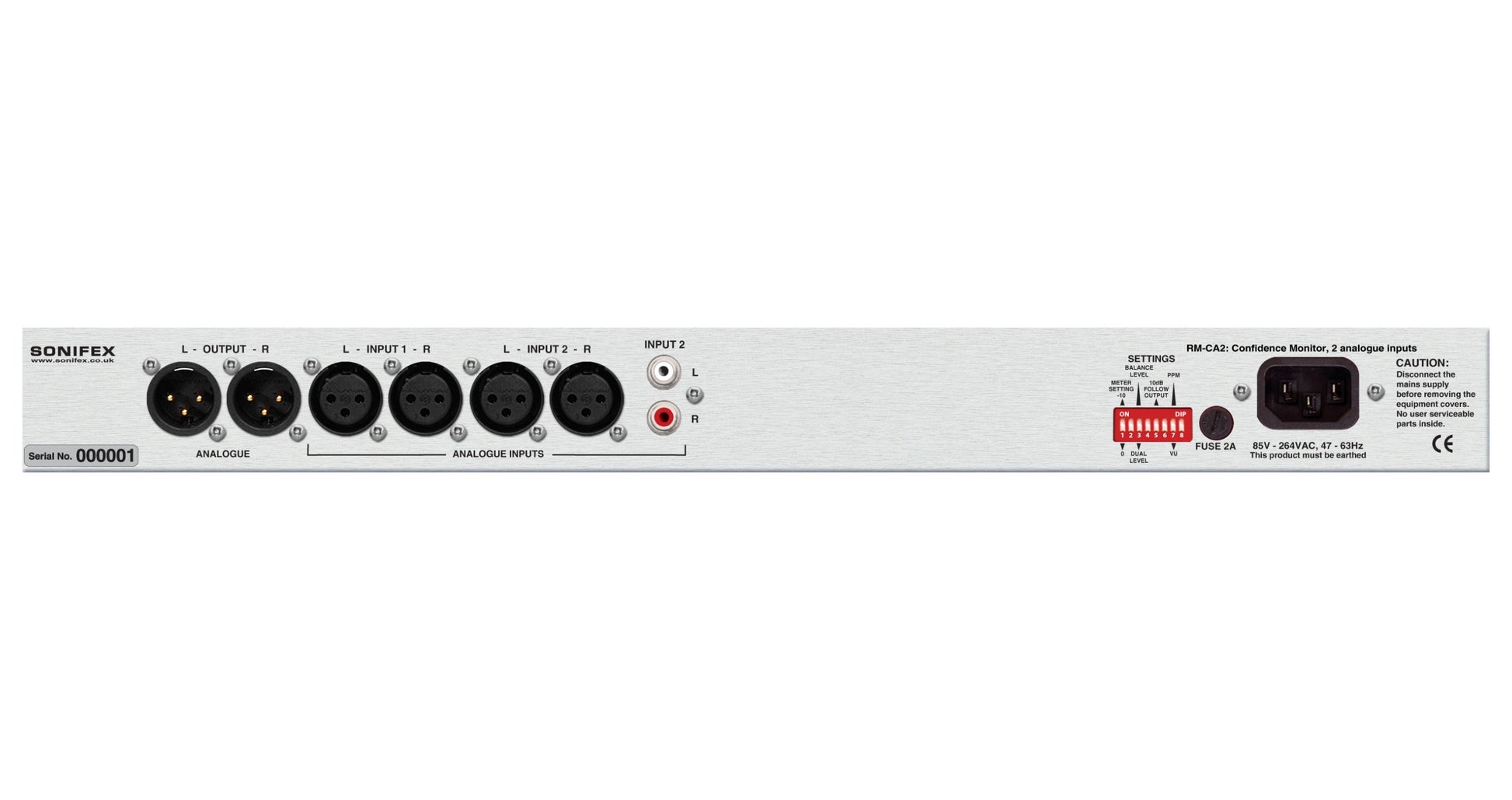

Using the same outstanding speaker system as the Reference Monitor range, the confidence monitors offer a superb sound with a cut-down feature set. The confidence monitors have been designed to give the best possible performance at a reduced The RM-CA2 is a 1U rack-mount unit offering quality loudspeaker monitoring and 2 channel metering of two stereo analogue audio sources. Input 1 has stereo balanced Neutrik™ XLRs and Input 2 has both stereo balanced Neutrik™ XLRs and stereo unbalanced RCA phono connectors. The balanced analogue inputs can be wired unbalanced if required. Sources are selected via a front panel push-button switch, with clear LED indication of the current source. A rear panel DIP switch setting allows the unit to monitor either: Stereo signals, with the two front panel control knobs acting as stereo volume and balance control, to alter the stereo imaging of the left and right channels, or
Product Features
2 x analogue inputs - XLR and RCA phono (Input 2).
Stereo analogue output follows source selection.
Headphones output.
Audio metering withe VU and PPM scales.
Phase meter LED.
Stereo or dual mono operation.
Anti-vibration steel case.
Sealed lid with foam cut-outs to dampen lid.
Multi-point screw fixings ensure lid rigidity.
Rear connector ports sealed with foam.
Glue used on components which could move, or vibrate.
Accurate 3-way speaker system.
Two mid/high frequency speakers provide excellent stereo imaging.
