Sonifex RB-SS10 | 10 Way Stereo Analogue Source Selector/Mixer

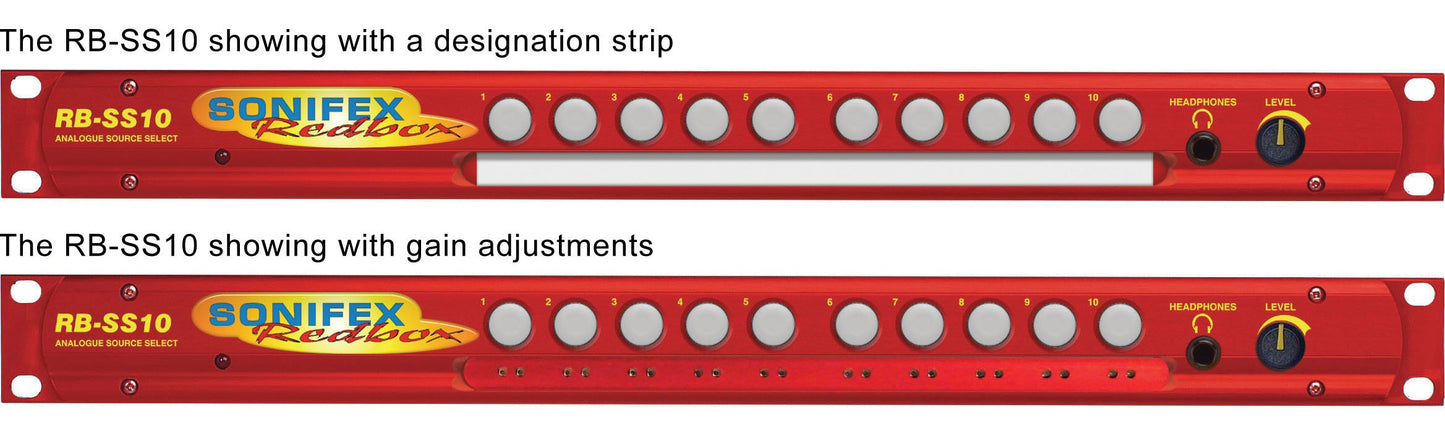

The RB-SS10 10 way stereo analogue source selector/mixer is a 1U rack-mount unit that produces a stereo analogue audio output from 10 selectable stereo analogue sources. There are 10 illuminated front panel push-buttons, which select and indicate the current channel selection. The selection and indication is also available through a remote connector on the rear panel. To stop accidental front panel selection there is a remote input to inhibit the front panel buttons. Two of the stereo inputs are on XLR so that you can hot-plug audio sources, e.g. portable recorders. As well as being able to act as a source select module, the RB-SS10 can act as a mixer, by enabling the mix mode (using the remote input).

Product Features

• 2x stereo analogue balanced inputs (hot-plugable).
• 8 x stereo analogue balanced inputs on D-type connectors.
• Individual channel gain controls.
• Mix mode available.
• Optional channel selection through remote control.
• Front panel selection Inhibit.
• Headphone monitoring of output.
• Simultaneous routing of GPIO with audio.

Typical Applications

For monitoring multiple stereo audio sources, as a studio on-air switcher, as a 10 stereo channel line input mixer.

Product Category

Source Selectors

Technical Specifications

Audio Specification

• Input Impedance: 20kΩ bridging
• Output Impedance: <50Ω
• Max Input Level: +28dBu
• Max Output Level: +28dBu
• Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
• Input Gain Range: Adjustable 8dB loss to 20dB gain (L & R adjust) via front panel adjustable preset potentiometers
• Common Mode Rejection: >66dB typically
• Noise: -96dB unity gain ref +8dBu
• Max Headphone Output Level: +12dBu

Connections

• Inputs: 4 x XLR 3 pin female (2 x stereo) (balanced, can be unbalanced)
• Inputs: 2 x 25 way D-type socket (female) (4 stereo balanced channels on each)
• Outputs: 2 x XLR 3 pin male (stereo balanced, can be unbalanced)
• Remote Start I/O: 25 way D-type plug (male)
• Remote Select/Switch Inputs: 25 way D-type socket (female)
• Status Outputs: 25 way D-type socket (female)
• Mains Input: Filtered IEC, 110V-120V, or 220-240V switchable, fused, 6W maximum
• Fuse Rating: Anti-surge fuse 160mA 20 x 5mm (230VAC)
• Fuse Rating: Anti-surge fuse 315mA 20 x 5mm (115VAC)

Equipment Type

• RB-SS10: 10 way stereo analogue source selector/mixer

Physical Specification

• Dimensions (Raw): 48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
• Dimensions (Raw): 19” (W) x 4.3” (D) x 1.7” (H) (1U)
• Dimensions (Boxed): 58.5cm (W) x 22.5cm (D) x 7cm (H)
• Dimensions (Boxed): 23” (W) x 8.9” (D) x 2.8” (H)
• Weight: Nett: 1.5kg Gross: 2.0kg
• Weight: Nett: 3.3lbs Gross: 4.4lbs
