Important: This SKU is an option, conversion or upgrade for an existing Sonifex product and not a standalone hardware unit.

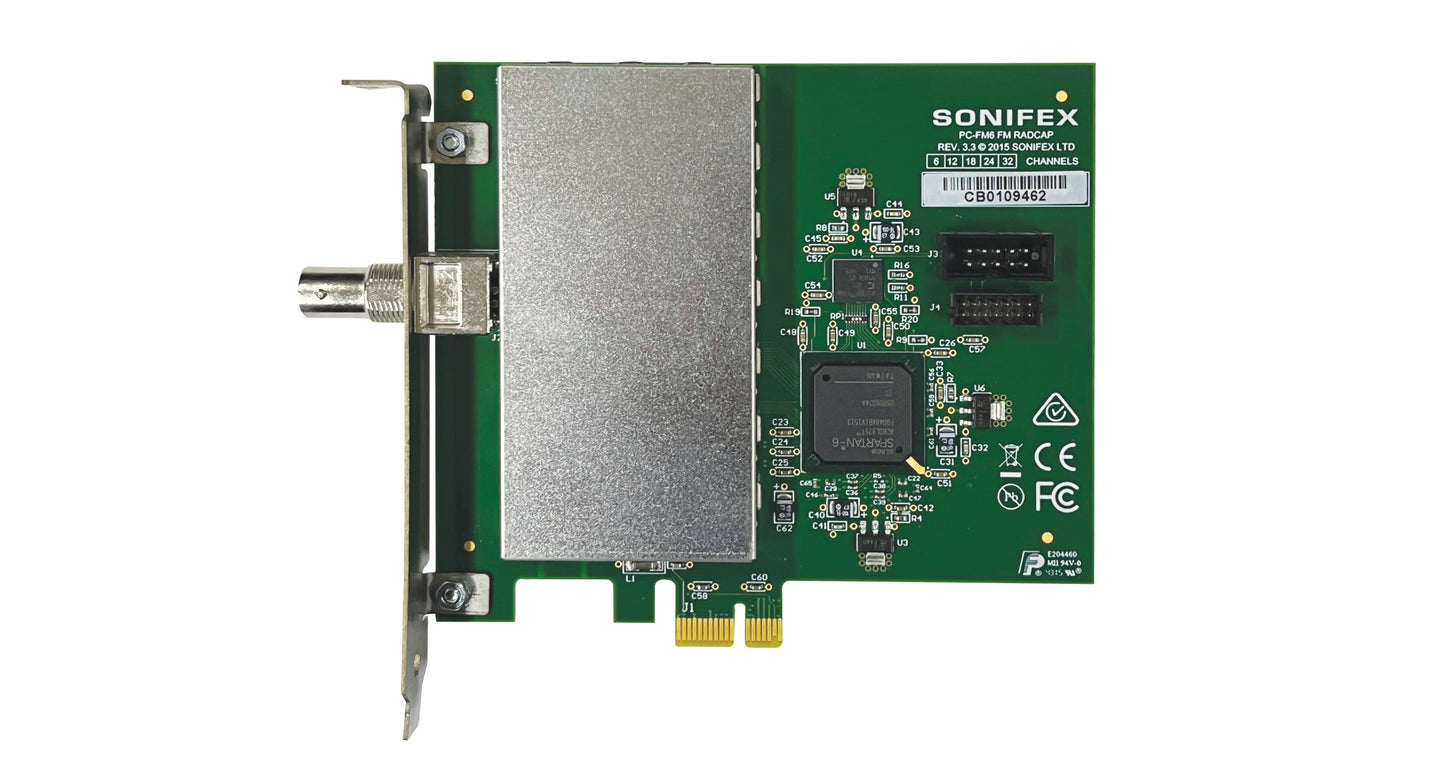

The PC-FM radio capture card range can simultaneous record up-to 32 radio stations. This field-upgrade enables you to increase your station count by 8 from 24 to 32 stations. The FM Radcap PCIe is a radio capture card designed for simultaneous recording of multiple radio stations. The frequency of each station is set in software and its audio appears as a standard Windows audio input device. RDS decoding is also supported. The card uses a high-speed A/D converter to digitise the entire FM band, with up to 32 individual tuners. The Radcap achieves exceptionally low audio distortion through the use of linear phase filtering and mathematically precise FM demodulation and stereo decoding. FM demodulation and stereo decoding is done in FPGA fabric, while RDS decoding, if enabled, is performed in the driver using the host CPU’s SSE-2 instruction set. This division of labour between the FPGA and driver allows greatest flexibility in catering for future baseband technologies while minimising the CPU overhead of the card.
Product Features
Simultaneous capture of multiple FM stations.
Available in 6, 12, 18, 24 and 32 station versions with field expansion option.
Tunes 87.5-108.5 MHz in 25kHz steps.
Stereo and RDS decoding.
Each station appears as a standard audio input device.
32 and 64 bit drivers for Windows XP and all later versions, as well as Debian Linux.
WDM-compliant supporting Wave, DirectSound, DirectShow and Core Audio APIs (Windows) and ALSA (Linux).
API for monitoring and control.
Typical Applications
Audio logging, station monitoring, media tracking.
