Important: This SKU is an option, conversion or upgrade for an existing Sonifex product and not a standalone hardware unit.

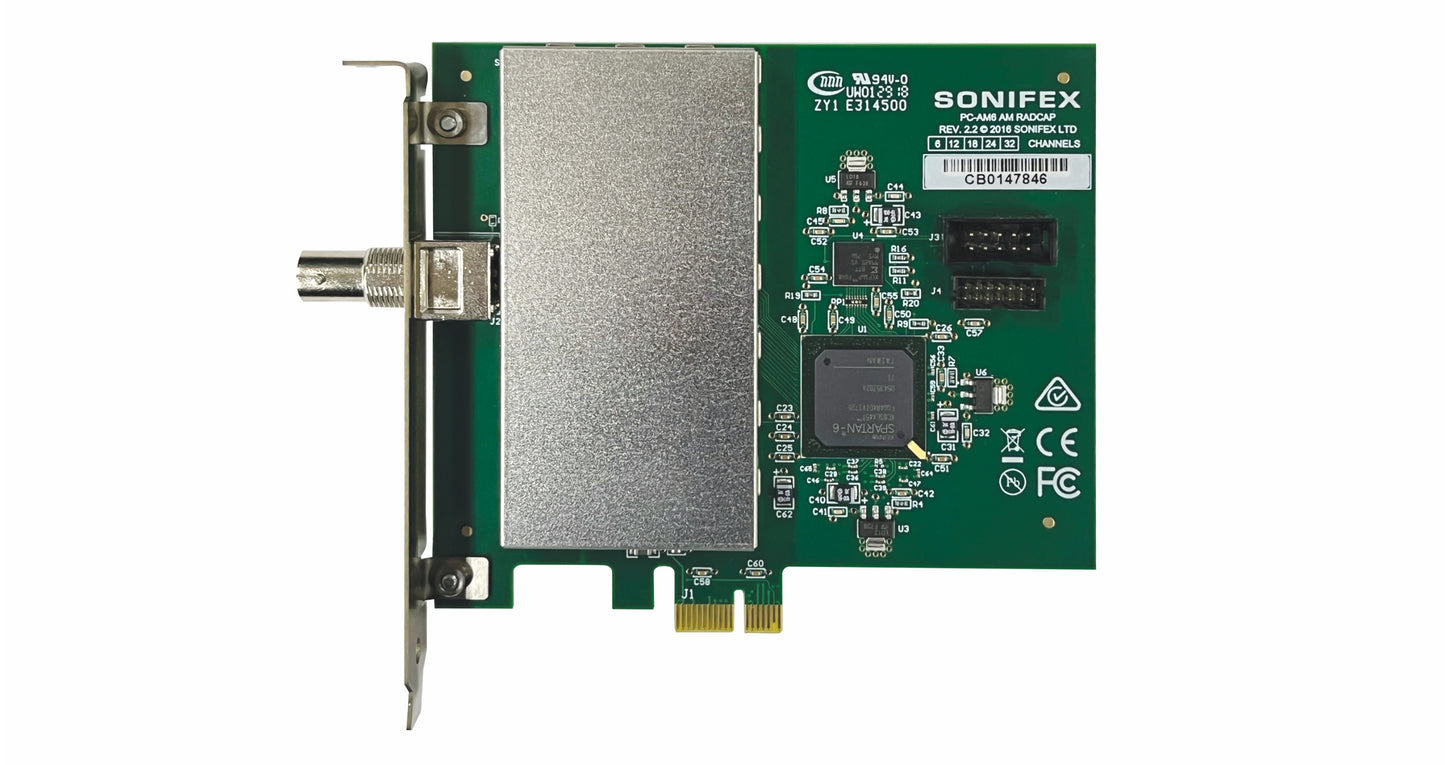

The PC-AM radio capture card range can simultaneous record up-to 32 radio stations. This field-upgrade enables you to increase your station count by 8 from 24 to 32 stations. On the PC-AM the frequency of each individual station may be set in software and its audio appears as a standard Windows audio input device. The AM Radcap uses a high speed analogue-to-digital converter to digitise the entire AM band, with advanced digital signal processing to tune and extract the audio for each individual station. It can be configured to either create a separate audio stream for each station or to pair stations together as 2-channel streams. A WDM driver for Windows XP, Windows 7/8/10/11 and other versions is supplied as well software for setting the tuner frequencies and monitoring the received audio. A recording level control, mute control and peak meter are provided for each station (or pair of stations) through the devices’ mixer ports. The default level setting is 50%, and at this setting 100% modulation will produce a peak audio level 6dB below clipping.
Product Features
Simultaneous capture of multiple AM stations.
Available in factory configured 6, 12, 18, 24 and 32 station versions.
Field expansion option.
Tunes 500-1610 kHz in 1kHz steps.
Each station appears as a standard audio input device.
32 and 64 bit drivers for Windows XP and all later versions, as well as Debian Linux.
WDM-compliant supporting Wave, DirectSound, DirectShow and Core Audio APIs (Windows) and ALSA (Linux).
API for monitoring and control.
Typical Applications
Audio logging, station monitoring, media tracking.
