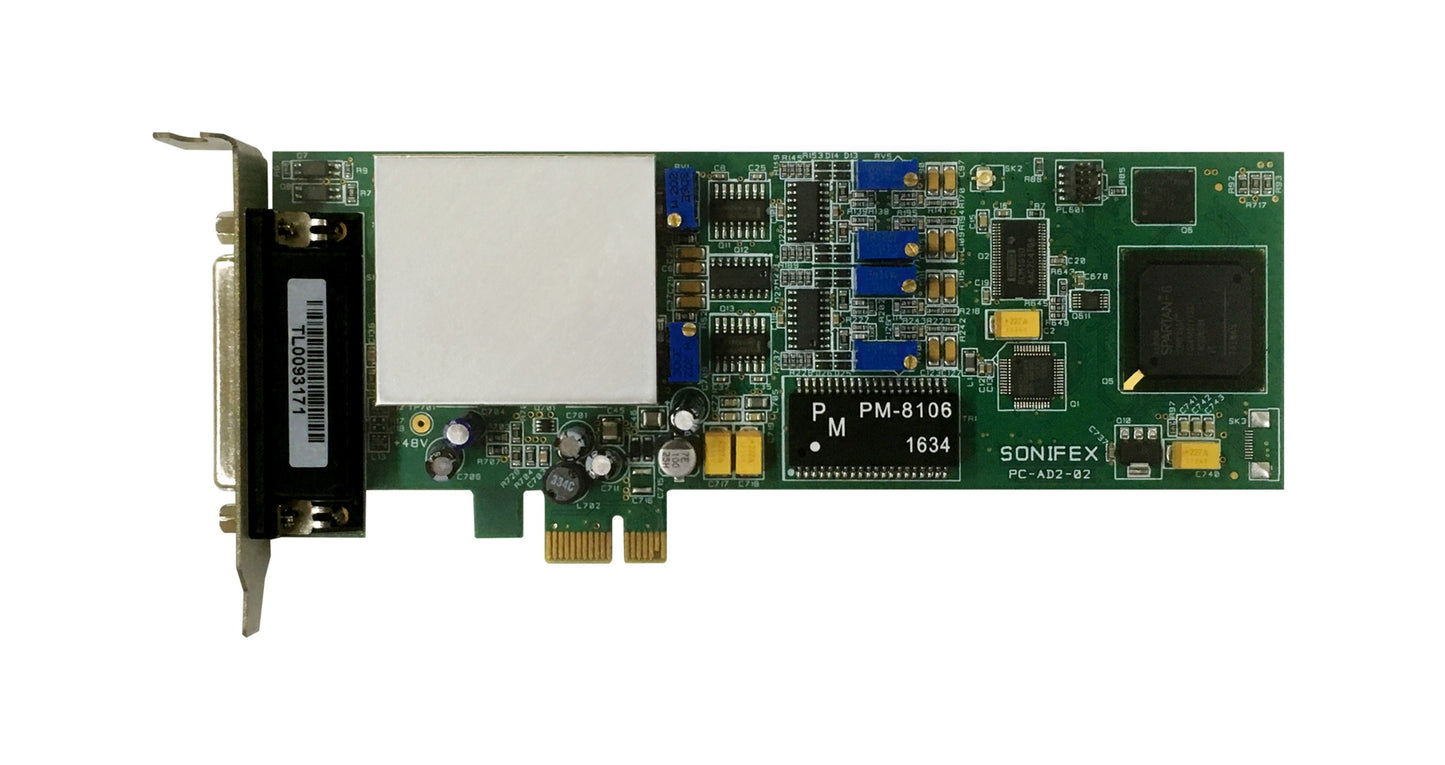

The PC-AD2 is a professional-quality half-height PCIe audio input-output card, offering both analogue and AES3 stereo inputs and outputs. It is supplied with a Windows WDM driver to provide full sound card functionality on Windows 7, 8, 8.1, 10,11 and Windows Server 2008 R2, 2012 and 2012 R2. Some PC systems may only have space for half height PCIe cards – the PC-AD2 card has been designed with this in mind, allowing a high channel count in a small format card.
Product Features
2 independent transformer-coupled AES3 inputs and outputs.
2 independent high level balanced stereo inputs and outputs.
One of the stereo line inputs can act as a dual mono or stereo mic input with +48V phantom power and limiter.
1 AES-11 synchronisation input.
2 opto isolated GPIOs.
24-bit audio resolution.
Sampling rates up to 192kHz.
Asynchronous sampling rate converters on each input.
Card synchronisation to any input, AES-11 input or other PC-AD2 card.
32 and 64 bit drivers for Windows7/8/10/11, Windows Server 2008/R2, 2012/R2.
WDM-compliant supporting Wave, DirectSound, DirectShow and Core Audio APIs.
