The DHY-04VT is a dual version of the DHY-04V/S, providing two independent units in a single chassis. Its side-by-side configuration saves valuable space in compact or space limited rack rooms. The unit is designed for use on cellular (mobile) networks, providing HD Voice quality bidirectional audio over 4G VoLTE. As legacy 3G and 2G services are being phased out in many regions, it offers a reliable solution for high-quality voice connectivity. A rear-panel SIM slot and external GSM antenna connection allow the unit to make and receive calls over the cellular network. The hybrid converts the VoLTE signal into a 4-wire audio interface for direct connection to a mixing console, with auto-sensing combined analogue and AES/EBU inputs and outputs supporting sample rates up to 24-bit/96kHz. The XLR output is configurable for analogue or AES/EBU operation. It operates across multiple 4G, 3G and 2G bands, with automatic network fallback where available.
Product Features
Multi-band support for 4G, 3G and 2G operation.

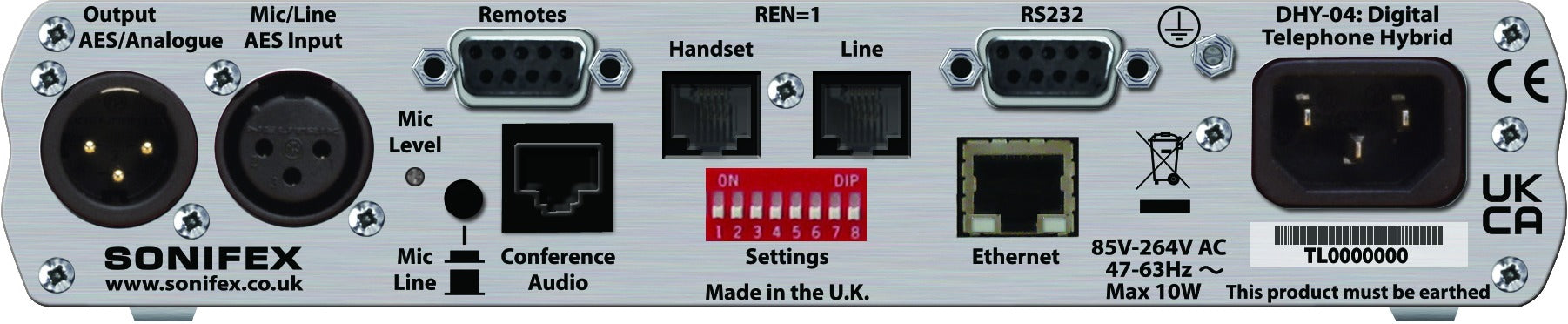

Rear-panel SIM card slot (4G/3G/2G GSM).
Auto-sensing analogue and AES/EBU audio I/O.
AES/EBU support up to 24-bit / 96kHz.
Configurable analogue or AES/EBU XLR output.
Ethernet interface with web browser configuration.

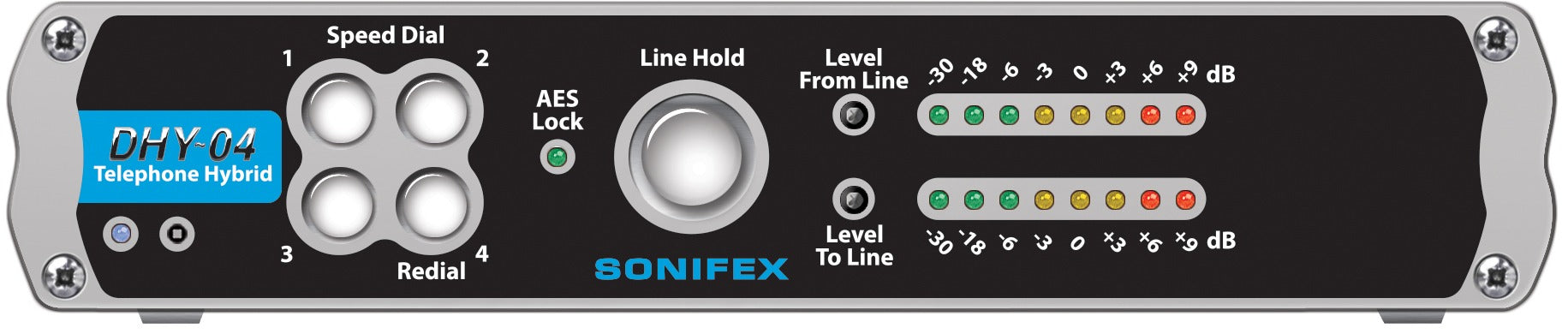

Front-panel speed-dial buttons with redial.
DTMF control for remote contributor access.
Automatic operation for ease of use.
Signal strength LED metering.
LEDs for SIM status and network availability.
Single chassis, side-by-side configuration for space-saving.
Aluminium construction.
Typical Applications
Radio & TV station talk shows, telephony interface to the mixer, security voice calls.
Product Category
Telephone Hybrids
Technical Specifications
Audio Specification Analogue Audio I/O:
Input Impedance - Line Mode (Clean Feed): 10kΩ balanced 0dB
Input Impedance - Conferencing: 10kΩ balanced 0dB
Input Impedance - Microphone Mode: 2kΩ balanced
Input Level Gain Range: -6dB, 0dB, and +6dB adjusted by 3-position front panel switch, +10dB jumper
Microphone Level Gain Preset: From 65dB to 35dB
Maximum Input Levels: Line +26dBu, mic -24dBu
Clean Feed Limiting Input: -4dBu for CTR21 setting, other values available, dependent on the actual country setting selected on the DHY-04V
Output Impedance - Line Out: 50Ω balanced floating 0dBu
