The Sonifex AVN-PXH12 is a compact 1U monitor-mixer designed for Audio over IP (AoIP) applications. It enables AES67-compatible streams on your network to be assigned to channels and mixed down to analogue outputs, headphones, and an integrated speaker. The unit supports monitoring of up to 12 sources simultaneously, selected from a total pool of 24 inputs. These sources can be drawn from four stereo analogue inputs; one front-panel 3.5mm jack, two rear-panel 3.5mm jacks, and one rear-panel stereo XLR pair, or from RAVENNA, AES67, and AES67-enabled Dante® streams.
Product Features
Using AES67 standard, ensuring interoperability with most AoIP systems. The unit uses RAVENNA to deliver full AES67 compatibility.
A built-in web server provides complete configuration. All channel sources can be assigned and adjusted from a single, intuitive interface.
SAP discovery enables identification of compatible devices and monitoring of Dante® AES67 streams.

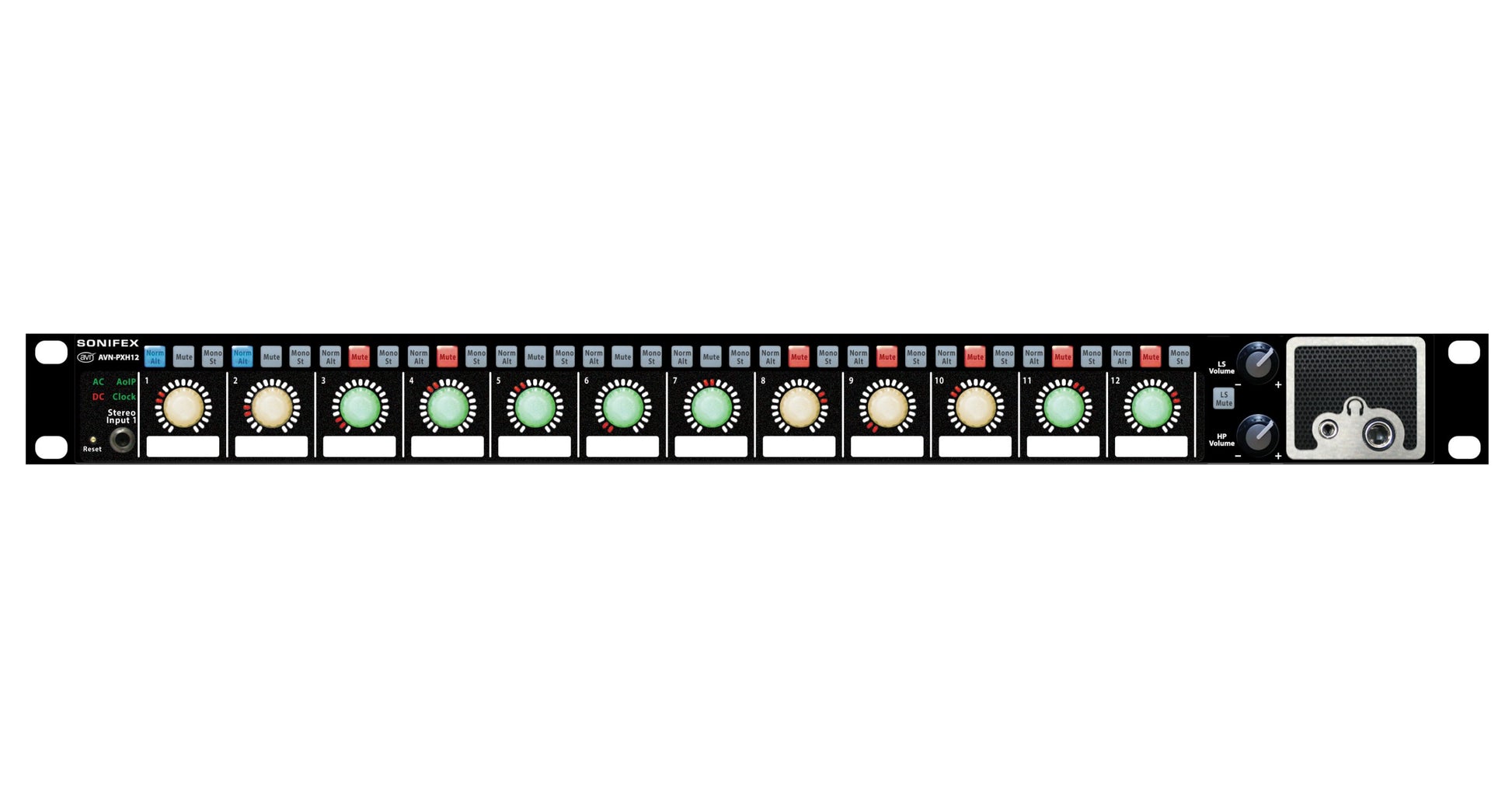

Translucent, illuminated channel controls provide clear, at-a-glance level monitoring.
Dedicated Mute buttons and a Solo function allow rapid auditioning of individual or multiple channels.
‘Normal’ and ‘Alternate’ inputs per channel can be switched in under 1 ms for accurate A/B comparison.
Each channel can be routed to the left ear, right ear, or stereo mix for flexible headphone monitoring.
Front-panel headphone outputs (6.35mm and 3.5mm) and an integrated speaker, each with independent level control.
Supports sources from AoIP streams, balanced analogue, and three unbalanced inputs.
Flexible routing to AoIP streams or rear-panel balanced outputs.
Dual 1Gb Ethernet ports and a 1Gb SFP fibre interface for network connectivity.
Ten user-configurable GPIO ports for external control and integration.
Redundant power via dual AC and DC inputs.
Full control and configuration via Ethernet-connected web interface.
Dedicated speaker mute control.
Typical Applications
Production gallery or control room channel monitoring positions, OB truck monitoring, confidence channel monitoring of any AoIP installation.
Product Category
Mix Monitor, Mix Monitors
Technical Specifications
Audio-Over-IP Specification
Open Standards: RAVENNA, AES67
Device Discovery: Bonjour (mDNS / DNS-SD) & SAP
Audio Delivery: RTP/UDP over IPv4 multicast
QoS: DiffServ
Stream Management: RTSP/SDP
Control: Ember+/webserver
Format: Linear PCM 24-bit (L24)
Channels Per Stream: Maximum of 8
Frames Per Packet: 48
Maximum Streams: RX 15, TX 2
Sample Rate: 48 kHz
Timing Synchronisation
Profile Support: Default, media & custom profiles
Timing Protocol: PTPv2, IEEE1588-2008
Unbalanced Line Inputs
Input Impedance: >20kΩ
0dBFS Line-Up: +12dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-97dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise: -100dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-97dB
Balanced Line Inputs
Input Impedance: >20kΩ balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-100dB
Common Mode Rejection: >70dB @ 1kHz
Headphone Output
Output Impedance: Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-Up: +20dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-108dBFS, -30dBFS, 20Hz to 20kHz, unity gain, 20kHz BW
Noise: -110dBFS, 20kHz BW
Balanced Line Outputs
Output Impedance: <50Ω balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/ +24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Loudspeaker
Power Output: 4W
Volume: Mute to full volume via front panel control

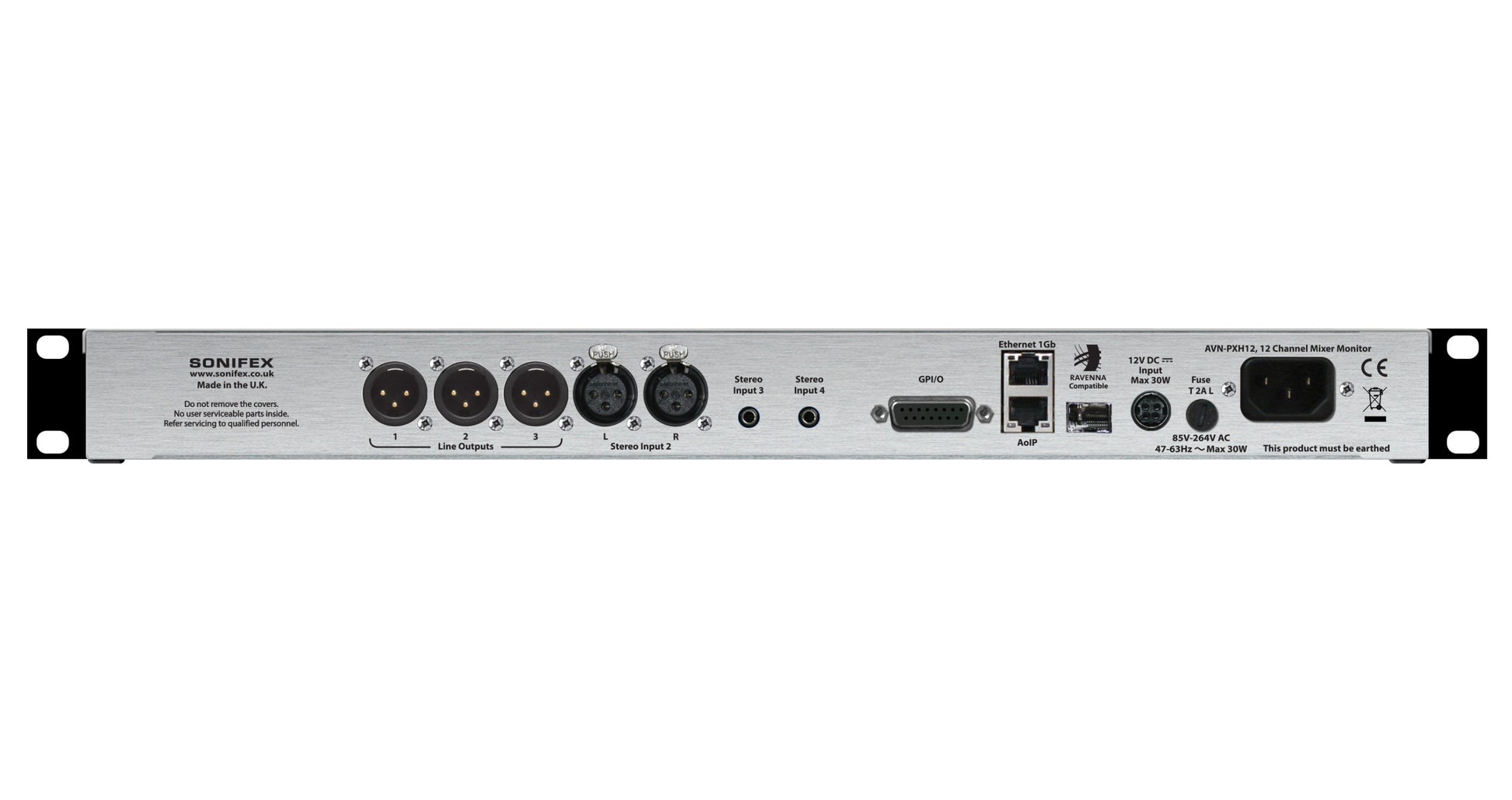

Connections
Headphone: ¼ inch (6.35mm) stereo jack socket
Headphone: 3.5mm stereo jack socket
Audio Inputs: 3 x unbalanced 3.5mm stereo jack socket
Audio Inputs: 2 x balanced XLR-3 female socket
Audio Outputs: 3 x balanced XLR-3 male plug
Audio Outputs: 1 x loudspeaker output
GPIO: 15-way ‘D’-type socket
Network: 2 x gigabit Ethernet, RJ45
Network: 1 x SFP fibre
Equipment Type
AVN-PXH12: 2 x 12 Channel mix monitor, AoIP portal
Physical Specification
Dimensions: (Raw): 48.3cm (W) x 20.12cm (D) x 4.4cm (H)(1U)
Dimensions: (Raw): 19” (W) x 7.92” (D) x 1.8” (H) (1U)
Dimensions (Boxed): 55.2cm (W) x 29.5cm (D) x 16.5cm (H)
Dimensions (Boxed): 21.7" (W) x 11.6" (D) x 6.5" (H)
