The AVN-PA8 is a powerful audio mix engine and AES67 interface with built-in mixer matrix, assignable DSP functions, GPIO, audio playback, and web-enabled control and configuration. It features eight stereo analogue line inputs, eight stereo analogue line outputs, plus a dedicated AES67 Audio over IP (AoIP) portal, available via RJ45 Ethernet connection or an SFP (small form-factor pluggable) port. Recent firmware additions include tone generation, audio file playback, DTMF generation/recognition, and optional Opus codec encoding & decoding. At the heart of this unit is a powerful mix engine with web-enabled configuration and control. Any physical audio input and AES67 stream input can be mixed or routed to any physical audio output or AES67 stream output, with gain adjustment at the input, the mix point or the output. DSP functions, such as gain and filtering, can be added at inputs, outputs and cross-points.
Product Features
Eight stereo analogue inputs and eight stereo analague outputs on D-type sockets with AES59 pinout, paralleled with eight RJ45 connectors using StudioHub® pinout.
AES67 portal on 1Gb Ethernet (RJ45) and 1Gb SFP ports.
Gain and DSP functions available at inputs, outputs, and crosspoints.
Up to eight AoIP input streams with a maximum of 16 channels to be routed.
Up to eight AoIP output streams with a maximum of eight channels each (64 channels).
Audio file playback.
DTMF tone generation/recognition.
Optional multi-channel Opus codec encoding and decoding.
Dual AC and DC power supply inputs.
10 user assignable GPIO ports.
Typical Applications
An eight output analogue zone mixer, an eight-channel clean-feed generator with input mixing and gain control on inputs and outputs, distribution of eight stereo channels of audio over an SFP fibre connection, an IFB generator to send 64 x AES67 streams to individual belt-packs, an eight output headphone distribution system with separate input mixes for each headphone output and individual gain control; an input mixer with input/output metering and AES67 stream generation; an 8 stereo channel Opus encoder, or decoder.
Product Category
Mix Engines
Technical Specifications
Audio-Over-IP Specification
Open Standards: RAVENNA, AES67
Device Discovery: Bonjour (mDNS / DNS-SD) or SAP
Audio Delivery: RTP/UDP over IPv4 multicast
QoS: DiffServ
Stream Management: RTSP/SDP
Control: Web server/Ember+
Format: Linear PCM 24-bit (L24)
Channels Per Stream: Up to 8
Frames Per Packet: 48
Transmit Streams: Up to 8
Sample Rate: 48 kHz
Ember+ Interface Connection
Interface Type: Provider
Network Interface: Ethernet port and AoIP port
Port: 9000
Timing Synchronisation
Profile Support: Default, AES67 Media & Custom profiles
Timing Protocol: PTPv2, IEEE1588-2008
Balanced Line Inputs
Input Impedance: > 20kΩ balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: < -110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: < -100dB
Common Mode Rejection: > 70dB @ 1kHz
Balanced Line Outputs
Output Impedance: < 50Ω balanced
0dBFS Line-Up: Adjustable +15/+18/+20/+22/+24dBu
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: < -110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω

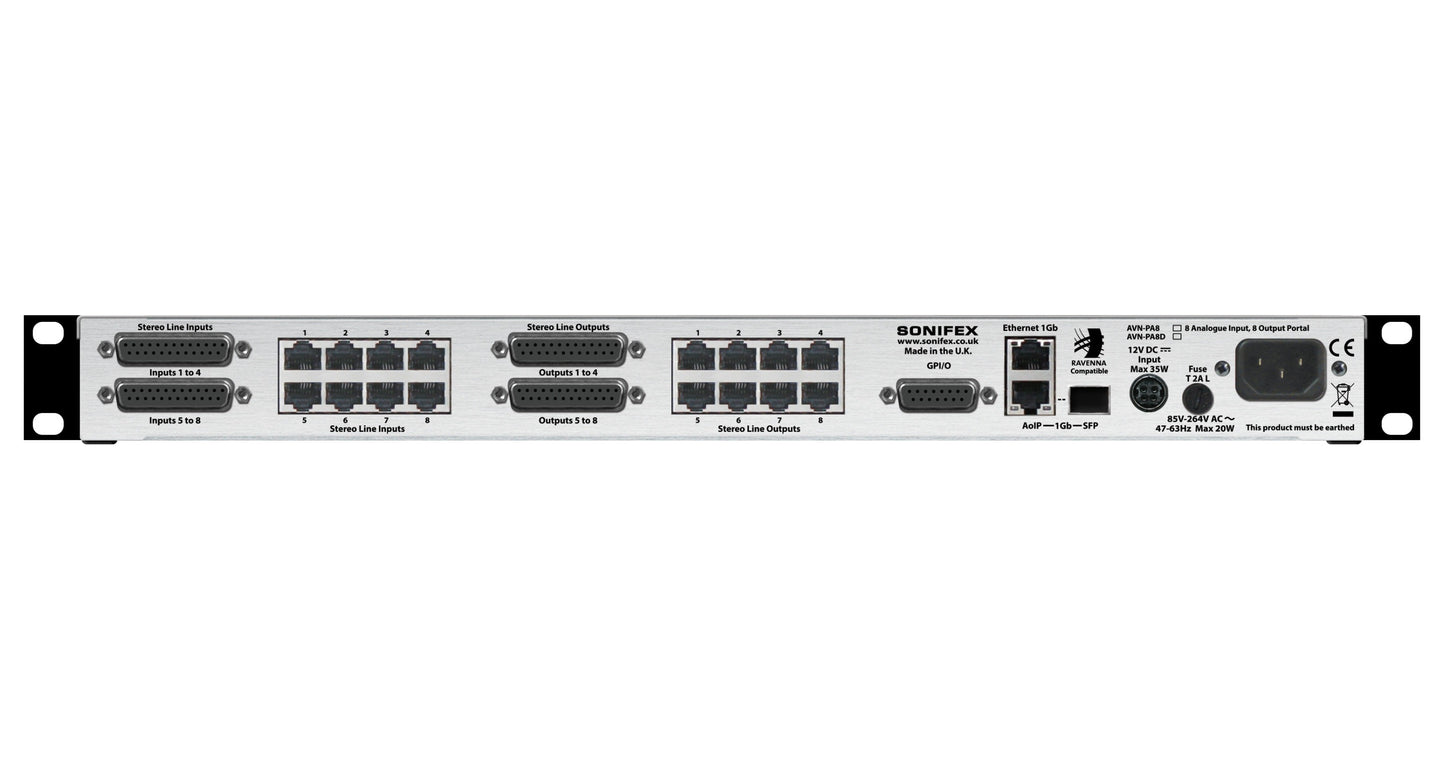

Connections
Inputs: 2 x D-Sub (DB-25) connections (TASCAM AES-59 analogue pinout) paralleled with 8 RJ45 connections (StudioHub+ pinout).
Outputs: 2 x D-Sub (DB-25) connections (TASCAM AES-59 analogue pinout) paralleled with 8 RJ45 connections (StudioHub+ pinout).
