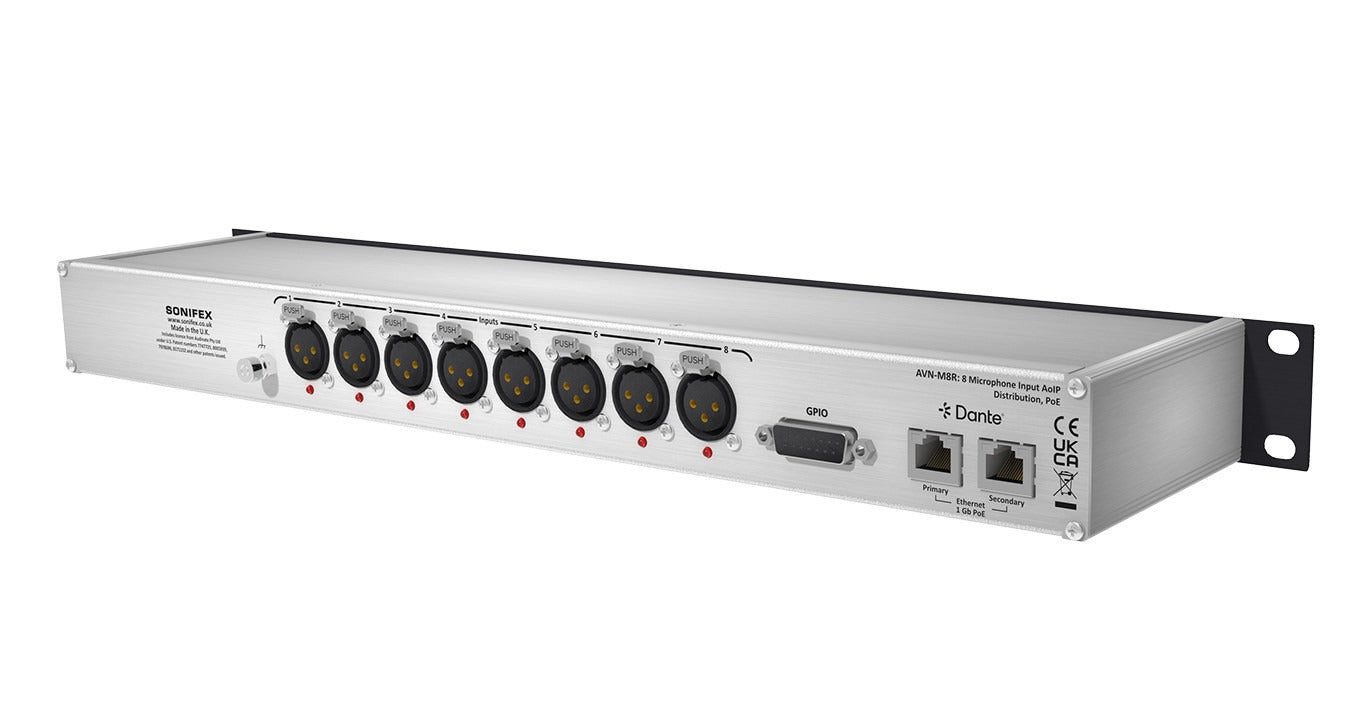

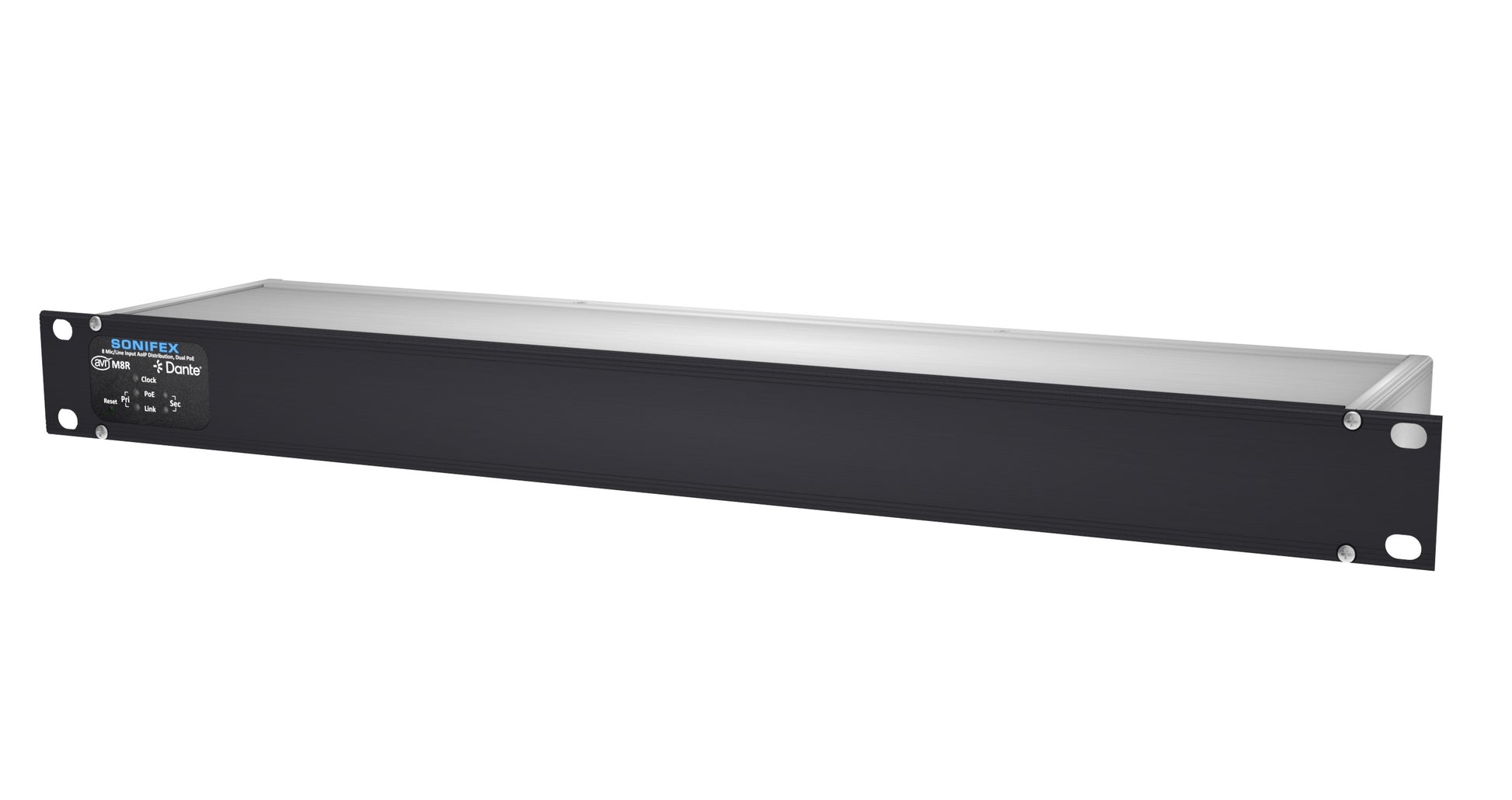

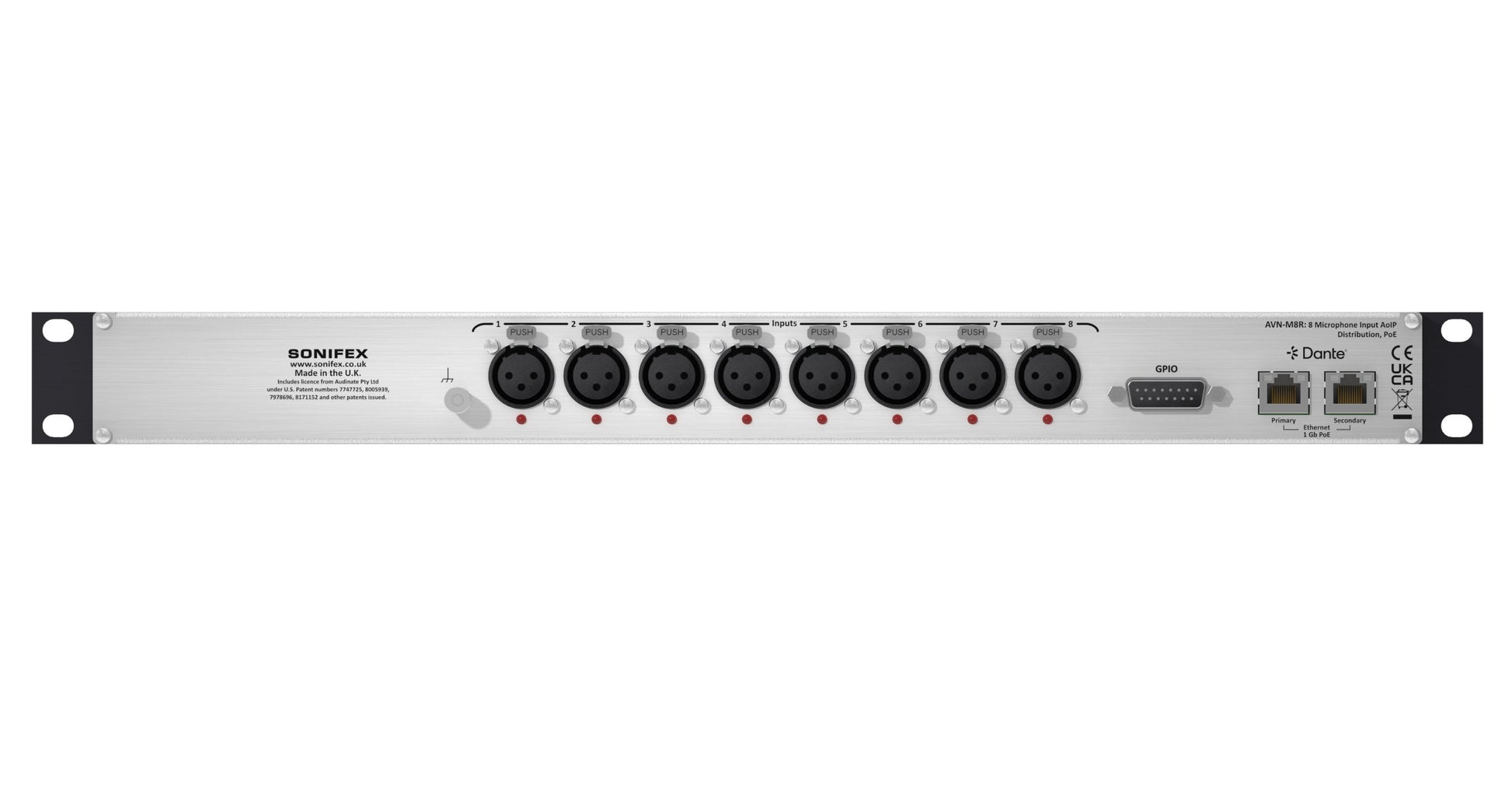

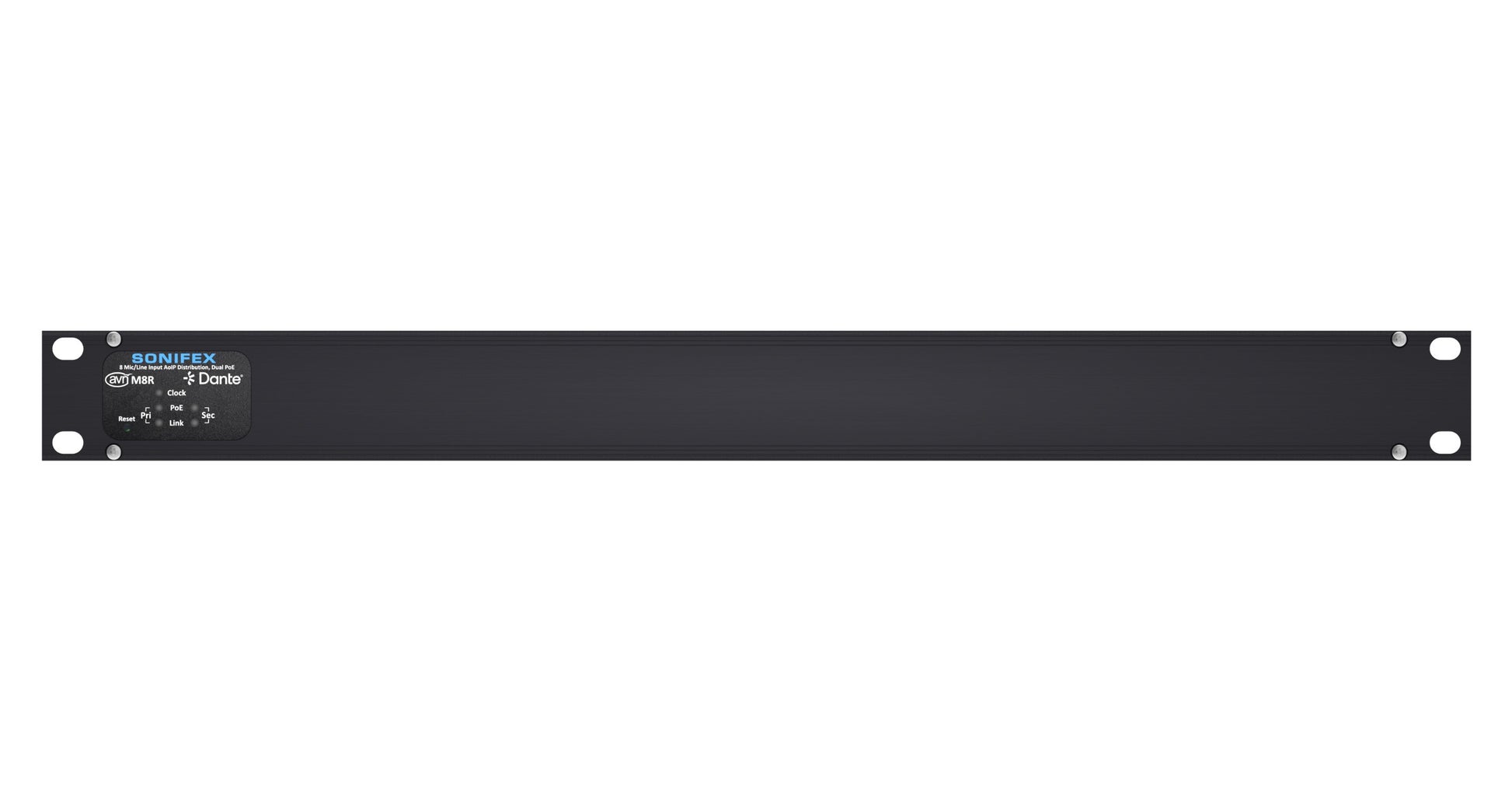

The AVN-M8R multi-channel Dante interface is a 19” 1U rack-mount unit which distributes 8 balanced mic/line inputs to 8 channels of Dante/AES67 on the AoIP network. Each mic/line input can be controlled remotely via a web server. The front panel includes clear LED indicators for power (PoE), network status and clock synchronisation, along with dedicated LEDs for secondary port link and PoE monitoring.
Product Features
8 x Mic/Line Inputs Using Neutrik Connectors.
Phantom Power with Indicators for Each Mic Input.
Remote Individual Input Control; such as, Mic Gain and Line-up Control Via the Web Server.
2 x RJ45 Connector (1 Gb/s Ethernet Port) for PoE Power and Network Redundancy.
PoE, Link and Clock LED Status Indicators.
Configuration Using Dante Controller & Dante Domain Manager Compliant.
AES67 Compatible.
1U 19" Rack-Mount Form Factor.
Aluminium Construction.
Typical Applications
A typical application would be in a live conference, meeting, or concert, where multiple microphones and line-level sources are deployed around the venue to capture speakers, performers, or ambient sound. Its remote control capability allows easy adjustment of gain and phantom power, even when the unit is discreetly hidden.
