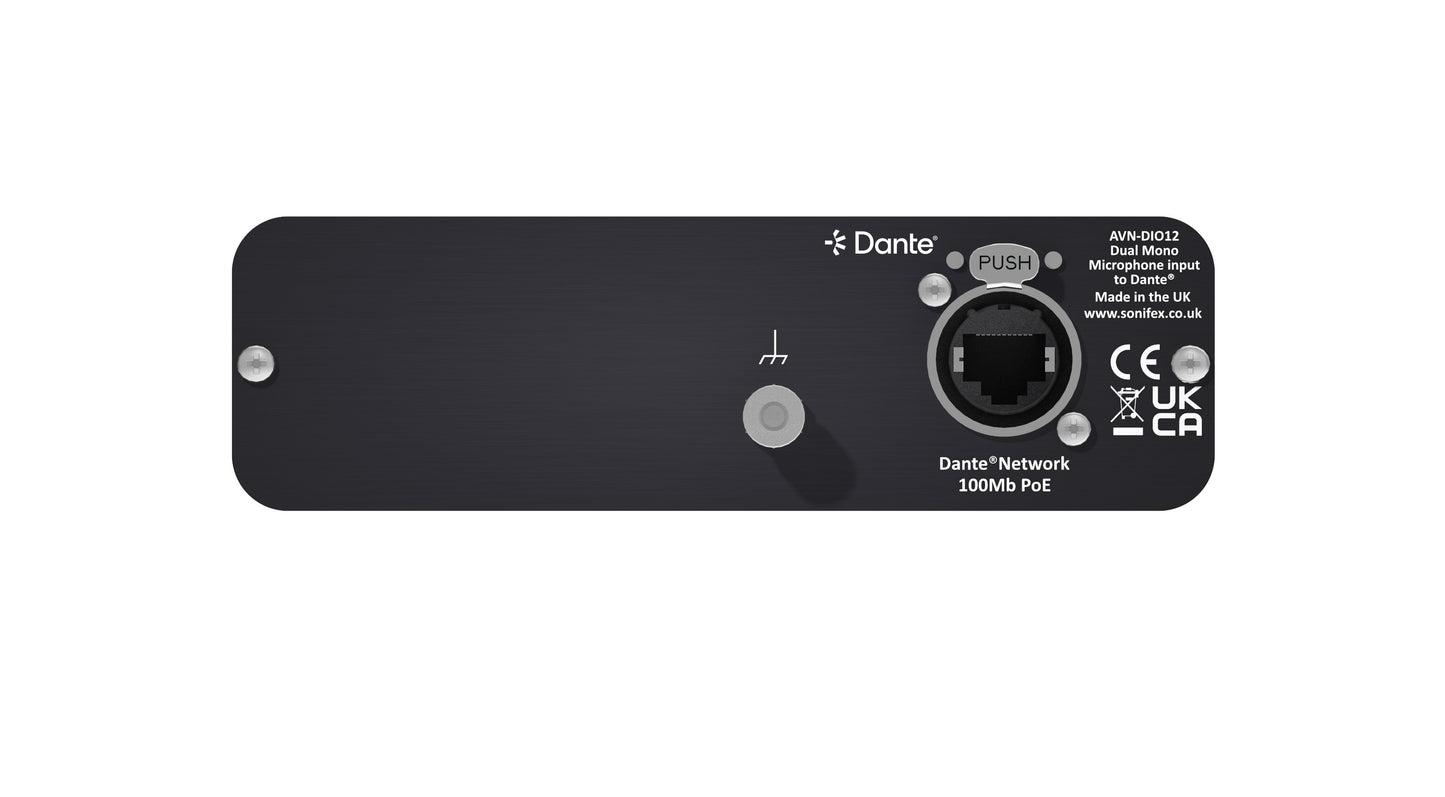

The AVN-DIO12 is an ultra-high quality dual microphone to Dante® interface from the Sonifex DIO range, featuring two balanced analogue XLR inputs with high-performance mic preamps for seamless integration with Dante Audio-over-IP networks. It delivers A/D conversion with a world-class equivalent input noise (EIN) of 129dB. Each microphone input includes independent coarse and fine gain adjustment, a switchable high-pass filter, phantom power, and a tri-colour level LED for accurate signal monitoring. Coarse gain is selectable between 14dB and 44dB via front panel switches, while fine gain provides an additional 0dB to 42dB of adjustment per channel.
Product Features
Neutrik EtherCon® Ethernet connection.
Sample rate conversion of physical inputs to Dante system sample rate.
Single turn pots setting fine mic gain (0dB – 36dB).
Coarse mic gain switches (+20db/+50dB).
High pass filter on/off switches..
Ultra-high quality, wide dynamic range A/D conversion..
Phantom power on/off switches.
Phantom power LED indicators.
Level LED indicators.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Powered via PoE (Power over Ethernet).
Rack mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
To send microphone signals to the Dante network and to route a mic signal over a long distance. Small and compact for easy placement. Distribute mic feeds over CAT5/6, at events, stadiums, court room or studio talks area.
Product Category
Microphone Amplifiers
Technical Specifications
Microphone XLR Input Pin-out
Pin: Function
1: Chassis Ground
2: Input Phase
3: Input Non Phase
Microphone Input - XLR
Input Impedance: 2.2kΩ balanced
Maximum Input Level: -68dBu (max gain) to -8dBu (min gain)
Gain: Adjustable 20dB to 86dB
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
High Pass Filter Response: Fc = 125Hz @ 6dB per octave
THD+N: <0.01%, -32dBu input, 40dB gain, 20Hz to 20kHz, 20kHz BW
E.I.N.: 129dBu, 20kHz BW, max gain, Rs=200Ω
Common Mode Rejection: >60dB @ 1kHz
Phantom Power: +48V ± 4V
Network and AoIP
AoIP Standard: Dante
Channels: 2 transmit
Flows: 2 transmit
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
AES67 Support: Yes
Connectivity: EtherCON (RJ45 compatible)
Speed: 100Mbps
Dante Domain Manager Ready: Yes
Clock Source: Internal (PTP Leader) or Network PTP Leader
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: TBD
Max PSE Power Usage: 15.4 W
Equipment Type
AVN-DIO12: Dual Microphone Input to Dante® with Mic Gain
Physical Specification
Dimensions (Raw): 14.0cm (W) x 13.6cm (D) x 4.2cm (H)
Dimensions (Raw): 5.5” (W) x 5.4” (D) x 1.7” (H)
Dimensions (Boxed): 17.8cm (W) x 17cm (D) x 5.6cm (H)
Dimensions (Boxed): 7.0” (W) x 6.7” (D) x 2.2” (H)
