The easiest way to connect legacy SDI equipment to the Dante® network, the AVN-DIO10 adds support for from SD-SDI up to 3G-SDI. It performs simultaneous embedding and de-embedding of up to 16 audio channels, providing a simple plug-and-play audio/video interface for connecting 3G/HD/SD-SDI equipment to a Dante® AoIP audio network. The unit de-embeds up to 16 audio channels from an SDI feed and places them on Dante channels 1–16 (configured via Dante Controller). At the same time, it takes the 16 Dante input channels mapped to the device and re-embeds them onto the SDI output.
Product Features
Dante AoIP

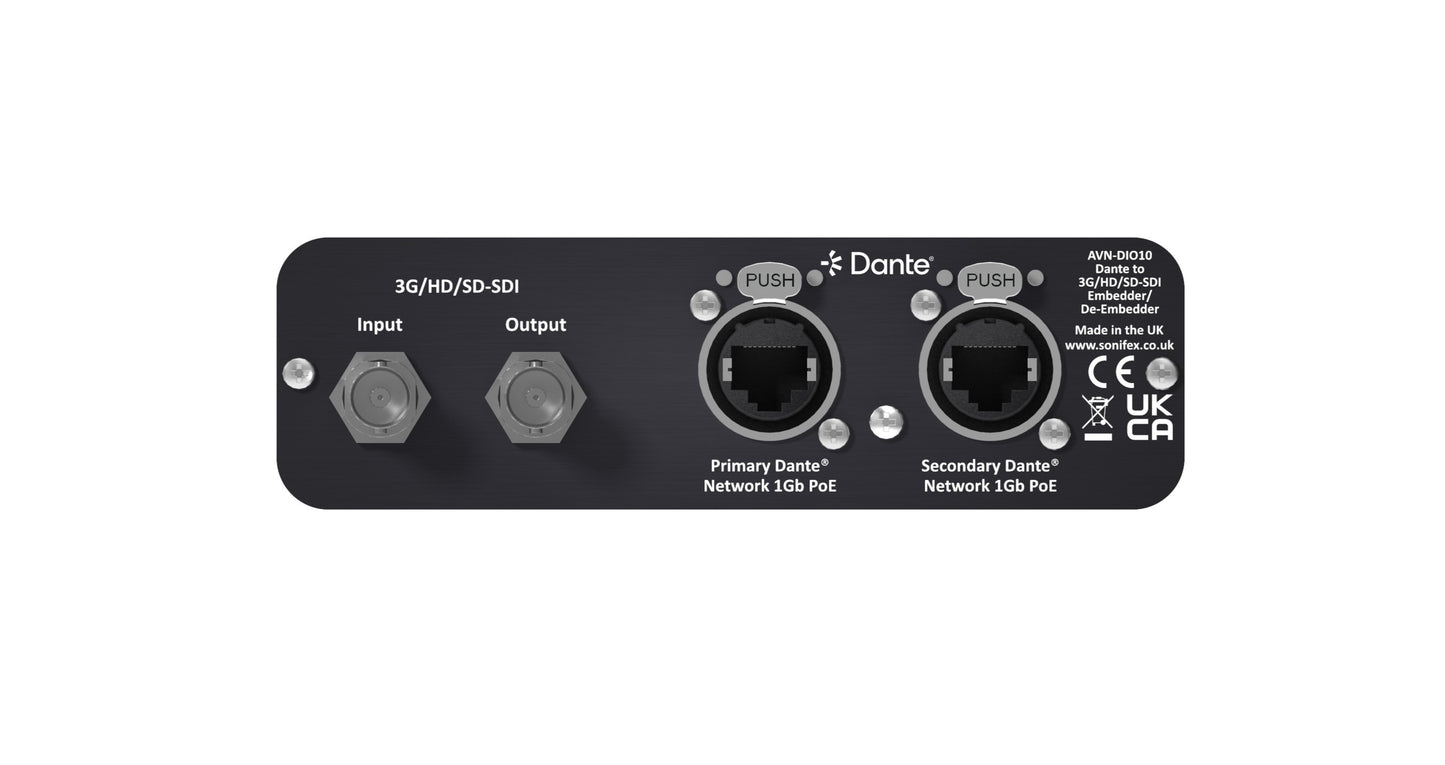

1 x 3G/HD/SD-SDI input.
1 x re-clocked 3G/HD/SD-SDI output.
Dual redundant Primary and Secondary Dante network ports using Neutrik EtherCon® Ethernet connectors.
Powered via PoE (Power over Ethernet) with PoE dual redundancy.
Fully Dante compliant device.
Dante Domain Manager compliant.
AES67 compatible.
Web interface for configuration.
Clock, SDI Lock, PoE and Sync LEDs.
DIPSwitch selection of embed channel pairs.
Overwrite or insert into existing SDI audio groups.
Test tones available on embedded outputs.
SDI audio sample rate support at 48kHz.
All available Dante sample rates supported.
Sample rate conversion of audio between Dante and SDI.
Dante clock domain can be optionally synchronised from the SDI clock.
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
Taking audio embedded on an SDI camera feed, or any legacy SDI feed, and de-embedding it to the Dante network, adding Dante audio feeds to an SDI signal for distribution around a facility. Houses of worship - embed multi-language services for distribution. De-embed audio from live HD football feeds to provide multi-language radio commentaries, de-embed audio to pass to a Dante based speaker system. Embed remixed 5.1 + stereo music onto HD concert footage.
