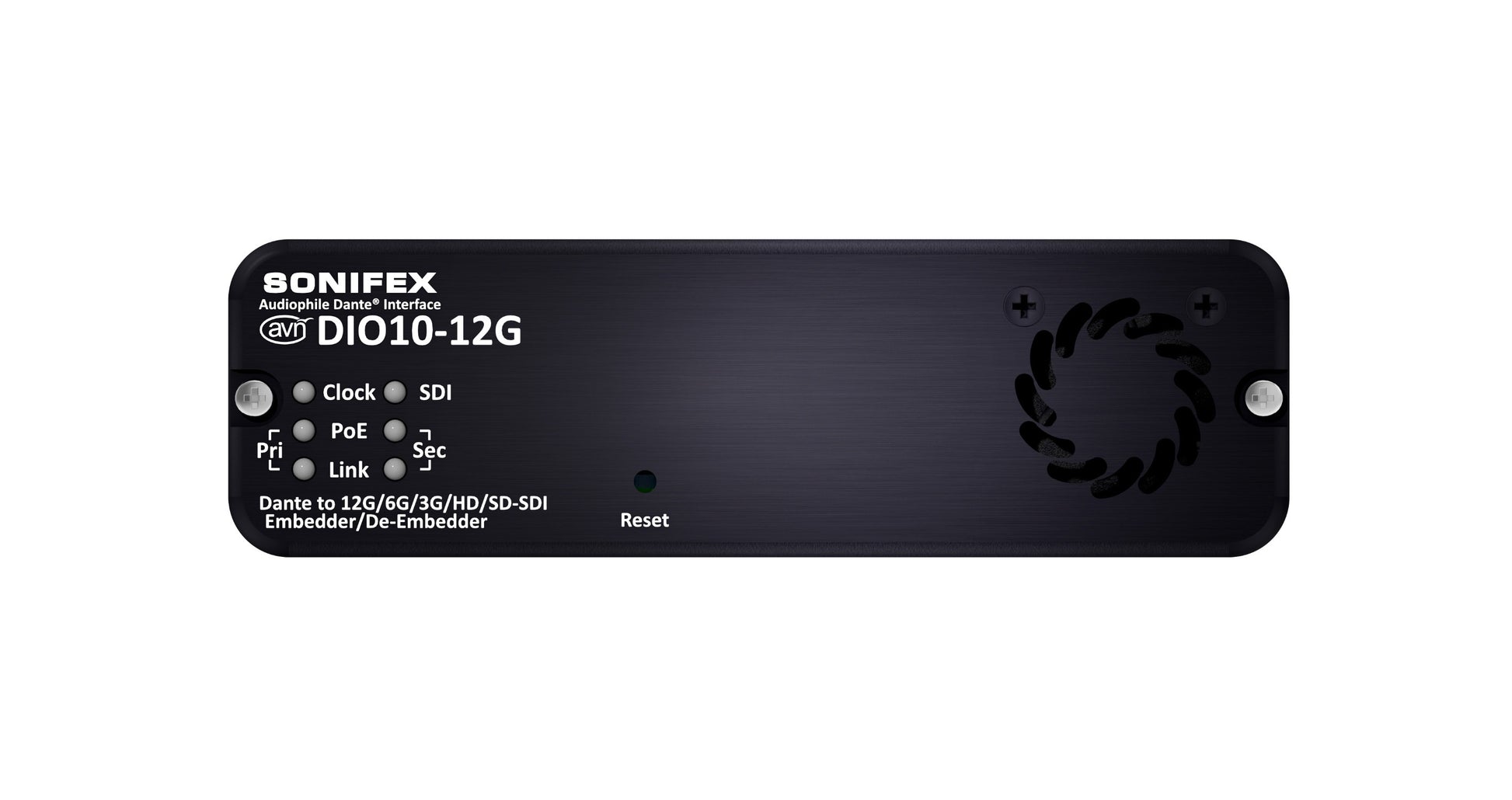

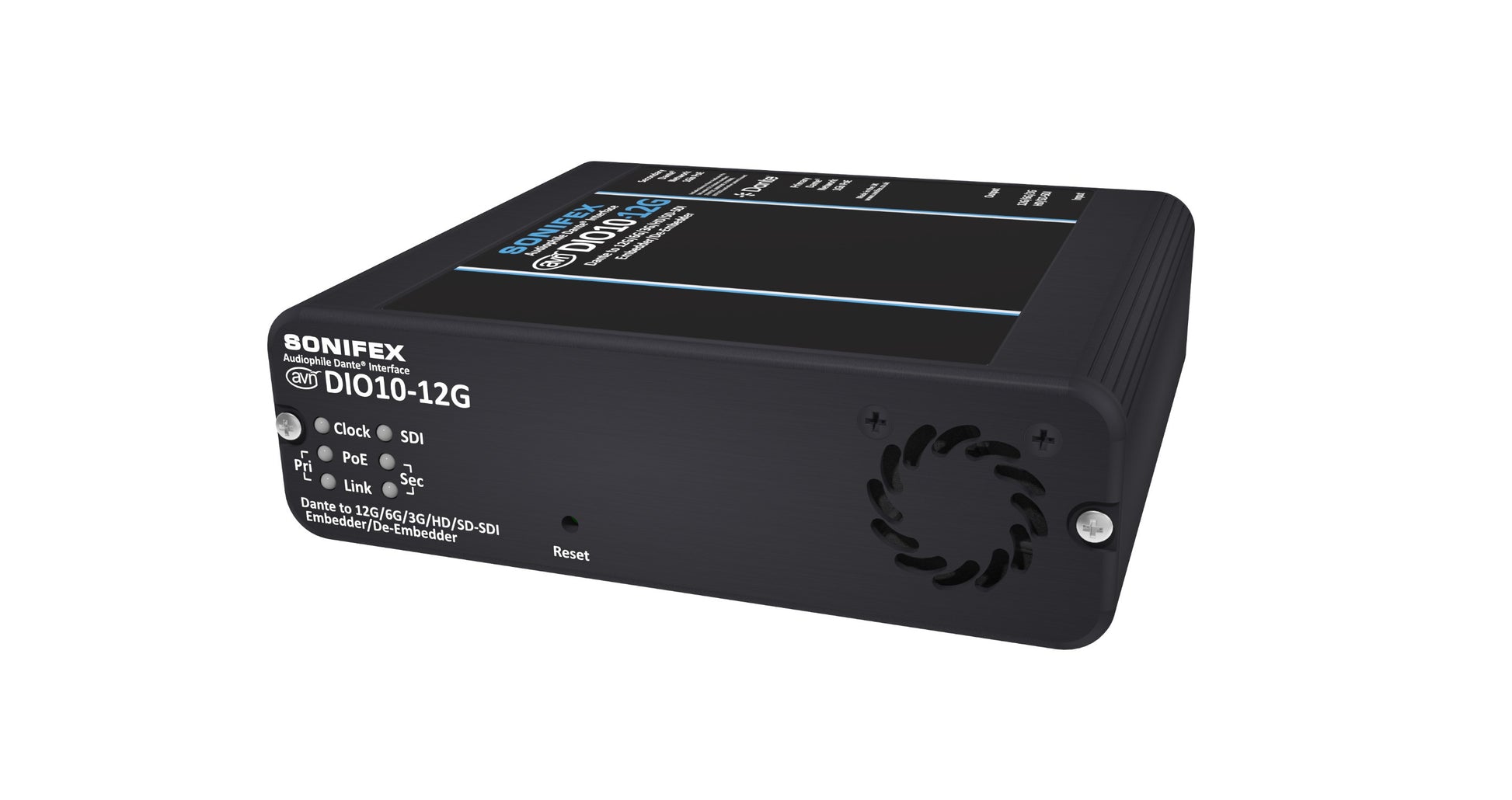

An upgrade to the popular AVN-DIO10, the AVN-DIO10-12G adds support for the full SDI range, from SD-SDI up to 12G-SDI. It performs simultaneous embedding and de-embedding of up to 64 audio channels, providing a simple plug-and-play audio/video interface for connecting 12G/6G/3G/HD/SD-SDI equipment to a Dante® AoIP audio network. The unit de-embeds up to 64 audio channels from an SDI feed and places them on Dante channels 1–64 (configured via Dante Controller). At the same time, it takes the 64 Dante input channels mapped to the device and re-embeds them onto the SDI output.
Product Features
Dante AoIP
1 x 12G/6G/3G/HD/SD-SDI input.
1 x Re-clocked 12G/6G/3G/HD/SD-SDI output.

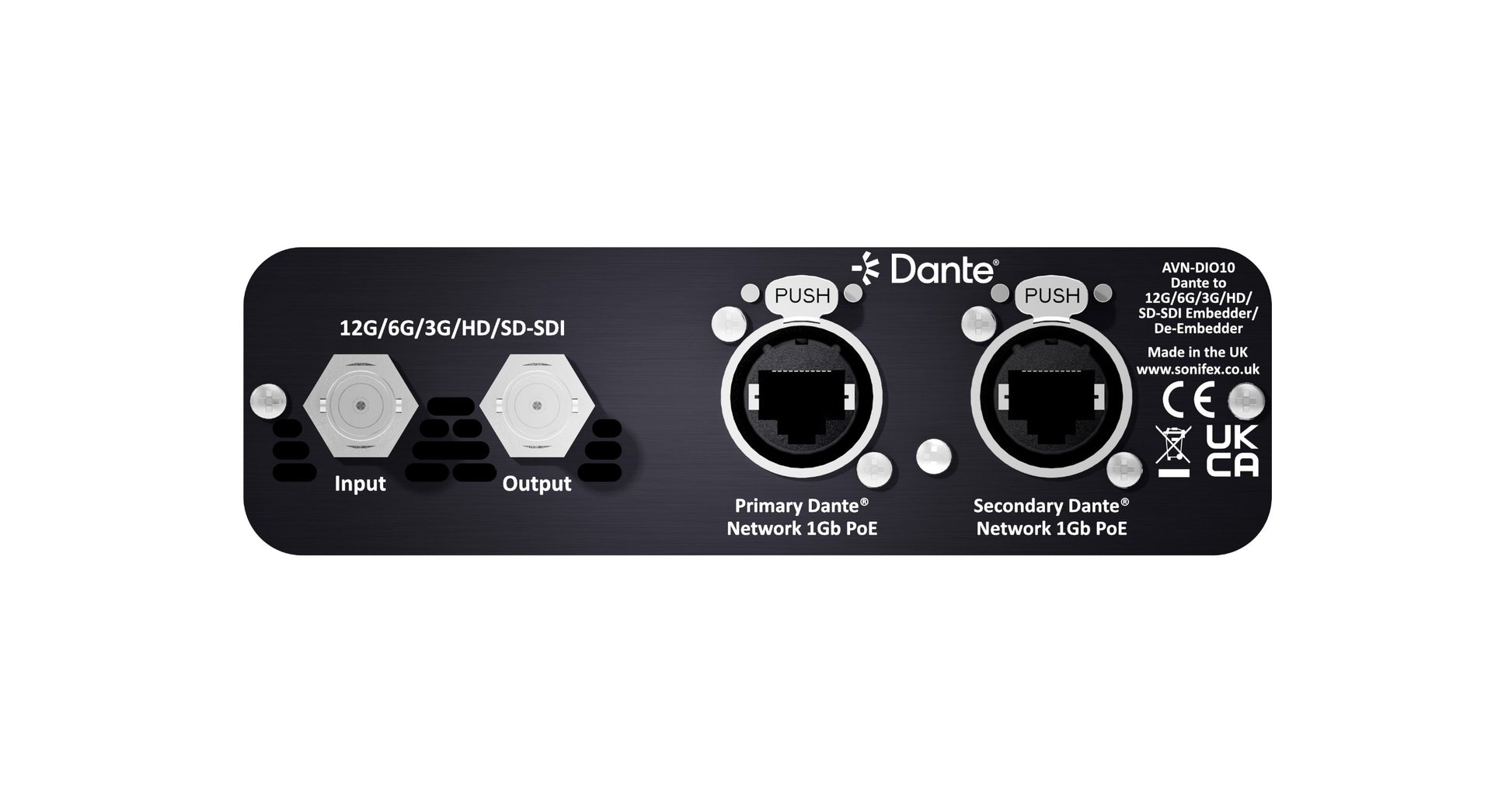

Dual redundant primary and secondary Dante network ports using Neutrik EtherCon® ethernet connectors.
Powered via PoE (Power over Ethernet) with PoE dual redundancy.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Web interface for configuration.
Clock, SDI Lock, PoE and Sync LEDs.
Overwrite or insert into existing SDI audio groups.
Test tones available on embedded outputs.
SDI audio sample rate support at 48kHz.
All available Dante sample rates supported.
Sample rate conversion of audio between Dante and SDI.
Dante clock domain can be optionally synchronised from the SDI clock.
1U rack-mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
Taking audio embedded on an SDI camera feed, or any legacy SDI feed, and de-embedding it to the Dante network, adding Dante audio feeds to an SDI signal for distribution around a facility. Houses of worship - embed multi-language services for distribution. De-embed audio from live HD football feeds to provide multi-language radio commentaries, de-embed audio to pass to a Dante based speaker system. Embed remixed 5.1 + stereo music onto HD concert footage.
Product Category
Dante Embedding & De-Embedding
Technical Specifications
Parameter SDI Input
Input Impedance: 75Ω Unbalanced
SDI Supported Standards: 270Mbps SMPTE-259M-C (SD) 1.485 or 1.4835Gbps SMPTE-292M (HD) 2.97 or 2.967Gbps SMPTE-424M (3G) 5.94 or 5.934Gbps SMPTE-2081 (6G) 11.88 or 11.868Gbps SMPTE-2082 (12G)
