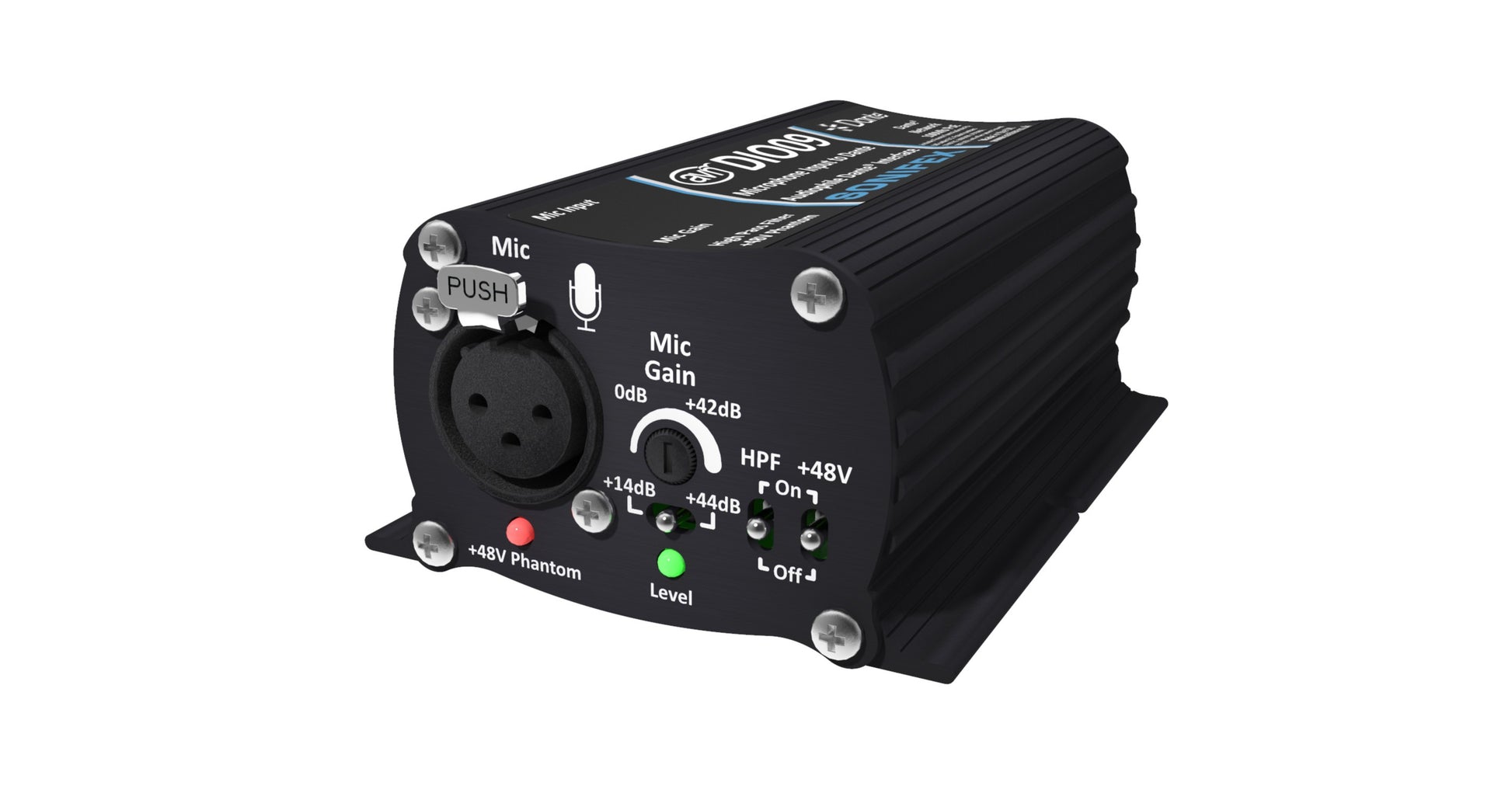

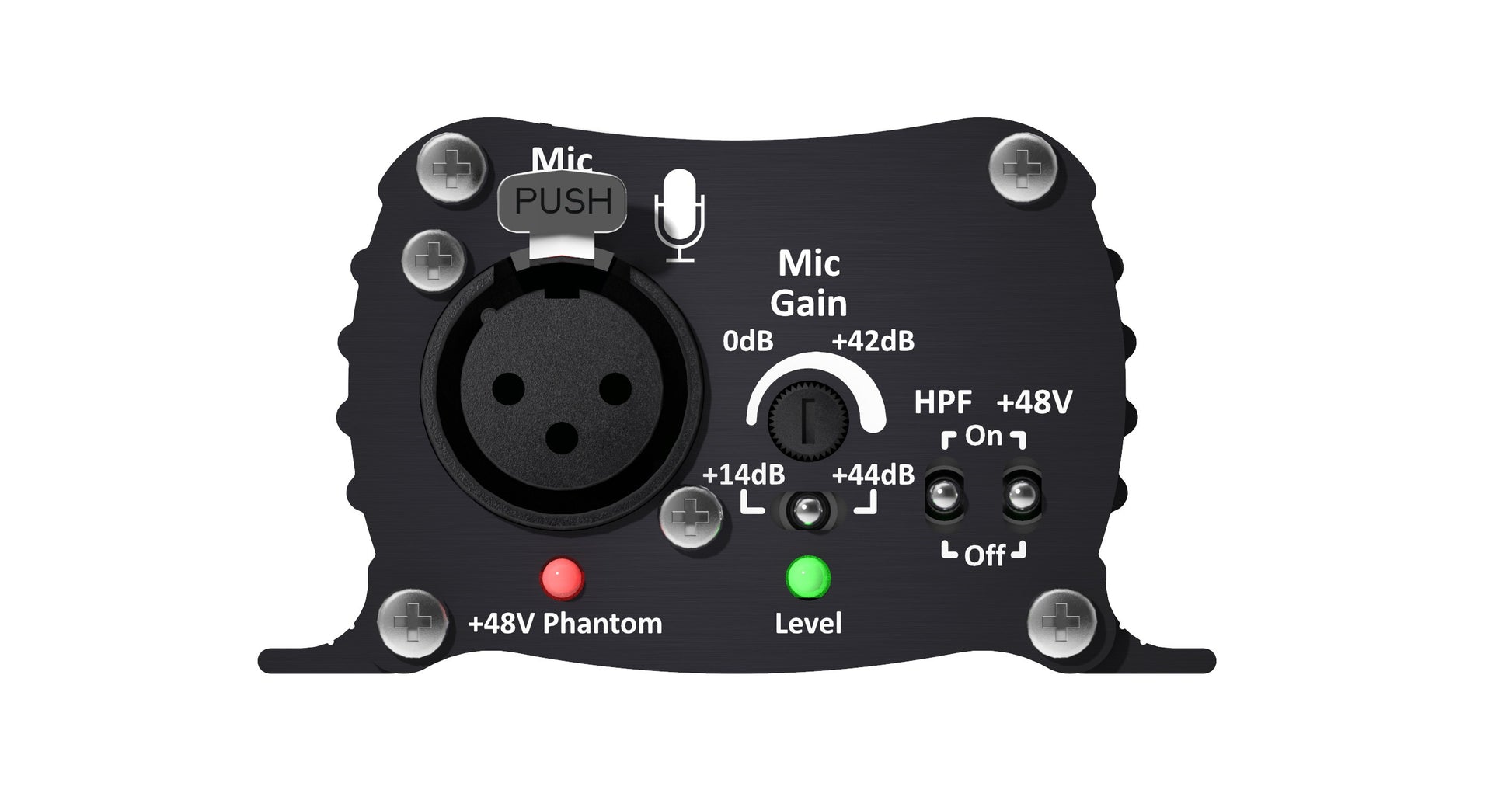

The AVN-DIO09 is an ultra-high quality single microphone to Dante® interface from the Sonifex DIO range, featuring a balanced analogue XLR input with a high-performance mic preamp for seamless integration with Dante Audio-over-IP networks. It delivers A/D conversion with a world-class equivalent input noise (EIN) of 129dB. The microphone input includes coarse and fine gain adjustment, a switchable high-pass filter, phantom power, and a tri-colour level LED for accurate signal monitoring. Coarse gain is selectable between 14dB and 44dB via a front panel switch, while fine gain provides an additional 0dB to 42dB of adjustment.
Product Features
1 x balanced microphone input on XLR socket with latch lock.

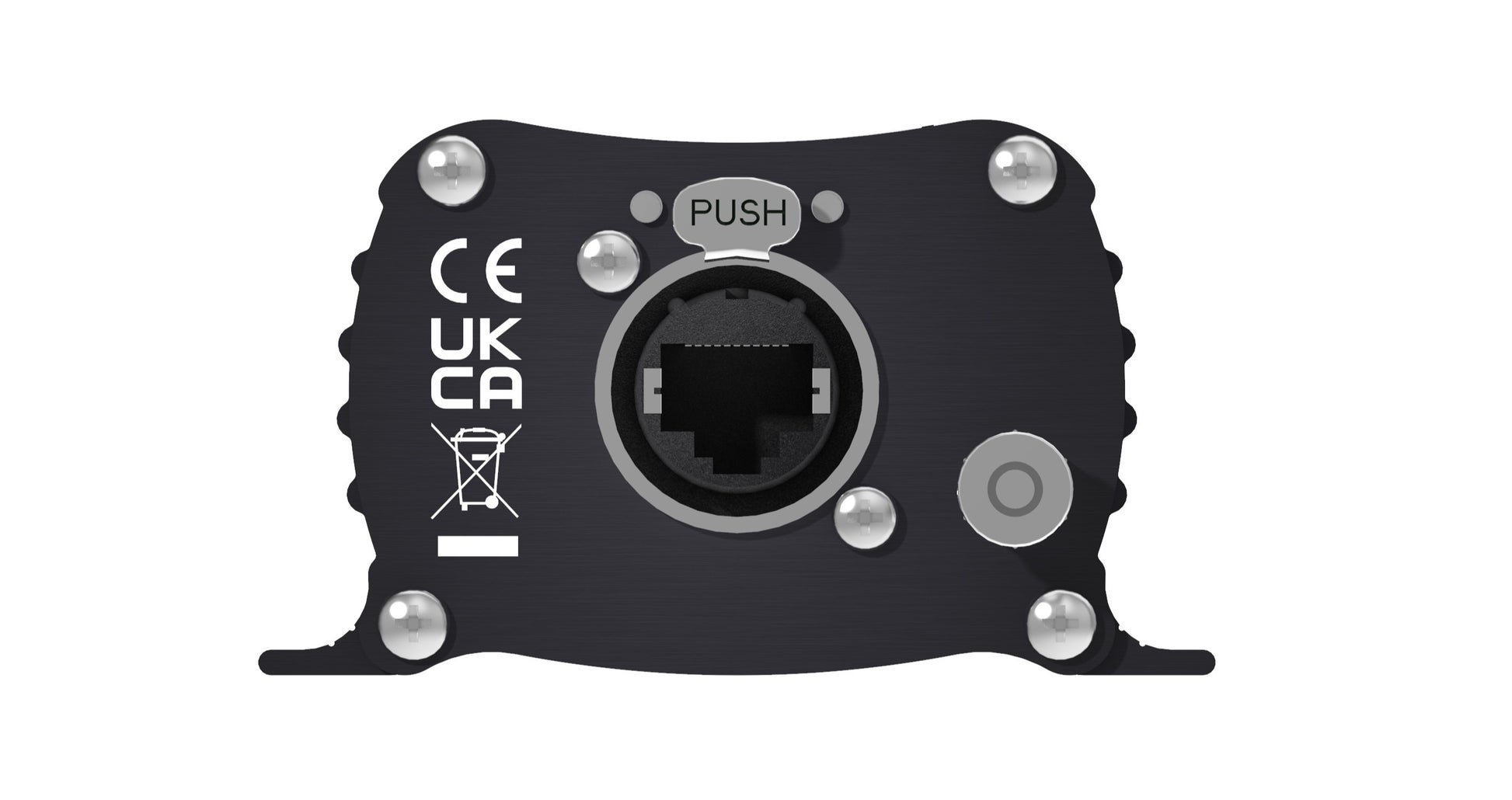

Neutrik EtherCon® Ethernet connection.
Single turn pot setting fine mic gain (0dB – 36dB).
Coarse mic gain switch (+20db/+50dB).
High pass filter on/off switch.
Phantom power on/off switch.
Phantom power LED indicator.
Level LED indicator.
Fully Dante compliant device.
AES67 compatible.
Dante Domain Manager compliant.
Ultra-high quality E.I.N. of >129dB.
Powered via PoE (Power over Ethernet).
Rack mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
To send any microphone signal to the Dante network, to amplify microphones in a studio talks area, court room microphone amplification, converting mic signal where mic and amp are a long distance apart.
Product Category
Microphone Amplifiers
Technical Specifications
Microphone XLR Input Pin-out
Pin: Function
1: Chassis Ground
2: Input Phase
3: Input Non Phase
Earthing Point
Single earth tag.
Level LED Thresholds
Off: Level is under -38dBFS (-20dBu)
Green: Level is between -38dBFS (-20dBu) and -18dBFS (0dBu)
Amber: Level is between -18dBFS (0dBu) and -10dBFS (+8dBu)
Red: Level is above -10dBFS (+8dBu).
Microphone Input - XLR
Parameter: Description
Input Impedance: 2.2kΩ balanced
Maximum Input Level: -68dBu (max gain) to -8dBu (min gain)
Gain: Adjustable 20dB to 86dB
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
High Pass Filter Response: Fc = 125Hz @ 6dB per octave
THD+N: <0.01%, -32dBu input, 40dB gain, 20Hz to 20kHz, 20kHz BW
E.I.N.: 129dBu, 20kHz BW, max gain, Rs=200Ω
Common Mode Rejection: >60dB @ 1kHz
Phantom Power: +48V ± 4V
Dante
Parameter: Description
Sample Rates: 4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 4 W
Max PSE Power Usage: 15.4 W
Equipment Type

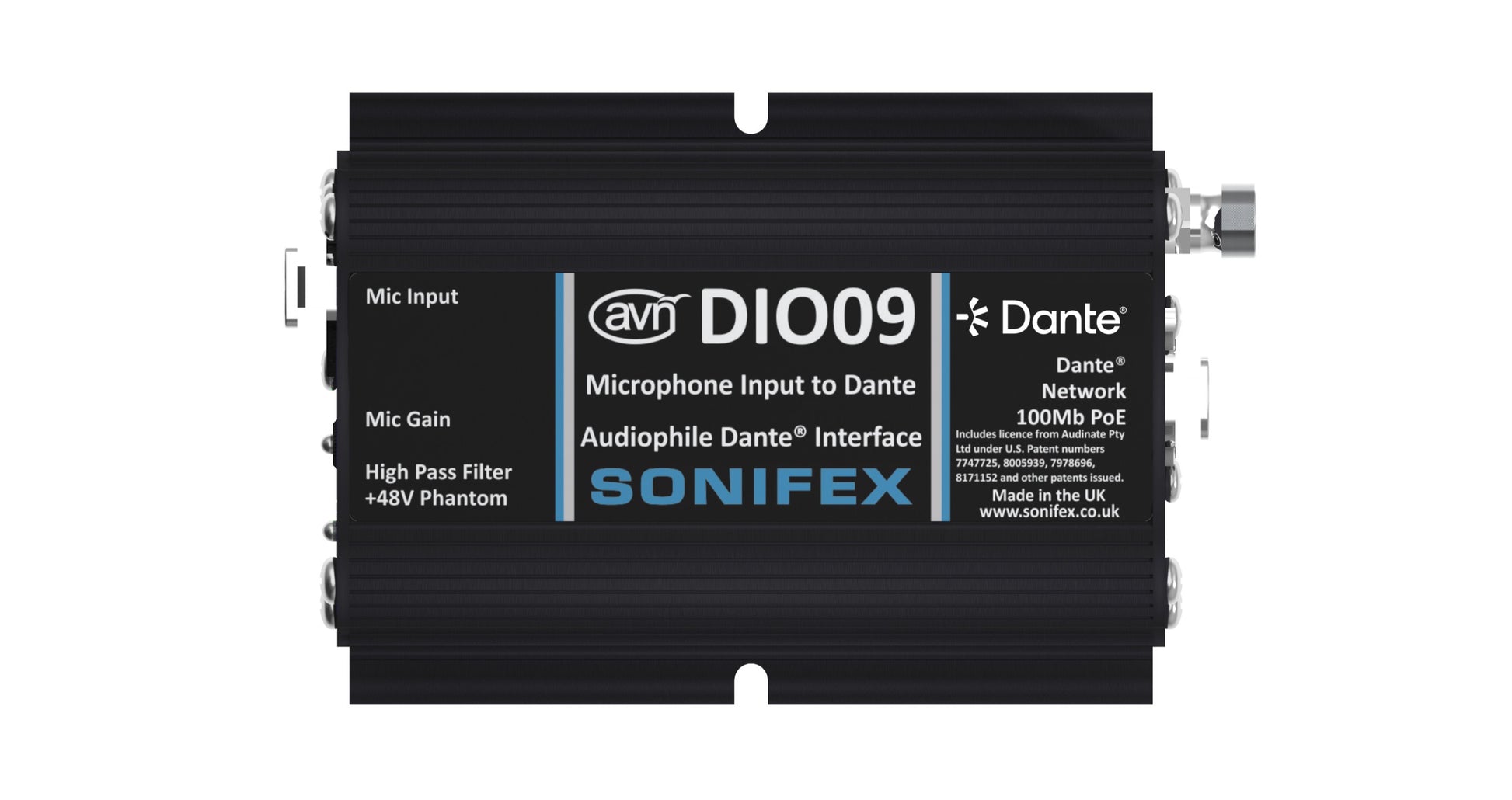

AVN-DIO09: Microphone Input to Dante®
Physical Specification
Dimensions: (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw): 4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed): 6.9” (W) x 3.7” (D) x 2.2” (H)
