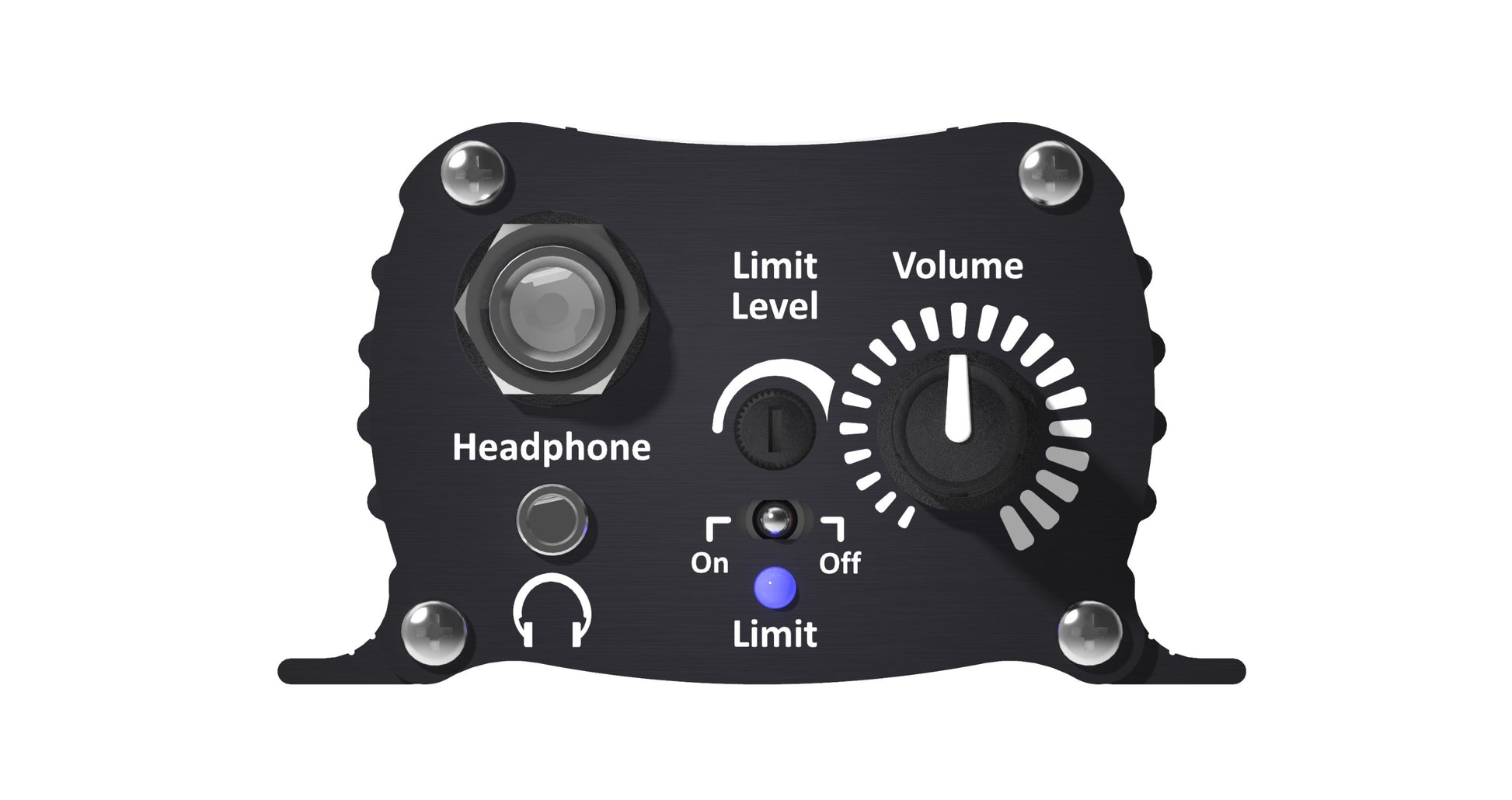

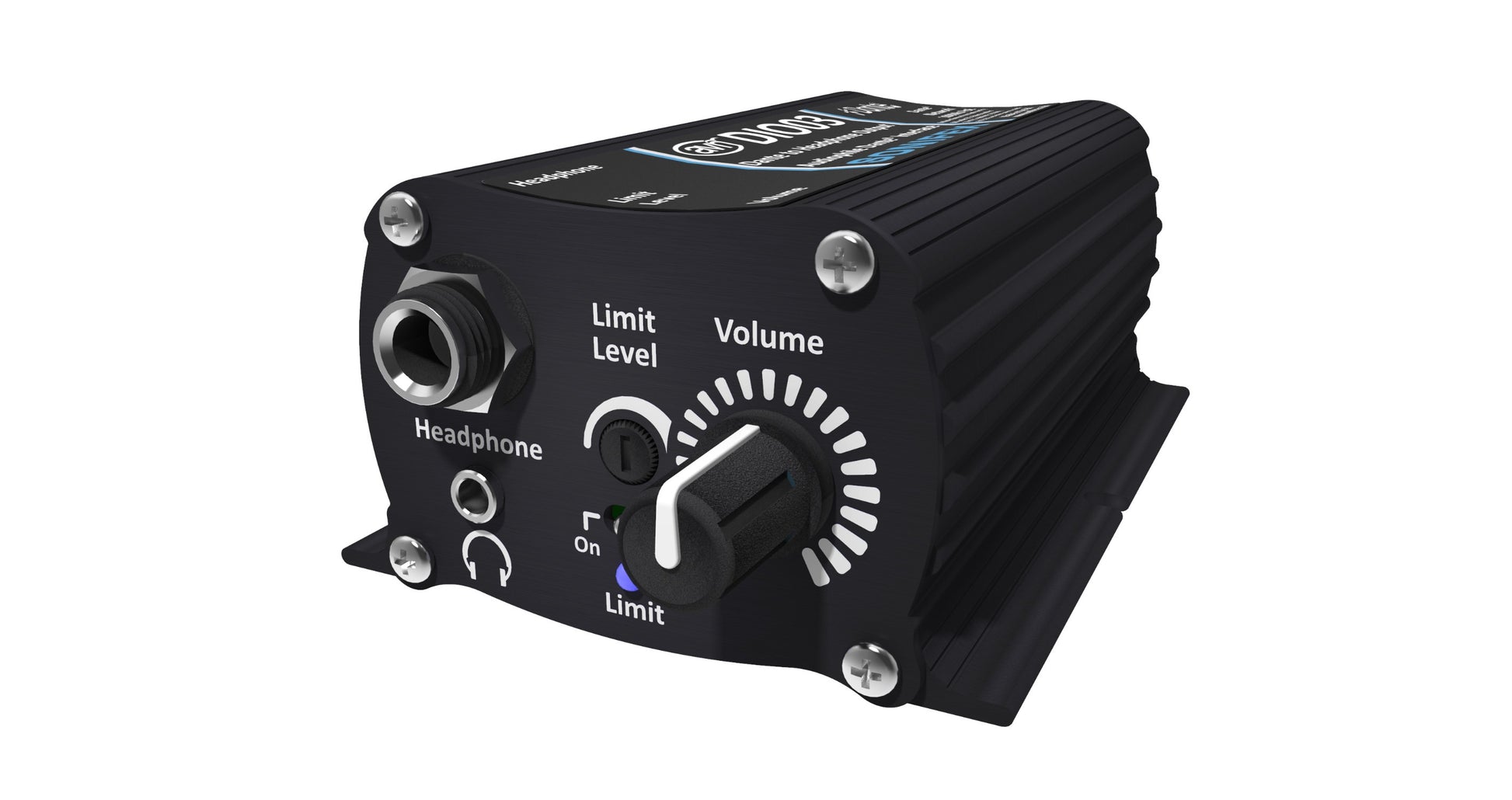

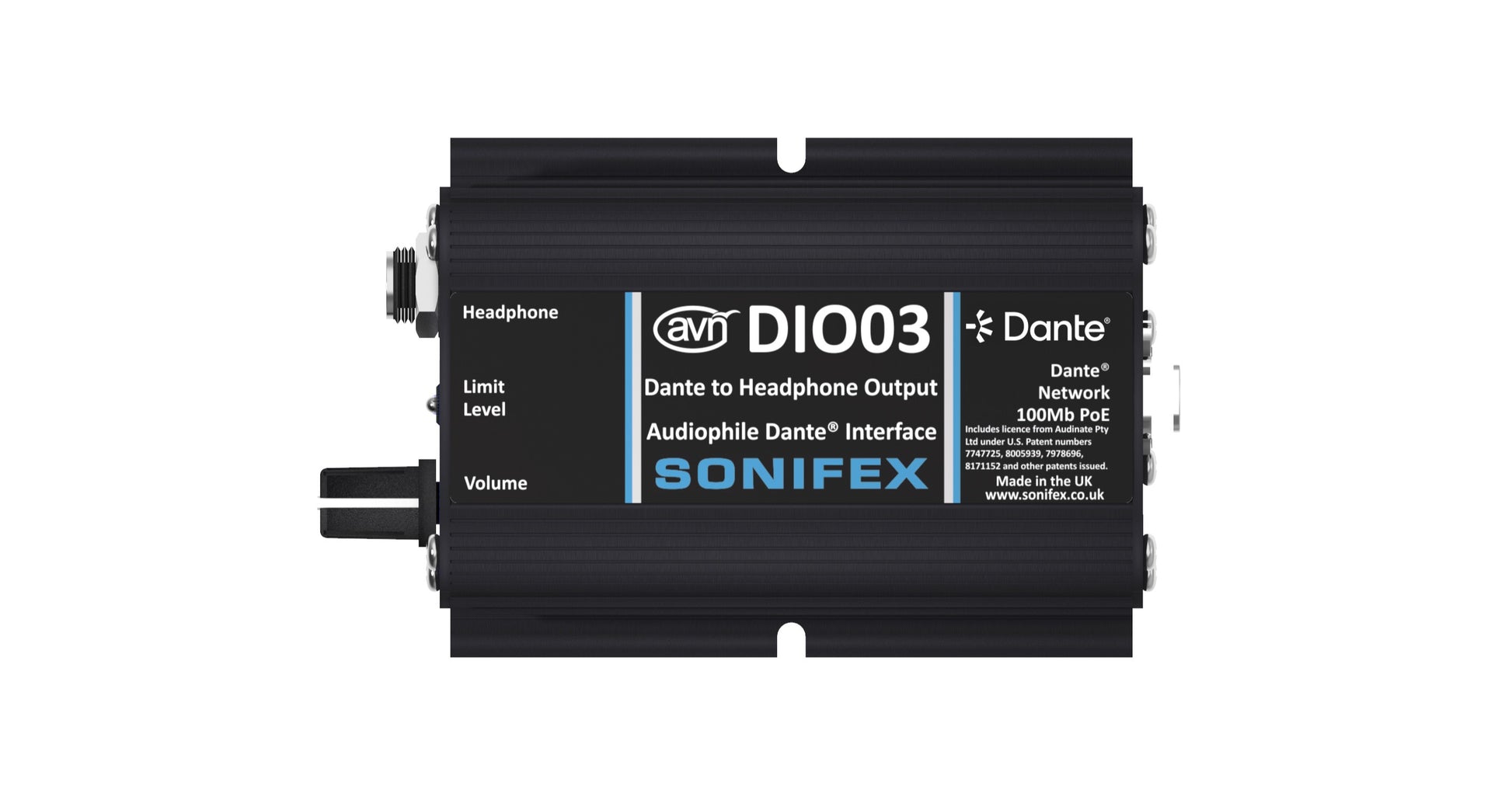

The AVN-DIO03 is a Dante AoIP network-to-headphones convertor from the Sonifex DIO range. The unit features a single stereo headphone output, accessible via both 1/4” and 3.5 mm jacks, with a front-panel potentiometer to adjust volume from mute (fully anticlockwise) to +6 dB gain (fully clockwise), useful for boosting low Dante stream levels. A built-in limiter with adjustable threshold and LED indication protects hearing by preventing over-levels. The limit can be set between approximately -12dBu and +6dBu using a small adjustment tool. When limiting is active, the blue limit LED illuminates, prompting the user to reduce headphone volume.
Product Features
1/4-inch and 3.5mm jack analogue headphone outputs.
Headphone volume control.
Limiter on/off, threshold control and LED indicator.

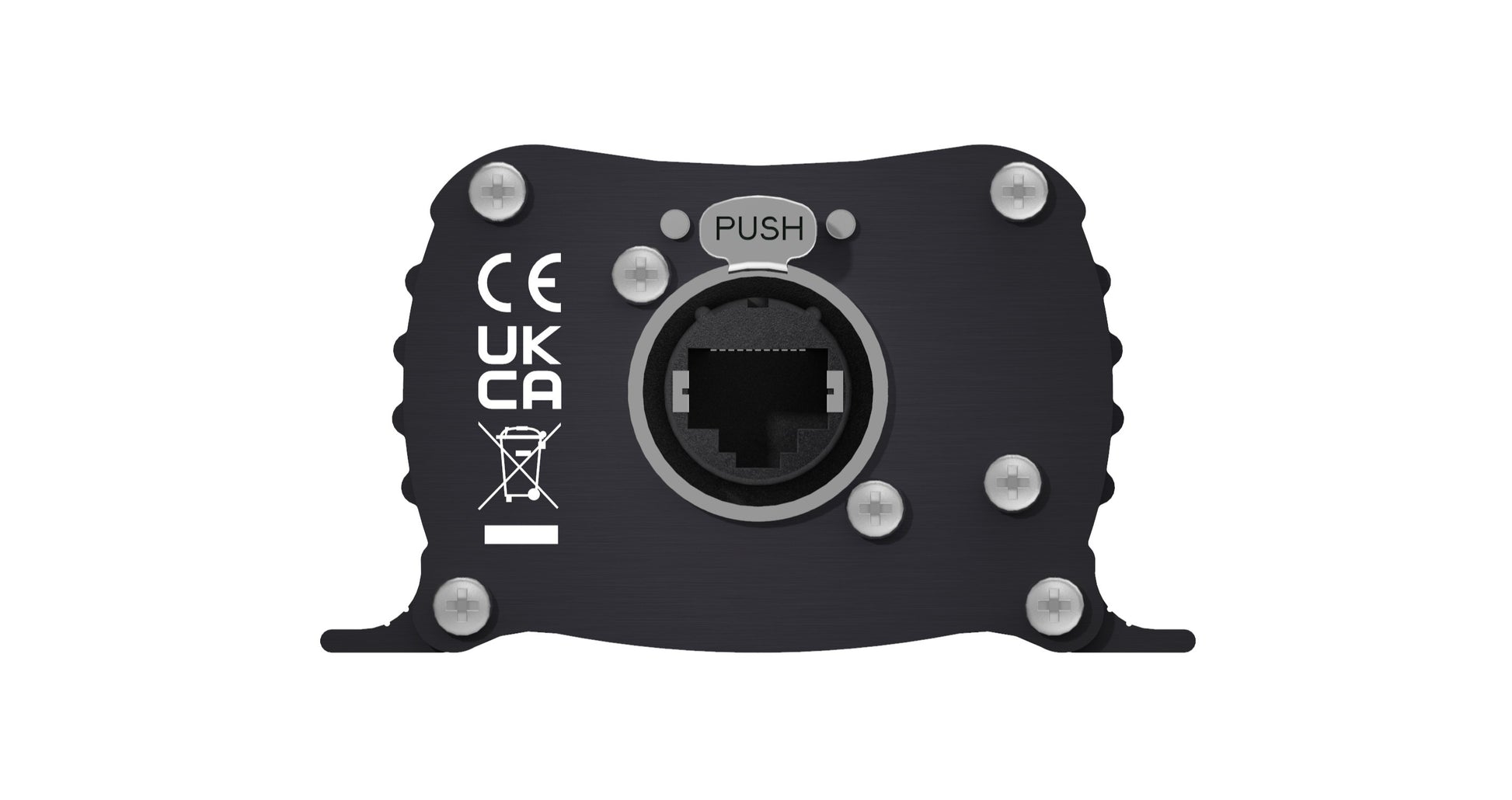

Neutrik EtherCon® Ethernet connection.
Fully Dante compliant.
AES67 compatible.
Wide dynamic range D/A conversion.
Powered via PoE (Power over Ethernet).
Rack mount option with the AVN-DIORK.
Aluminium construction.
Typical Applications
Provides a stereo, or two mono, headphone feeds directly from the Dante AoIP network. Ideal for musicians in a studio or recording environment, or for engineers requiring physical monitoring of two Dante channels.
Product Category
Headphone Amplifiers
Technical Specifications
Headphone Jack Output Pin-out
Pin: Function
Tip: Left
Ring: Right
Screen: 0V Common
Headphone Output - Jack
Parameter: Description
Output Impedance: Capable of driving 150mW into 32Ω to 600Ω headphones
Maximum Output Level: +16dBu
D to A Line-Up: -6dBFS = +16dBu (max volume)
Gain: Mute (min Volume) to +6dB (max volume)
Frequency Response: 20Hz to 20kHz, +0/-0.5dB (ref 1kHz)
THD+N: <0.005%, -14dBFS input, max volume, 20Hz to 20kHz, 20kHz BW
Dynamic Range: 114dBu, 20kHz BW, 0dB gain
Crosstalk: <100dB
Audio Limiter Range: -12dBu to +6dBu
Dante
Parameter: Description
Sample Rates: 4.1kHz, 48kHz, 88.2kHz, 96kHz
Encoding: PCM 16, PCM 24, PCM 32
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 4 W
Max PSE Power Usage: 15.4 W
Equipment Type
AVN-DIO03: Dante® to Headphone Output
Physical Specification
Dimensions: (Raw): 10.6cm (W) x 7.3cm (D) x 4.3cm (H)
Dimensions: (Raw): 4.2” (W) x 2.9” (D) x 1.7” (H)
Dimensions (Boxed): 17.4cm (W) x 9.5cm (D) x 5.6cm (H)
Dimensions (Boxed): 6.9” (W) x 3.7” (D) x 2.2” (H)
