The AVN-CU2 was designed from the ground up to be totally flexible in operation. The use of Dante AoIP means that inputs and outputs can be added as required (up to a max of 16 per unit). Any physical input can be combined, mixed, and routed to any output, giving you complete flexibility to create fully customisable cross-points. Additionally you can choose which of those cross-points need to be controlled by the use of rotary encoders. Using a built-in web GUI, up to 24 encoders (4 nameable pages of 6 rotary encoders) can be assigned to inputs, outputs or cross-points. Encoders can control the volume and pan of headphones and volume of the assigned inputs, outputs or cross-points. Each rotary encoder has a separate colour-coded meter section showing the channel name, detailed level metering and left/right panning on a bright daylight reading display. The colours are configurable to quickly identify particular source groups, so headphone source selection becomes intuitive.
Product Features
Web GUI for configuration.
Full web GUI remote control.
Lock-out of all individual controls and/or button row/encoder pages.

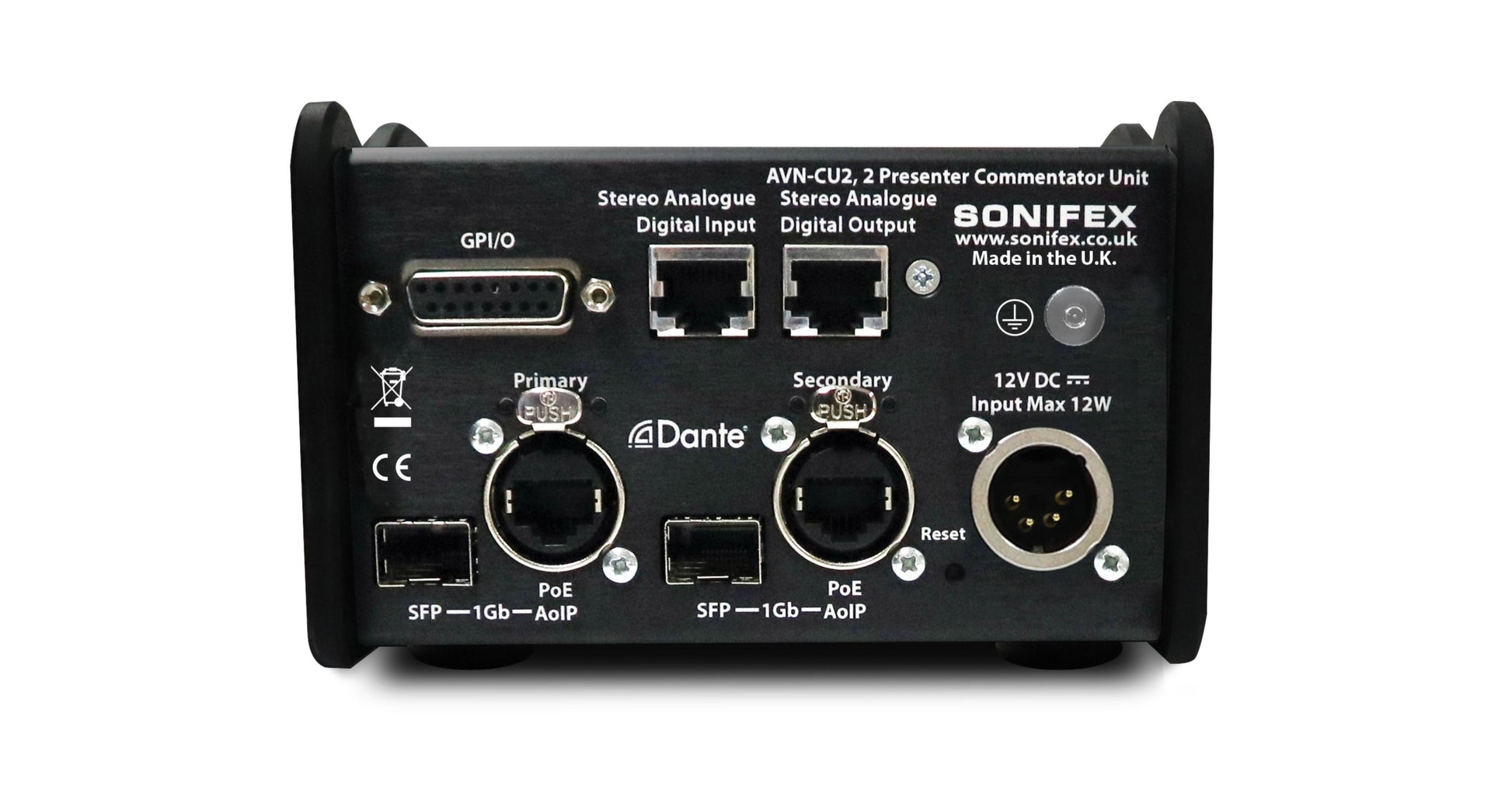

PoE using 2 x Neutrik EtherCON® RJ45s.
Dual redundant network ports on RJ45 and SFP.
Remote mode for flexible audio and control network separation on SFP (Dante only).
2 x locking mic/line inputs with +48V phantom power indication.
2 x headphone outputs on locking 6.35mm jack sockets.
1 x stereo analogue/digital input and 1 x stereo analogue/digital output on RJ45s.
4 x talkback buses.
On-air buttons with lazy talkback ability.
Supports up to 16 x input and output streams and 16 input and output multicast flows/streams.
Configurable headphone source selection.
6 x rotary encoders to control volume, or signal panning, and colour coded with the screen.
Fully configurable buttons and rotary encoders, for inputs and outputs.
4 x pages of 6 x encoder settings, e.g. one for talkback inputs, one for outputs, one to monitor other sources.
Metering per input/output, with output configured as pre or post level adjustment.
Built-in line-up tone generator.
Limiter available on every output.
Output metering section shows limiter indication, the name of the output & level metering.
10 x configurable GPIO with 1 x switched changeover output.
GPIO & VGPIO matrix programmable with events.
Typical Applications
Used in sports grounds and arenas by commentators to produce commentary & hear talkback, 16 x 16 matrix mixer with configurable controls for live events
Drive Capability: Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-up: Fixed 0dBFS = +18dBu
Frequency Response: +0/-0.2dB 20Hz to 20kHz Ref 0dBu @ 1kHz
THD+N: <-107dBFS, -30dBFS, 20Hz – 20kHz, 20kHz BW
Noise: <-110dBFS, 20kHz BW
Main Panel Operational Controls & Indicators
Power LED: Sonifex logo illuminates when power is present

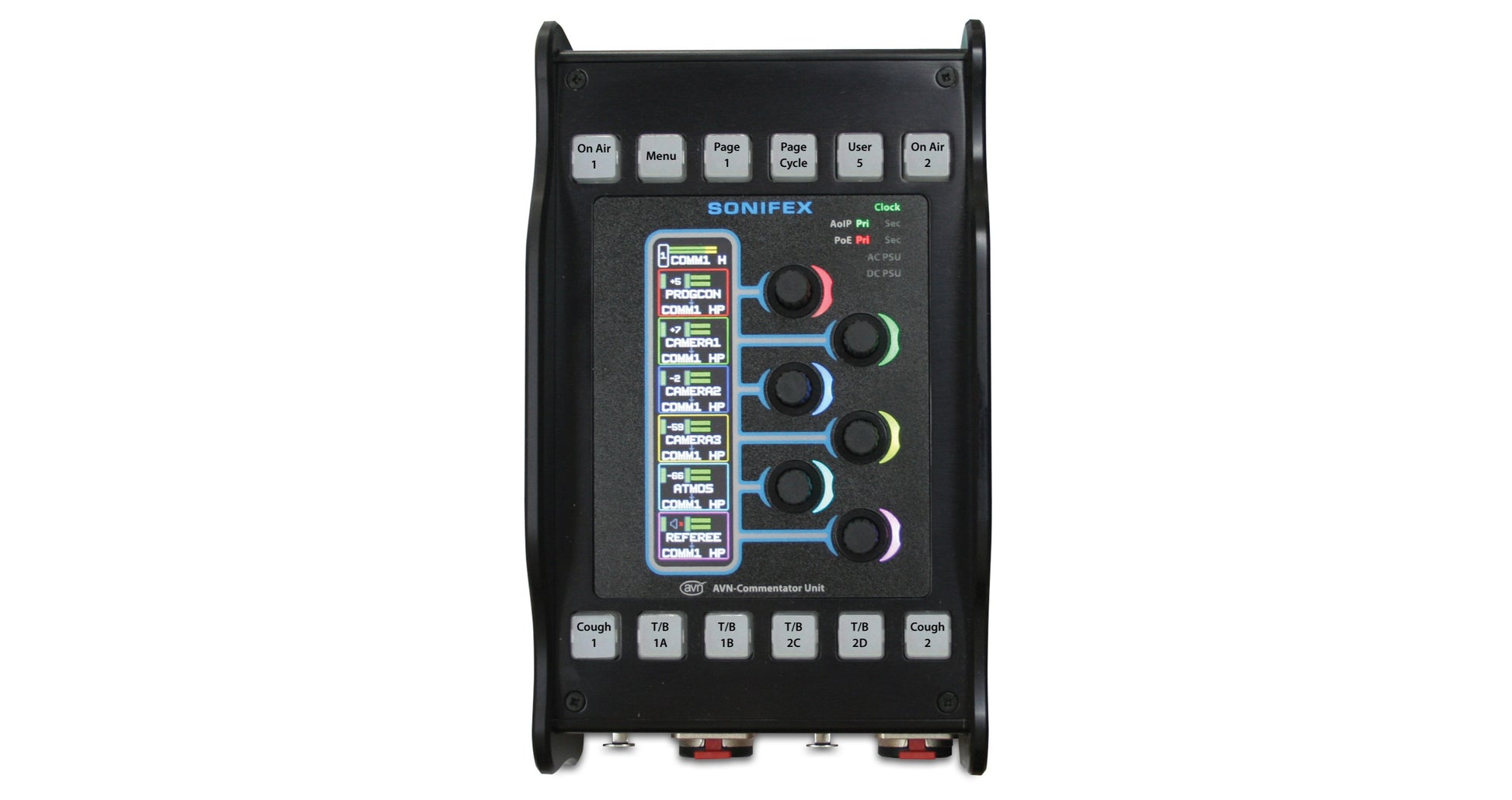

Pushbuttons: 12 x Illuminated buttons that can be assigned to any of the following functions, and configured: On-Air / Talkback / Page # / Page Cycle / GPO / Cough / Menu / Brightness
Display: 480 x 107 pixel colour TFT display showing pan status, level, metering, control type, source/mix/destination names and main output metering
Status LEDs: Clock / AoIP status / PoE status and PSU status LEDs to monitor power and connectivity. Can be disabled if required

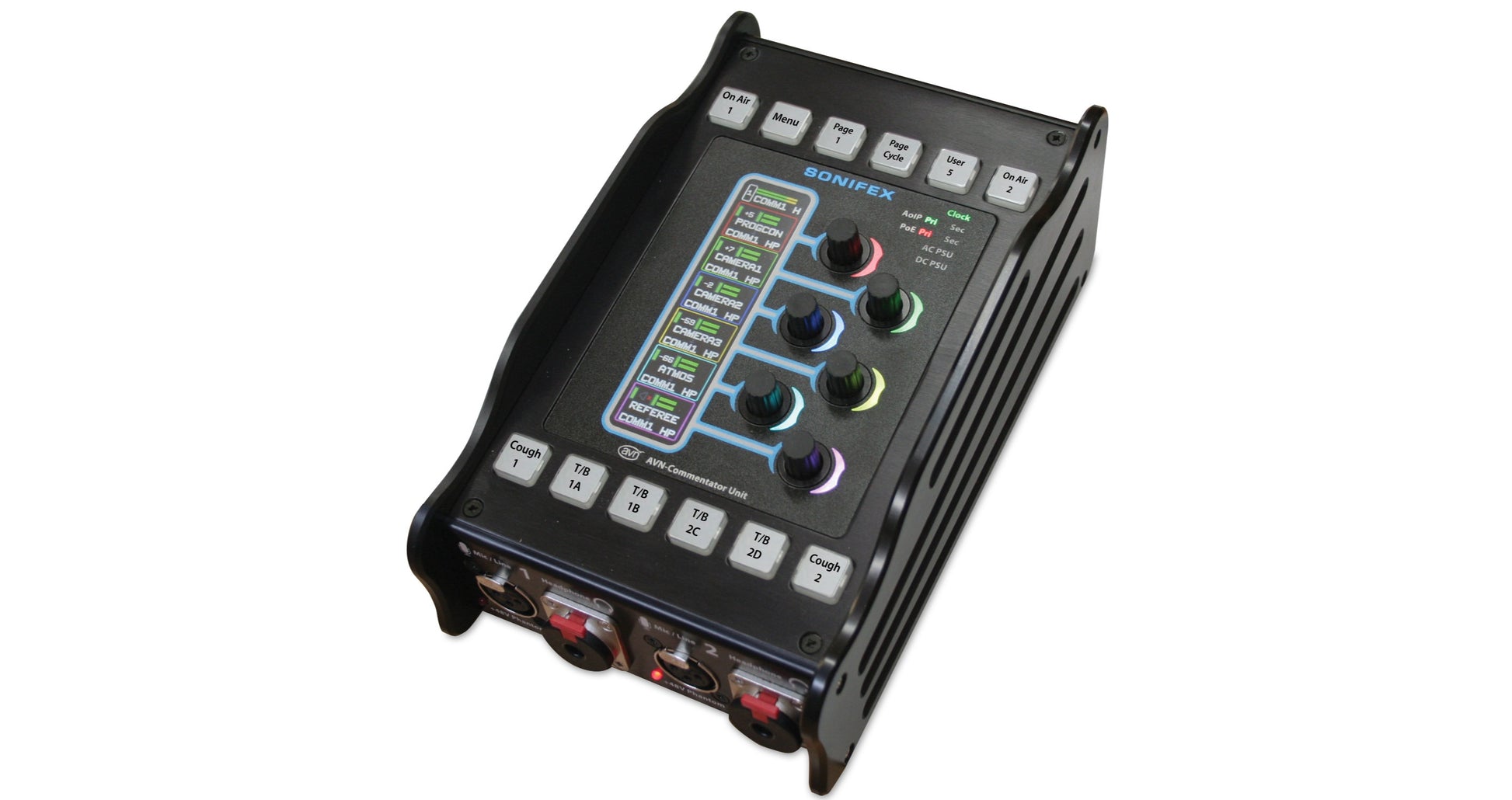

Rotary Encoders: 6 x robust soft touch rotary encoders with adjacent configurable light bars for group/source/commentator grouping and identification
Front Panel Connections

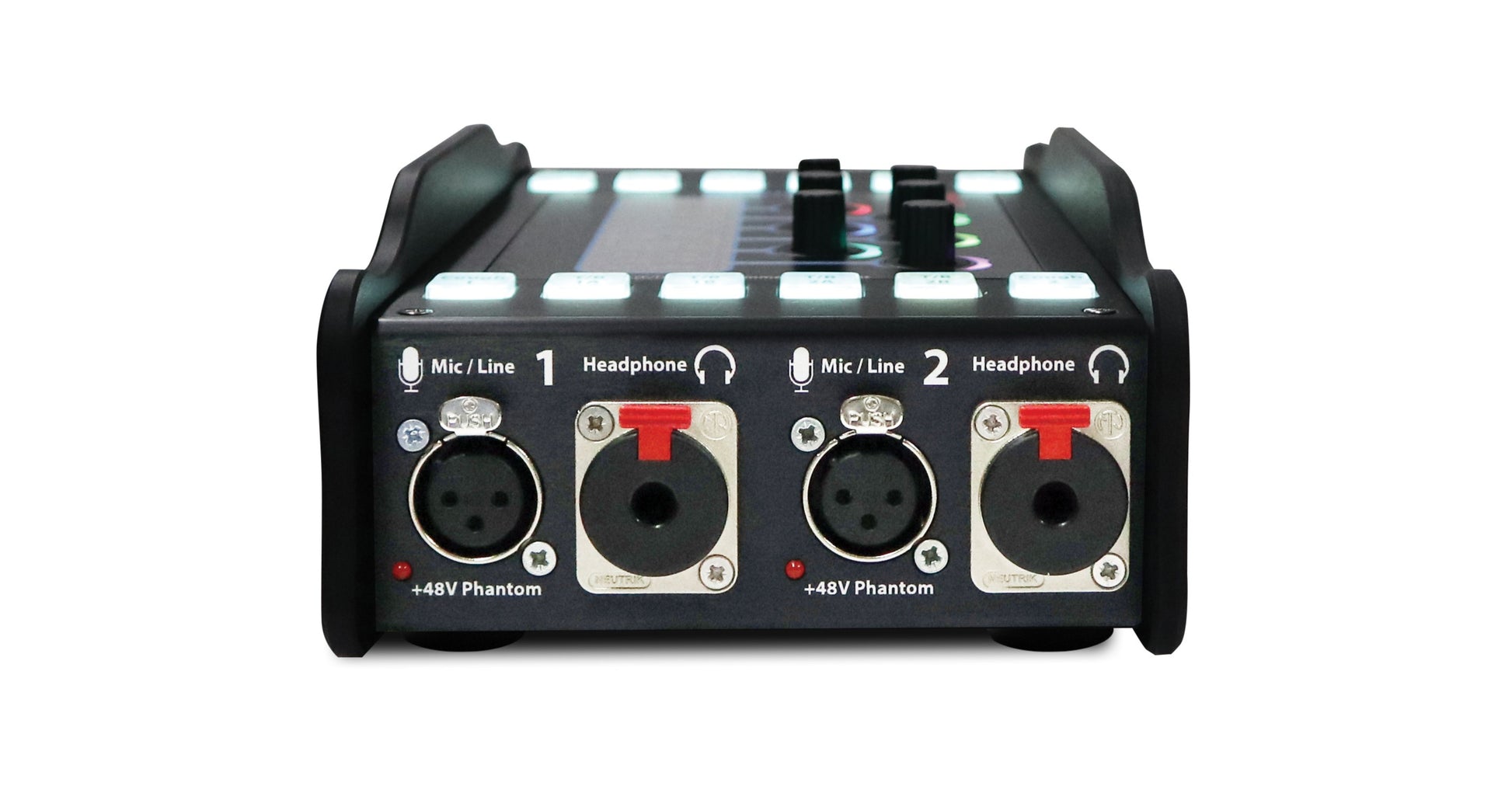

Headphone Outputs: 2 x Neutrik ¼” (6.35mm) locking jack sockets
Microphone/Line Inputs: 2 x Neutrik 3 pin latching XLR sockets
