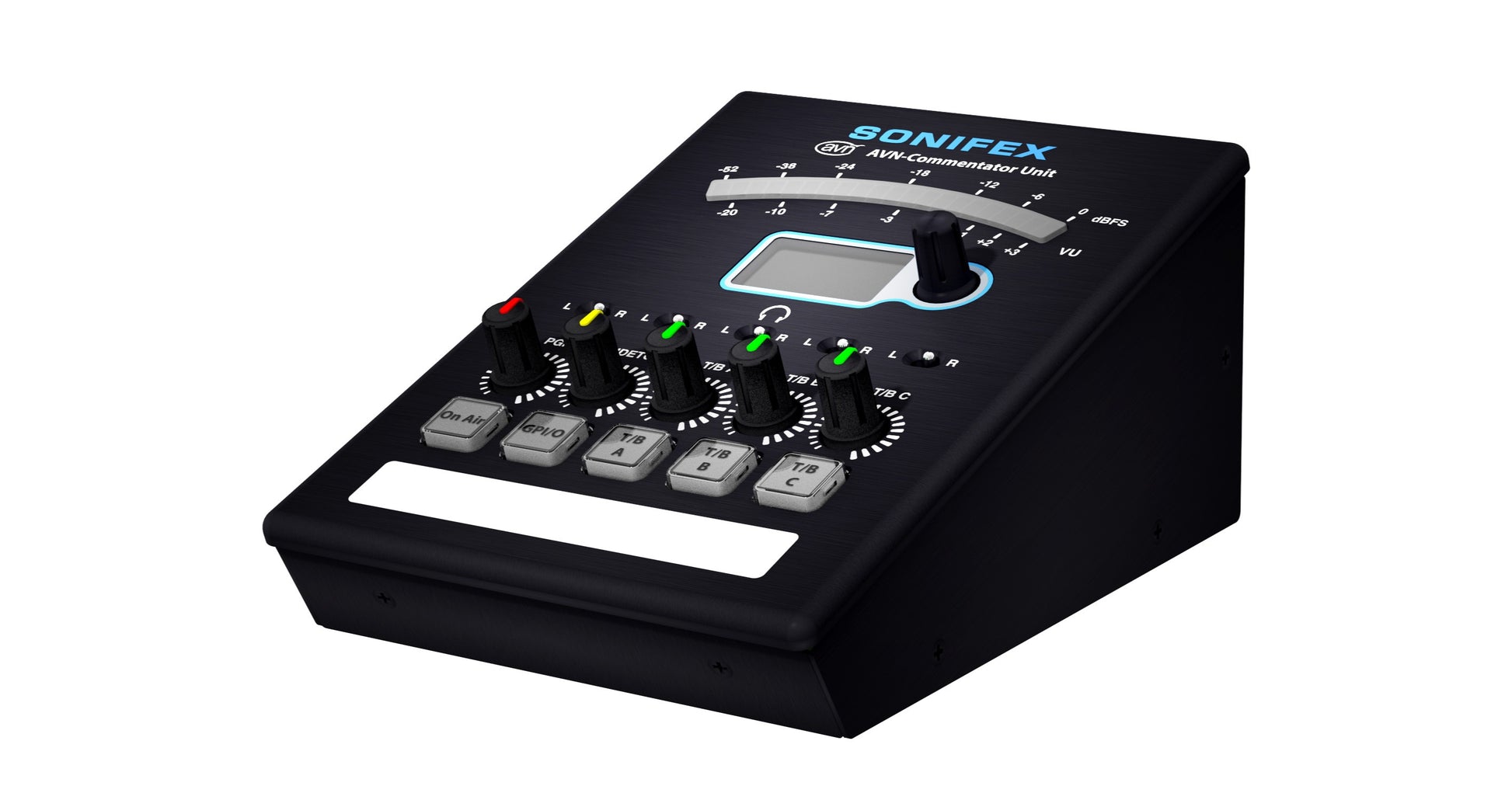

The AVN-CU1 is a Dante® commentary unit designed for a single commentator, combining professional broadcast functionality with an intuitive, compact interface. Expanding the Sonifex range of Dante commentary solutions, it offers a easy to use, straightforward microphone and headphone setup while maintaining a comprehensive feature set at a cost-effective. Designed for ease of use in live sports and studio environments, the AVN-CU1 provides clear control over monitoring and routing. The integrated headphone amplifier features five inputs; three Dante talkback channels, Dante programme audio, and sidetone, each with its own dedicated level control via individual potentiometers. Audio output routing is managed using illuminated pushbuttons, providing clear visual feedback of signal paths
Product Features
4 channel Dante AoIP.
Potentiometers control mix levels of up to five sources into the user’s headphones: Sidetone, Programme, Talkback A, B and C.
Sources (except for sidetone) are accompanied by an illuminated push button that routes the mic/line input to the relevant Dante output (On Air, T/B, A, B, and C).
Push buttons have removable caps, allowing you to change the text for your specific application.
A scribble pad spans all buttons to allow quick and easy source or destination labelling.
Sources, (except for sidetone), are accompanied by a 3-position toggle switch to route audio to the left, right or both channels of the headphone output.
The GPIO button can be used to call for technical help, identify users, or for your own remote function.
An OLED display for configuration, status indication (Clock, Link, PoE and DC) and active metering scale of the bar graph meter (dBFS/VU).
A rotary encoder is used to navigate the menu and adjust settings.
A curved LED meter displays the audio output level, offering daylight visibility with a user-selectable scale (VU or dBFS).
RGB LED downlighting under the unit indicates status (e.g. ON AIR), or can simply provide decorative lighting.
Compressor/Limiter on the microphone stage.
Typical Applications
Used in sports grounds, arenas and events by a single commentator to produce commentary & hear talkback. Simple to configure and use, ideal for Dante setups that require broadcast level commentary or announcements.
High Pass Filter: 12dB/octave, user selectable frequency
Compressor: Threshold: -40dBFS to 0dBFS
Ratio: 4:1
Attack Time: ~50ms
Release Time: ~400ms
Limiter: Threshold: -40dBFS to 0dBFS
Ratio : ∞:1
Headphone Output
Drive Capability: Drives 150mW into 32Ω to 600Ω headphones
0dBFS Line-up: -20dBFS = +18dBu Ref. Single Dante source, volume pot = maximum, master HP level = 0dB
Frequency Response: +0/-0.2dB 20Hz to 20kHz Ref 0dBu @ 1kHz
THD+N: <-107dBFS, -30dBFS, 20Hz – 20kHz, 20kHz BW
Noise: <-110dBFS, 20kHz BW

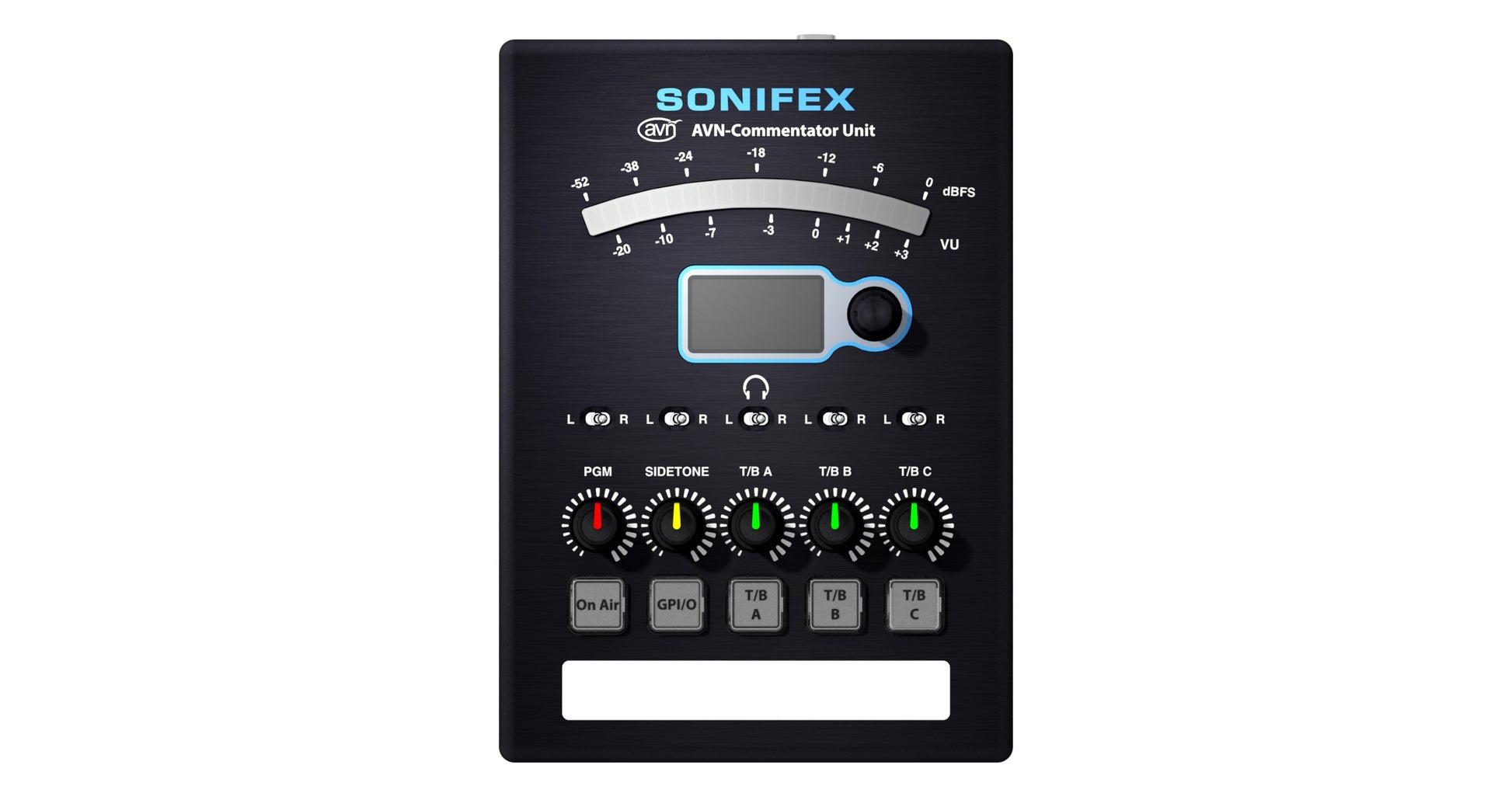

Main Panel Operational Controls & Indicators
Meter: 21 segment display showing output level. Scale selectable (PPM or VU). Brightness selectable. Monitoring point selectable (Pre or Post DSP).
Pushbuttons: 5 x Illuminated buttons that can be configured to momentary, latching or auto action and selectable colours. Brightness is selectable. 1 x GPIO button 1 x On-Air button 3 x T/B buttons (T/B A, B & C)
Display: 128 x 64 pixel white OLED display showing status, signal presence, HP level and configuration menu.
