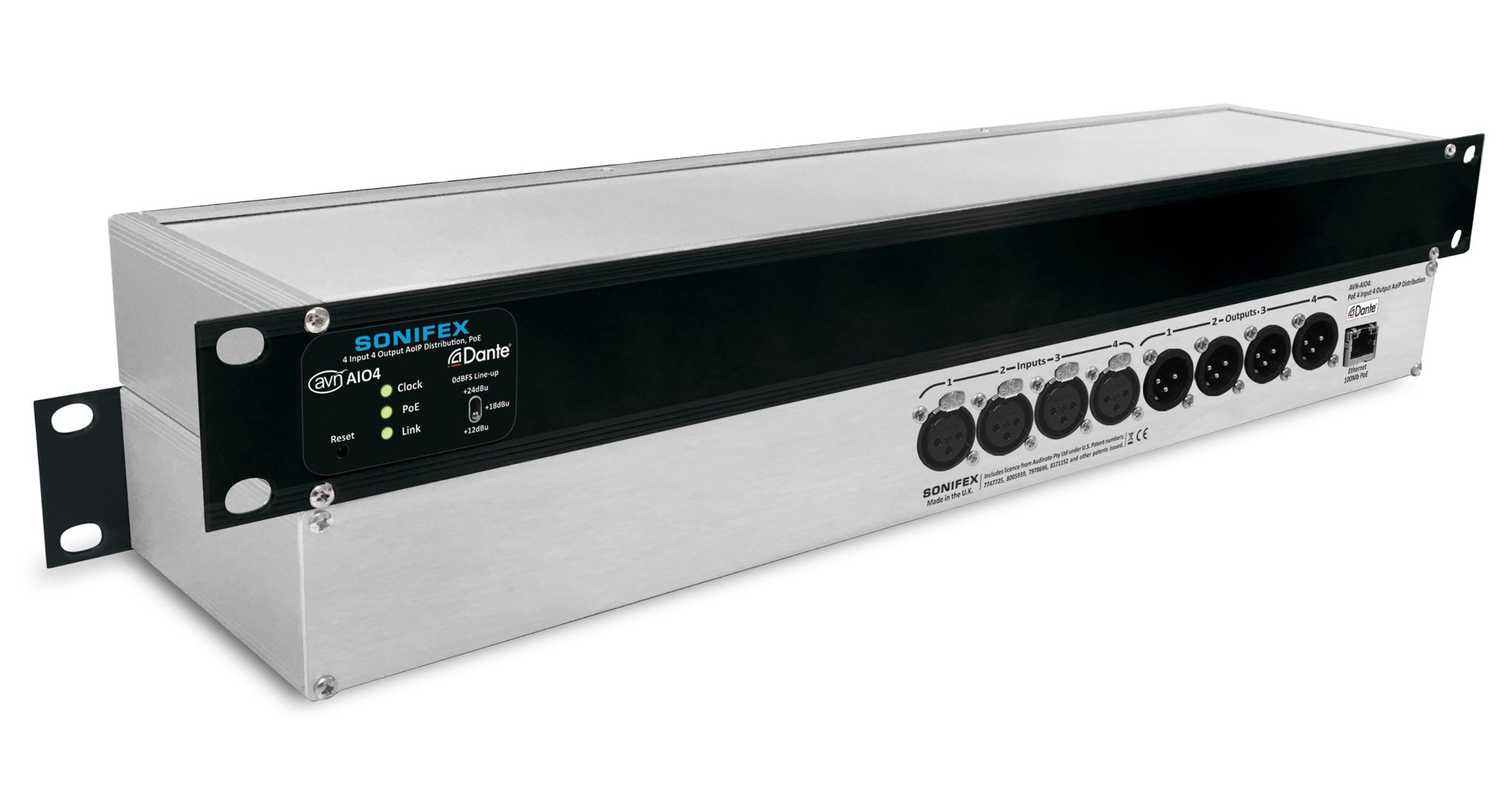

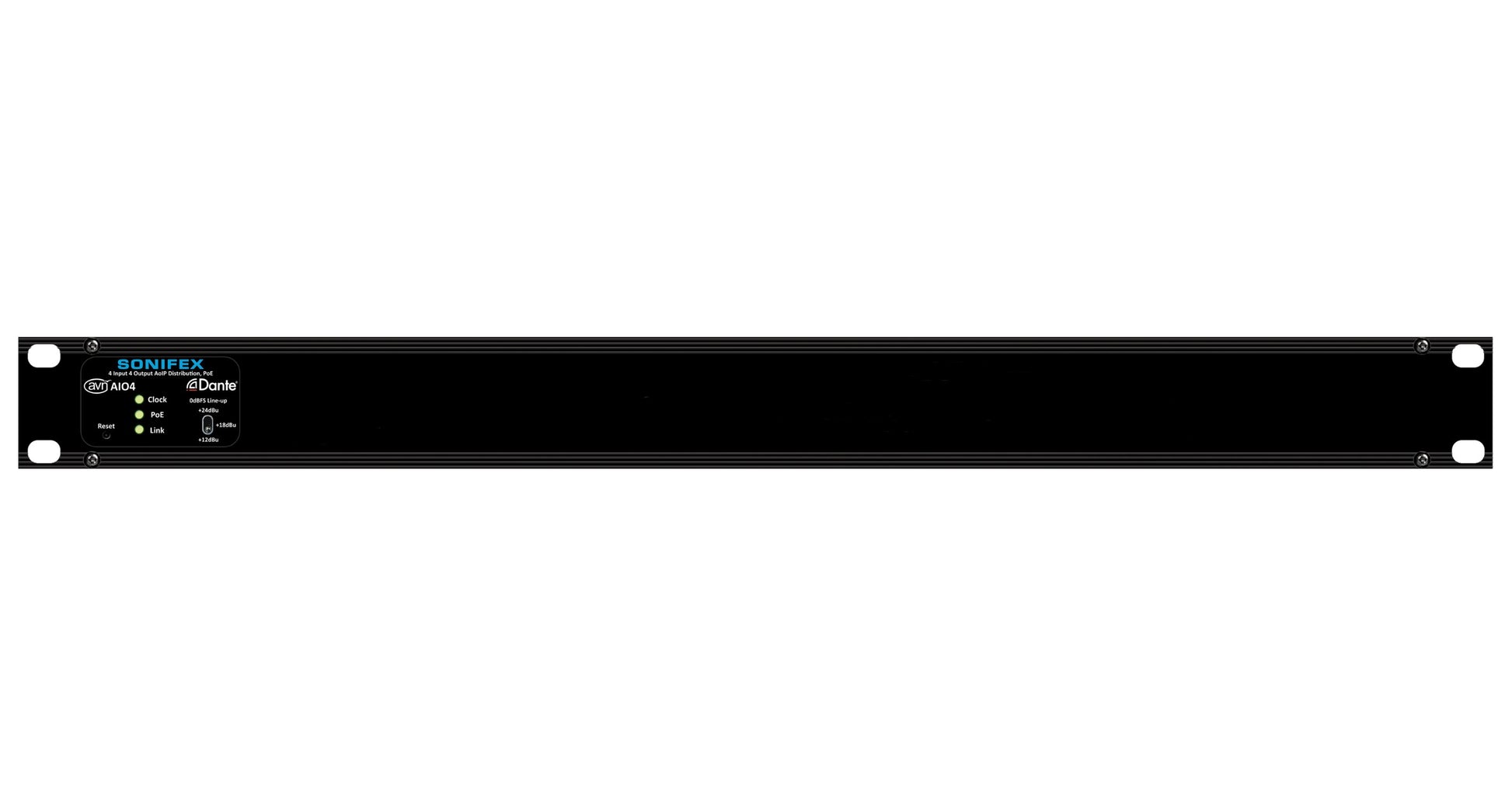

The AVN-AIO4 audio converter and interface converts up to four analogue inputs and four analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up, except line-up levels, done via the standard Dante Controller software and power via PoE (Power Over Ethernet). All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock. Global 0dBFS line-up can be set to +12dBu, +18dBu or +24dBu to meet your specific requirement via the front panel recessed toggle switch. 4 x balanced analogue inputs on XLR.
Product Features
4 x balanced analogue inputs on XLR.
4 x balanced analogue outputs on XLR.
Adjustable global 0dBFS line up selection (+12dBu/+18dBu/+24dBu).
1 x RJ45 Dante connector (1Gb/s Ethernet Port).
PoE, Link, and Clock LED status indicators.
Configuration using Dante Controller.
AES67 operation & Dante Domain Manager compliant.
Powered by PoE.
1U 19” rack-mount form factor.
Typical Applications
The AVN-AIO4 is suited to a wide range of professional audio environments where reliable, low-latency transport between analogue and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional analogue equipment and Dante-based audio networks.
Product Category
Analogue Dante Converters
Technical Specifications
Network and AoIP
AoIP Standard: Dante
Number of Channels: 4 receive, 4 transmit
Number of Streams: 4 receive, 4 transmit
Sample Rates: 44.1kHz, 48 kHz, 88.2kHz or 96kHz
(Note: 2 channels I/O only when >48kHz. Either 4 inputs or 4 outputs at 96kHz, can be configured on request with a separate firmware download).
Format: Linear PCM, 16, 24 or 32 bit
AES67 Support: Yes
Connectivity: 1 x RJ45
Speed: 100Mbps
Dante Domain Manager Ready: Yes
Audio Input Performance Specifications
Parameter: Line Input
Input Impedance: >20kΩ balanced
0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response: 20Hz to 20kHz, +0/-0.2dB
THD+N: <-110dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -110dBFS, 20kHz BW, Rs=200Ω
Crosstalk: <-100 dB
Common Mode Rejection: >60dB @ 1kHz
Audio Output Performance Specifications
Parameter: Line Output
Output Impedance: <50Ω balanced
0dBFS line-up: User Selectable +12dBu/+18dBu/+24dBu balanced
Frequency Response: 20Hz to 20kHz, +0/-0.5dB
THD+N: <-107dBFS, -30dBFS, 20Hz to 20kHz, 20kHz BW
Noise: -107dBFS, 20kHz BW
Crosstalk: <100dB

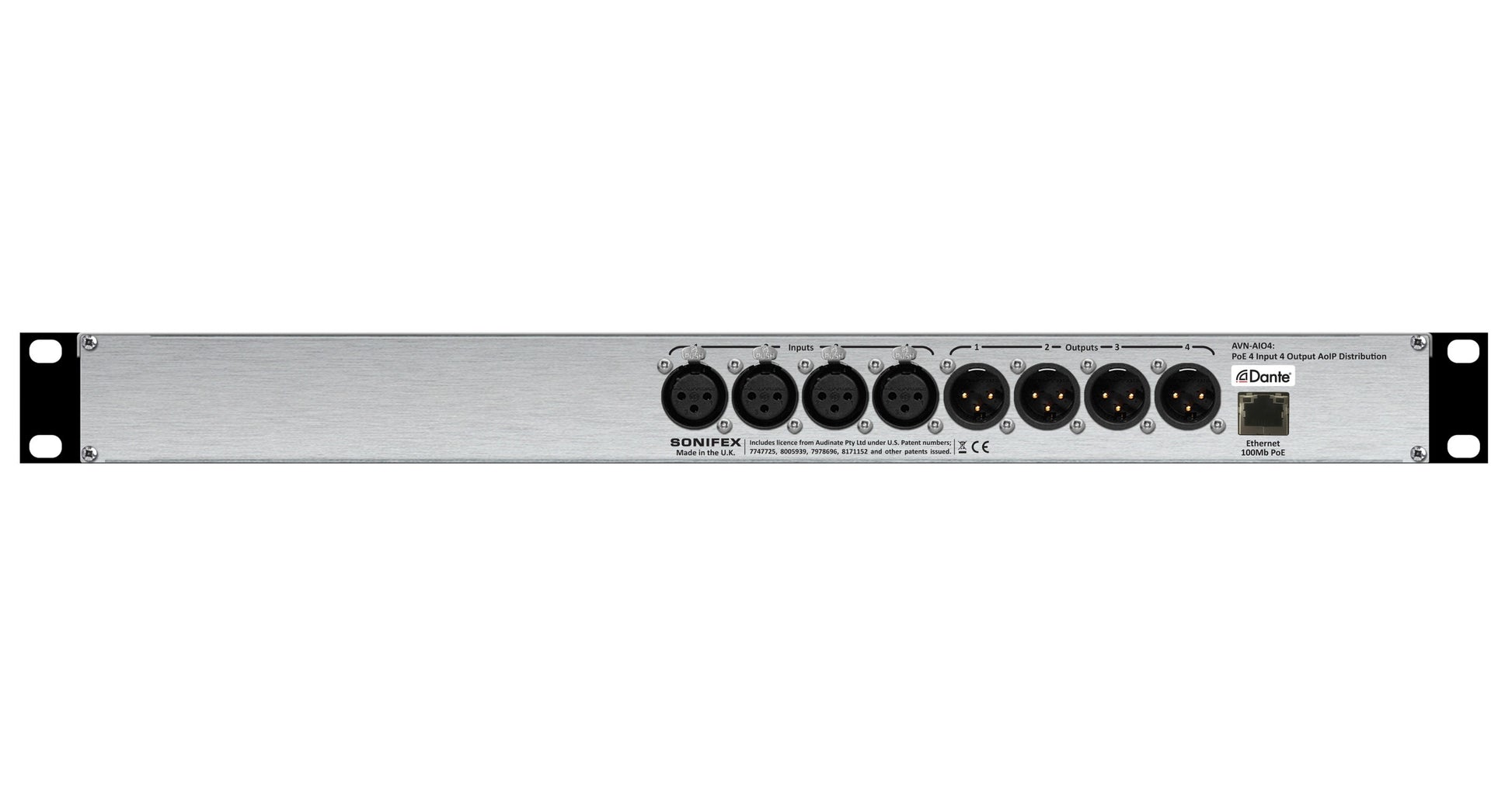

Balanced Line Input XLR Pinout
Pin: Function
1: Chassis Ground/Screen
2: Input Phase/Positive
3: Input Non-Phase/Negative
Balanced Line Output XLR Pinout
Pin: Function
1: Chassis Ground/Screen
2: Output Phase/Positive
3: Output Non-Phase/Negative
PoE Power
Standard: 802.3af
Class: 0
PD Power Range: 0.44 W to 12.94 W
Typical PSE Power Usage: 4.5 W
Max PSE Power Usage: 15.4 W
Equipment Type
AVN-AIO4: 4 Input, 4 Output Dante® Interface, PoE
Physical Specification
Dimensions (Raw): 48cm (W) x 11cm (D) x 4.3cm (H)(1U)
