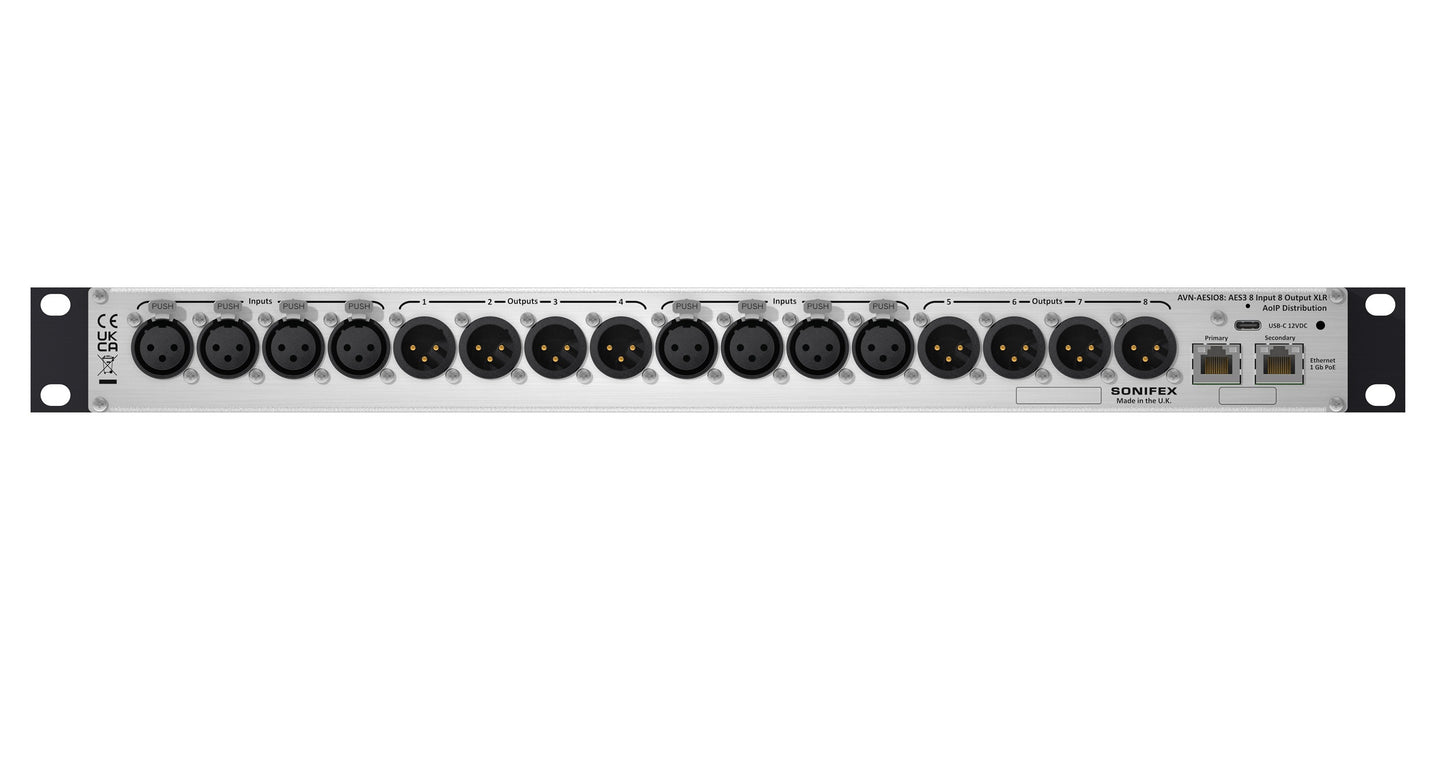

Designed for broadcast, live production, and professional AV environments, the AVN-AESIO8-DNT provides a cost-effective and dependable solution for transporting low-latency audio between AES3 and Dante network domains. The unit incorporates dual RJ45 1Gb/s Ethernet ports that accepts both power and data to the Dante network. These ports, designated primary and secondary, can be configured in redundant mode to provide full network redundancy where infrastructure allows. In this configuration, the unit seamlessly switches from primary to secondary, ensuring continuous audio and power in the event of a link loss or switch failure.
Product Features
Dante AoIP.
8 x balanced digital stereo AES3 inputs on Neutrik XLR connectors, supporting input rates of 32kHz – 192kHz.
8 x balanced digital stereo AES3 outputs on Neutrik XLR connectors, output matches Dante system sample rate.
2 x RJ45 connectors (1Gb/s Ethernet Port) allowing the unit to operate in redundant or switched modes.
PoE and link LED status indicators for each ethernet port.
Front panel clock, PoE and link LED status indicators.
Front panel AES3 lock LED status indicators for each input.
Powered by PoE on either (or both) ethernet ports, offering power supply redundancy.
Alternative USB-C DC power input, when PoE is unavailable.
Rear-panel mount for single/top locking USB-C cables.
Rear-panel cable tie mount to provide strain relief.
Configuration using Dante Controller.
Dante Domain Manager compliant.
AES67 operation.
1U 19″ rack-mount aluminium chassis.
Typical Applications
The AVN-AESI08-DNT is suited to a wide range of professional audio environments where reliable, low-latency transport between digital and networked systems is required. It is ideal for broadcast studios, live production and events, OB trucks, and fixed AV installations such as corporate, education, and hospitality spaces. It also integrates seamlessly into houses of worship and recording studios, providing flexible, high-quality connectivity between traditional digital equipment and Dante-based audio networks.
Product Category
Digital Dante Converters
Technical Specifications
Network and AoIP
AoIP Standard: Dante
Number of Channels: 16 receive, 16 transmit
Number of Streams: 16 receive, 16 transmit
Sample Rates: 44.1kHz, 48 kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
Format: Linear PCM, 16, 24 or 32 bit
AES67 Support: Yes
Connectivity: 1 x RJ45
Speed: 1Gbps or 100Mbps
Dante Domain Manager Ready: Yes
AES3 Input Specifications
Input Impedance: 110Ω balanced
Support Input Rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (sample rate converted to Dante system sample rate).
Signal Level: AES3-2009 compliant
Bit Depth: Up to 24bits
AES3 Output Specifications
Output Impedance: 110Ω balanced
Support Output Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz (set as per Dante system sample rate).
