USB-C 35W in, 65W out, D-tap, wire-free internal tech
70Wh Pocket V-mount Battery Pack
Official Features
Tiny Size 70Wh V-mount

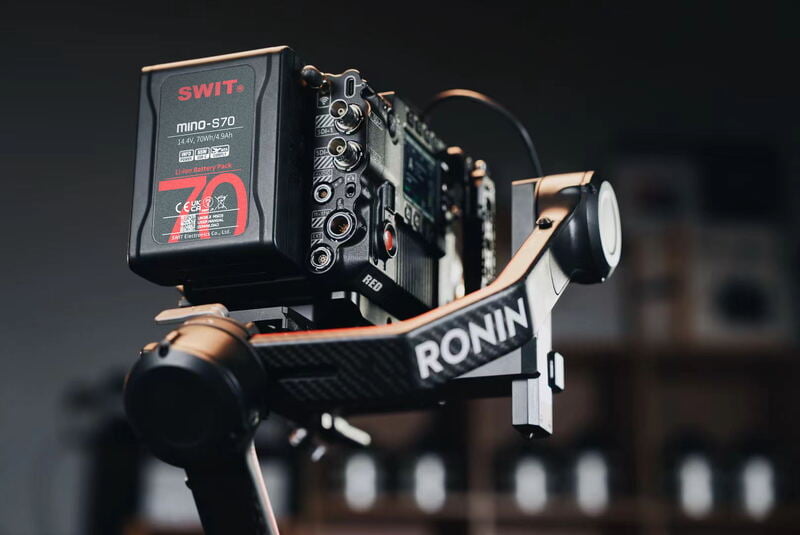

MINO-S70 is a pocket fit tiny size V-mount battery for handheld cameras, monitors and other camera gears. It powers RED V-raptor for at least 1 hour and offers minimum weight for stablizer installation.

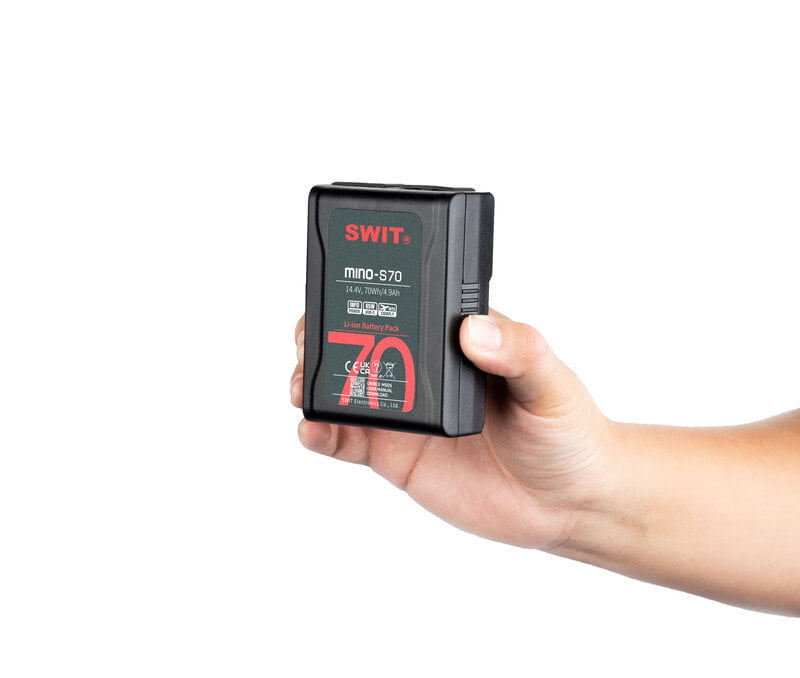

Thinner and Light Weight
The MINO-S70 is 37mm thickness, standard V-mount connector, and only 419g light weight for handheld camera gears.
70Wh, 100W/8A Load
MINO-S70 consists of 4 high capacity cells, with 70Wh/4.9Ah high capacity, and support at least 100W/8A constant high load output.

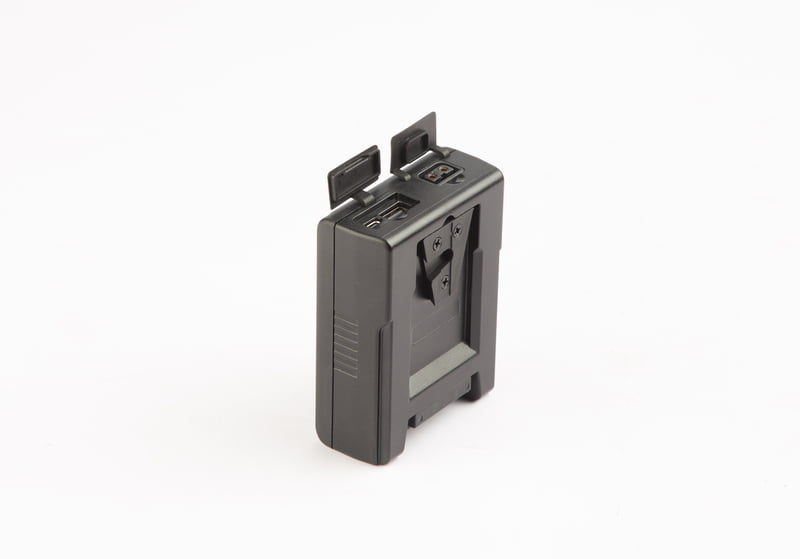

D-tap, USB-A and USB-C
The tiny size MINO-S70 didn't compromize on DC sockets. D-tap x1 - 100W/8A load (Support charging input) USB-A x1 - 5V/2A output USB-C x1 - 65W output and 35W charging input
USB-C 35W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging input, which means you can fully charge the 70Wh battery within 2.5 hours.

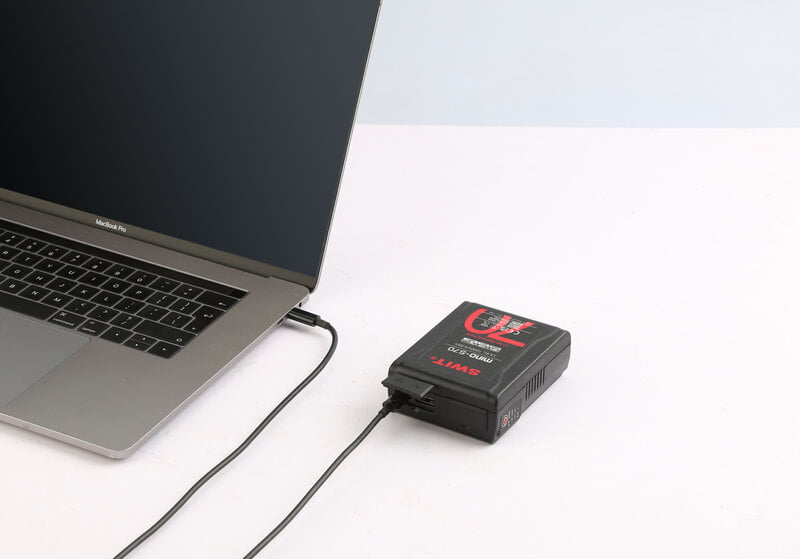

USB-C 65W Power Output
You can power laptop via USB-C by MINO-S70 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-S70 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Official Product Data
-
Model SPU: Mino-70
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 70Wh
-
Voltage: 14.4V
-
Weight (kg): 0.45
-
Spec 1: USB-C
-
Spec 2: Pocket Mini Size
-
Plate Type: V-Mount
-
Lifecycle: 2023New
-
Accessory Options: TA-T10S, UC-2065, Can't use 2Mino on KA-M20,
