USB-C 48W in, 65W out, D-tap, wire-free internal tech
210Wh Pocket V-mount Battery Pack
Official Features
The Smallest 210Wh V-mount Battery

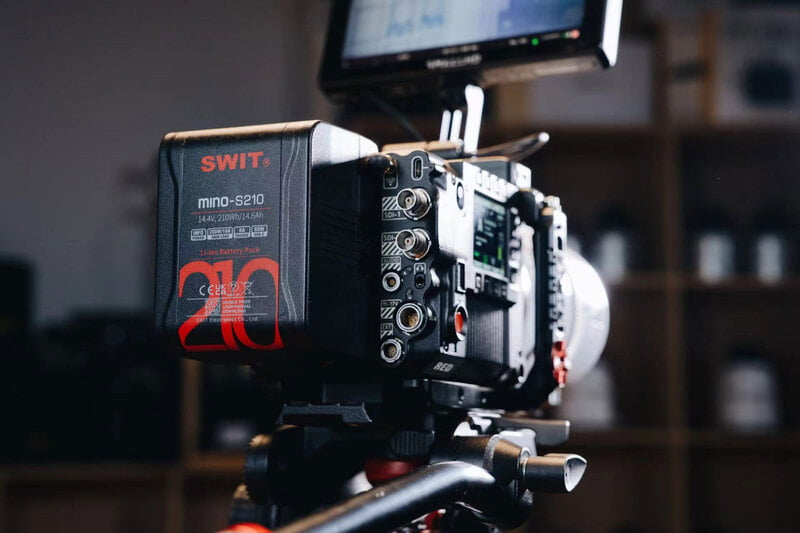

MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

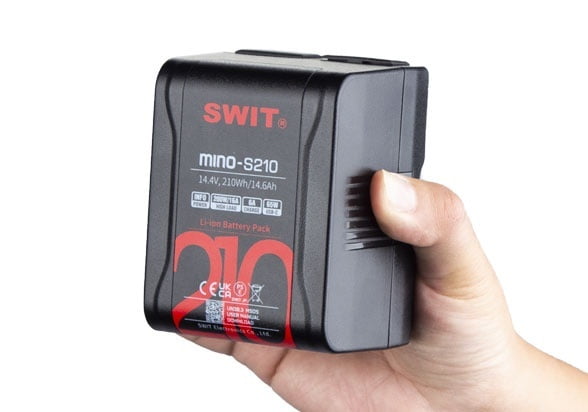

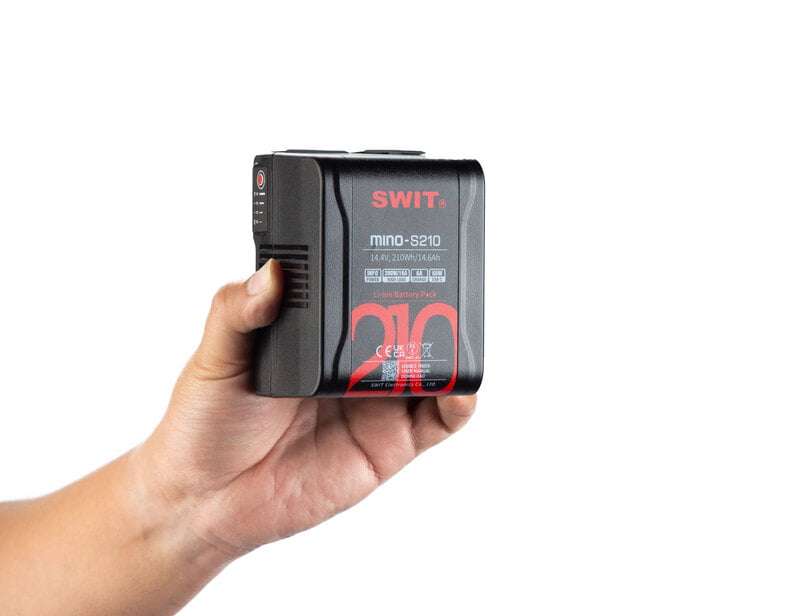

Compact Handheld Size
As a 210Wh large capacity battery, the MINO-S210 has 105x79.6x73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.
210Wh, 200W High Load
MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights..
D-tap, USB-A and USB-C
The MINO-S210 provides various DC sockets: D-tap x1 - 120W/10A load (Support charging input) USB-A x1 - 5V/2A output USB-C x1 - 65W output and 48W charging input

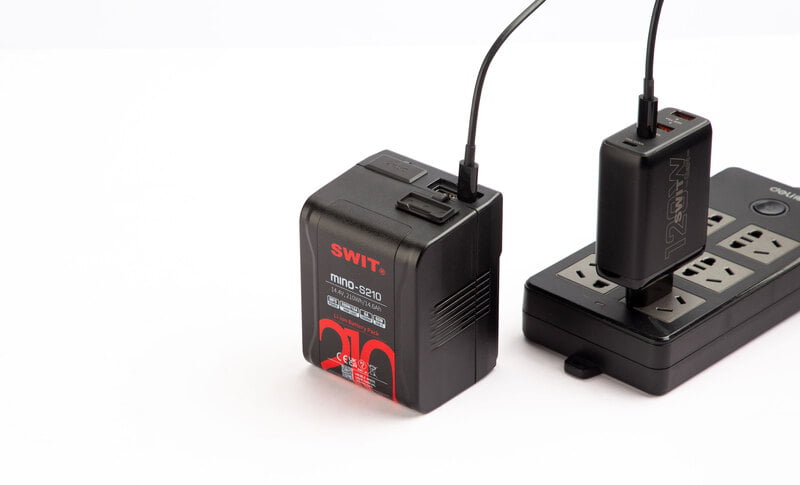

USB-C 48W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.

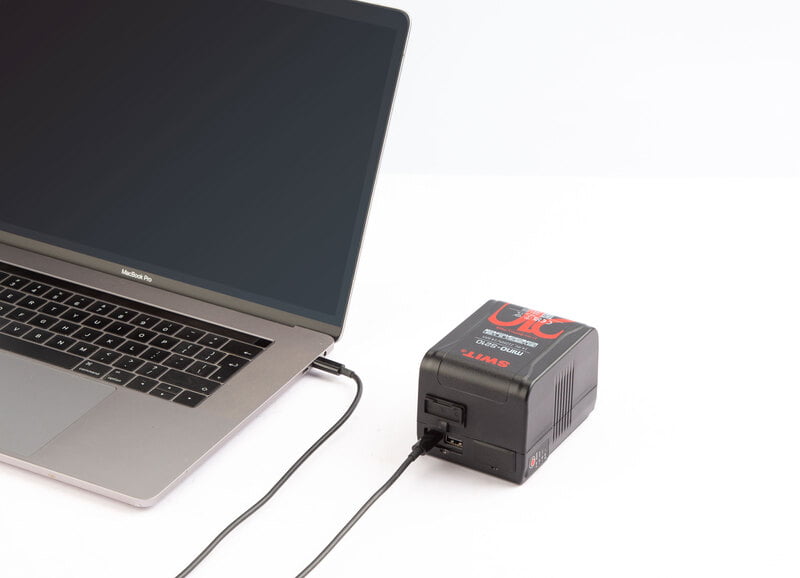

USB-C 65W Power Output
You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-S210 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Official Product Data
-
Model SPU: Mino-210
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 210Wh
-
Voltage: 14.4V
-
Weight (kg): 1.05
-
Spec 1: USB-C
-
Spec 2: Pocket Mini Size
-
Plate Type: V-Mount
-
Lifecycle: 2023New
-
Accessory Options: TA-T10S, UC-2065, Can't use 2Mino on KA-M20,
