USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free internal tech
140Wh Pocket V-mount Battery Pack
Official Features

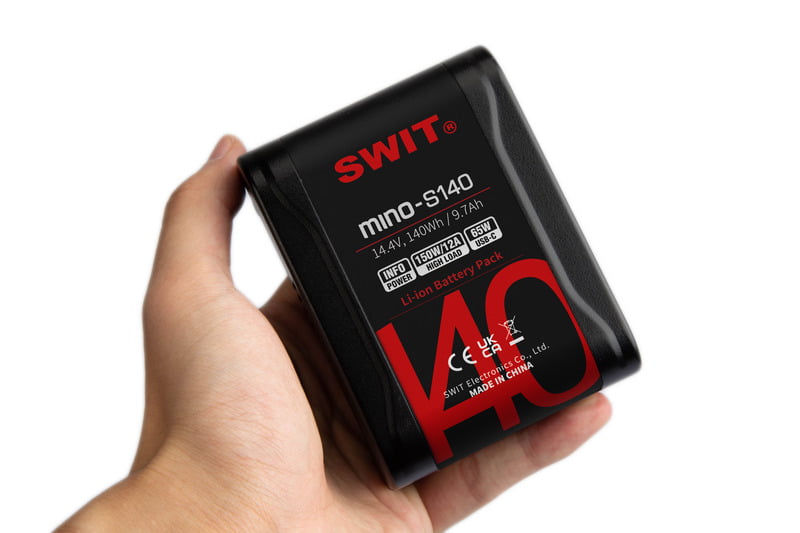

Tiny Size 140Wh Battery
The smallest 140Wh V-mount battery you’ve ever seen! MINO-S140 is a pocket fit size large capacity battery with 65W USB-C socket, for cameras, monitors, accessories, tablets, laptops and all kinds of devices in the filmset.
150W/12A High Load
MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.
A Little Bigger, Much More Capacity
Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140 provides 43% more capacity, but still with tiny size for convenient carrying.

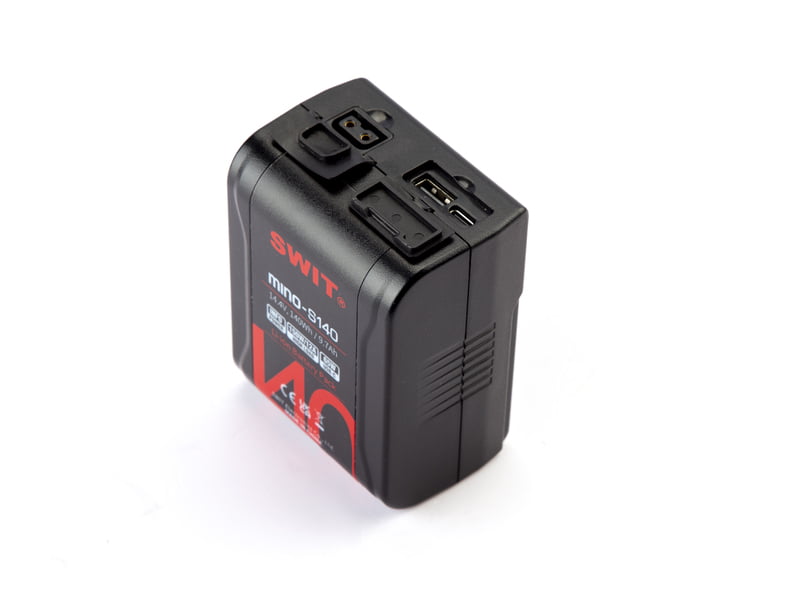

D-tap, USB-A and USB-C
The tiny size MINO-S140 didn't compromize on DC sockets. D-tap x1 - 120W/10A high load (Support charging input) USB-A x1 - 5V/2A output USB-C x1 - 65W output and 48W charging input
USB-C 48W Charging Input
MINO-S140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech
MINO-S140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Official Product Data
-
Model SPU: Mino-140
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 140Wh
-
Voltage: 14.4V
-
Weight (kg): 0.75
-
Spec 1: USB-C
-
Spec 2: Pocket Mini Size
-

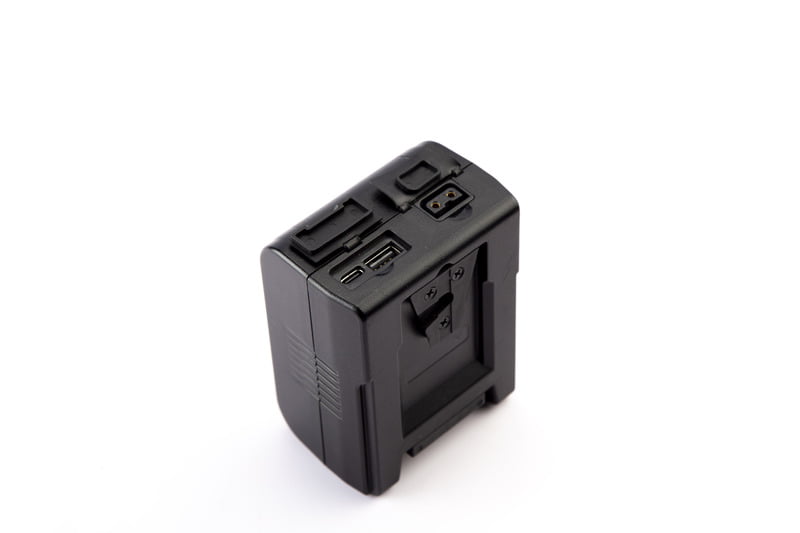

Plate Type: V-Mount
-
Lifecycle: 2022New
-

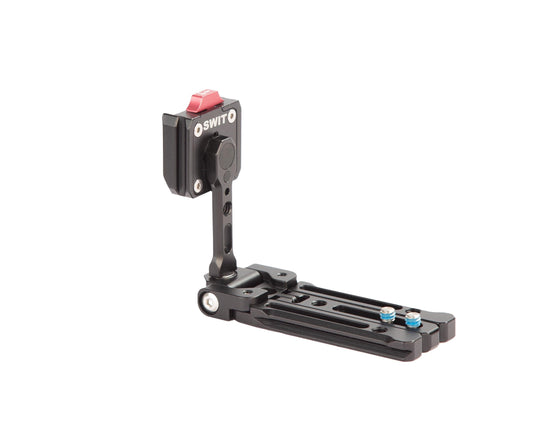

Accessory Options: TA-T10S, UC-2065, Can't use 2Mino on KA-M20,
