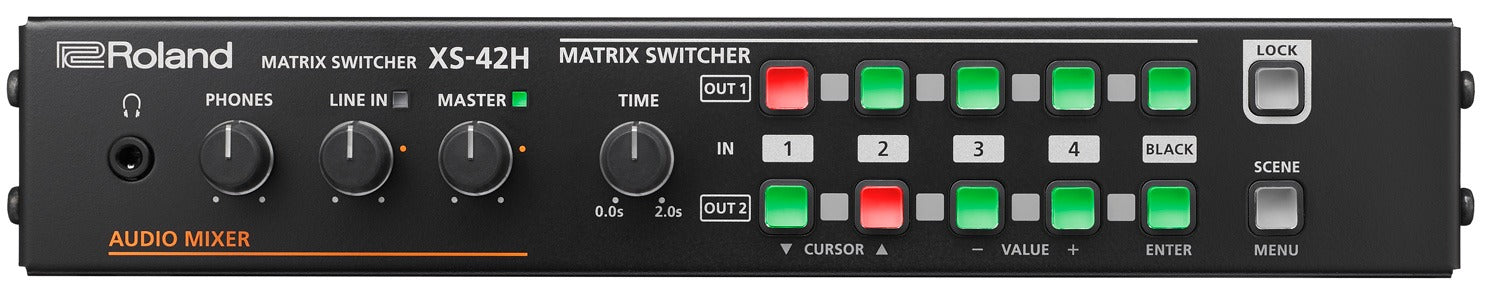

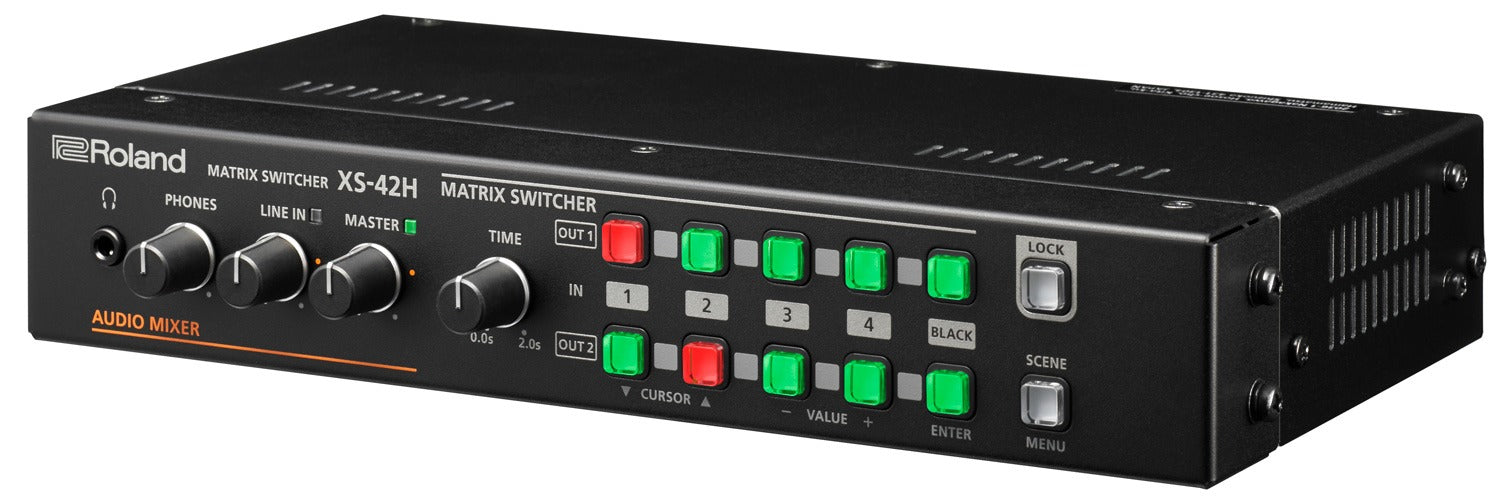

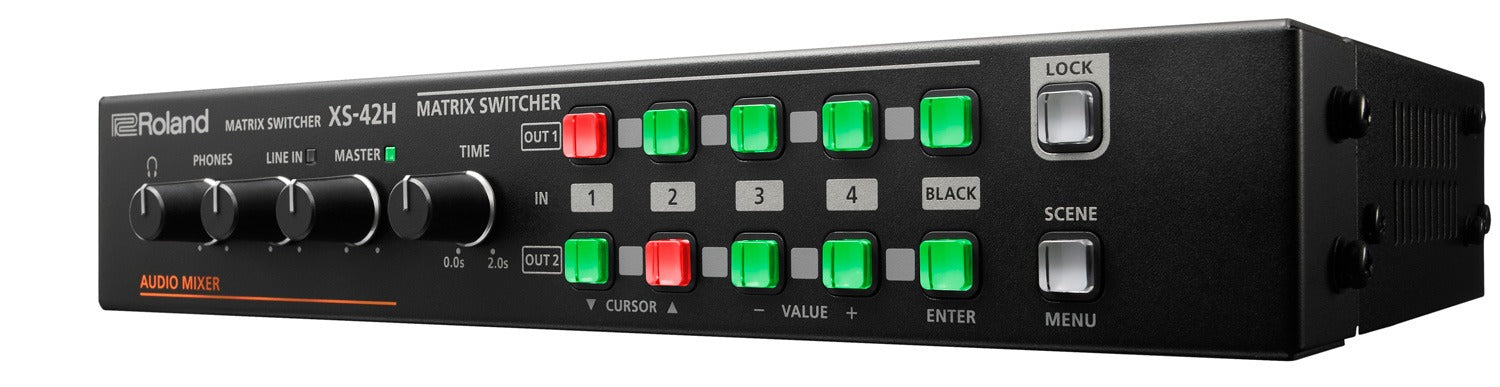

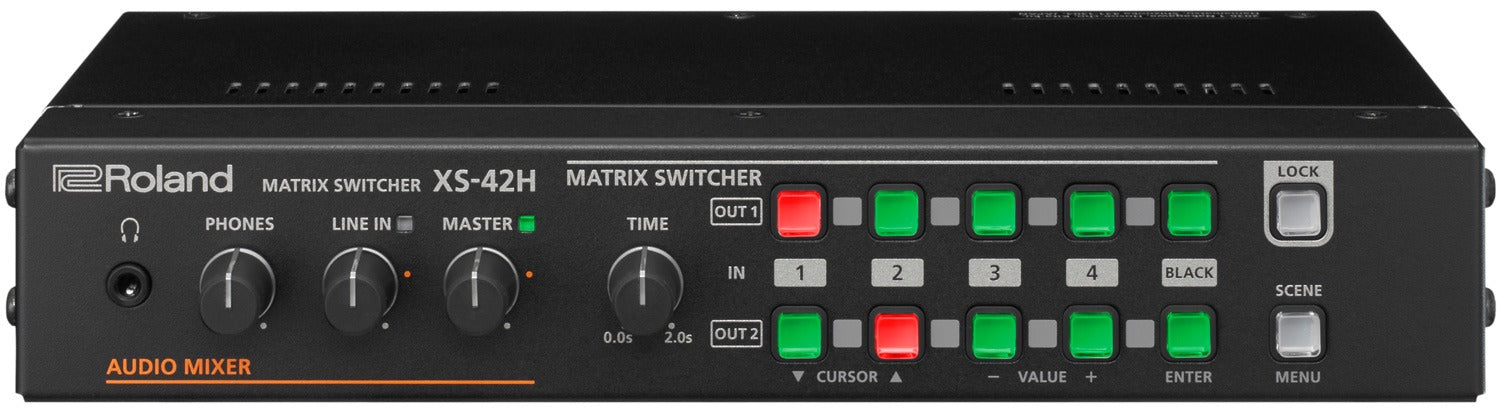

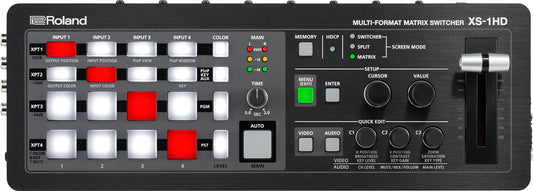

| Processing |
4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits |
| Input Connectors |
HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported |
| Output Connectors |
HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported |
| Formats |
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz. |
| Composition |
Layer: 1 |
| Transition |
Black-insert, Mix, Cut |
| Still Image |
Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed |
| Sample Rate |
48 kHz, 24 bits |
| Input Connectors |
HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type |
| Output Connectors |
HDMI: HDMI type A x 2
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type |
| Input Level |
AUDIO INPUT: -10 dBu (Maximum: +8 dBu) |
| Input Impedance |
AUDIO INPUT: 15 k ohms |
| Output Level |
AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms) |
| Output Impedance |
AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms |
| Formats |
HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch |
| Processing |
Mixer: 4 ch x 2 (Delay: Maximum 250 ms, Audio Follow) |
| External Connectors |
REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
USB MEMORY: USB A type x 1 (Use for USB Memory) |
| Functions |
Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator |
| Power Supply |
AC Adaptor |
| Current Draw |
2.1 A |
| Power Consumption |
25 W |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Dimensions |
242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches |
| Weight |
1.2 kg
2 lbs 11 oz |
| Accessories |
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)
Rack mount angle set |
