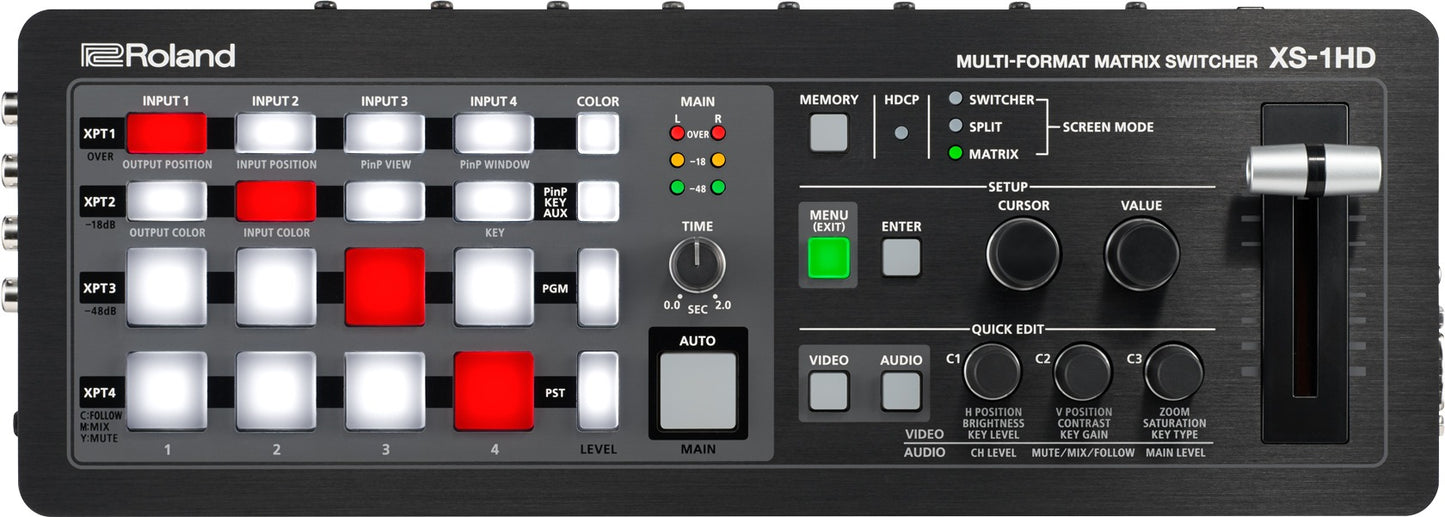

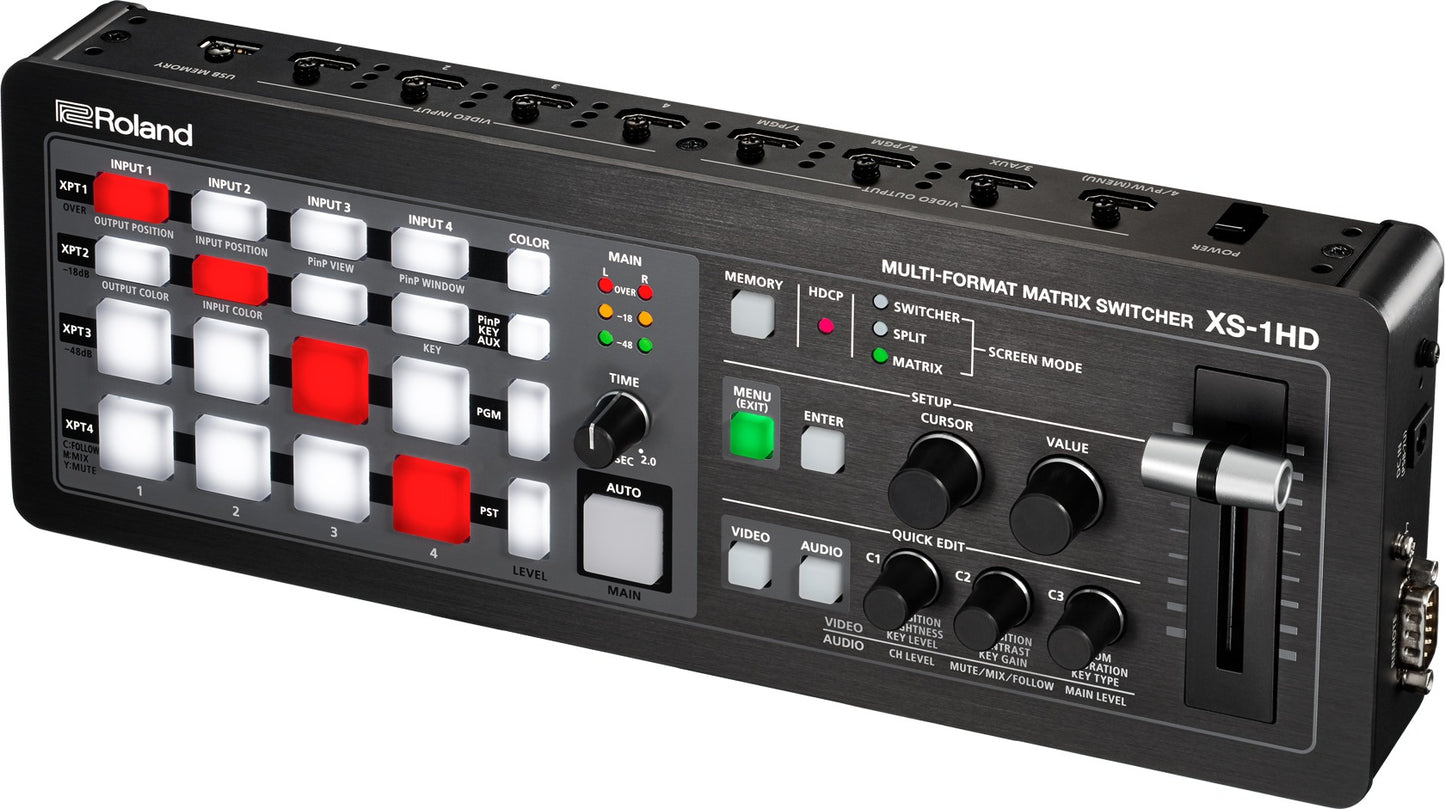

| Processing |
4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits |
| Input Connectors |
HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported |
| Output Connectors |
HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported |
| Formats |
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz. |
| Effects |
Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode. |
| Still Image |
Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed |
| Sampling Rate |
24 bits/48 kHz |
| Input Connectors |
HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type |
| Output Connectors |
HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type |
| Input Level |
AUDIO INPUT : -10 dBu (Maximum : +8 dBu) |
| Input Impedance |
AUDIO INPUT : 15 k ohms |
| Output Level |
AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms) |
| Output Impedance |
AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms |
| Formats |
HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch |
| Processing |
Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator |
| External Connectors |
REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory) |
| Preset Memory |
16
*Auto Memory Function |
| Power Supply |
AC Adaptor |
| Current Draw |
2.1 A |
| Power Consumption |
25 W |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Dimensions |
328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches |
| Weight |
1.2 kg
2 lbs 11 oz |
| Accessories |
Owner's Manual
AC adaptor
Power cord |
| Notes |
* 0 dBu = 0.775 Vrms |
