VP-42H: Video Processor - Everything you need, on a single screen
The standard of visual content for presentations and events is increasing all the time. While some venues support multiple displays that can simultaneously output IMAG or presentation materials, it’s not always practical or affordable. But if you can’t make it work with multiple screens, then how about using a single large screen that can display everything you need—complete with multiple inset windows and slick, eye-catching transitions?
Traditionally, layering and switching multiple sources within a single display is complicated and expensive, requiring highly skilled operators to keep it all working. This has pushed the technology out of reach for most event producers—until now. The Roland VP-42H video processor offers customizable compositions for up to four inputs, with motion-based scene switching for a stunning visual impact.
Maximum effect, minimum effort
The VP-42H goes way beyond typical switchers. You can instantly switch between ‘scenes’ containing preset arrangements of layered sources in customizable inset windows. The VP-42H smoothly transitions between current and next scenes by automatically moving and resizing the windows to their new positions. And highly impressive scene changes that used to take hours to program now happen at the touch of a button.
Simple, solid switching
Not all events require creative display and advanced scene transition capabilities. For simpler scenarios, the VP-42H functions as a true cross-dissolve seamless switcher, with a keyer to create overlays and the ability to display still images via USB drive—perfect for logos and safety slides.
Flexible audio capability
The Roland VP-42H includes stereo RCA outputs for de-embedding audio from connected HDMI sources and outputting it to other devices such as speakers and mixers. Levels for each source can be set by the internal audio mixer, and if the VP-42H is being used as a compositor for recording or streaming, the audio from an external mixer or other sources can be connected to the RCA inputs and embedded into the HDMI output signal.
Fast and convenient browser-based setup
Quickly configure scenes by using the web browser interface for your network-connected VP-42H. Each input’s layer can be scaled, cropped, zoomed and positioned by simply clicking and dragging. So even at a large event, a VP-42H connected to a big display will be up and running in seconds, letting you use a wirelessly connected tablet to set up compositions in no time.
Technical Specifications
| Processing |
4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits |
| Input Connectors |
HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported |
| Output Connectors |
HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported |
| Formats |
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz. |
| Composition |
Layer: 4 (Picture in Picture x 4)
*Layer 1 is Picture in Picture with Keyer. |
| Transition |
Black-insert, Mix, Cut, Motion |
| Still Image |
Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed |
| Sample Rate |
48 kHz, 24 bits |
| Input Connectors |
HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type |
| Output Connectors |
HDMI: HDMI type A x 2 *2 Output is the same audio.
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type |
| Input Level |
AUDIO INPUT: -10 dBu (Maximum: +8 dBu) |
| Input Impedance |
AUDIO INPUT: 15 k ohms |
| Output Level |
AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms) |
| Output Impedance |
AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms |
| Formats |
HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch |
| Processing |
Mixer: 4 ch (Delay: Maximum 250 ms) |
| External Connectors |
* REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
* USB MEMORY: USB A type x 1 (Use for USB Memory) |
| Functions |
Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator |
| Power Supply |
AC Adaptor |
| Current Draw |
2.1 A |
| Power Consumption |
25 W |
| Operation Temperature |
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit |
| Dimensions |
242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches |
| Weight |
1.2 kg
2 lbs 11 oz |
| Accessories |
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)

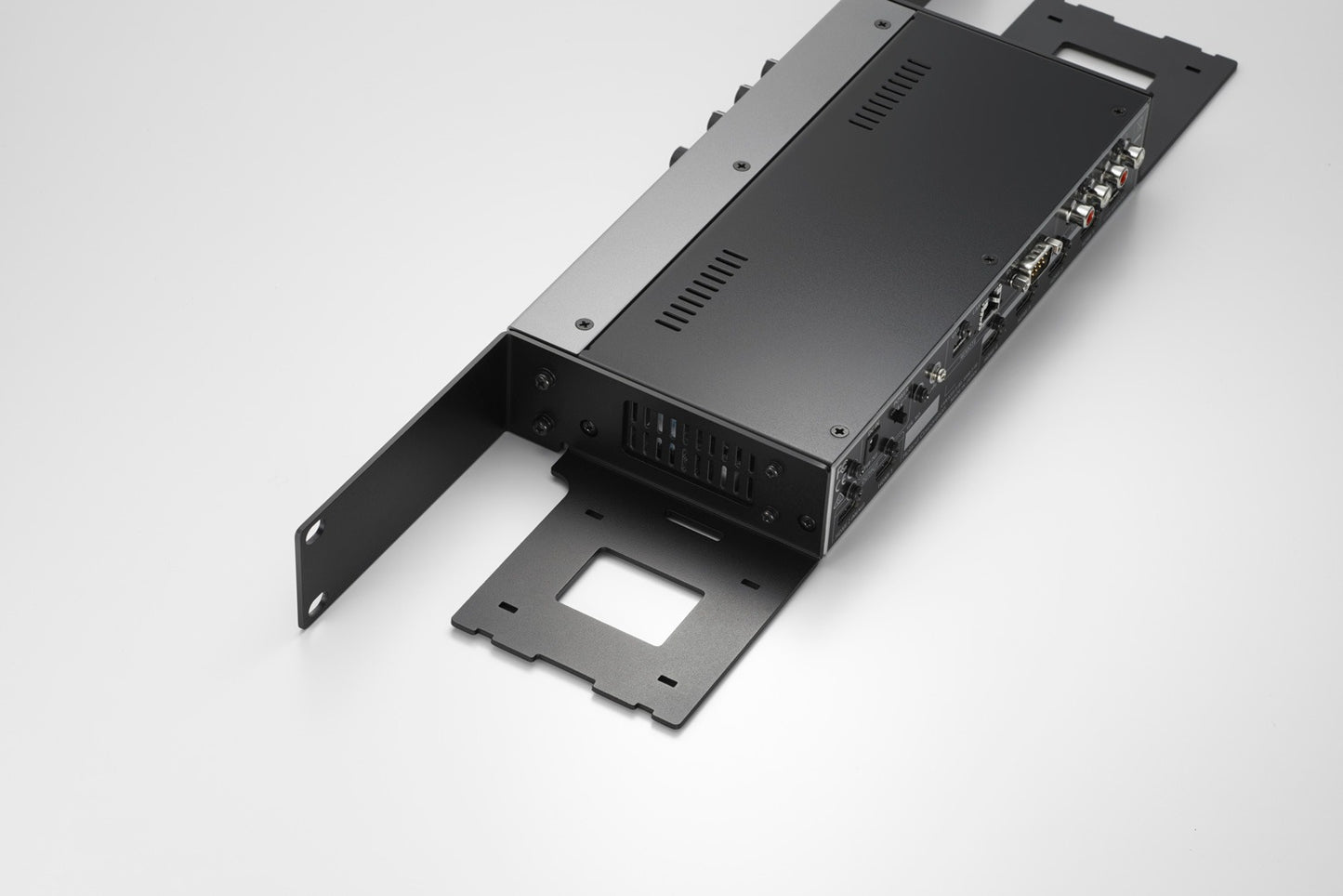

Rack mount angle set |
