Roland ProAV

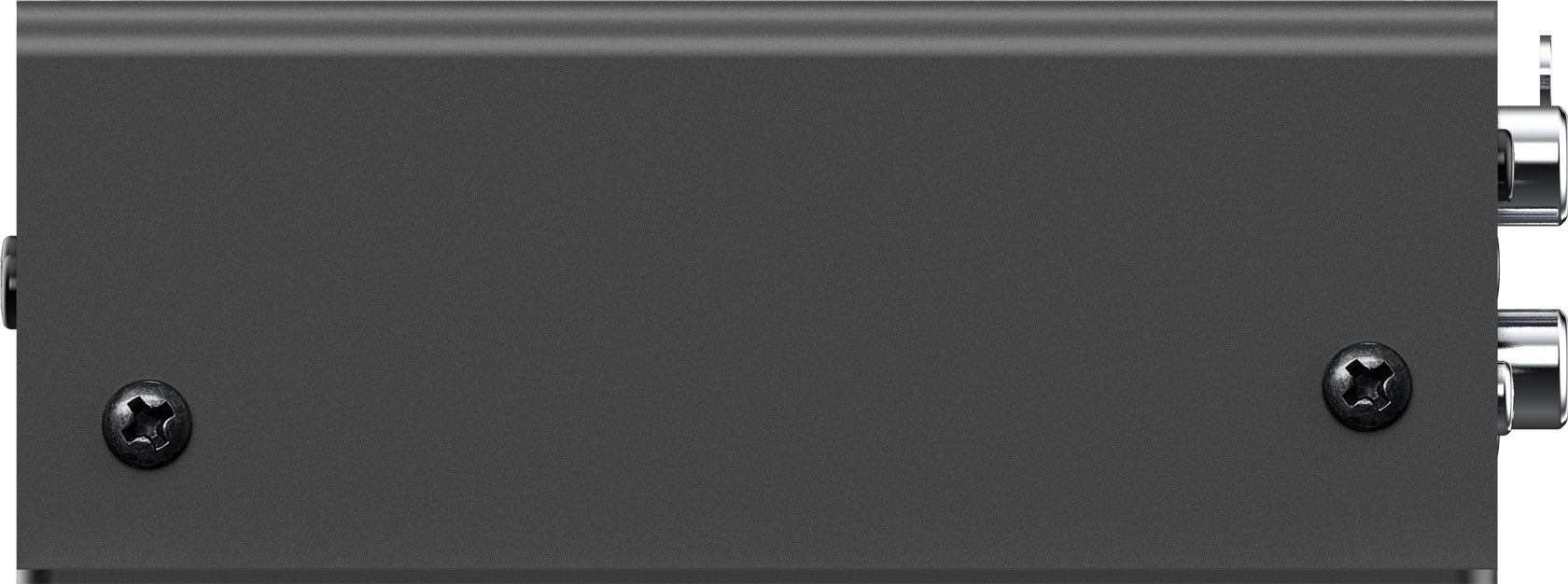

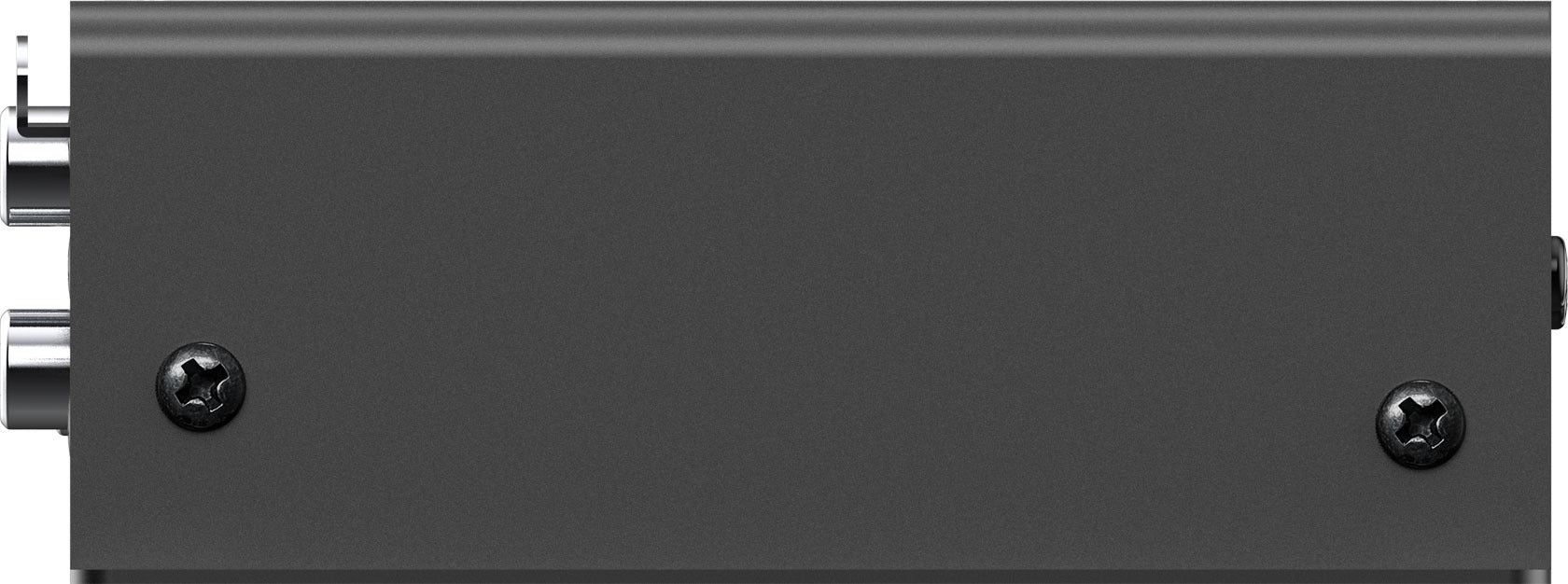

VC-1-DMX Video Lighting Converter

Name: VC-1-DMX Video Lighting Converter
Brand: Roland ProAV
SKU: VC-1-DMX
Price: 525.0 EUR
Availability: InStock

€525,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

VC-1-DMX: Video Lighting Converter - Dynamic Light Shows—No Operator Needed

True Synchronized Lighting Made Easy

Connect video, audio, and MIDI sources to the VC-1-DMX for automatic conversion and distribution to all your DMX gear. It’s even possible to daisy-chain multiple lighting devices and control them at once. Four channel maps are available via dip switches to control 512 DMX signal channels, and you can customize them all from a computer using the VC-1-DMX Setup Tool.

Advanced Video Analysis

HDMI video signals* are analyzed in up to 32 color areas and converted into luminance information for each color. You can then assign the colors to DMX channels for synchronized control. For example, if the video image is divided horizontally into eight segments and assigned to eight DMX lighting devices lined up horizontally, the lighting will track the horizontal movement of the video image perfectly. *HDCP compliant.

Lighting That Moves with the Music

The VC-1-DMX also analyzes sound information received at the HDMI and analog audio inputs. Add flash effects along with the beat, change the rotation speed of a mirror ball or other device to match the music tempo, or automatically turn off the lights when there is no sound. A powerful 15-band audio filter added with Version 2.0 allows you to set lighting controls to specific audio frequency ranges for deep synchronization between the lights and music. Using the VC-1-DMX Setup Tool, you can define the bandwidth and gain level of each band for precise command of your DMX rig.

Go Further with MIDI Control

If you want extended control over your system, the VC-1-DMX has you covered with integrated MIDI-to-DMX conversion. Connect a hardware MIDI controller and use MIDI control change messages to switch DMX maps* and adjust DMX parameters such as global dimming, tilt, pan, and more. Or use MIDI note information from keyboards, electronic drums, and other instruments to create lighting effects that follow live music performances. USB MIDI is also supported, allowing you to control your DMX setup from lighting or music production software on your computer. *The default MIDI control change settings of the BOSS FS-1-WL provide direct support for VC-1-DMX map selection (wired MIDI cable connection required).

Customize Your Rig

Using the VC-1-DMX Setup Tool software for macOS and Windows, you can quickly configure the VC-1-DMX for all your DMX lighting hardware. Freely change assignments across 512 DMX channels to match the control needs of your specific gear and easily share settings with multiple VC-1-DMX units.

APPLICATIONS

Party Spaces

Energize the environment in bars, nightclubs, banquet halls, and other party spaces with lighting that’s automatically synchronized to any video source.

Business Events and Presentations

Create more impact at business events with dynamic lighting that follows slides and video content from presentation software.

Band and DJ Performances

During live music performances, drive the VC-1-DMX and the house lighting system from MIDI-equipped gear like keyboards, electronic drums, and DJ controllers.

Karaoke

Give karaoke singers and audience members the feel of a concert performance with dynamic lighting that matches the music.

Technical Specifications

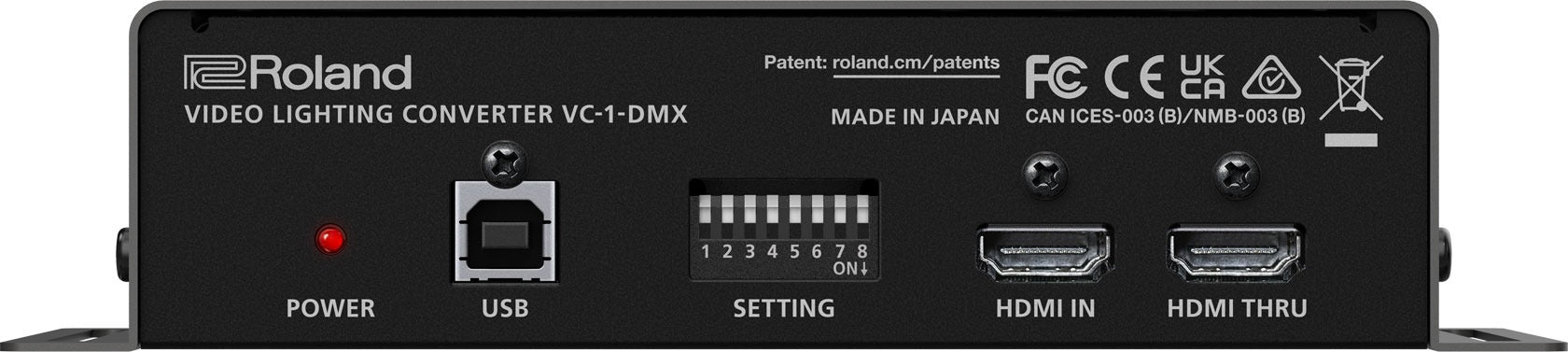

Input Connector	HDMI IN connector : HDMI type A * HDCP Supported * Multi-format Supported
Output Connector	HDMI THRU connector : HDMI type A
Video Formats	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
Input Connectors	AUDIO IN jacks : RCA phono type HDMI IN connector : HDMI type A
Output Connectors	AUDIO OUT jacks : RCA phono type HDMI THRU connector : HDMI type A
Digital Audio Format	Linear PCM, 48 kHz, 24 bits, stereo
Audio Processing	Sample rate : 48 kHz, 24 bits
Nominal Input Level	AUDIO IN jacks : -10 dBu (Maximum input level : +8 dBu)
Nominal Output Level	AUDIO OUT jacks : -10 dBu (Maximum input level : +8 dBu)
Input Impedance	AUDIO IN jacks : 15 k ohms
Output Impedance	AUDIO OUT jacks : 1 k ohms

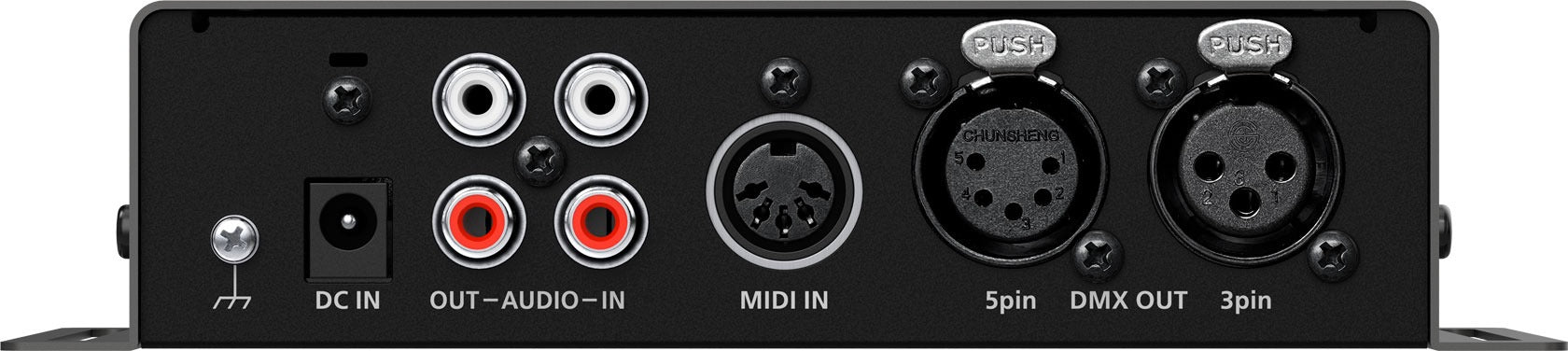

Output Connectors	DMX OUT 3 pin jack : XLR type (3 pins) DMX OUT 5 pin jack : XLR type (5 pins)
DMX channel	512 channels (1 universe)
Control Terminal	MIDI IN jack USB port
Switches	SETTING switch : 8 terminals
Indicator	POWER indicator
Functions	Video Synchronized Lighting Control Audio Synchronized Lighting Control MIDI Synchronized Lighting Control Lighting Speed Control HDMI Audio De-embedder
Power Supply	AC Adaptor
Current Draw	1,000 mA
Current Consumption	5.7 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	180 (W) x 115 (D) x 41 (H) mm 7-1/8 (W) x 4-9/16 (D) x 1-5/8 (H) inches
Weight (excluding AC adaptor)	570 g 1 lb 5 oz
Accessories	Leaflet "USING THE UNIT SAFELY" Owner's Manual AC Adaptor Plug Holder Rubber Feet
