Roland ProAV

VC-100UHD 4K Video Scaler

Name: VC-100UHD 4K Video Scaler
Brand: Roland ProAV
SKU: VC-100UHD
Price: 3708.0 EUR
Availability: InStock

€3.708,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

VC-100UHD: 4K Video Scaler - Scale, Convert, and Stream

Process Images for Multiple Audiences at Once

Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

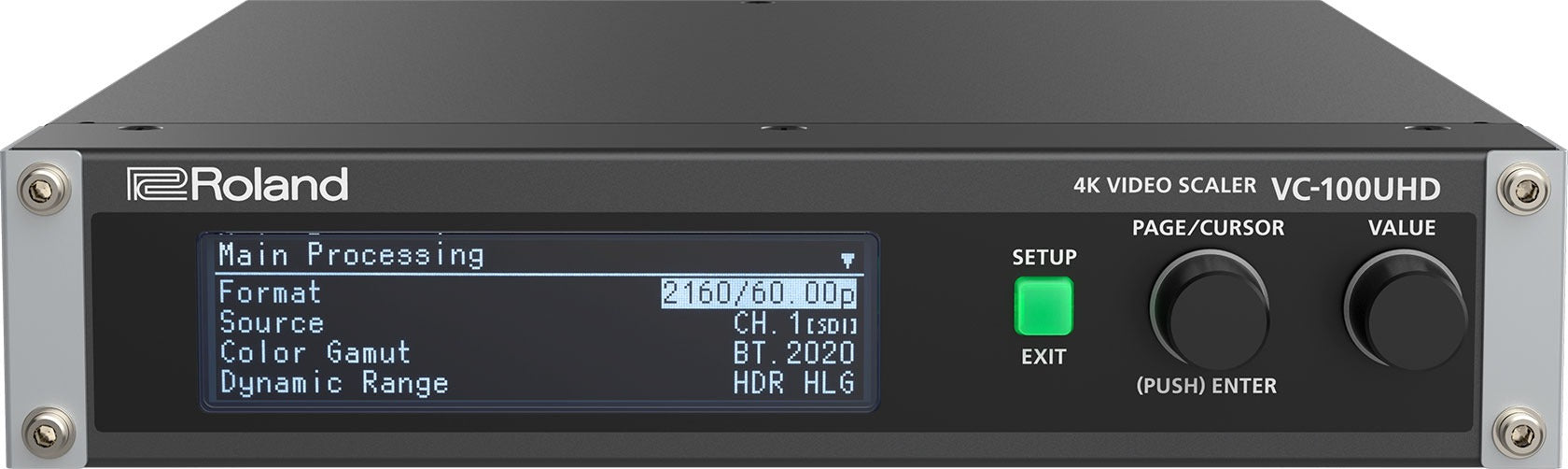

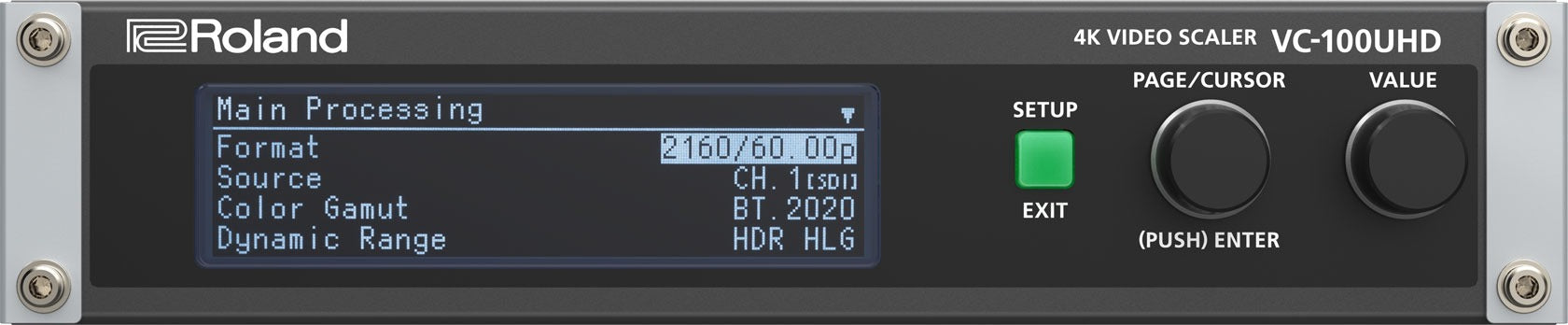

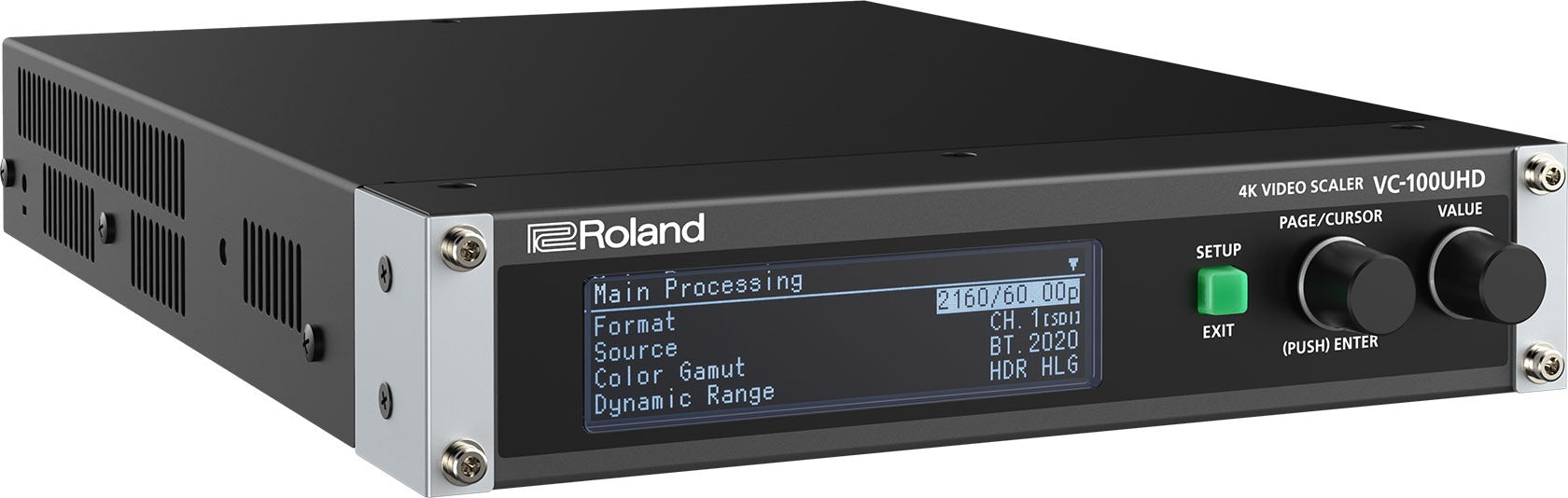

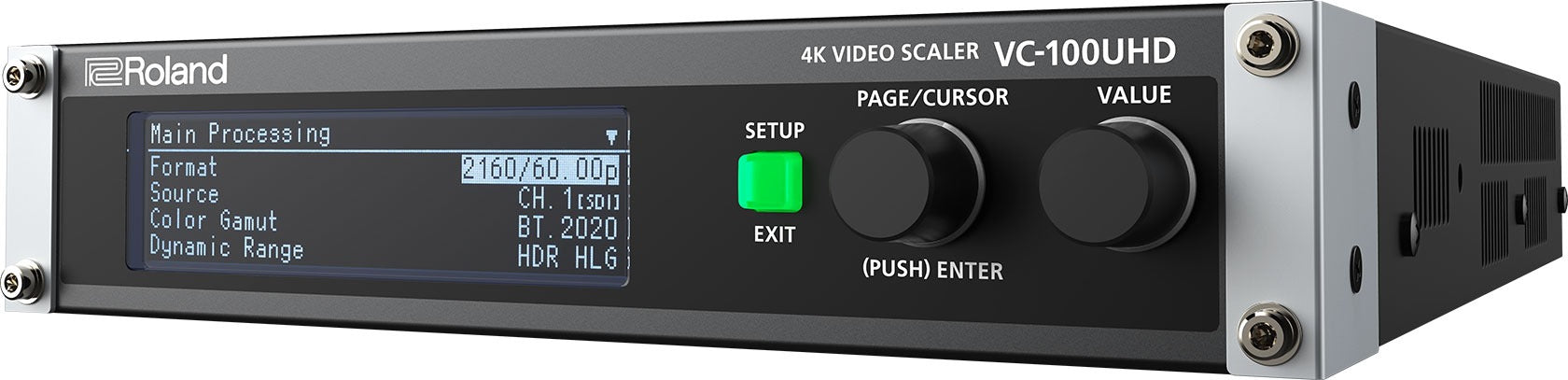

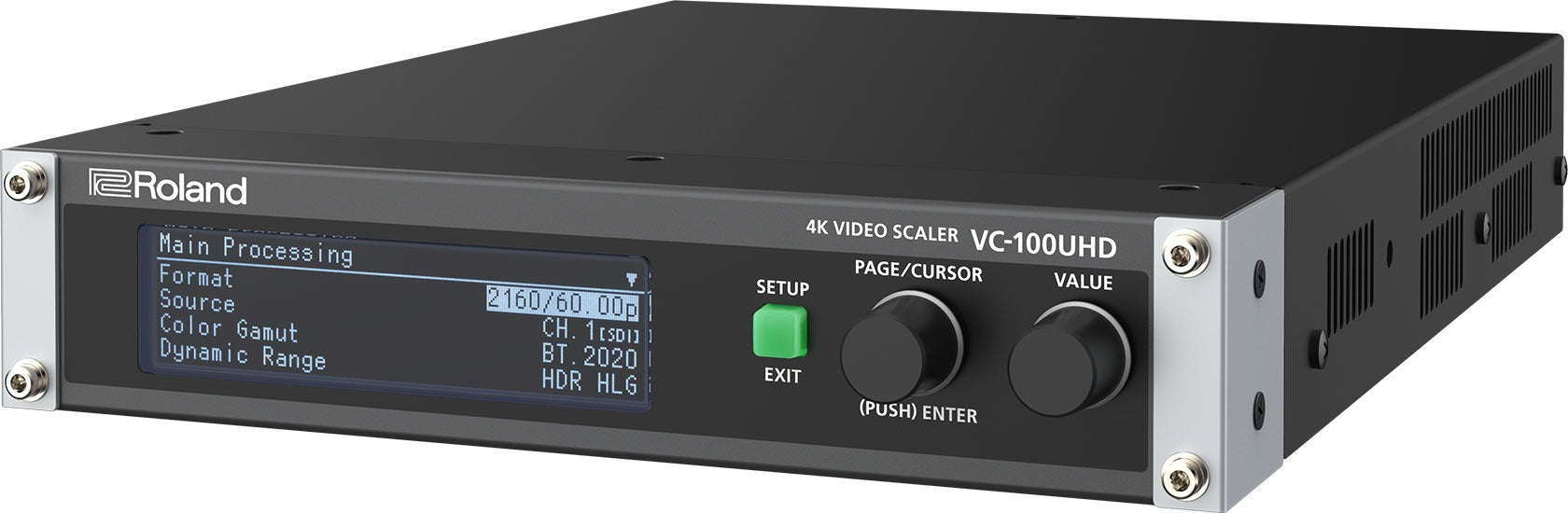

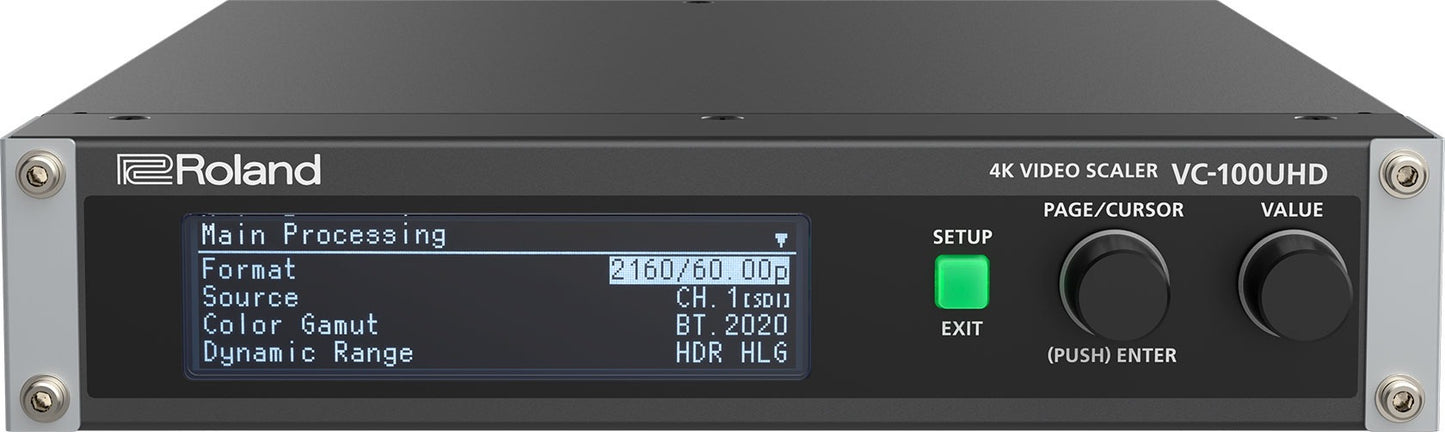

Front Panel Graphic LCD

With the VC-100UHD’s high-resolution graphic LCD and intuitive menu structure, all functions can be accessed locally without the need for an external control device. On the comprehensive status screens, you can quickly check the resolution, frame rate, HDCP status, color space, bit depth, color gamut, dynamic range, audio levels, and more. In addition, the system message log screen makes troubleshooting easy.

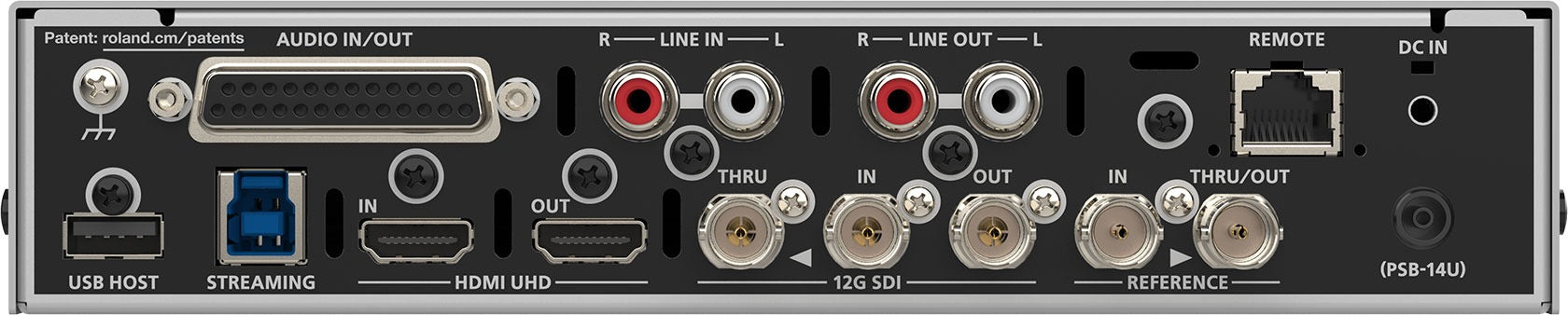

Rear panel

12G SDI IN, OUT, THRU
HDMI IN, OUT
REFERENCE IN, THRU/OUT
AUDIO IN/OUT (Balanced)
LINE IN, LINE OUT (L/R)
REMOTE (LAN)
DC IN (24 V)
USB Ports: USB HOST and STREAMING

The Ultra-Reliable Ultra Scaler

The VC-100UHD features Roland's revolutionary Ultra Scaler, the same no-compromise, ultra-reliable professional video processor found in the flagship V-600UHD 4K video switcher. Backed by a lightning-fast processing engine, Ultra Scaler delivers premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.

Roland's Ultra Scaler supports:

10-bit 4:4:4 pixel-accurate color
Rec. 601, 709 and 2020 wide color gamut
High dynamic range processing and conversion
High frame rate (HFR) video at 100, 119.88, 120, 200, 239.76, and 240 Hz (HDMI input only)
Native DCI Digital Cinema System 4K (4096) resolution

Lossless Conversion with 10-Bit Processing

When using YCbCr 4:4:4 and YCbCr 4:4:4 subsampling, the VC-100UHD’s 10-bit internal processing fully maintains the color and gradation details of the input source. Compared with 8-bit processing, this allows you to display images with more colors and a smooth, natural look.

High Frame Rates? No Problem.

High frame rate (HFR) video sources can pose signal workflow challenges for integrated systems, but the VC-100UHD handles them with ease. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.

Onboard Visual Effects and Image Processing

Using the VC-100UHD’s built-in visual effects, it’s simple to rotate, flip, and mirror images. For example, a portrait image generated by a smartphone can be trimmed and rotated to fit seamlessly on a 16:9 landscape display for digital signage. And with the VC-100UHD’s Frame Synchronizer and Genlock features, you can easily re-clock and stabilize video images as needed. *View the VC-100UHD Block Diagram .

Simulate a PTZ Camera with ROI and a USB Numeric Keypad

With the VC-100UHD's built-in Region of Interest (ROI) function, you can easily produce multi-shot productions with a single 4K camera or zoom in and highlight presentation details. Creating an inviting viewer experience has never been easier: select any 4K video input source to zoom, move, crop, and scale up to eight ROI windows. Then, use a USB numeric keypad to switch windows during events like a PTZ camera.

NEW Switch ROI Windows from the V-160HD

When using the VC-100UHD with the V-160HD Streaming Video Switcher (Version 3.3 and later), you can switch ROI window assignments on the VC-100UHD from the V-160HD via a network connection. Switching on the V-160HD is easy to control with user buttons, macros, GPI, footswitches, or a USB numeric keypad.

USB 3.0 Webcam Output for Streaming and Recording

Technical Specifications

Processing	4:4:4 (Y/Cb/Cr), 10 bit
Formats	SDI: 2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz 2, 47.95 Hz 2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048) 2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2036) 1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 48 Hz 2, 47.95 Hz 2, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST2048) 1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (SMPTE ST274) 1080i/59.94 Hz, 50 Hz (SMPTE ST274) 720p/60 Hz, 59.94 Hz, 50 Hz (SMPTE ST296) HDMI: 1 4 2160p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F) 2160p(UHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz, 23.98 Hz (CEA-861-F) 1080p(DCI)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz 3, 23.98 Hz 3 1080p(FHD)/60 Hz, 59.94 Hz, 50 Hz, 30 Hz, 29.97 Hz, 25 Hz, 24 Hz 3, 23.98 Hz 3 (CEA-861-F) 1080i/59.94 Hz, 50 Hz (CEA-861-F) 720p/60 Hz 3, 59.94 Hz 3, 50 Hz (CEA-861-F) 2560 x 1440/60 Hz (VESA CVT Reduced blanking) 2560 x 1440/144 Hz (Pixel Clock 595.5MHz) 2 1920 x 1200/60 Hz (VESA CVT Reduced blanking) 1920 x 1080/240 Hz (Pixel Clock 556.8MHz､567.0MHz) 2 1920 x 1080/144 Hz(Pixel Clock 346.54MHz) 2 1920 x 1080/120 Hz, 119.88Hz, 100Hz (CEA-861-F) 2 1920 x 1080/239.76 Hz, 200Hz(VESA CVT) 2 1600 x 1200/60 Hz (VESA DMT) 1400 x 1050/60 Hz (VESA DMT) 1280 x 1024/60 Hz (VESA DMT) 1280 x 800/60 Hz (VESA DMT) 1 HDCP 1.4, 2.2 supported. 2 Input and through output. 3 Input only. 4 Color Space: RGB Full/12bit, RGB Limited/12bit, YUV444/12bit, YUV422/12bit, YUV420/12bit (Valid bits are 10 bits) Color Gamut: Rec.601, Rec.709, Rec.2020 * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG USB Streaming: 5 6 7 1080p, 720p, 640 x 480 5 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Cb/Cr), 8 bit 6 The video signal frame rate can be selected Full or Half of System frame rate. 7 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR
Functions	4K Scaler FHD Down Scaler for USB Streaming Fade to Black Test Pattern Generator Rotation 8 Flip H, V Edge Enhancer Motion Adaptive Deinterlacer Color Correction Dynamic Range Conversion Frame Rate Conversion (up to 240Hz) 8 The following functions cannot be used at the same time. Sub Processing, Rotation, HDMI Through.
Processing	24 bits/48 kHz
Formats	12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M) HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class))
Input Level	LINE IN: -10 dBu (Maximum: +8 dBu) AUDIO IN: +4 dBu (Maximum: +24 dBu)
Input Impedance	LINE IN: 38 k ohms AUDIO IN: 15 k ohms
Output Level	LINE OUT: -10 dBu (Maximum: +8 dBu) AUDIO OUT: +4 dBu (Maximum: +24 dBu)
Output Impedance	LINE OUT: 1 k ohm AUDIO OUT: 600 ohms
Functions	Output Level Patchbay Delay Equalizer Mastering Test Tone Generator
Input Connectors	12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M) HDMI 4K IN: HDMI type A STREAMING: USB type B (USB3.0) LINE IN: RCA phono type AUDIO IN: DB-25 female type (Balanced audio 2 ch) REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)
Output Connectors	12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M) 12G-SDI THRU: BNC type HDMI 4K OUT: HDMI type A STREAMING: USB type B (USB3.0) LINE OUT: RCA phono type AUDIO OUT: DB-25 female type (Balanced audio 2 ch) REFERENCE THRU/OUT: BNC type (Black Burst)
Other Connectors	USB HOST: USB A type (USB2.0) (for USB flash drive) REMOTE: RJ45 type, 100BASE-TX
Functions	EDID Emulator Genlock Preset Memory x 8
Display	Graphic LCD 256 x 64 dots
Power Supply	AC Adaptor
Current Draw	2.3 A (DC 24V)
Power Consumption	55 W
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	210 (W) x 284.5 (D) x 43 (H) mm 8-5/16 (W) x 11-1/4 (D) x 1-3/4 (H) inches
Weight (excluding Accessories)	2.2 kg 4 lbs 14 oz
Accessories	Owner's Manual Leaflet "USING THE UNIT SAFELY" AC adaptor Power cord Rubber feet (4 pcs.) Rack mount angle set DC Plug Stopper * 0 dBu = 0.775 Vrms
