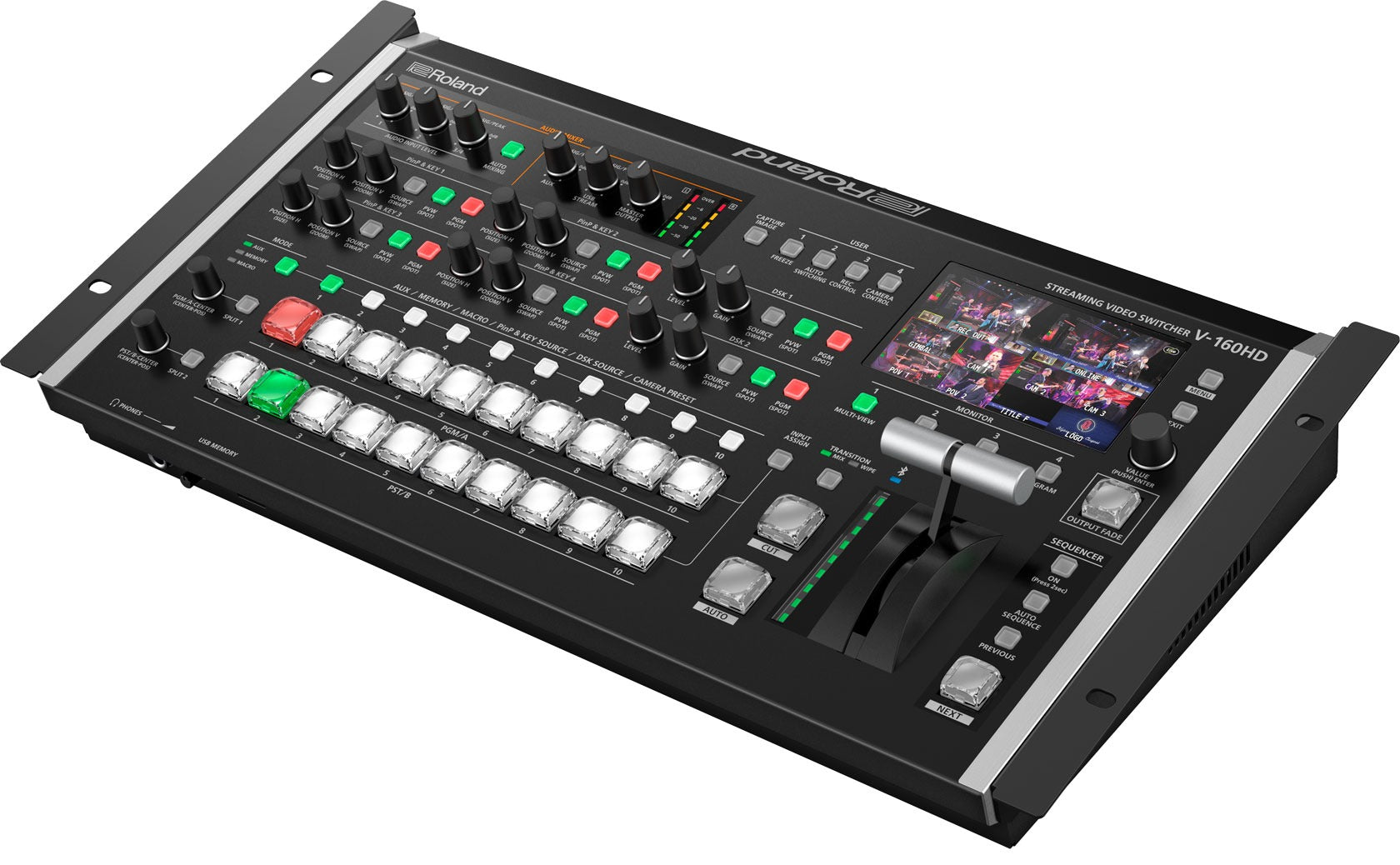

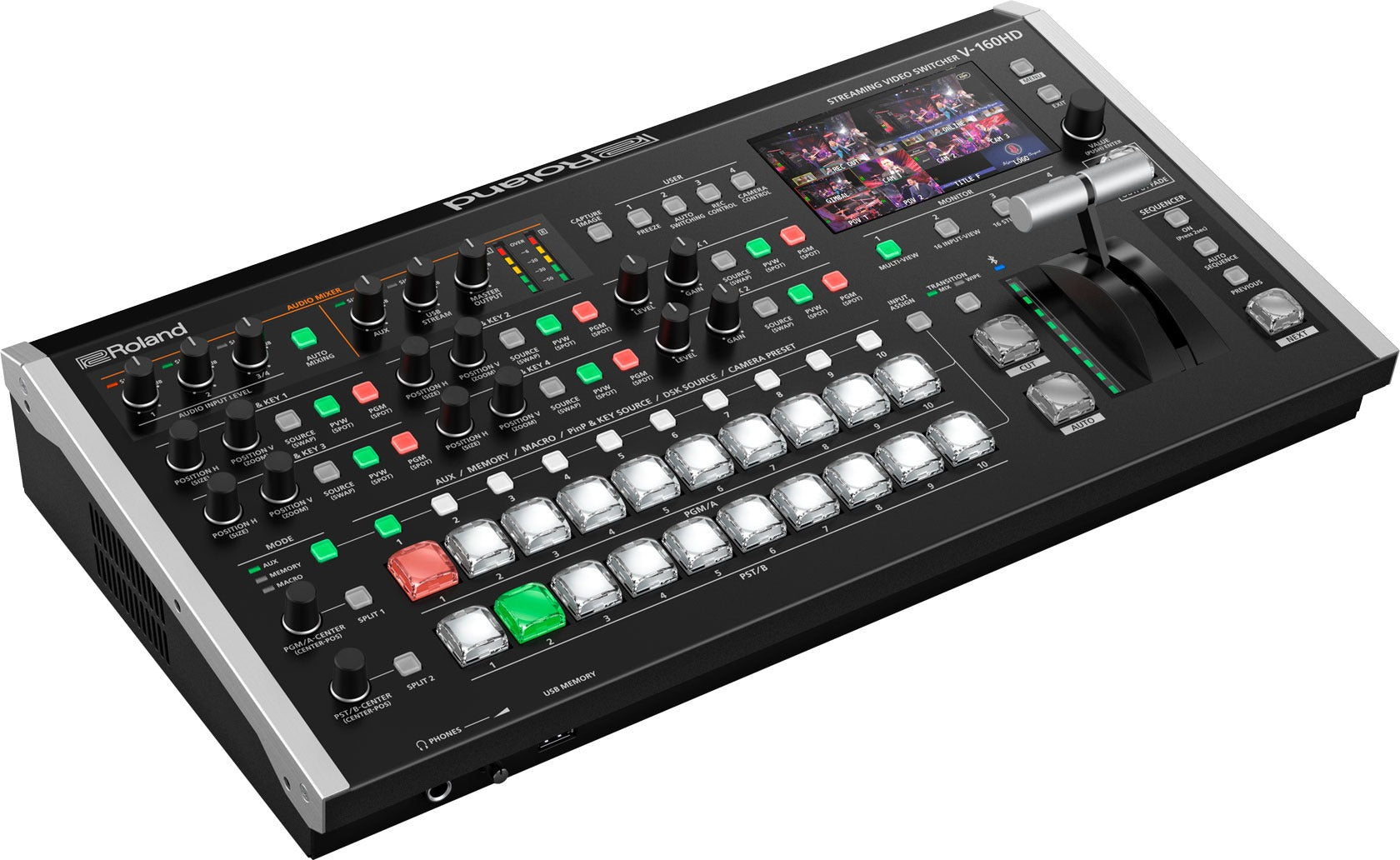

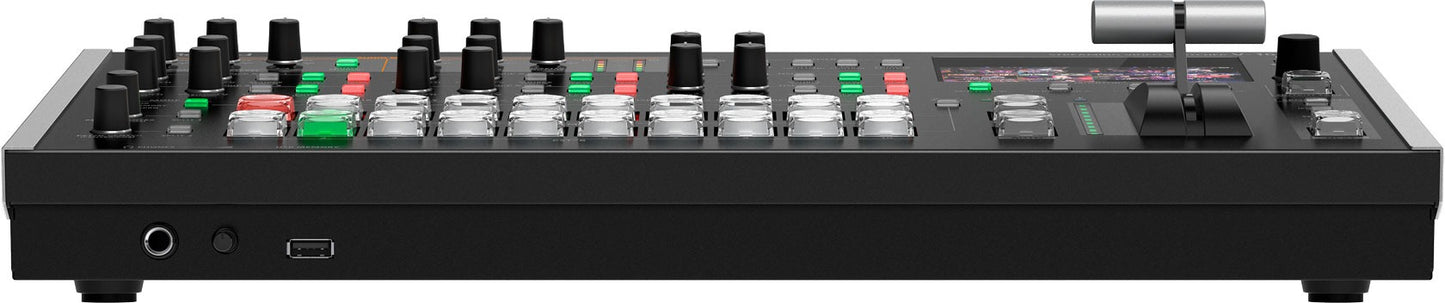

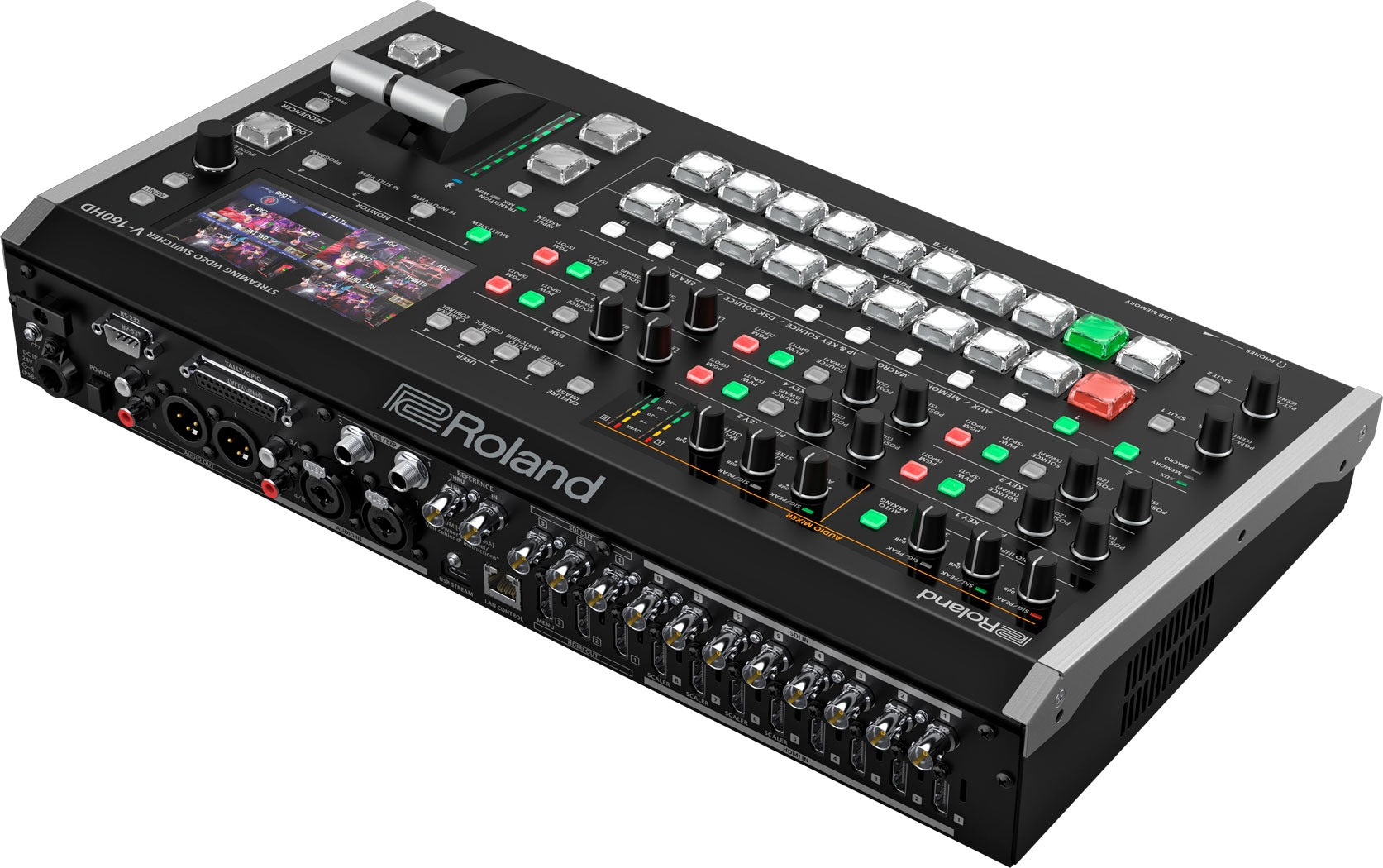

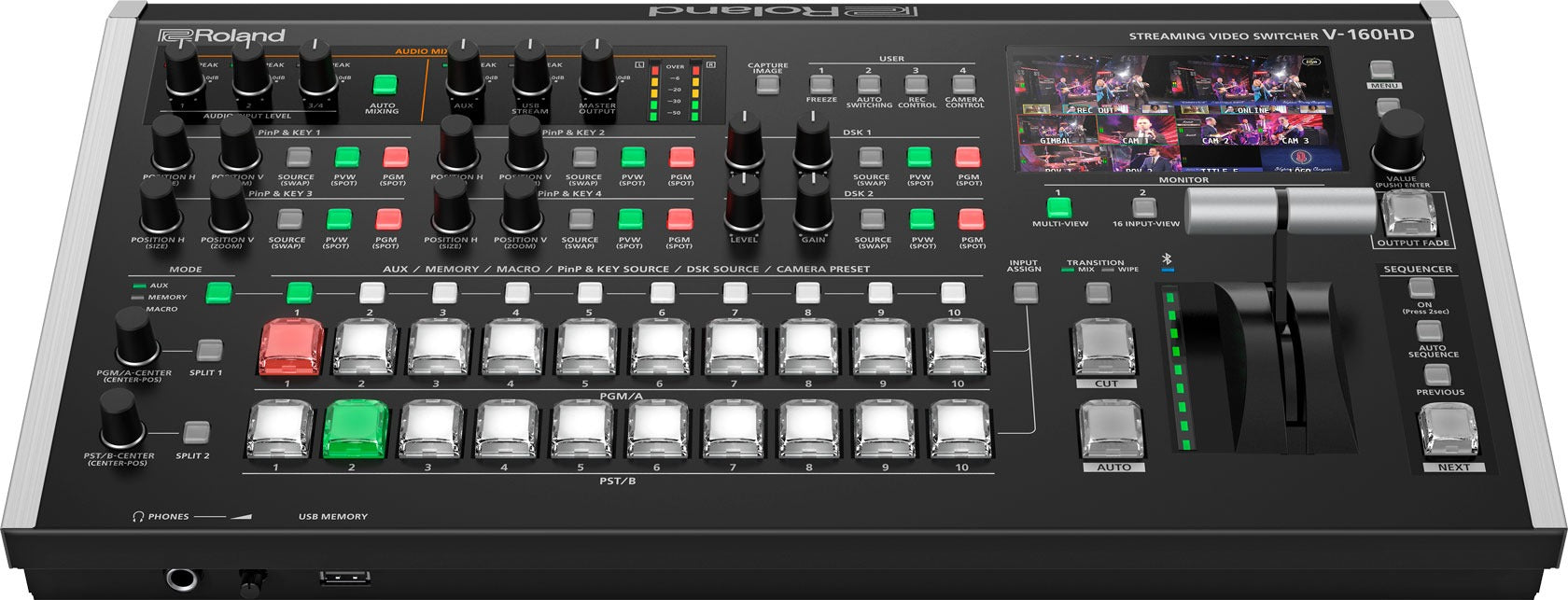

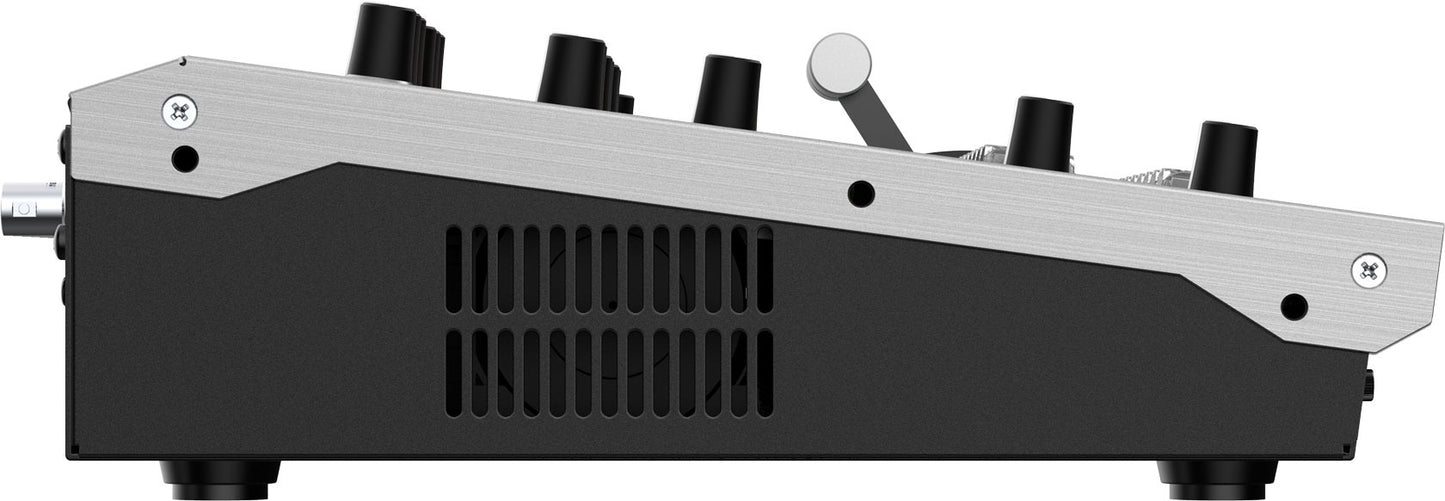

V-160HD Streaming Video Switcher

V-160HD: Streaming Video Switcher - The New Standard in Hybrid Event Switching

Hybrid to the Max

The V-160HD combines the robust hardware needed to flawlessly execute live productions with the livestreaming capabilities found in computer-based systems. While software workflows are fine for online-only events, the V-160HD delivers the pro essentials you need for both the in-person and streaming components of a live hybrid event, complete with the ability to tailor the content for each audience.

• On-demand signal processing means you never have to worry about issues like computer CPU overhead, latency, and output delay on live audience screens.
• Integrated connectivity standards like SDI, HDMI, XLR, and USB-C eliminate the need to build out costly infrastructure and conversion processes.

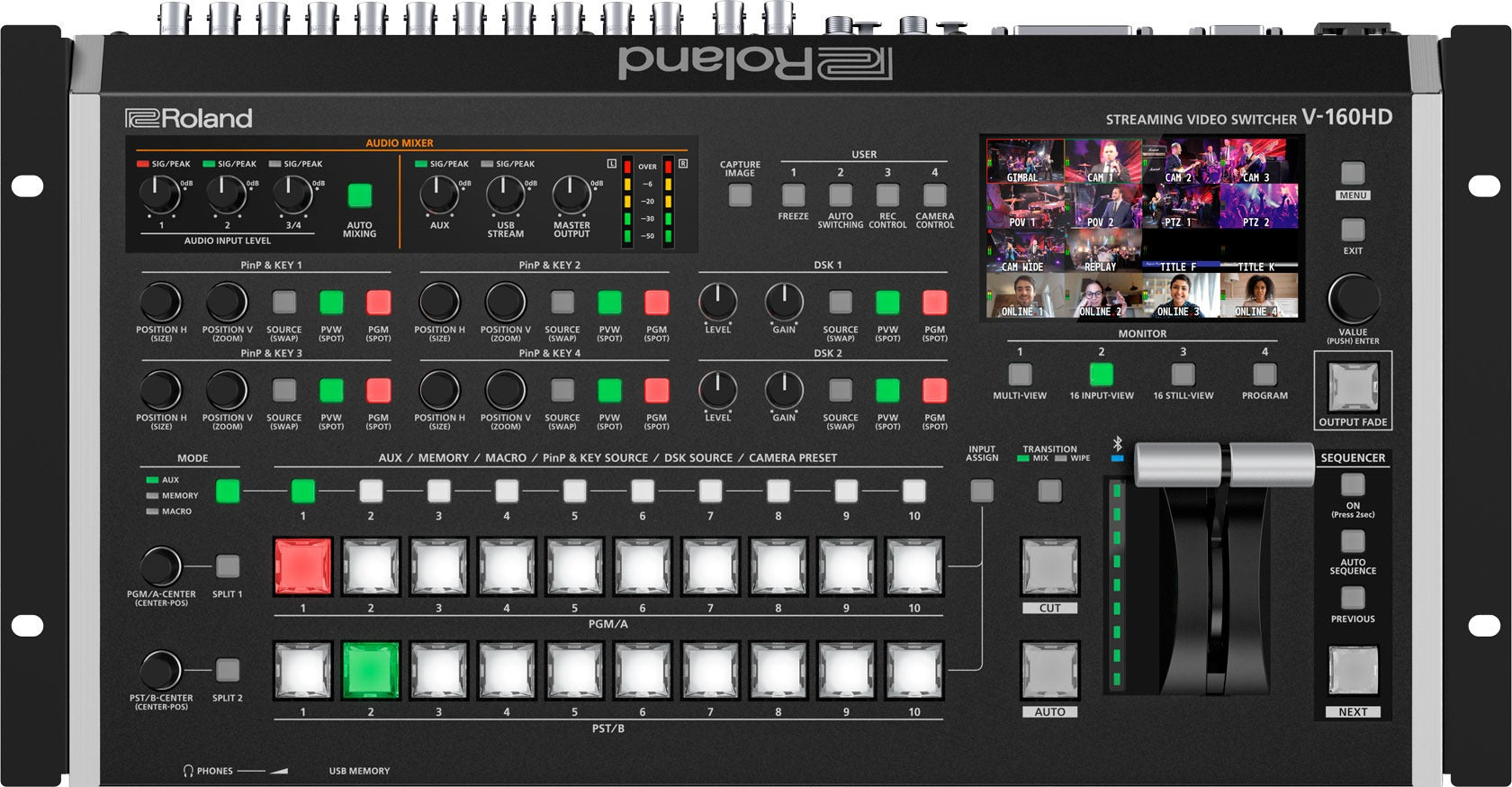

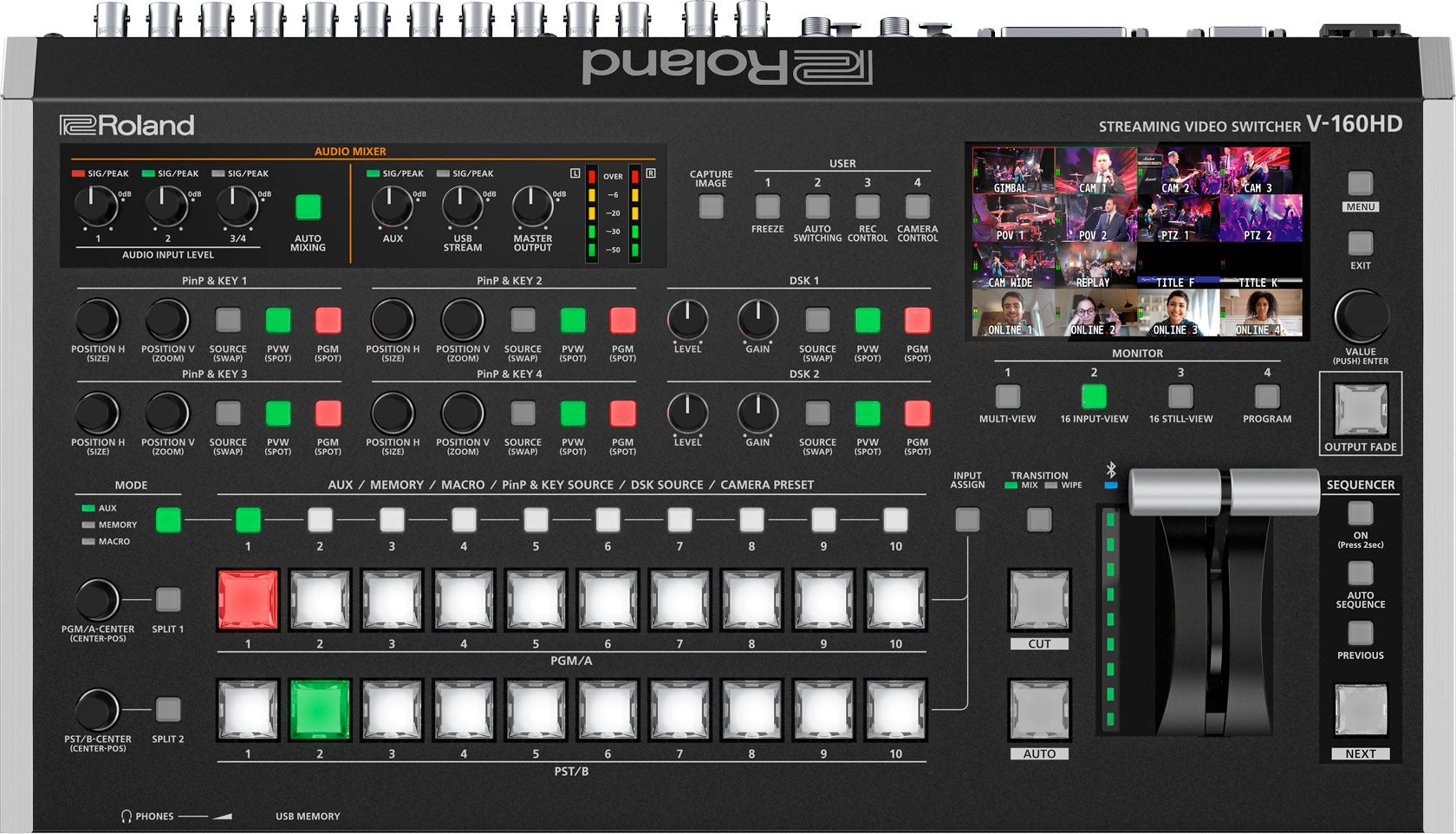

• The comprehensive interface provides hands-on controls that can be learned quickly by a single operator.
• Presets, macros, and advanced sequencing features let you set up and automate complex switching tasks with one touch.

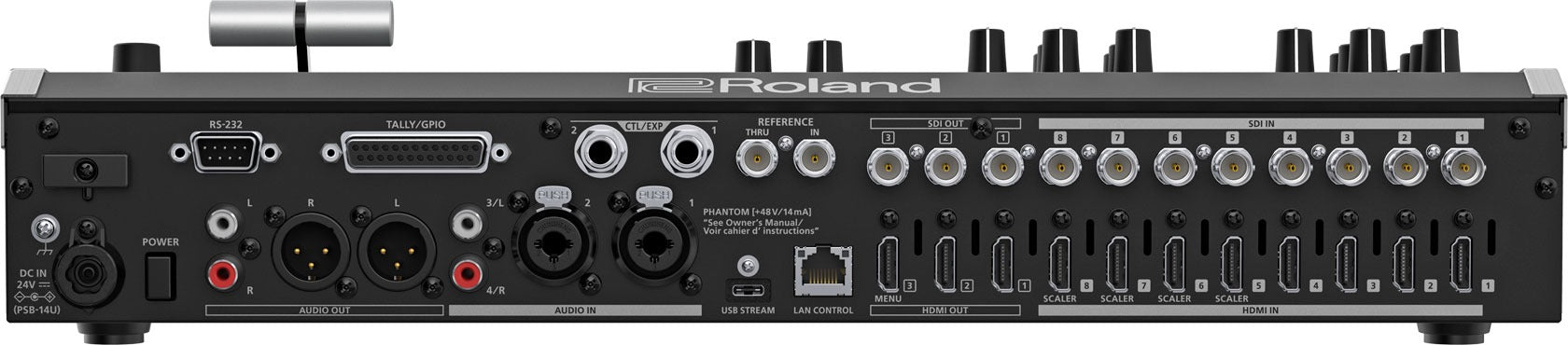

HDMI and SDI Connectivity

The V-160HD supports HDMI for common A/V devices plus SDI for long cable runs and high-end cameras. Seamlessly mix eight HDMI sources and eight SDI sources in Full HD, even with mismatched frame rates and color spaces. And with built-in scalers on four of the HDMI inputs, you can easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.

Send to Multiple Destinations

With seven freely assignable outputs—including three SDI, three HDMI, and one USB-C streaming—the V-160HD puts a high-end video matrix at your command. Feed program displays, auxiliary monitors, multi-view producer displays, and the online audience at once, complete with a “clean” output left over for a recording feed.

Instant Recall

Storing and recalling custom looks can be accomplished with just a few button presses on the V-160HD.

• The 30 preset memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output.
• The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more.

Our free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live.

One-Touch Automation

The V-160HD’s newly developed sequencer makes presets and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. Up to 1000 steps can be recorded in the sequencer, and each step can include both presets and macros. Simply set up your cues ahead of time in the sequence list and trigger them in order using the Next button on the panel. With the power of the V-160HD’s sequencer, you can tackle the most complex events without ever breaking a sweat.

Powerful Video Effects Engine with Flexible Output Routing

Video effects and graphics are must-haves to bring polish and excitement to any production. The V-160HD’s newly updated chroma key engine features upgraded keyer algorithms and eight layers that can be assigned to the Program, Sub-Program, and three Aux outputs, so you’ll always keep audiences engaged with visually appealing content. With up to four picture-in-picture windows, downstream key layers, 16 still store slots with transparent PNG image support, and more, you can manage the creative needs of any client. For example:

Layers 1-2 : Start with a mixable live background video layer. Layers 3-6 : Place four picture-in-picture layers or chroma/luminance key effects. Layers 7-8 : Add two downstream keyers with support for fill and key inputs.

Professional Graphics Made Easy

The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-160HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher.

Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.

Stream Live

The V-160HD uses the same connection technology as webcams,* allowing you to stream events at 23.98 to 60 FPS in Full HD** and reach a worldwide audience. Simply connect the USB-C output to a computer and start streaming with Zoom, Microsoft Teams, YouTube, Facebook Live, or any platform that can use a webcam as its source. Everything is plug and play, with no driver installation needed.

Sonic Perfection

The V-160HD features a 40-channel digital audio mixer with studio-grade sound quality. Mix any embedded audio signal pair (1/2, 3/4, 5/6, 7/8) from each of the 16 video inputs, microphones and line-level devices connected to the two balanced XLR combo and stereo RCA inputs, and USB-C audio. And with the convenience of onboard Bluetooth, it’s possible to wirelessly stream music and other sound sources from a phone or tablet as well. There’s also an extensive effects library for polishing sounds and quickly resolving common issues like audio synchronization and background noise removal.

Extensive PTZ Camera Support

Robotic PTZ (pan-tilt-zoom) cameras greatly expand your production capabilities. They provide extended coverage with studio-grade broadcast quality and can be placed in discreet locations thanks to their small size. The V-160HD includes built-in support to directly control select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands as you like and operate up to 16 PTZ cameras simultaneously. With the Version 3.0 update, you even set angles and save/recall presets with a USB numeric keypad.

NEW Seamless Control Integration with the Yamaha DM3 Series

The Yamaha DM3 is a next-generation digital audio mixer series used by many professionals. The V-160HD (Version 3.5 and later) supports control integration with these products, enabling more efficient operation by a small team or a single user.

DM3 scene memories can be operated from the V-160HD, streamlining video and audio operations. In addition, DM3 channels can be assigned on the V-160HD for bi-directional control, linking audio faders, channel on/off, and mute controls between both products. Configuration is easy, requiring only IP address settings on each device. No DM3 firmware update is needed for this functionality.

Technical Specifications

Official Resources

• Official Product Page
• Official Support Page
• V-160HD System Program ( Ver.3.51 )
• V-160HD RCS Ver.3.3.0 for Windows
• V-160HD RCS Ver.3.3.0 for macOS
• Graphics Presenter Ver.3.00 for Windows
• VenuSet Ver.1.2.0 for Windows
• VenuSet Ver.1.2.0 for macOS
• Roland Live Recorder Ver.3.0.0 for Windows ( 64-bit Edition )
• Roland Live Streamer Ver.1.0.0 for Windows
• V-160HD CAD Data (DXF)
• [English] V-160HD Startup Guide
• [English] V-160HD Reference Manual [PDF]
• [English] V-160HD RCS Connection Guide [PDF]
