Roland ProAV

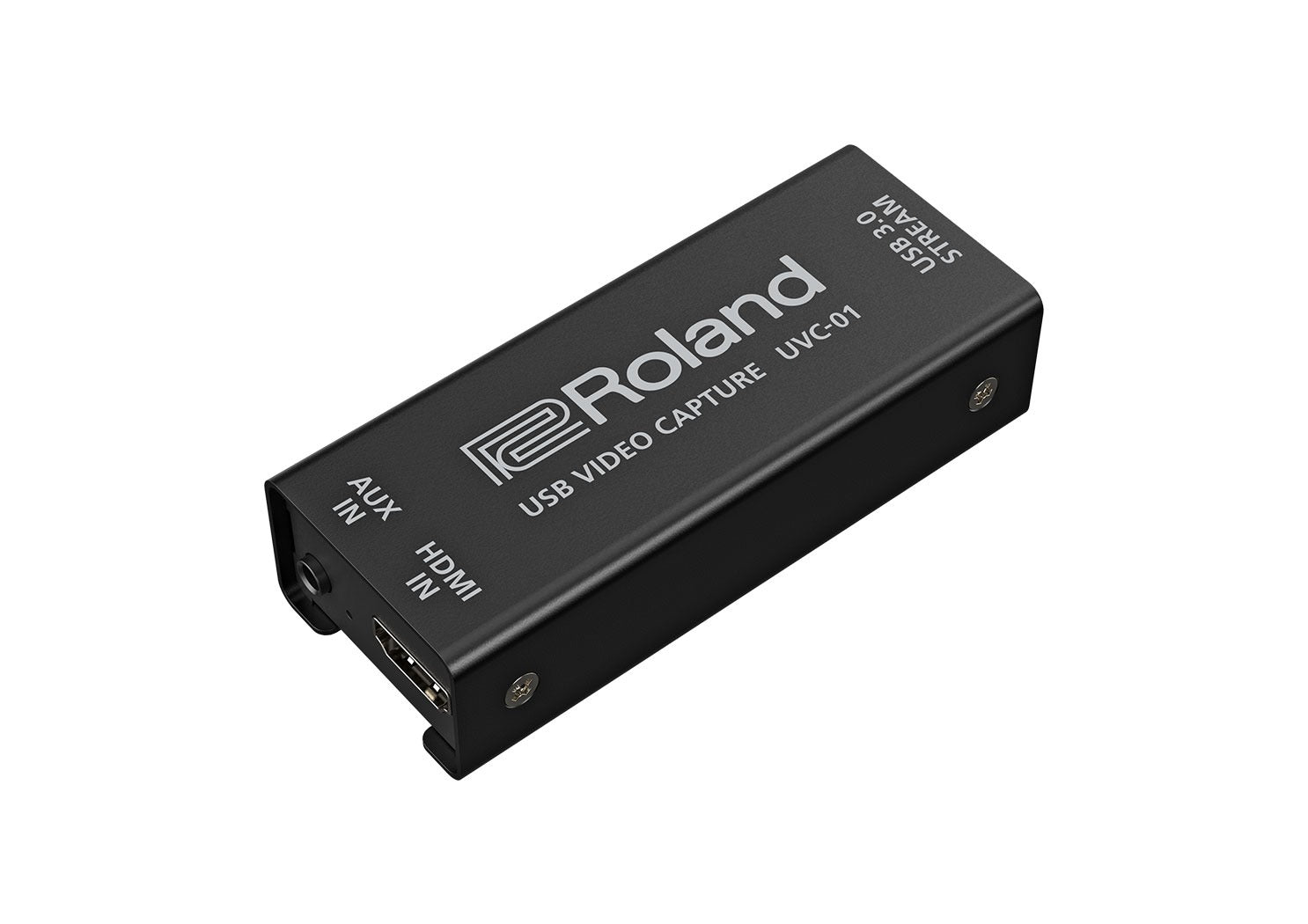

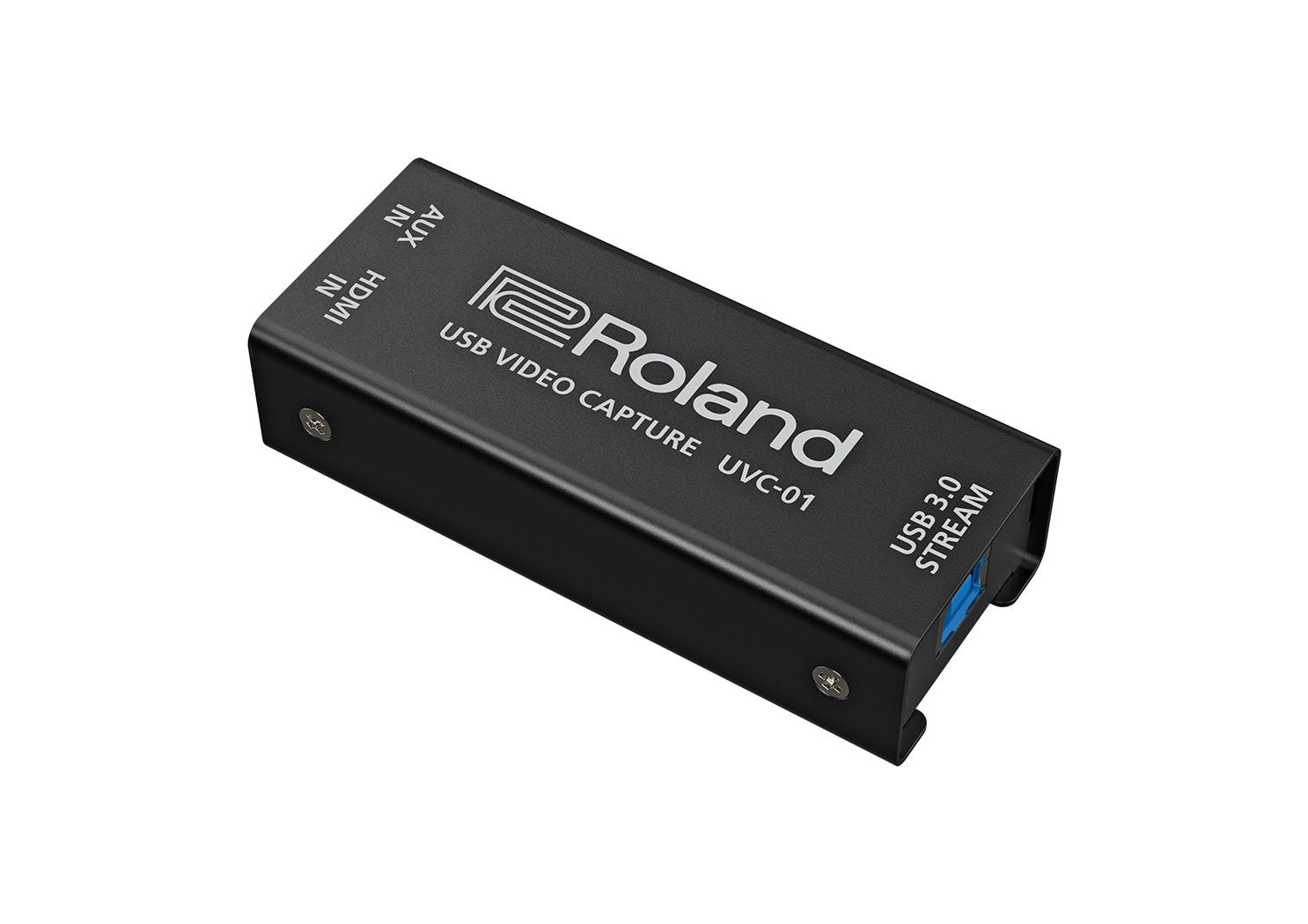

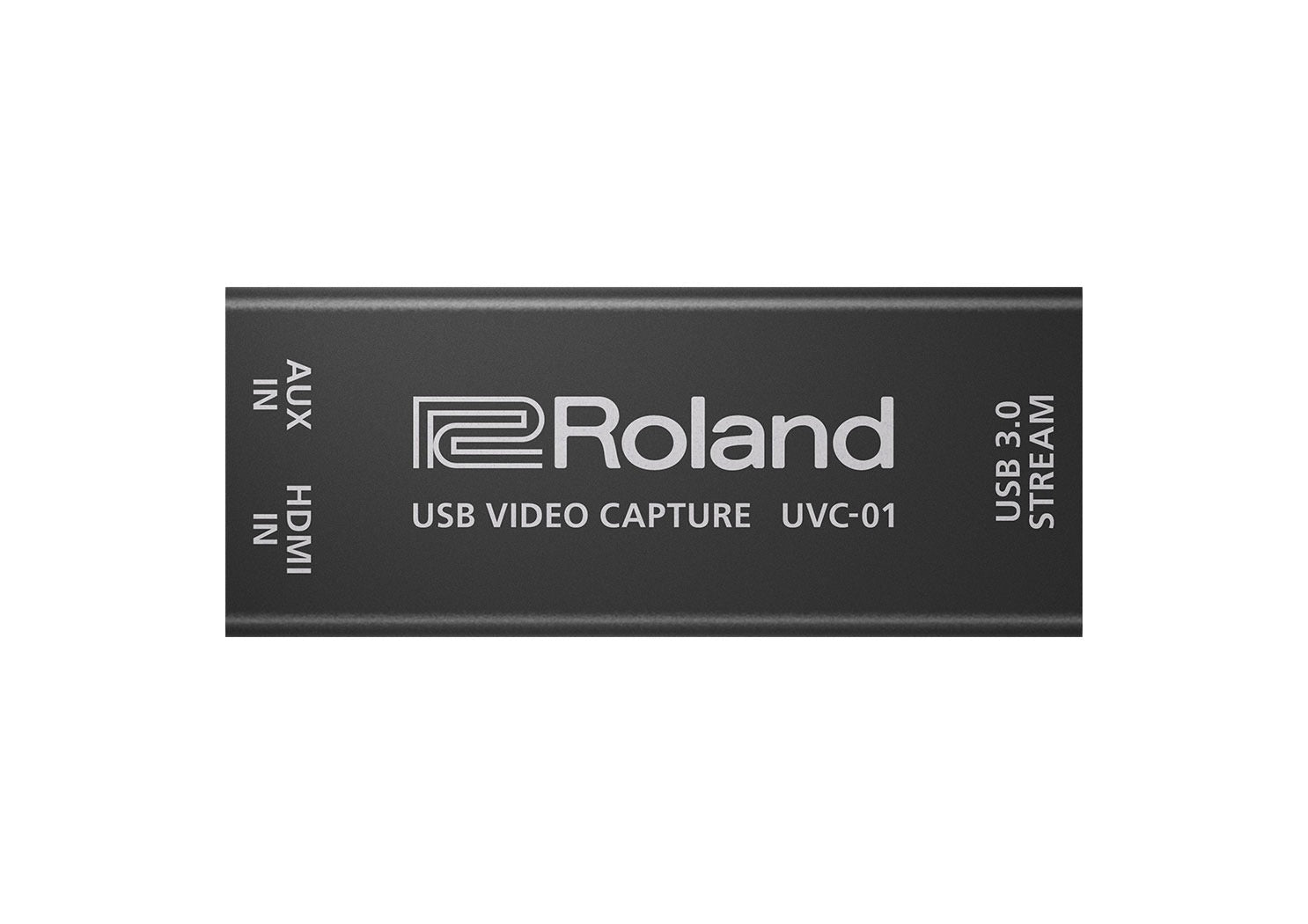

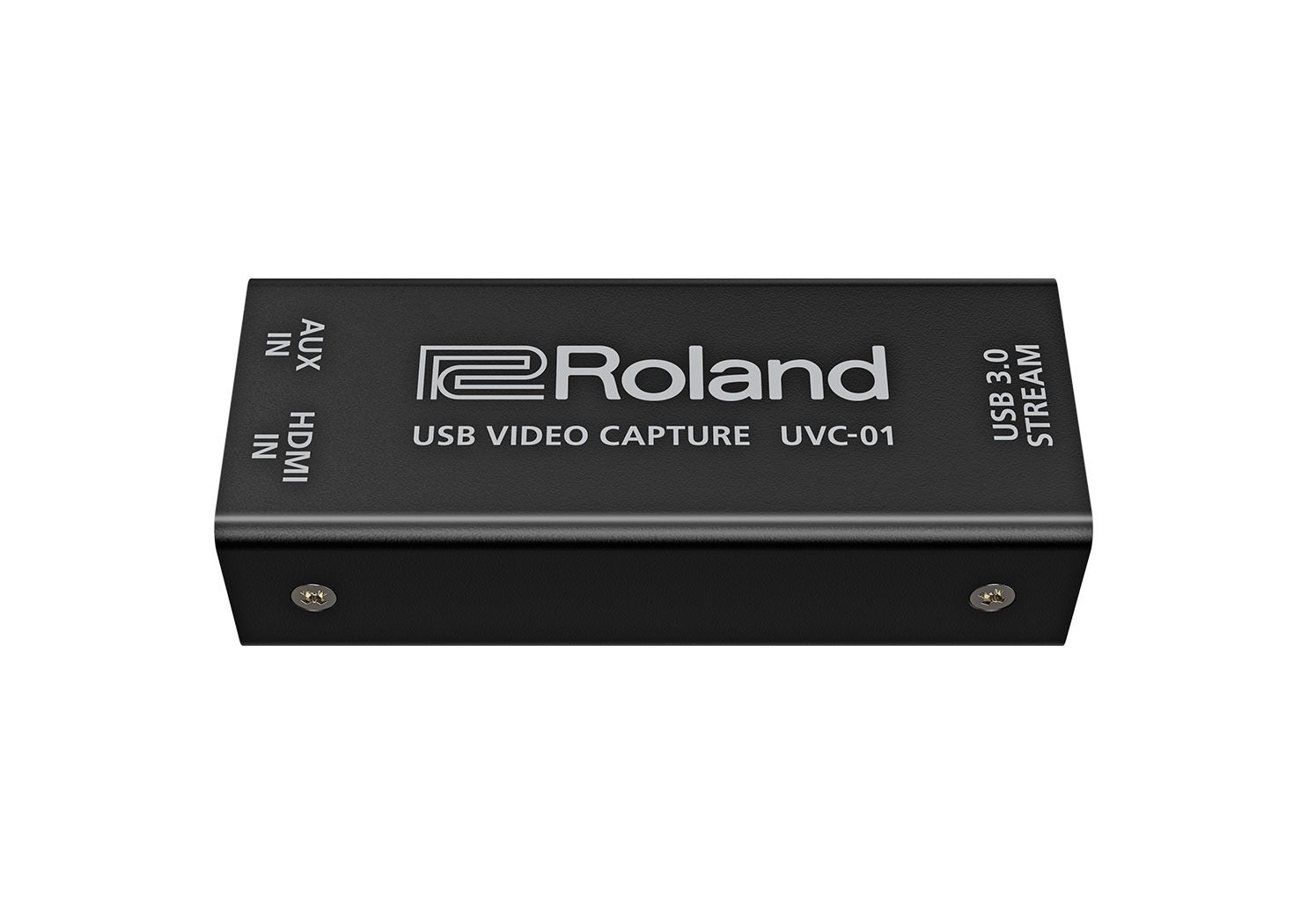

UVC-01 USB Video Capture

Name: UVC-01 USB Video Capture
Brand: Roland ProAV
SKU: UVC-01
Price: 308.0 EUR
Availability: InStock

€308,00 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

UVC-01: USB Video Capture - Plug-and-Play for Flawless Recordings and Livestreams

Plug-and-Play for Flawless Recordings and Livestreams

For online content creators, musicians, and gamers to businesses, schools, and houses of worship, livestreaming is an essential medium for communicating with people around the world. With the UVC-01, it’s never been easier to add high-quality livestreaming capabilities to your Roland V-series video switcher or favorite HDMI-equipped camera or camcorder.

Just connect to the UVC-01 via HDMI, plug into your computer’s USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

High-quality HDMI to USB 3.0 video encoder
Plug-and-play USB webcam operation for Mac and Windows computers
Seamlessly works with all Roland V-series switchers with an HDMI output
Also works with most HDMI-equipped cameras and camcorders
Uncompressed 1080p HD at 60 FPS for engaging livestreams
Dedicated analog audio line input for live music versatility
Powered via USB

Technical Specifications

Input Connectors	HDMI IN connector: HDMI type A * Multi-format Supported * HDCP Not Supported

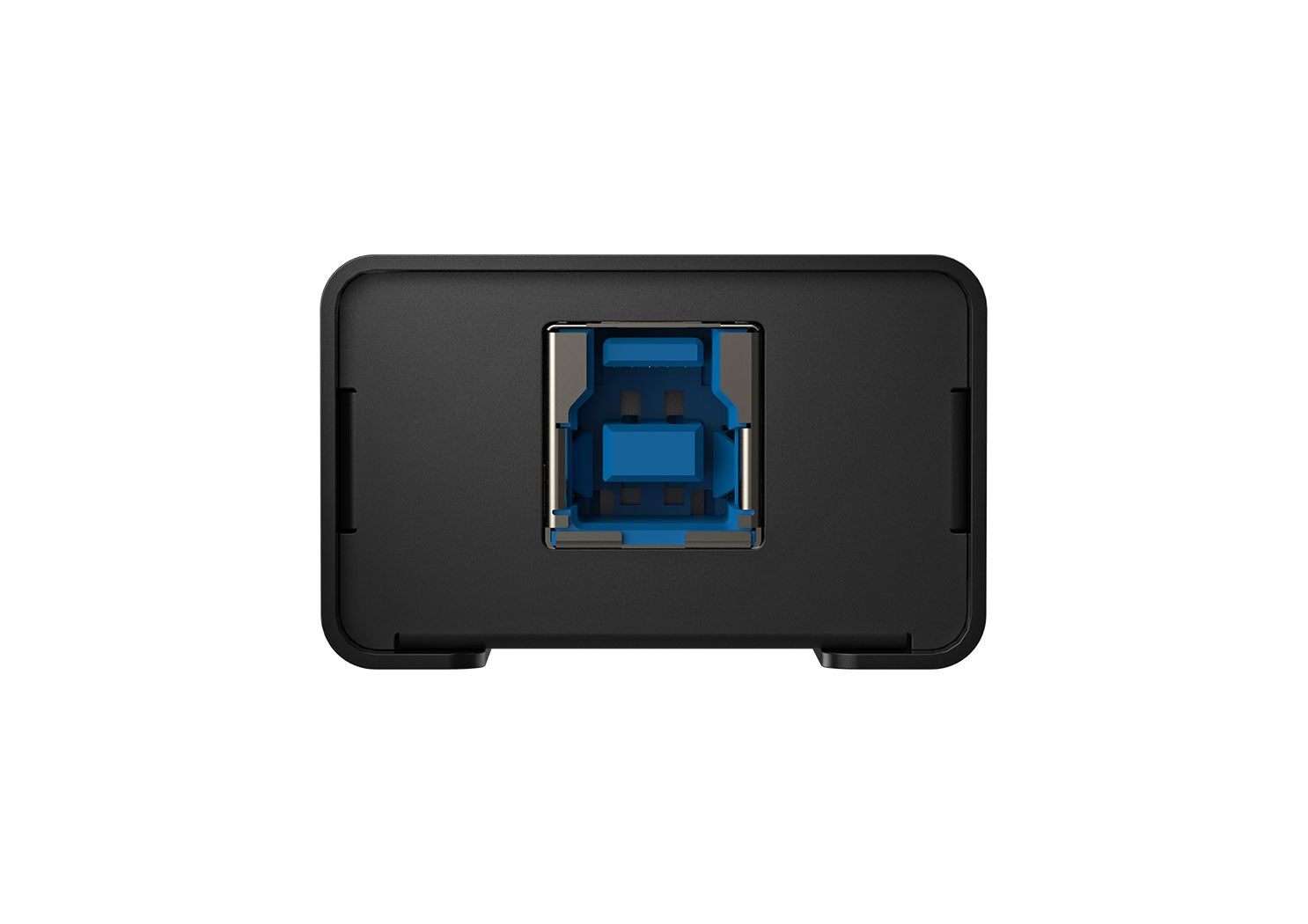

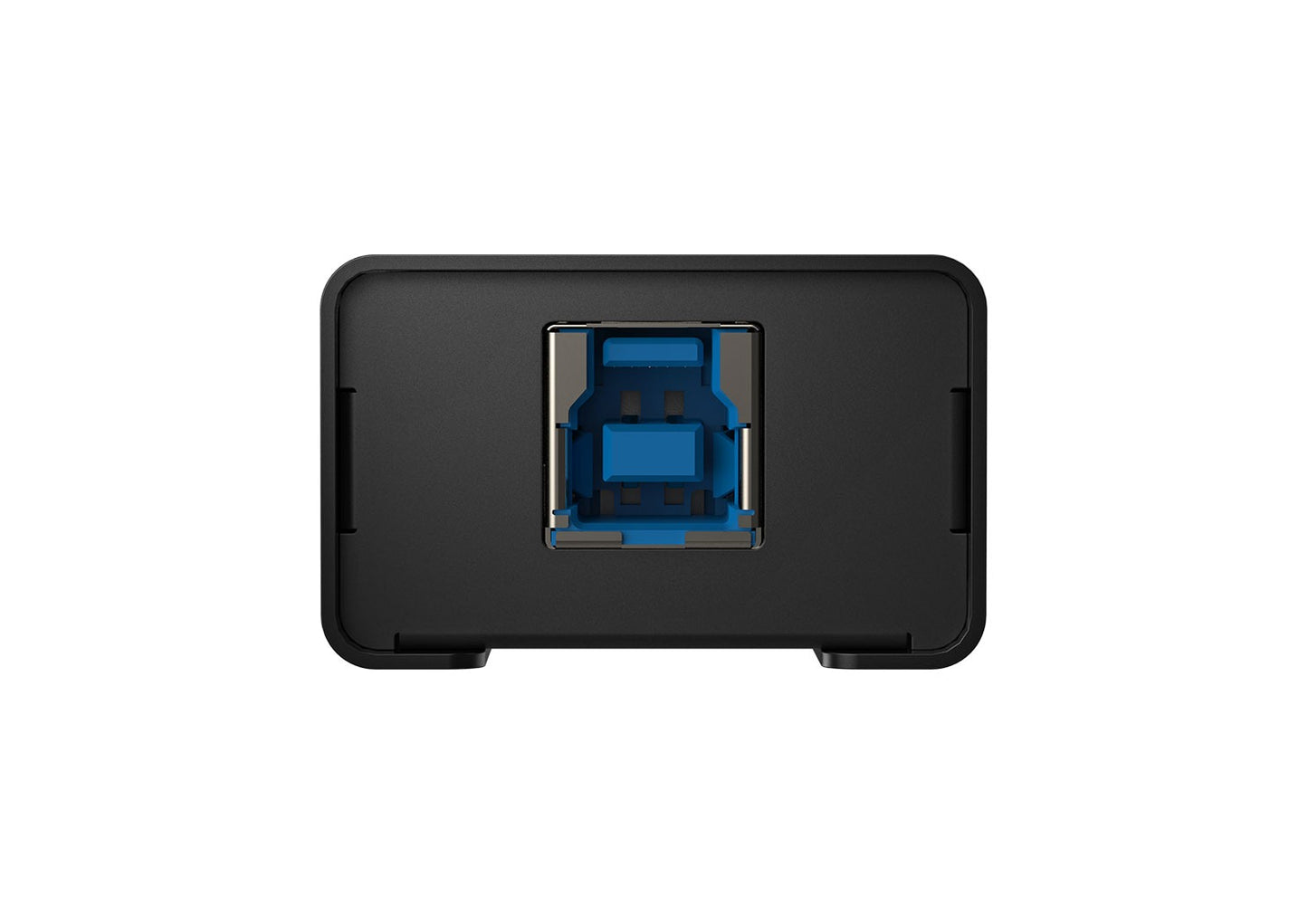

Output Connectors	USB STREAM port: USB 3.0 B type
Input Formats	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to VESA DMT Version 1.0 Revision 11.
USB Video Output Format	YUY2 (Uncompressed)
USB Video Output Resolution	1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 * The maximum frame rate is 60 fps.
Audio formats	HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

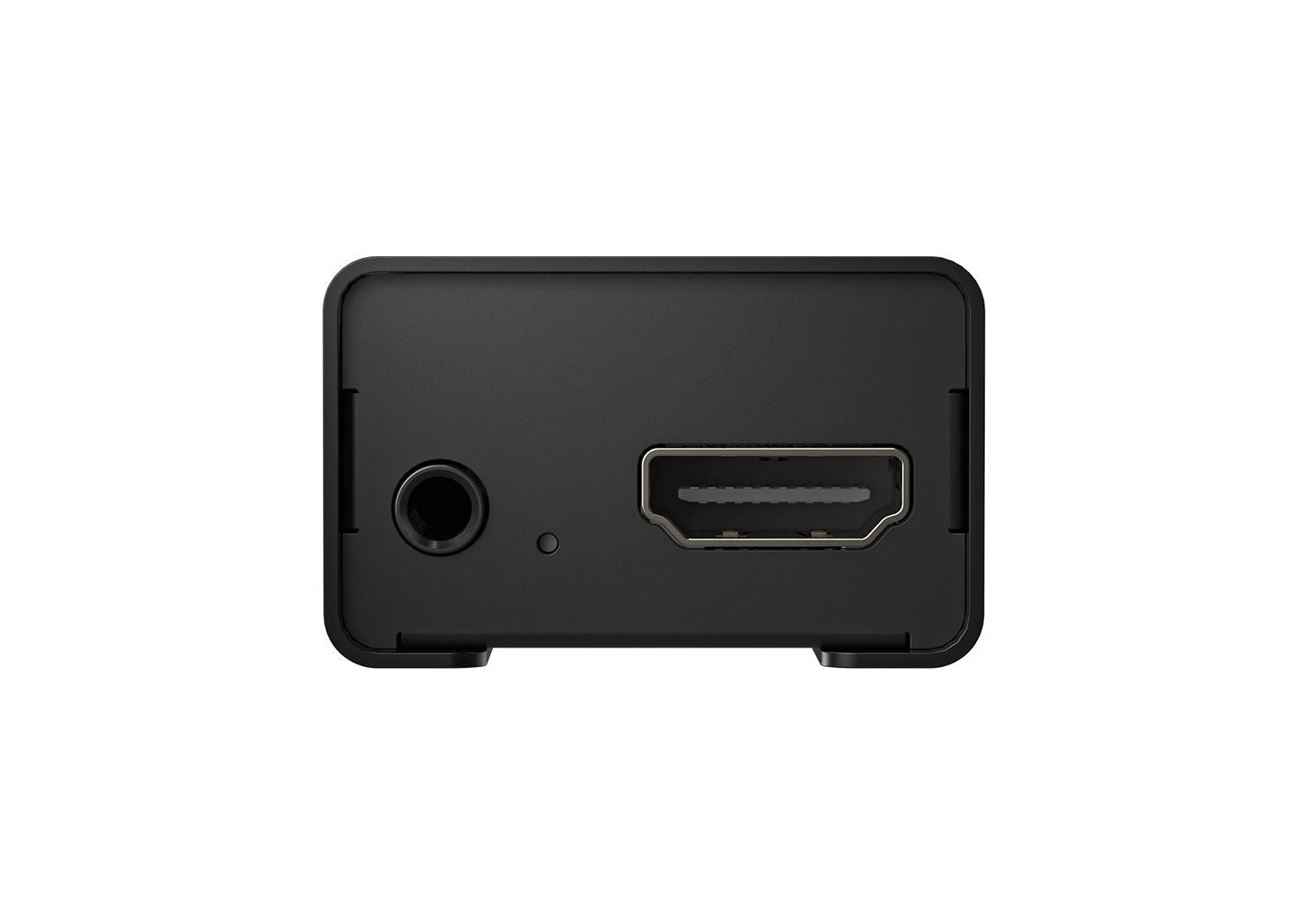

Input Connectors	HDMI IN connector: HDMI type A AUX IN jack: Stereo miniature phone type
Output Connectors	USB STREAM port: USB 3.0 B type
Nominal Input Level	AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance	AUX IN jack: 10 k ohms
Power Supply	Supplied from the computer via USB
Current Draw	500 mA
Operation Temperature	+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Dimensions	90 (W) x 37 (D) x 23 (H) mm 3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
Weight (excluding AC adaptor)	96 g 4 oz
Accessories	Owner's Manual USB 3.0 Cable * 0 dBu = 0.775 Vrms
