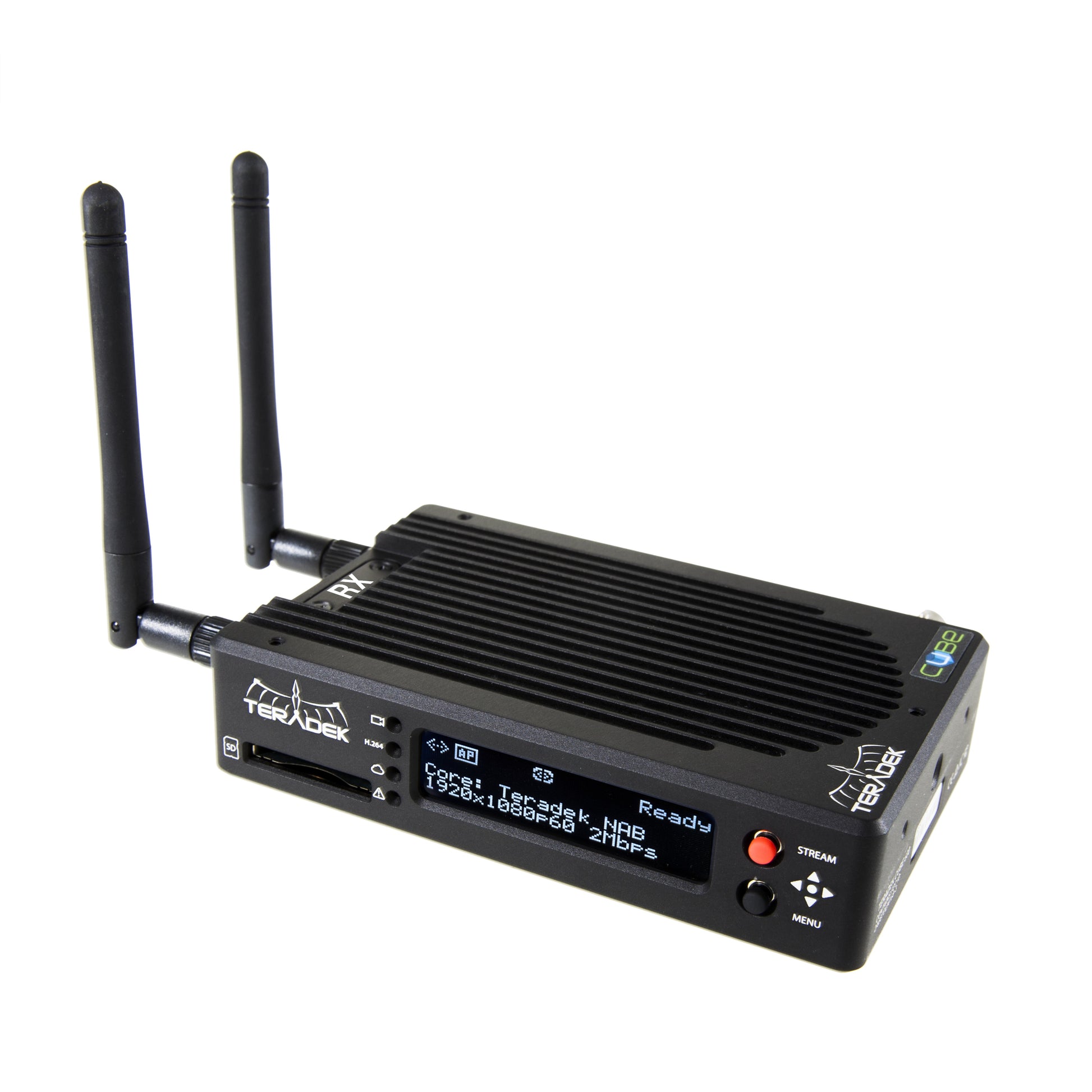

Teradek Cube 775

This product is discontinued. Explore Prism to view Teradek’s flagship encoder & decoder line.

Cube 775 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 775 offers SD/HD MPEG-4 AVC/HEVC (H.264/H.265) decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.

With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 775 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem.

Technical Specifications

productId

• productId: 515125870637

video

• videoOutputs: HDMI 1.4a: Full Size SD/HD/3G-SDI (75 Ω BNC)

supportedResolutions

• supportedResolutions: 1080p 24/25/29.97/30/50/59.94/60* 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI output only) 576p (for HDMI output only)

videoProcessing

• videoCompression: Decompresses HEVC (H.265), H.264, Baseline, Main and High Profile
• supportedVideoBitrate: 250 Kbps to 15 Mbps* *15 Mbps (wired), 10 Mbps (WiFi)
• testPatternGeneratorSupport: None
• videoFormatConversionSupport: Built in Video Scaler and Deinterlacer
• colorCorrection: None

protocolSupport

• networkProtocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP,NDI
• supportedVideoTransportProtocols: RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP Teradek Streaming : Unicast/UDP, Multicast/UDP
• remoteControl: Teradek Core

audioProcessing

• audioCompression: AAC-LC, MPEG Layer 2

inputs

• audioInput: Embedded Audio Input Analog Line or Mic in, adjustable gain

outputs

• audioOutput: Headphone output, adjustable volume

physical

• dimensions: 4.75"W x 3"D x 1.1"H [120.7 x 76.2 x 27.9mm]
• weight: 11.6oz [328.9g]
• construction: Milled Aluminum

interfaces

• http: WebUI for Configuration and Control

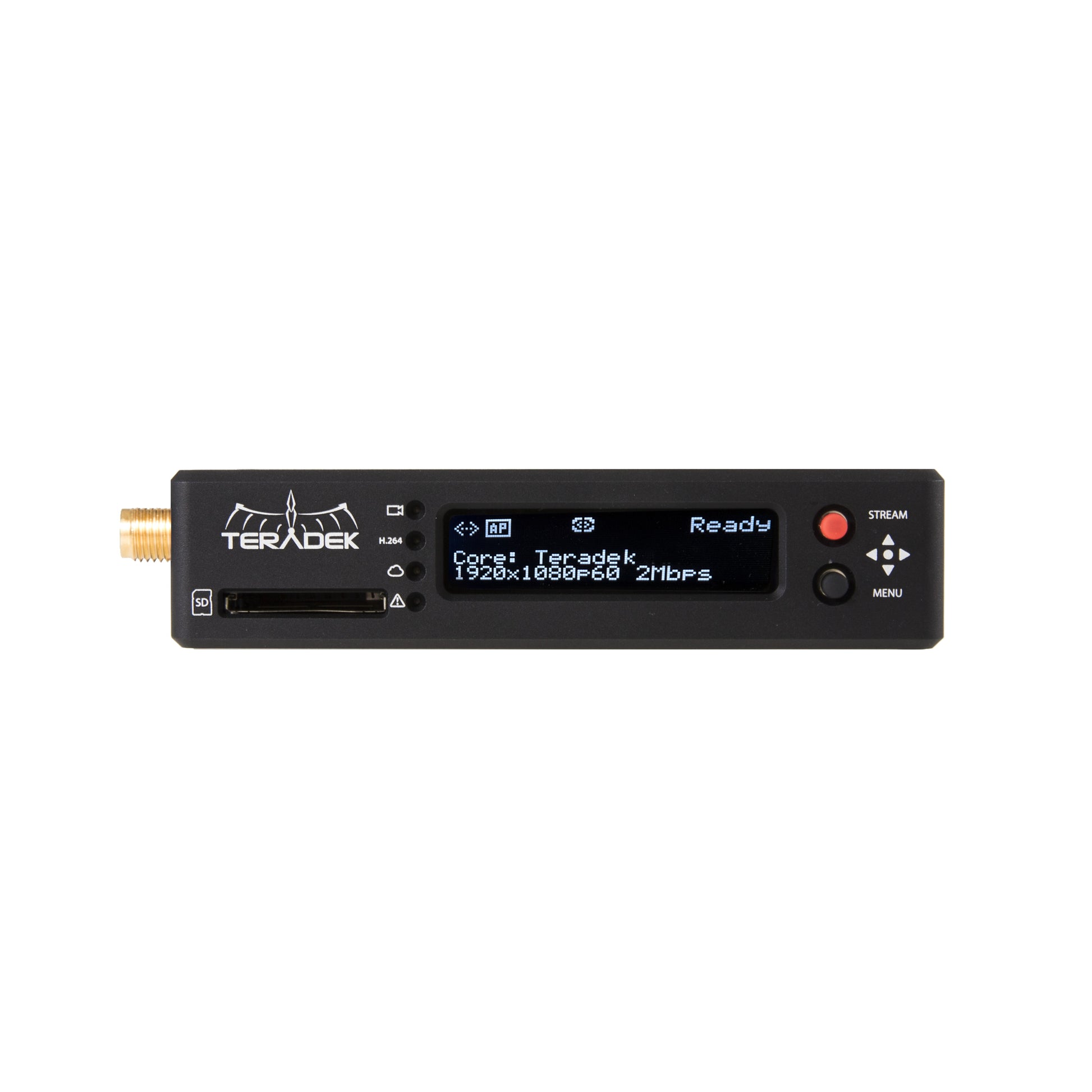

• configurationInterfaces: OLED Display with joystick Navigation buttons Feature-rich WebUI for configuration and control
• switches: On/Off and Reset Switch
• mobileApp: Vuer, Live:Air
• usbInterfaceFunctionality: Powered USB 2.0 host port

network

• ethernet: 10/100BASE-T
• wireless: WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo
• usb: None
• rfChannelSelection: Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) Configurable to specific channels
• encryption: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

power

• powerInput: 2 Pin Connector Power input
• battery: No Battery Included
• nominalPowerConsumption: 8W, 7W (no WiFi)
• auxilaryPowerInput: 6-28V DC

environmental

• operatingTemperature: 0 - 50 C

productHighlights

• maxResolution: 1080p30
• codec: H.264
• maxBitrate: 10 Mbps
• networkConnectivity: Ethernet, WiFI, USB modem
• output: HDMI
• power: 6-28V DC

Product Details

• SKU: TE-CUBE775
• Warranty: 12 months
• Country of origin: United States
