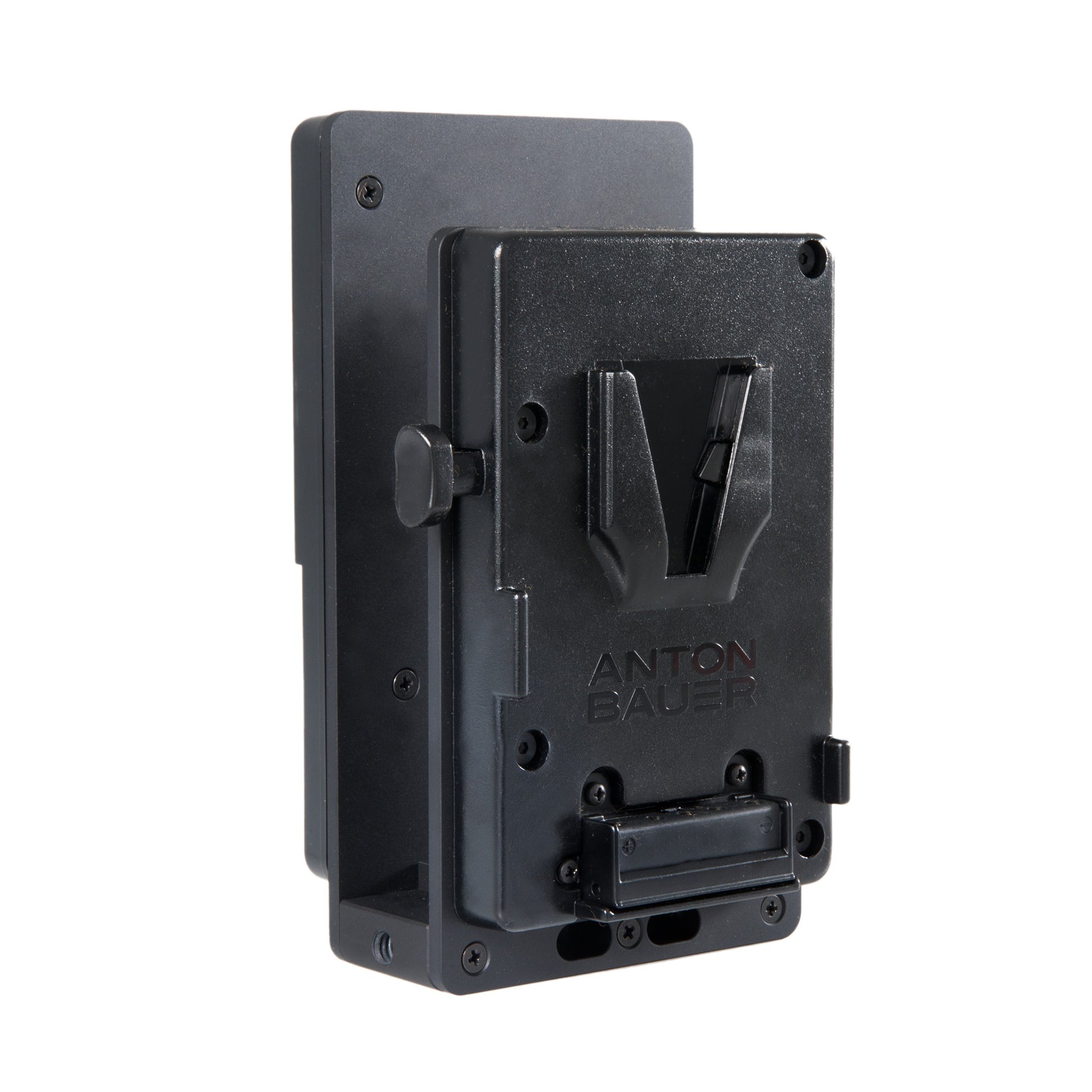

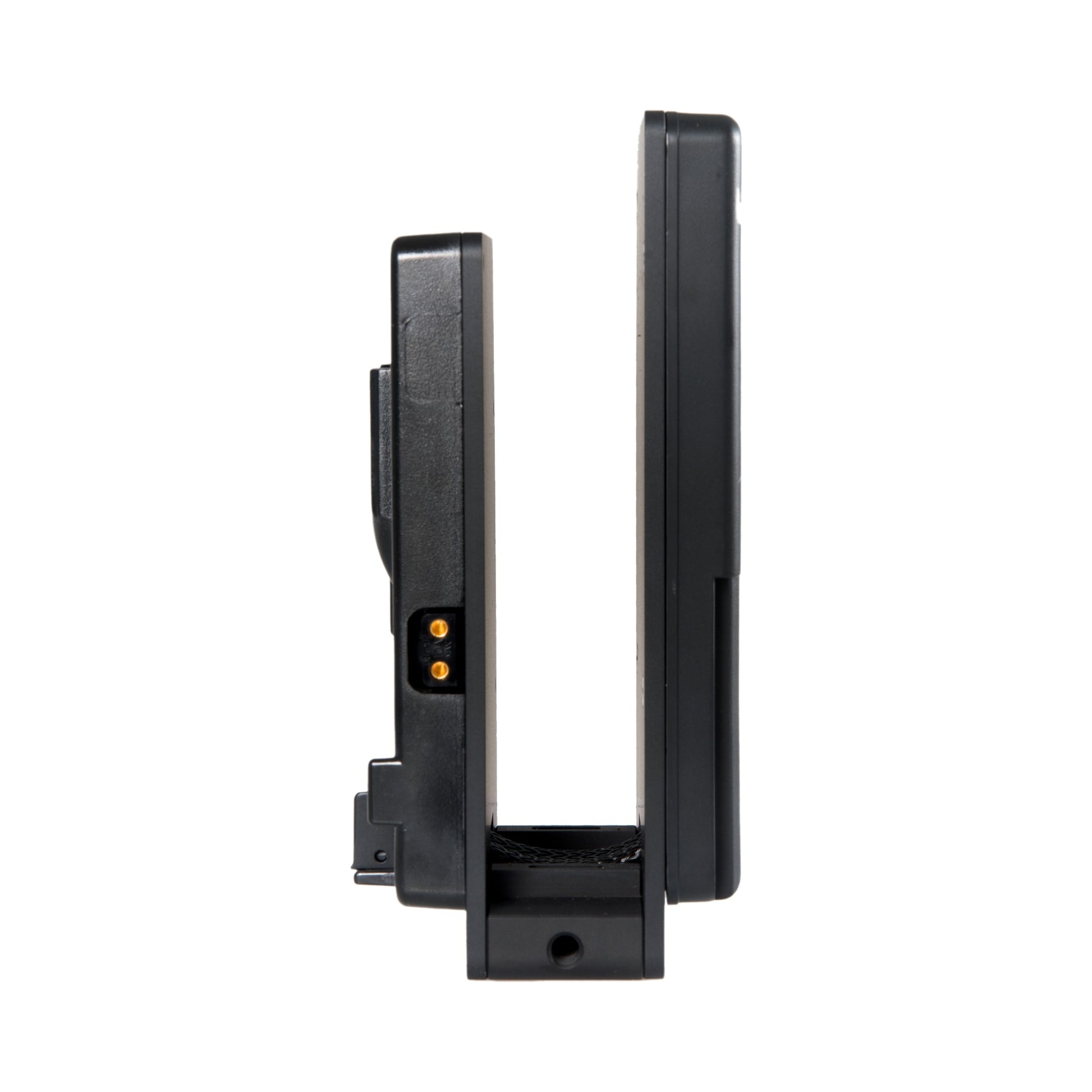

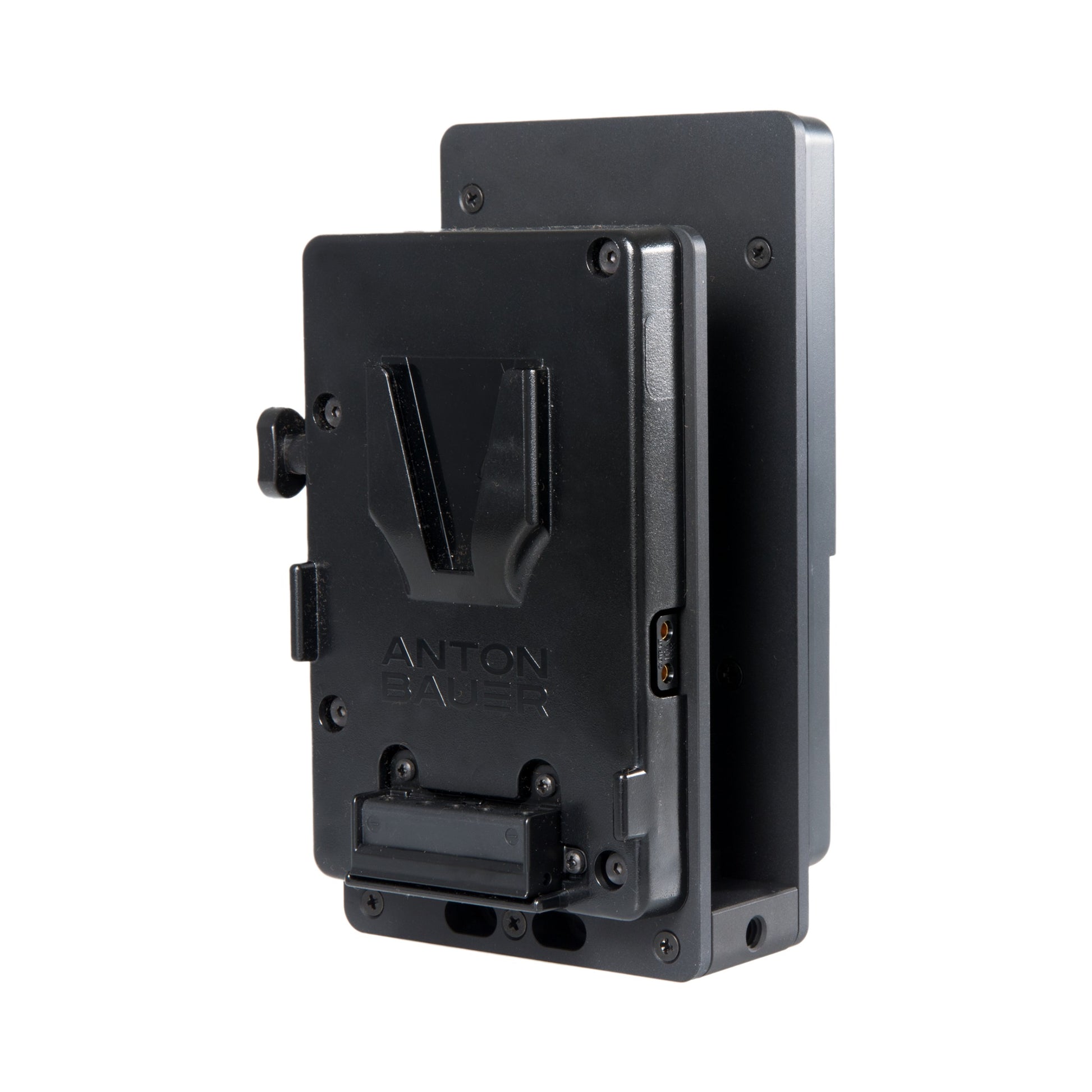

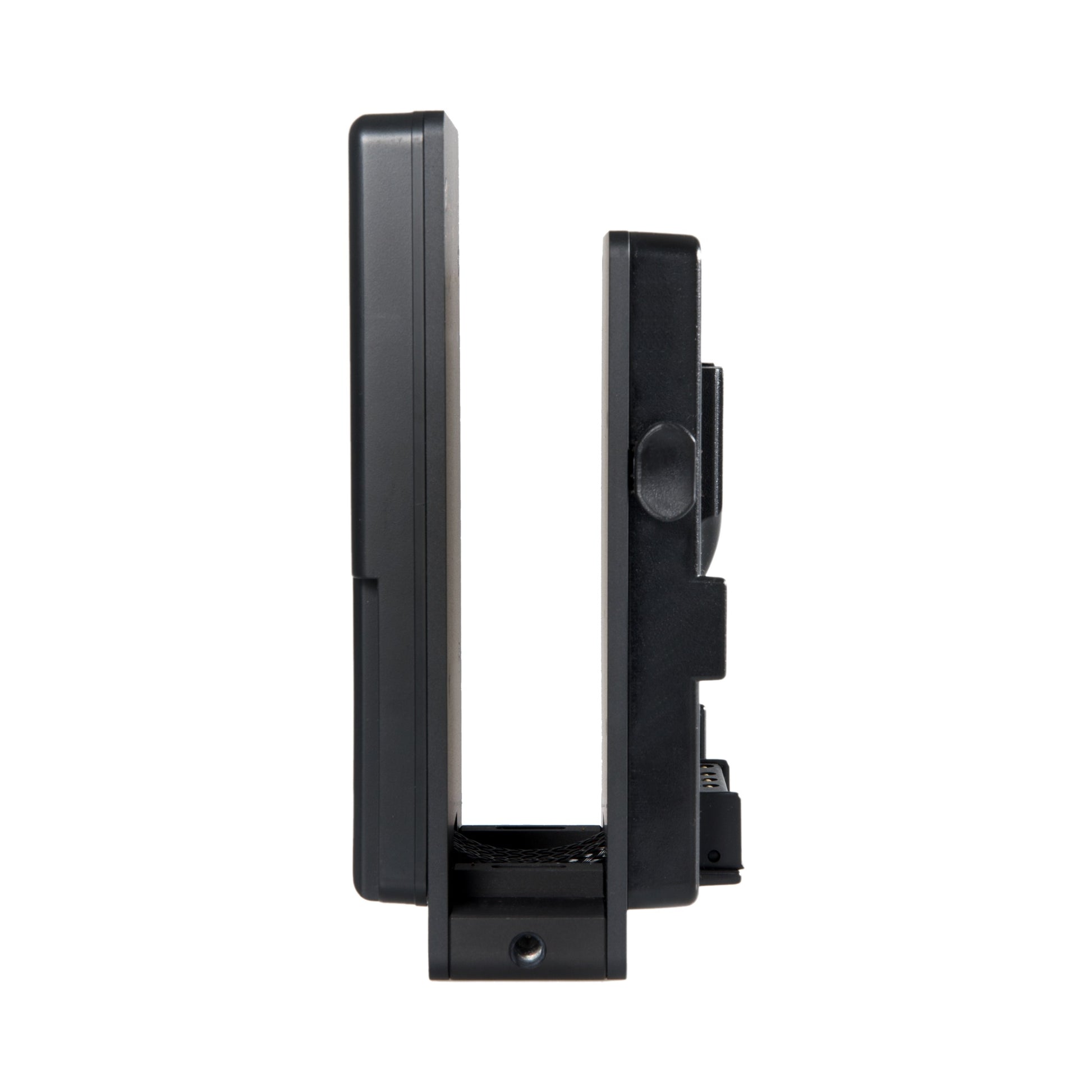

This Dual Battery Plate from Teradek allows you to secure a Teradek Cube 605/655 between your camera/monitor and battery using a Gold (Anton Bauer)-Mount plate. This turns the Cube 605/655 into a secure camera-back solution for an ENG style configuration. It draws power internally from the male Gold-Mount plate and passes power through to the camera/monitor via the female Gold-Mount plate on the other side, it also offers one D-tap accessory output (50W - 14.4 Volt max) to power your Cube with the included Power Tap to 2pin Connector 11 inch cable. If you are looking for a V-Mount version, please see product [11-0787]

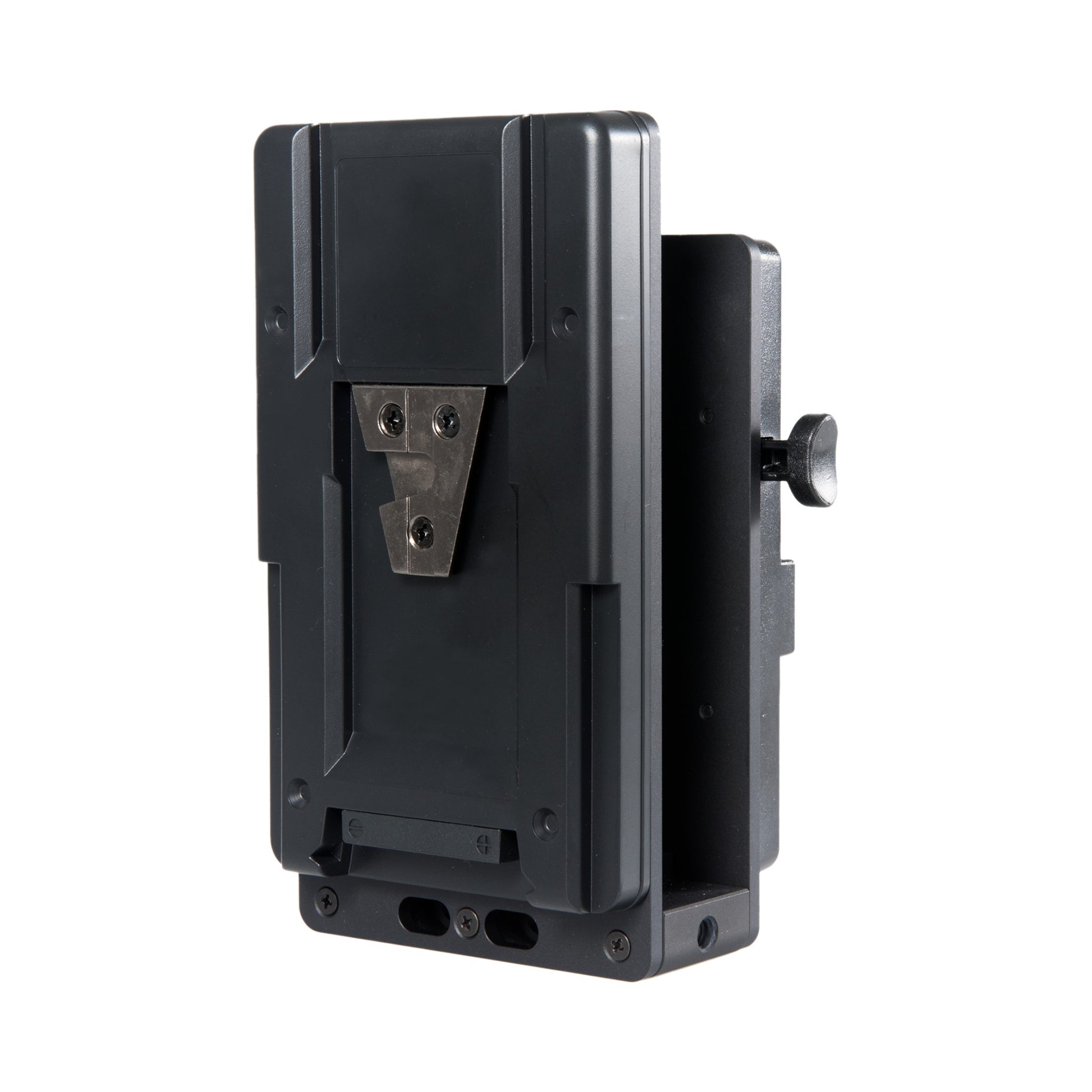

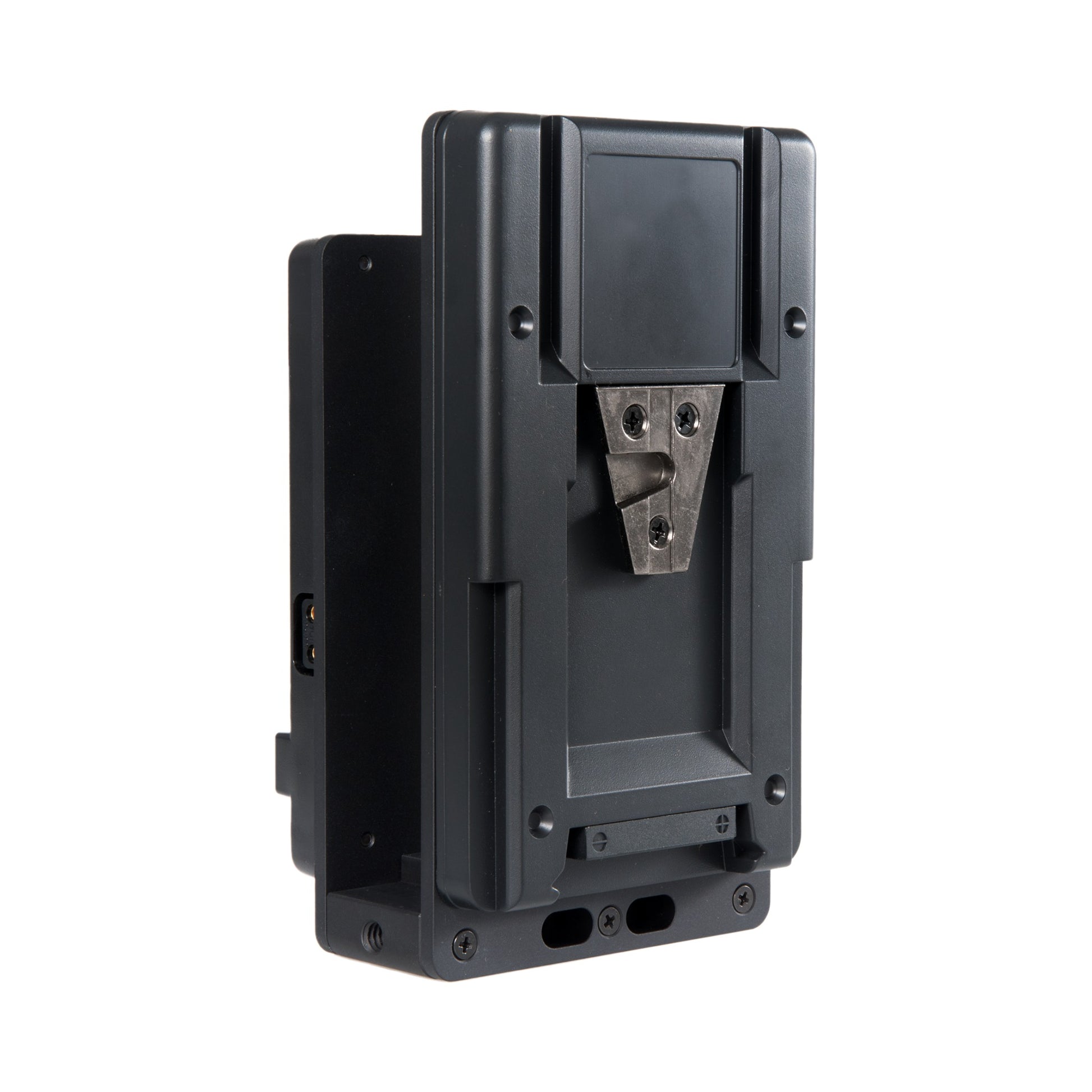

This Dual Battery Plate from Teradek allows you to secure a Teradek Cube 605/655 between your camera/monitor and battery using a V-Mount plate. This turns the Cube 605/655 into a secure camera-back solution for an ENG style configuration. It draws power internally from the male V-Mount plate and passes power through to the camera/monitor via the female V-Mount plate on the other side, it also offers one D-tap accessory output (50W - 14.4 Volt max) to power your Cube with the included Power Tap to 2pin Connector 11 inch cable. If you are looking for a Gold Mount version, please see product [11-0786]
Technical Specifications
productId
productId: 9344204429.0
physical
material: 6061-T6 Aluminum
dimensions: 3.36 x 6.17 x 3.06 in
weight: 15.3 oz
connector: Mounting: 1x V-Mount Male and 1 x V-Mount Female on opposite side Power: 1x D-Tap 14.4V max P-Tap Cable Length: 11in / 27cm
