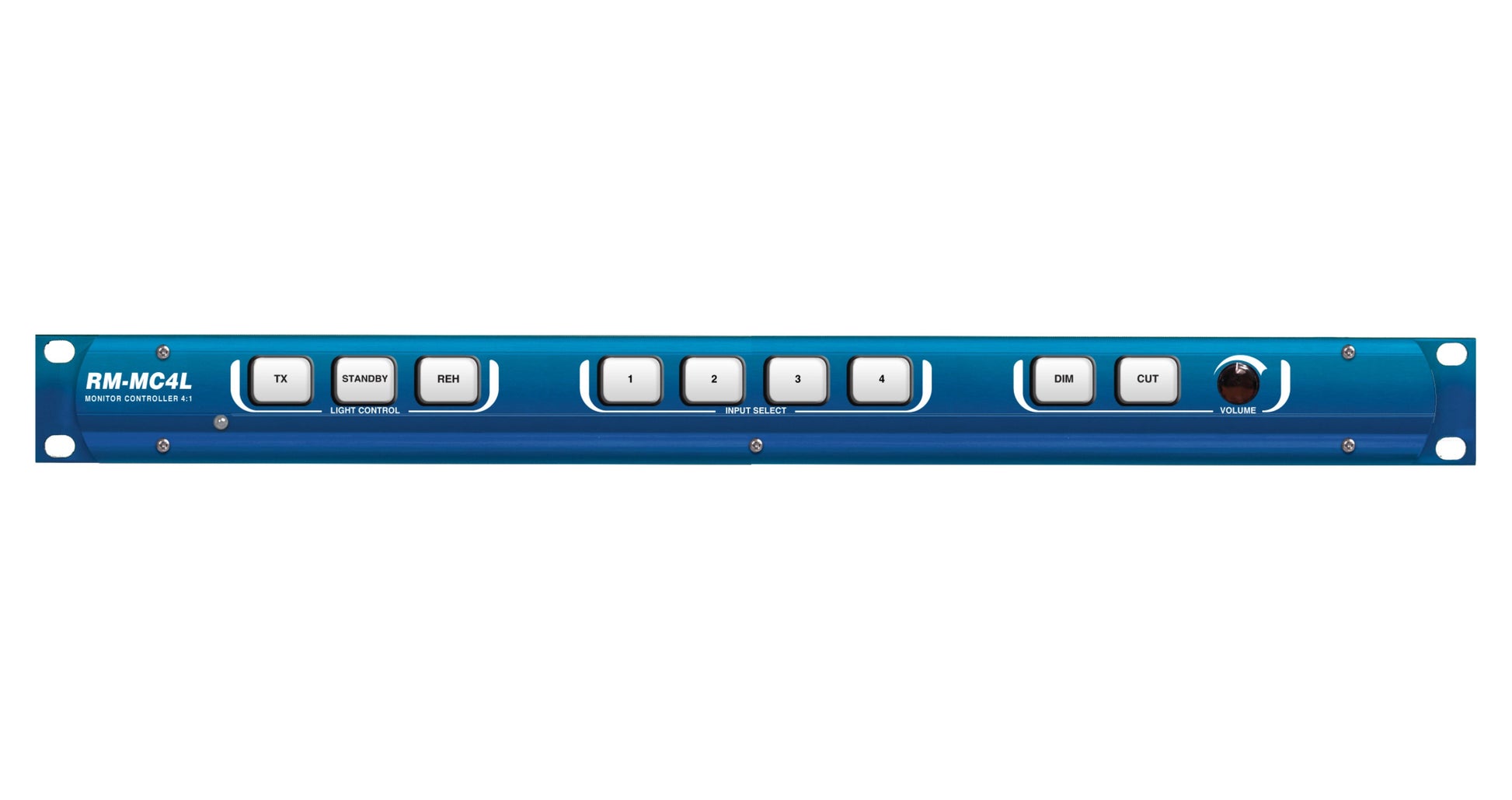

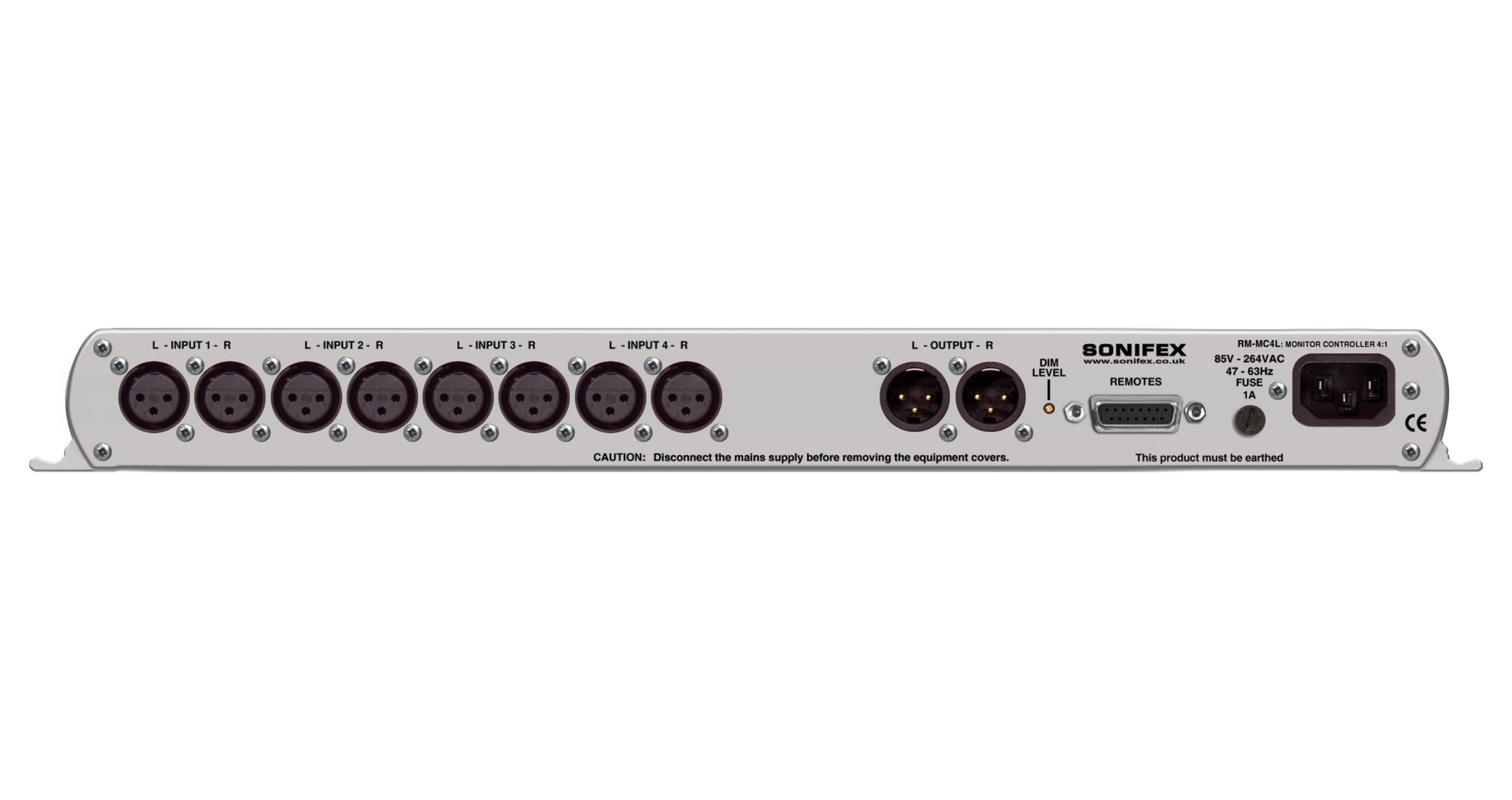

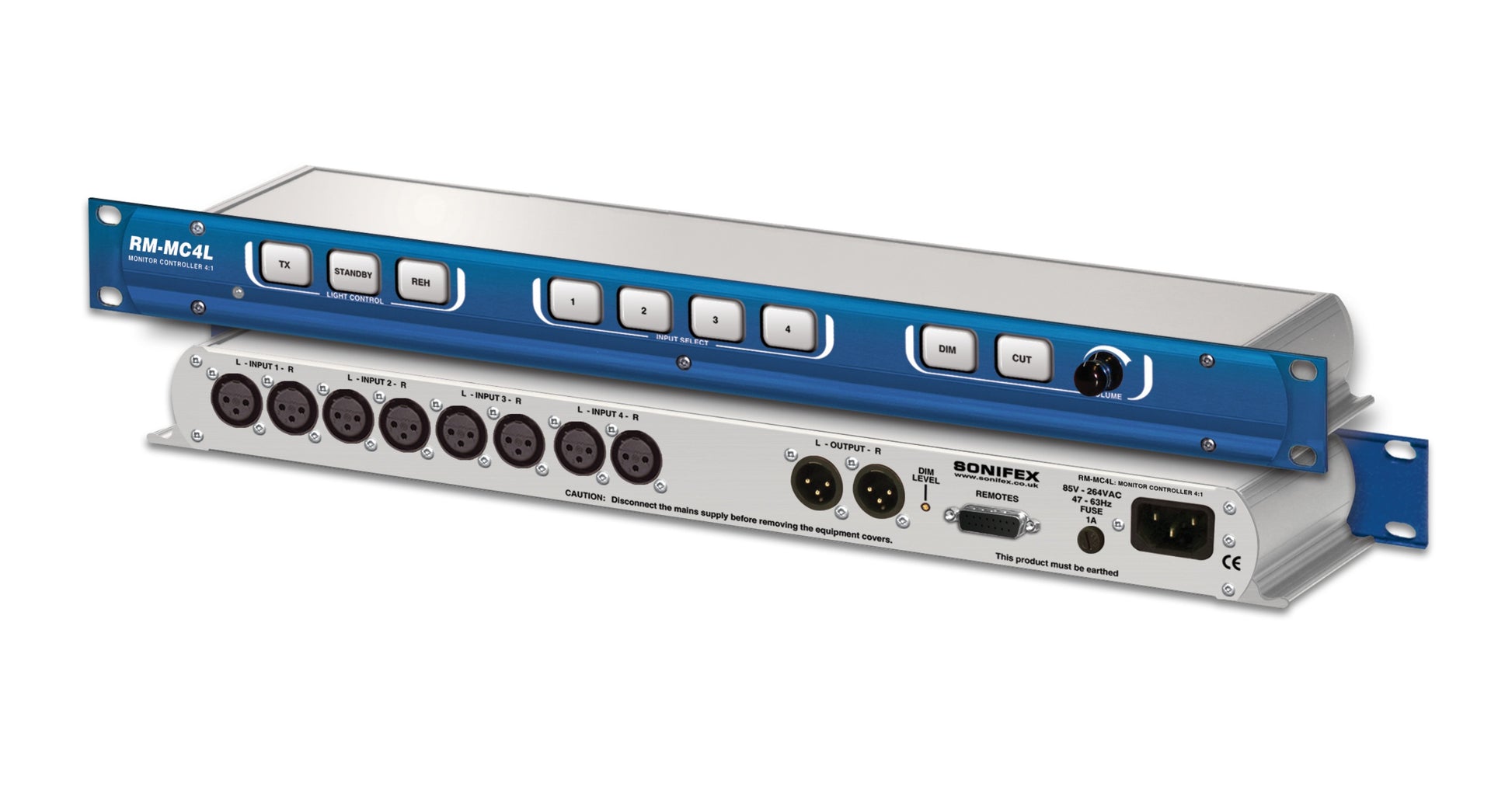

The RM-MC4L has four stereo balanced analogue inputs with a single stereo balanced output, all using XLR connectors. Four illuminated front panel buttons allow you to simply select the source required at the output. The RM-MC4L has the same master volume control, CUT, DIM and light control functions and adjustments as the RM-MC1L unit.
Product Features
4x Stereo balanced analogue inputs (XLR).
1x Stereo balanced analogue output (XLR).
4x source selector buttons.
0dB to -86dB master volume control.
Separate remoteable DIM & CUT buttons.
Tally outputs for REH (Rehearse), Standby, and TX light control.
2 minute Standby countdown timer feature.
DIM level control (rear panel pre-set pot).
Typical Applications
Production control room, live studio broadcasts, recording studios.
Product Category
Audio & Light Controllers
Technical Specifications
Inputs
Input Impedance: >20kΩ
Maximum Input Level: +25dBu
Output Impedance: <50 Ω
Maximum Output Level: +25dBu
Attenuation Range: >86dB
DIM Attenuation Range: Adjustable -3dB to -23dB via rear panel potentiometer
