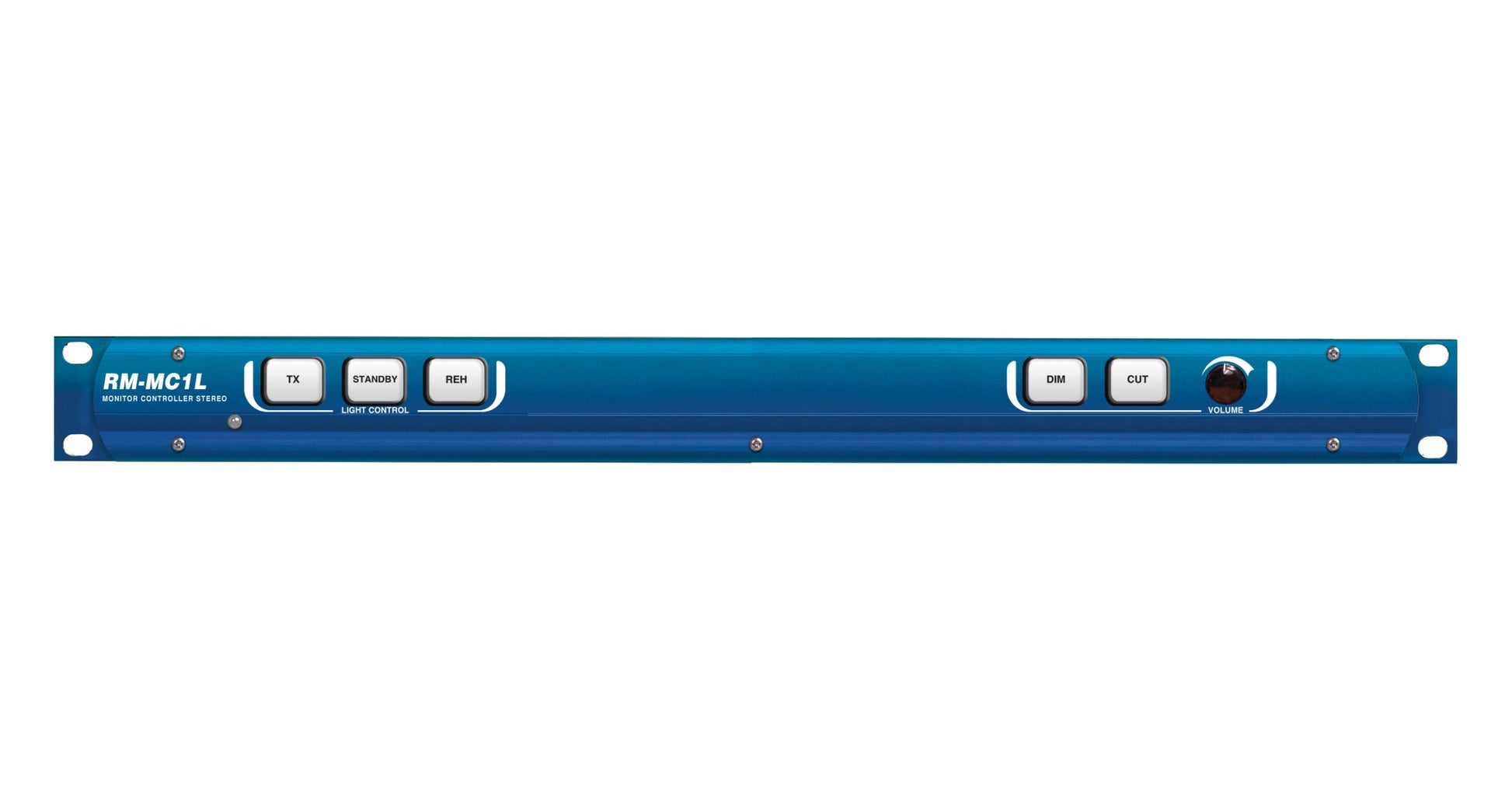

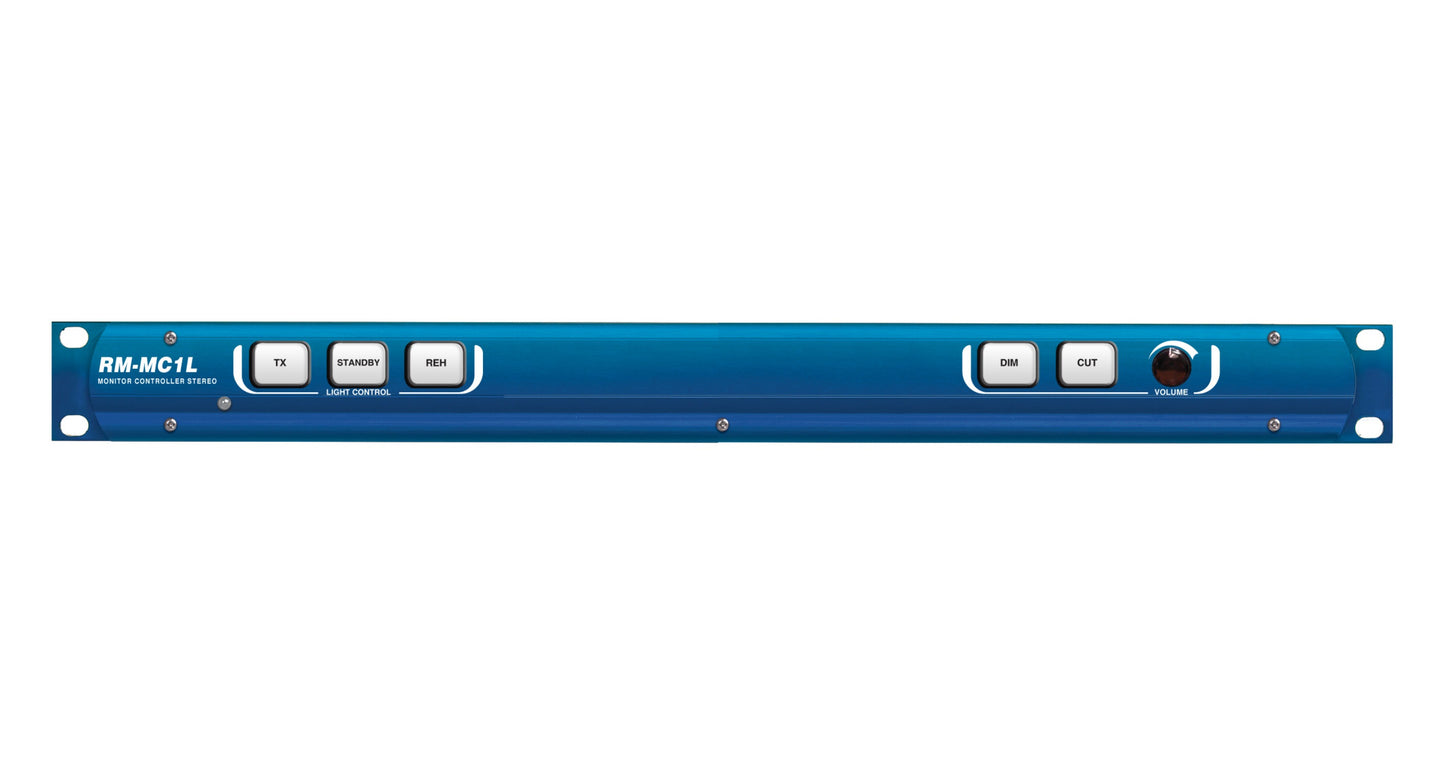

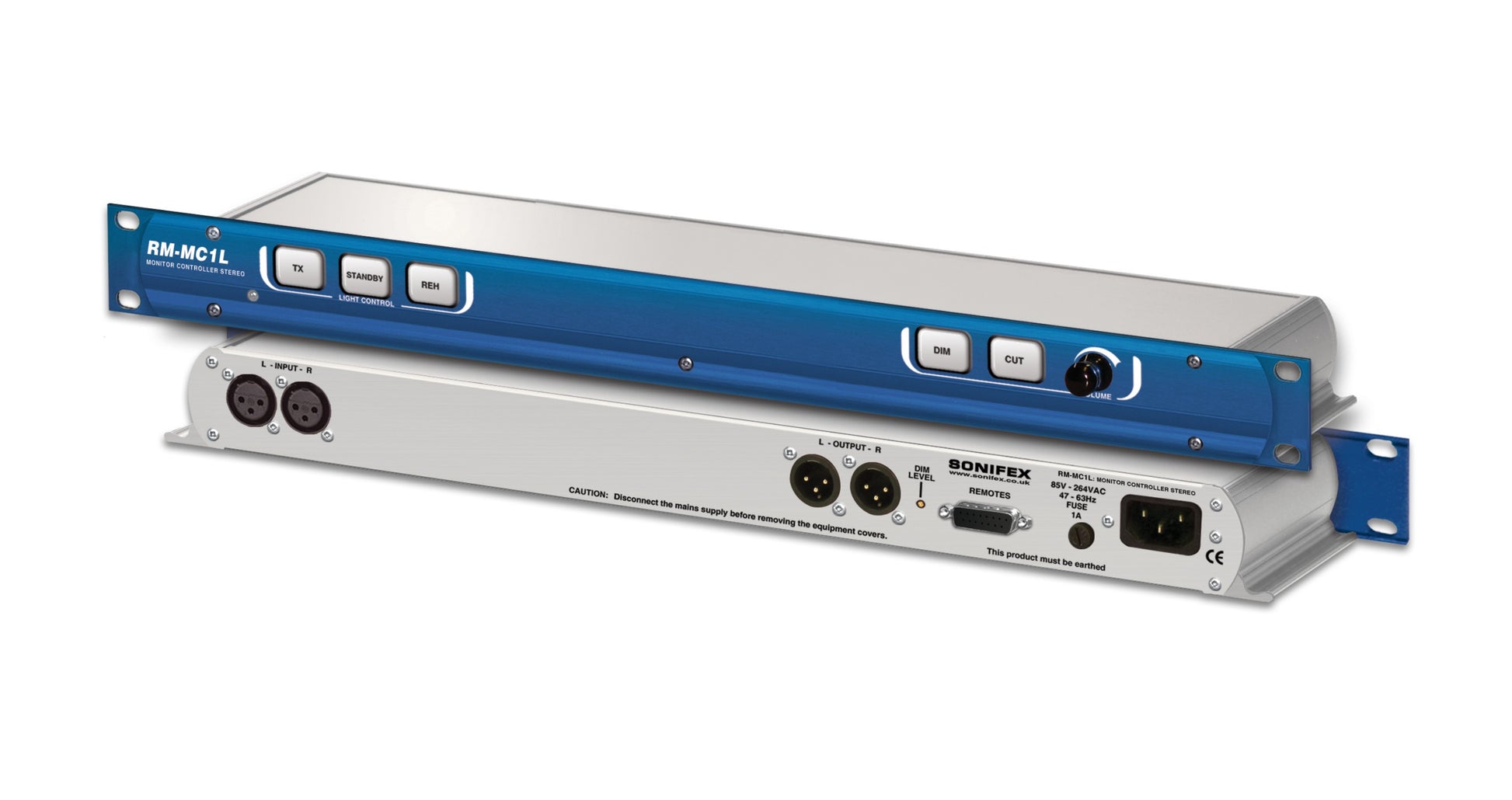

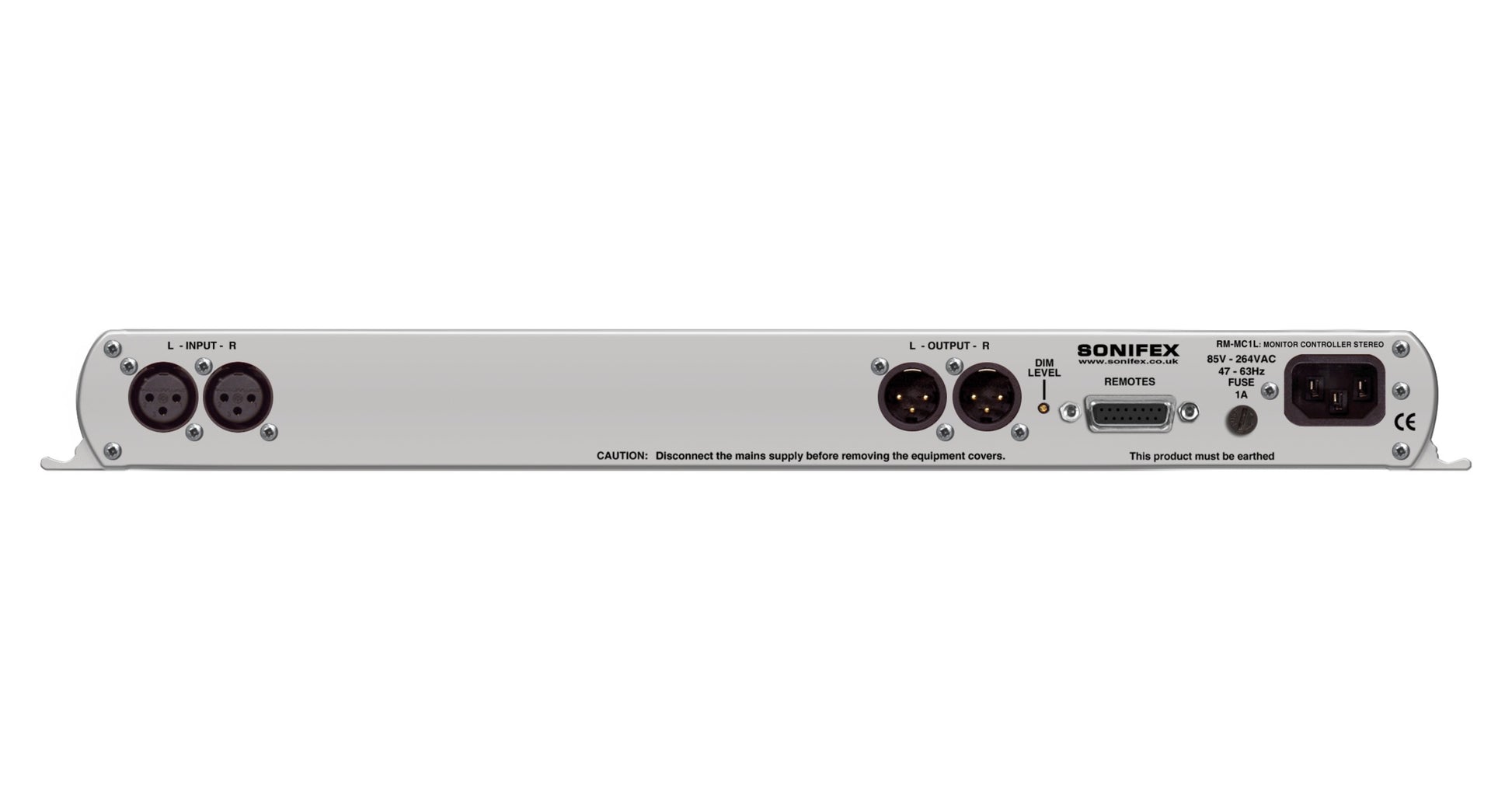

The RM-MC1L is a stereo unit with a single stereo balanced analogue input and output on XLRs. Useful in a production environment, the unit allows you to control the audio level to external monitors and to DIM the audio, or CUT it completely with simple front panel controls, or remote external inputs. It has a master volume control that adjusts the attenuation on the output channels from 0dB down to -86dB. A CUT control mutes the audio outputs when enabled, whilst a DIM control attenuates the audio output channels by a pre-set amount from -2dB to -23dB. All of the buttons on the front panel are illuminated by LEDs and the brightness can be changed to better suit the environment in which the unit is used. Stereo balanced analogue input and output (XLR).
Product Features
Stereo balanced analogue input and output (XLR).
0dB to -86dB master volume control.
Separate remoteable DIM & CUT buttons.
Tally outputs for REH (Rehearse), Standby, and TX light control.
2 minute Standby countdown timer feature.
DIM level control (rear panel pre-set pot).
Typical Applications
Production control room, live studio broadcasts, recording studios.
Product Category
Audio & Light Controllers
Technical Specifications
Inputs
Input Impedance: >20kΩ
Maximum Input Level: +25dBu
Output Impedance: <50 Ω
Maximum Output Level: +25dBu
Attenuation Range: >86dB
DIM Attenuation Range: Adjustable -3dB to -23dB via rear panel potentiometer
