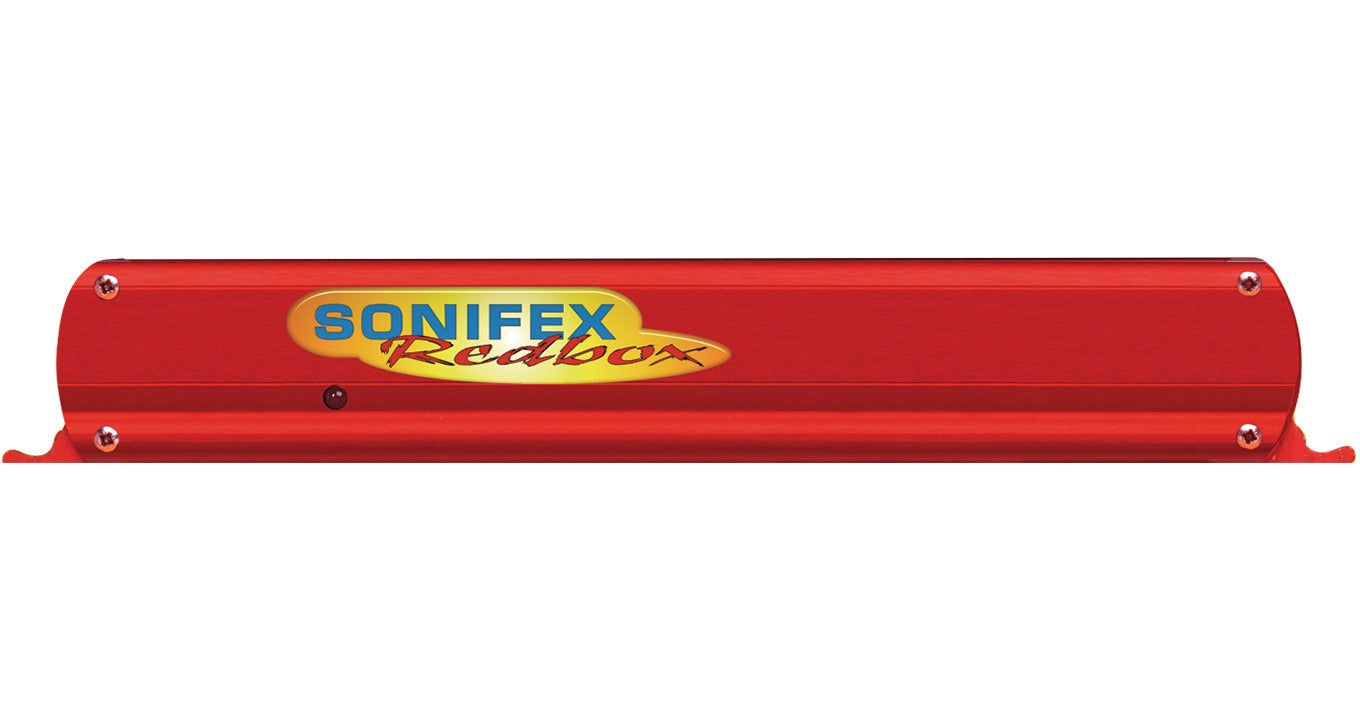

The RB-SL2 is a stereo, or twin independent mono, VCA limiter for use in news-rooms and other locations where the correct level into recording equipment is required, but not necessarily under the control of an engineer, for example, for overload protection. It can also be used as an inexpensive main output limiter for small scale radio stations, hospital radio and student radio. The XLR-3 electronically balanced inputs and outputs can be wired unbalanced to accept an output from domestic equipment.
Product Features
Balanced XLR inputs and outputs.
Stereo or mono operation, can be used as two mono limiters.
Input gain & threshold limit controls.
Typical Applications
Limiting program output from a radio studio mixer, school radio audio output limiter.
Product Category
Signal Limiters
Technical Specifications
Audio Specification
Maximum Input Level: +28dBu
Maximum Output Level: +28dBu
Input Gain: Adjustable -8dB to +18dB gain
Limit Threshold: Adjustable -8dBu to +28dBu
Frequency Response: 20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)
Noise: -100dB unity gain, ref +8dBu output
Distortion: 0.01% THD @ 1kHz, ref +8dBu output, threshold set at +10dBu
Common Mode Rejection: >66dB typically
Input Impedance: >20kΩ balanced bridging
Output Impedance: <50Ω balanced

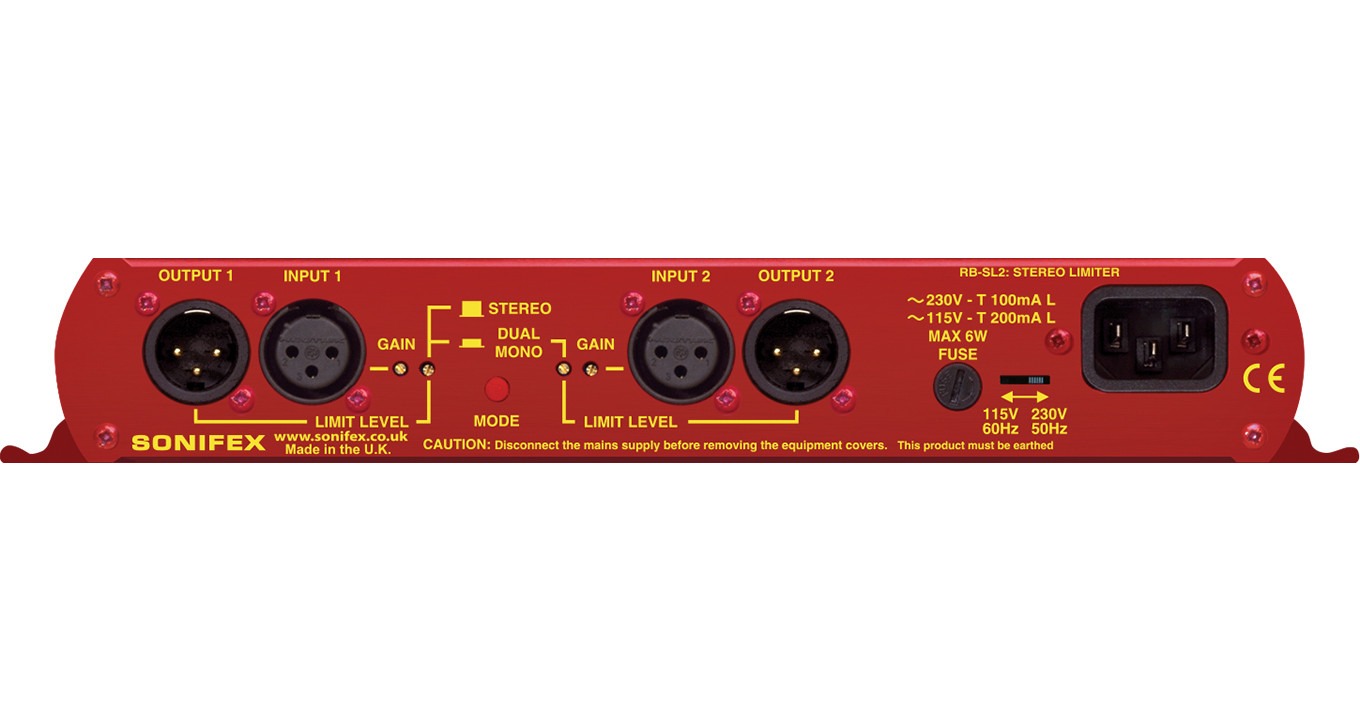

Connections
Inputs: 2 x XLR 3 pin female (Balanced, can be unbalanced)
Outputs: 2 x XLR 3 pin male (Balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)
Equipment Type
RB-SL2: Twin mono, or stereo, limiter
Physical Specification
Dimensions (Raw): 28cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
Dimensions (Raw): 11” (W) x 4.3” (D) x 1.7” (H) (1U)
Dimensions (Boxed): 36cm (W) x 20.5cm (D) x 6cm (H
