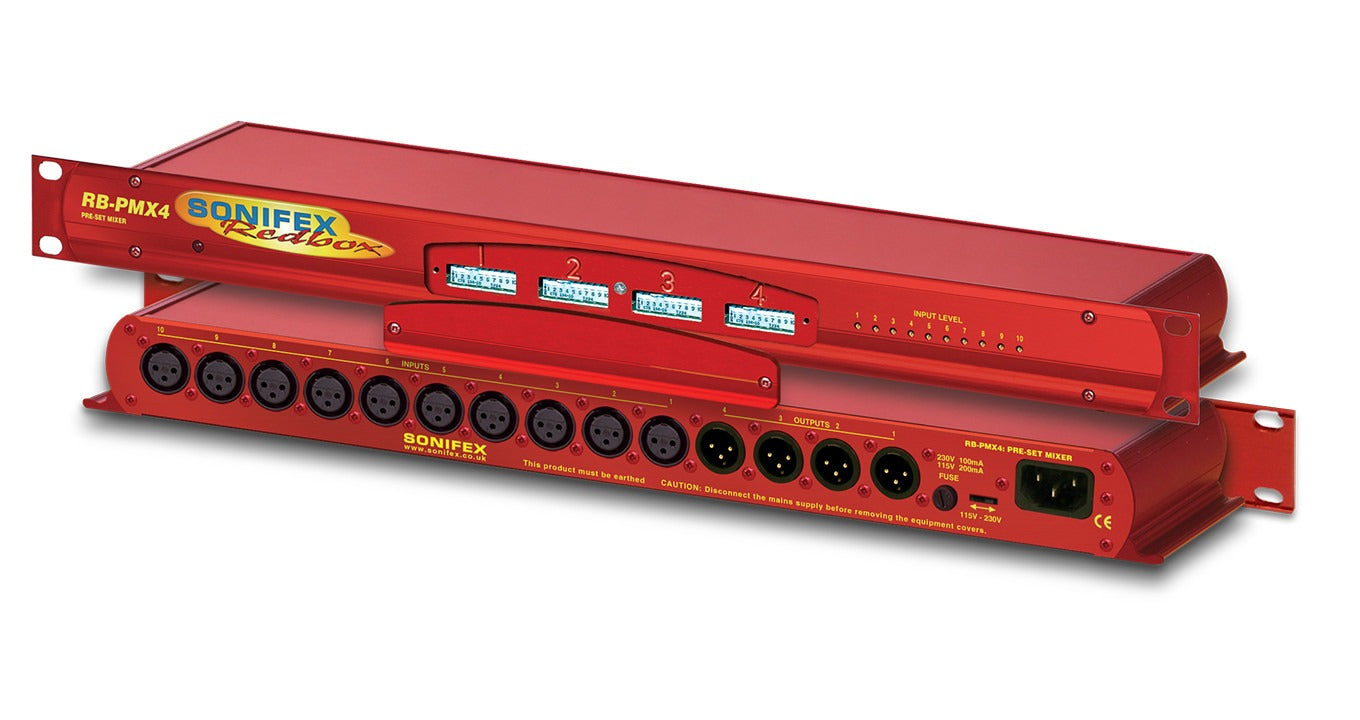

The RB-PMX4 is a high performance 10 mono input to 4 mono output pre-set mixer. Each of the four outputs has a 10 way DIP switch associated with it to select which of the 10 inputs are routed to it. So, by altering the DIP switches, any of the input sources can be mixed to any of the outputs. The DIP switches are enclosed by a screw-on cover on the front panel so that the settings can not be accidentally changed for secure applications. The RB-PMX4 has been designed for situations where a small mixer is needed for installations where it will be configured and then only altered occasionally, or never altered at all. Uses for this product are numerous including a four bus mini-mixer, a multiple clean-feed generator, a 4 zone mixer for pubs and clubs and a quad stereo to mono converter to name a few.
Product Features
Neutrik XLR I/O.
Individual input channel gain controls.
Total flexibility for routing/mixing signals.
Simple to use and configure.
Front panel cover for secure applications.
Typical Applications
Four bus mini-mixer, a multiple clean-feed generator, a 4 zone mixer for pubs and clubs and a quad stereo to mono converter.
Product Category
Preset Mixers
Technical Specifications
Audio Specification
Input Impedance: >20kΩ balanced bridging
Maximum Input Level: +36dBu
Frequency Response: 20Hz to 20kHz ±0.1dBu (600Ω load, @ 1kHz)
Common Mode Rejection: >60dBu typically
Noise: -86dBu RMS 22Hz-22kHz unity gain, ref +8dBu
Output Impedance: <50Ω
Maximum Output Level: +28dBu
Gain Range: Adjustable -8dBu to +18dBu gain
Off-isolation/Crosstalk: >90dBu @ 1kHz
Distortion: <0.01% @ 1kHz, 0dBu to +26dBu

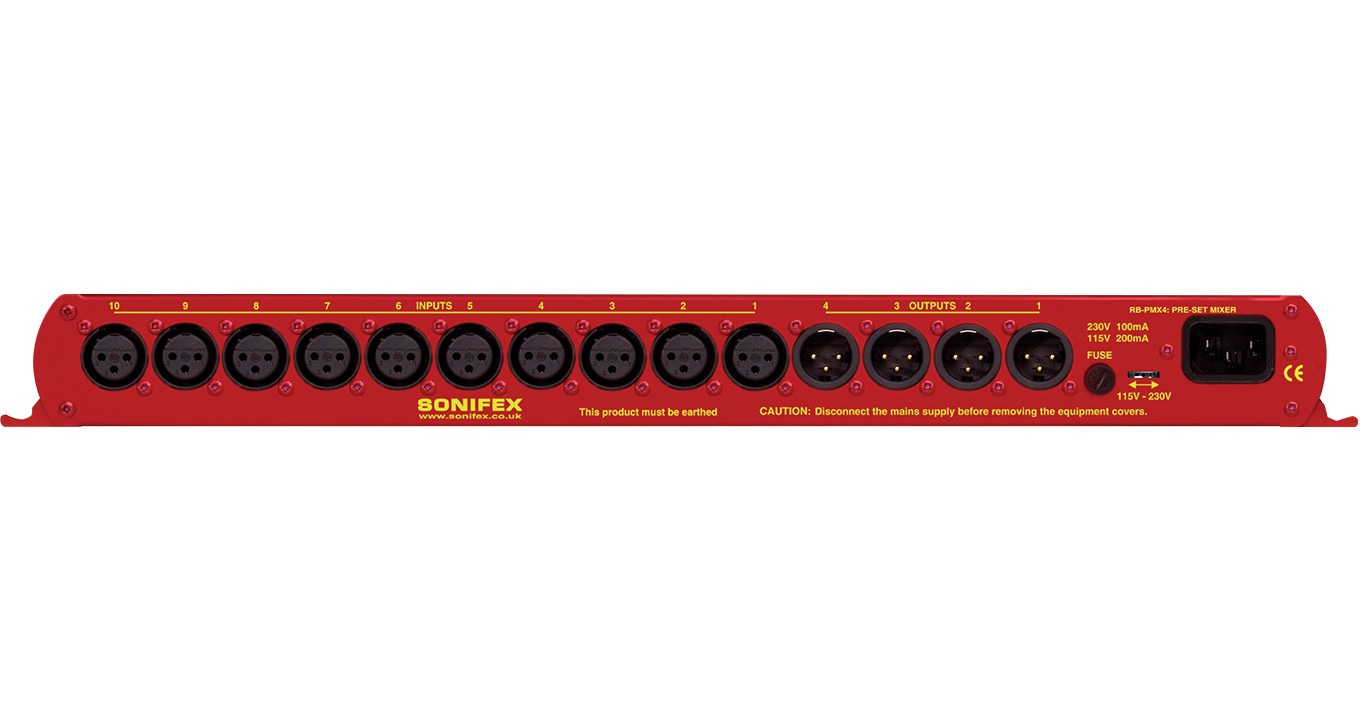

Connections
Inputs: 10 x XLR 3 pin female (Balanced, can be unbalanced)
Outputs: 4 x XLR 3 pin male (Balanced, can be unbalanced)
Mains Input: Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W maximum
Fuse Rating: Anti-surge fuse 100mA 20 x 5mm (230VAC)
Fuse Rating: Anti-surge fuse 250mA 20 x 5mm (115VAC)
