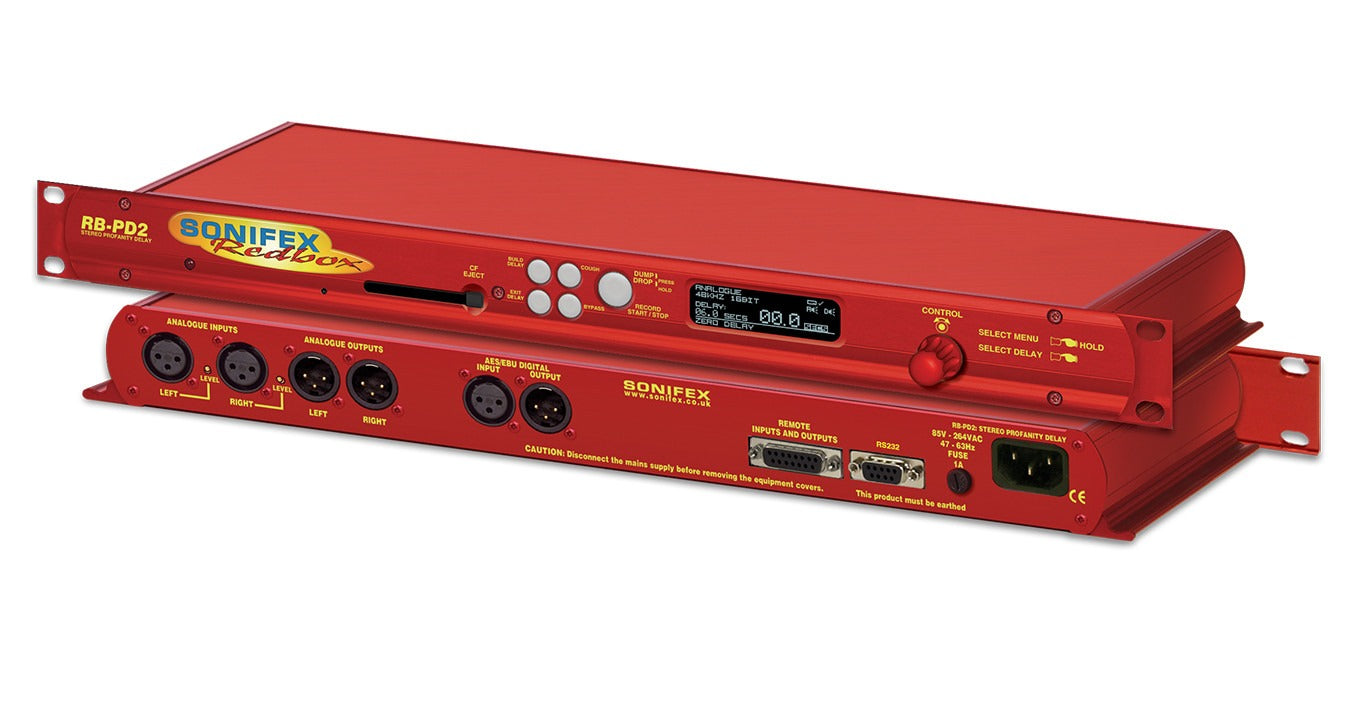

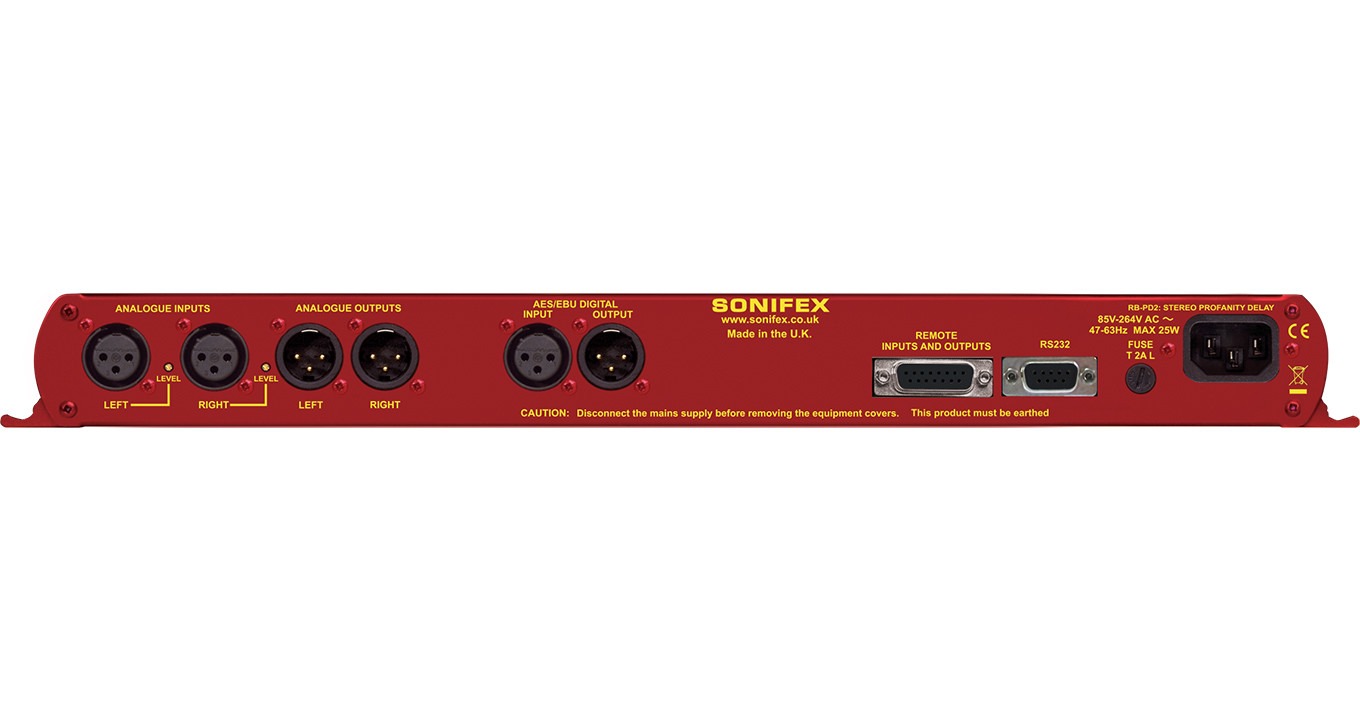

The RB-PD2 is a stereo audio profanity delay used for live broadcast programs to prevent unwanted or obscene material from being transmitted. It features an automatic audio stretch algorithm that allows between 2 and 55 (*) seconds of delay to be built up live whilst “on air”, whilst maintaining the correct pitch. The delay can also be acquired whilst playing a pre-selected audio file on a Compact Flash™ memory card. When the program is complete, the audio stretch algorithm seamlessly reduces the delay to zero. The RB-PD2 has both balanced analogue and AES/EBU digital audio inputs and outputs on 3 pin XLR connectors and provides sample rates up to 48kHz at 24 bit. It can act as a combined A/D and D/A unit meaning that analogue inputs can be output as AES/EBU or vice-versa. The delay can be initiated by pressing the BUILD DELAY button on the front panel. A front panel display shows the amount of delay being built-up, up to the amount initially selected. There are several ways to make sure that any unwanted material is removed from the audio at the outputs. A COUGH function, activated from a dedicated front panel button, allows locally generated sounds being presented at the inputs, such as the presenter coughing or equipment switching noises, to be discarded. The DUMP function, which is also activated from a front panel button, has 2 different modes. The first DUMP mode removes a section of audio that has already been buffered, by a pre-selected amount. The second DUMP mode plays a pre-selected audio file on the Compact Flash™ memory card. When the file has finished playing, the delay is then equal to the duration of the file. The DUMP button can be used multiple times to use up the built-up delay and once used, the unit automatically starts to rebuild the original delay time. As a last resort, all the buffered audio can be discarded by pressing and holding the DUMP button which activates the DROP function. At the end of a radio show when you want to broadcast live, the delay can be ramped down by pressing the front panel EXIT DELAY button.
Product Features
Balanced analogue and AES/EBU digital inputs and outputs.
Up to 55 seconds of seamless delay build / release.
On-air or audio file (CompactFlash™) delay build.
Local 'Cough' button.
3 'Dump' modes.
CompactFlash™ programme record / playback.
Relay bypass function (button or power loss activated)
Remote control (8 in, 6 out) for any unit function.
Front panel lock-out mode.
Typical Applications
Radio and TV phone in programs and chat shows where content needs to be censored.
Product Category
Delays & Synchronisors
Technical Specifications
A/D Specification
Maximum Input Level: +28dBu
Input Impedance: > 10kΩ bridging
Analogue & Digital Input Levels: Selectable +12dBu, +18dBu, +24dBu for FSD
Analogue Pre-set Input Gain Range: Adjustable 3dB loss to 3dB gain (L & R adjust)
Signal to Noise: Better than -101dBFS (RMS A-weighted at 24bit)
Dynamic Range: > 110dB
Distortion & Noise: > 96dB THD + N at 1kHz
D/A Specification
Maximum Output Level: +24dBu
Output Impedance: < 50Ω
Dynamic Range: > 100dB
Analogue Output Gain Range: Selectable -6dBu to +24dBu output level, ref FSD
Sampling Frequency: Selectable 32kHz, 44.1kHz or 48kHz
Sample Width: Selectable 16bit or 24bit
Channels: Stereo
Minimum Delay: 2 seconds
Maximum Delay: Dependent on sample and bit rates selected:
