The RB-FS42 4 + 2 audio failover switcher is a smaller channel count version of the RB-FS82, offering a lower number of inputs and outputs. It is a more cost effective solution where failover is needed for a smaller number of sources/destinations and supports all of the features of the RB-FS82. The device has 4 main + 2 standby, stereo analogue audio, AES/EBU digital audio and RS232 connections (both inputs and outputs) and can be configured via Ethernet for two main operational applications:
Product Features
Relay based switching.
Encoder site (Set via IP): 4 stereo program inputs, 4 + 2 stereo program outputs where each program input/Output carries: analogue L/R, stereo AES/EBU & RS232.
Encoder site: Each program output has an alarm detect GP input.
Decoder Site (Set via IP): 4 + 2 stereo program inputs, 4 program outputs where each program input carries: analogue L/R, stereo AES/EBU & RS232.
Decoder Site: Each program input has an alarm detect GP input.
4 programme I/O paths, 2 standby output paths.
AES/EBU transparent (for Dolby E transport).
Passive throughput in event of power outage.
GP output for signalling RB-FS42 alarm conditions: PSU 1/2 fail, Standby 1/2 active, Summary Alarm.
Automatic or Manual reversion modes.
LED indicators on front panel.
IP control, including Web GUI and SNMP.
Dual AC power supplies (select when ordering).
Typical Applications
As a failover switcher for multi channel audio transport over E1 or IP, typically as performed by APT Oslo, Prodys Nureus, where a N+1 topology is adopted.
Product Category
Failover Switchers
Technical Specifications
Audio Specification - Digital
The RB-FS42 uses passive fixed switching relays which don’t affect the overall audio performance
Audio Specification - Analogue
Crosstalk: >86dB
Front Panel Operational Controls
Manual Switching: Via Restore 1 & Restore 2 push-buttons
Front Panel Indicators
Power LEDs: 2 x Power indicators
Channel Status LEDs: 8 x Standby status indicators, 2 per channel.
Standby Restore LEDs: 2 x illuminated buttons.

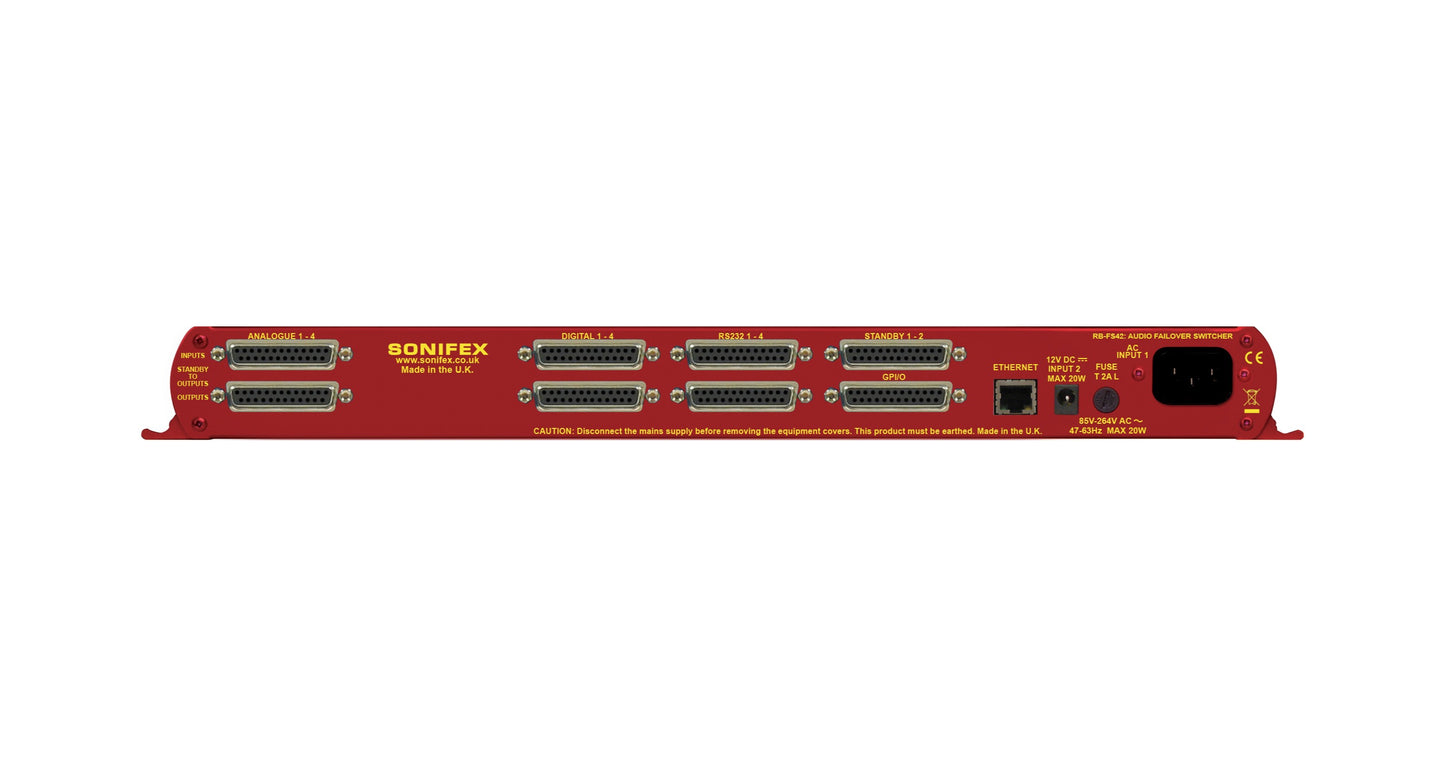

Rear Panel Connections
Analogue Inputs: 4 x differential stereo inputs across
Analogue Inputs: 1 x 25 way D-Types female
Digital Inputs: 4 x inputs on 1 x 25 way
Digital Inputs: D-Type female
Analogue Outputs: 4 x outputs on 1 x 25 way
Analogue Outputs: D-Type female
Digital Outputs: 4 x outputs on 1 x 25 way
Digital Outputs: D-Type female
RS232 Inputs: 4 x RS232 communication lines on
RS232 Inputs: 1 x 25 way D-Type female
RS232 Outputs: 4 x RS232 communication lines on
RS232 Outputs: 1 x 25 way D-Type female
GPI/O: Inputs & 5 outputs on
GPI/O: 1 x 25 pin D-Type female
Standby 1&2 Inputs: 2 x Analogue differential stereo inputs
Standby 1&2 Inputs: 2 x Stereo digital inputs
Standby 1&2 Inputs: 2 x RS232 communication line pairs on 1 x 25 way D-type female
Ethernet Port: 10/100Mbps on 1 x RJ45 socket for IP control, SNMP and web GUI
Mains Input AC: 1 x Universal filtered IEC, continuously rated 85-264VAC @47- 63Hz, max
Mains Input AC: 20W, plus 1 x 12V 1A DC supply, 2.5mm locking socket fused. (External DC supply not provided).
Fuse Rating AC: 1 x Anti-surge fuse 2A 20 x 5mm
Equipment Type
RB-FS42: Audio failover switcher, 4 + 2 inputs
Please Note: Separate DC power supplies are not provided as standard with the product.
Physical Specifications
Dimensions (Raw): 48cm(W) x 22cm(D) x 4.2cm(H) 1U
Dimensions (Raw): 19” (W) x 8.7” (D) x 1.7” (H) 1U
Dimensions (Boxed): 55cm(W) x 28cm(D) x 17cm(H)
Dimensions (Boxed): 21.7”(W) x 11”(D) x 6.7”
Weight: Nett: 2.1kg Gross: 3.5kg
Weight: Nett: 4.6lb Gross: 7.7lb
* Note that this product is deeper than standard Redboxes
